GE DS200SHVMG1AED Retrofit-Compatible Turbine Control Module

GE DS200SHVMG1AED Retrofit-Compatible Turbine Control Module for Legacy System Modernization

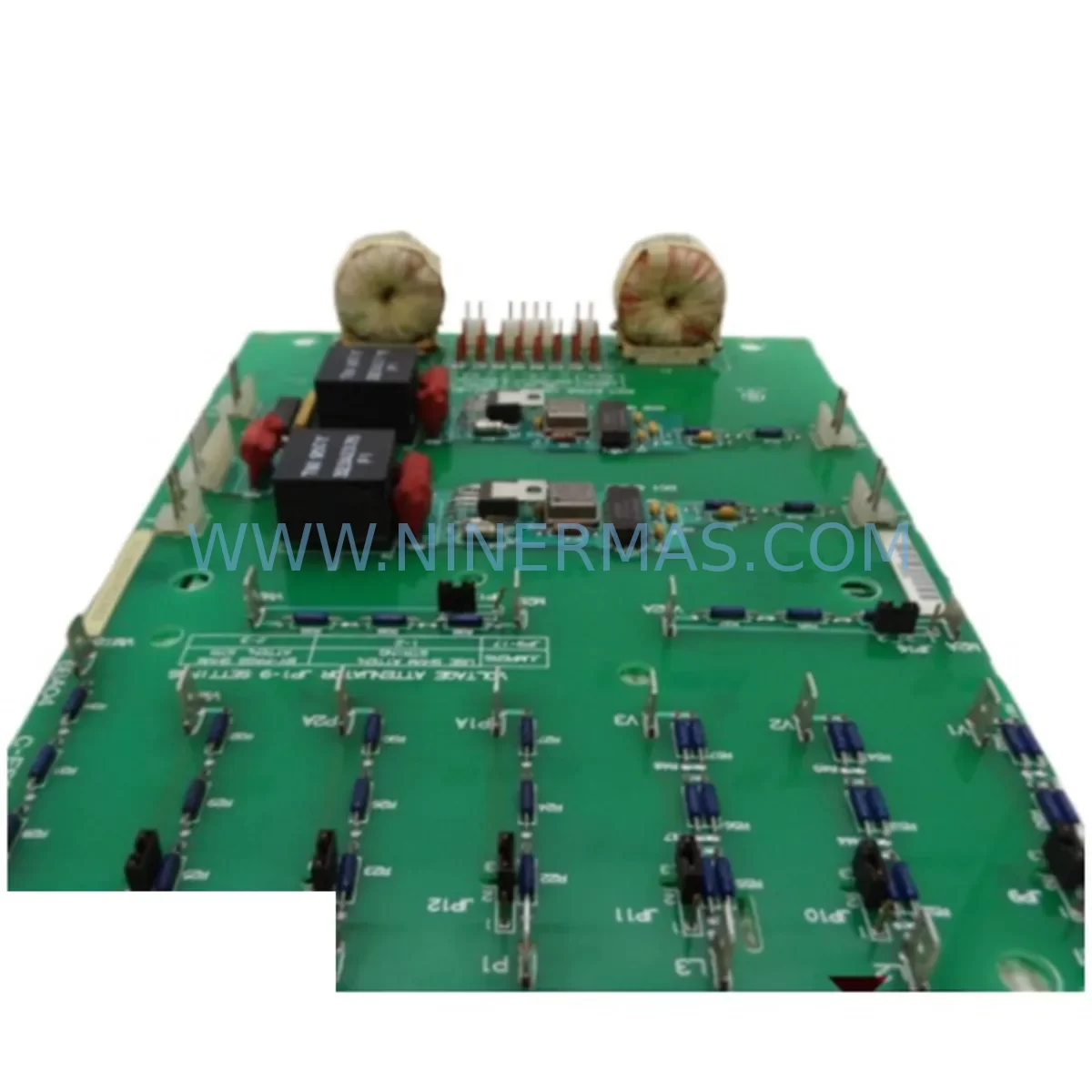

The GE DS200SHVMG1AED is a ruggedized servo drive and high-voltage interface module originally designed for GE’s Mark V Turbine Control System. As aging power generation facilities and industrial plants face the challenge of maintaining discontinued control architectures, the DS200SHVMG1AED has become a critical component in retrofit projects, spare parts lifecycle extension programs, and control panel upgrades across gas turbine, steam turbine, and combined-cycle plant environments.

NINERMAS maintains verified inventory of the DS200SHVMG1AED, sourced from decommissioned systems and authorized surplus channels, with each unit subject to functional testing and a 12-month warranty covering operational defects under normal industrial use conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200SHVMG1AED within an operational turbine control cabinet requires a structured approach that accounts for the interdependencies between multiple Mark V subsystem boards. Before initiating a swap, engineers should audit the full card cage configuration, including the DS200TCQAG1B (Turbine Control Quad processor board), the DS200SDCCG1A (Speed and Dynamics Control Card), and the DS200DSPCH1A (Digital Signal Processor board), all of which share backplane communication paths with the SHVMG module.

Power integrity is a foundational concern. The Mark V panel typically draws regulated voltages from a dedicated power supply such as the DS200PCCAG1A or DS200PCCAG1B. Before installing the DS200SHVMG1AED, technicians should measure actual rail voltages at the backplane connector under load conditions to confirm that the +5 VDC and ±15 VDC supplies remain within tolerance. A degraded power supply is a common root cause of premature board failure in aging panels and should be replaced proactively during any retrofit window.

Terminal board wiring is another critical checkpoint. The DS200SHVMG1AED interfaces with field devices through a dedicated terminal board — typically the DS200TBCAG1A or a site-specific equivalent — which carries servo command signals, feedback loops, and I/O connections to actuators and sensors. Technicians must cross-reference the existing wiring schedule against the replacement board’s terminal assignments to identify any pin-mapping differences between board revisions. Even minor revision changes (e.g., G1A vs. G1AED suffix) can introduce wiring incompatibilities that require jumper adjustments or terminal re-labeling.

For sites considering a longer-term migration from Mark V to Mark VIe, the DS200SHVMG1AED replacement serves as an interim stabilization step. The Mark VIe platform uses an entirely different I/O architecture based on the IS200 series modules and communicates over IONet Ethernet rather than the legacy ARCNET protocol. In such migration projects, the SHVMG module’s servo drive functions would eventually be assumed by IS200-series servo interface boards, and the HMI interface would transition from a legacy Cimplicity workstation to a modern ToolboxST-based operator interface. Planning for this transition while executing the immediate DS200SHVMG1AED swap allows engineering teams to document existing I/O maps, program logic, and HMI screen configurations in preparation for the full platform upgrade.

Where I/O expansion is required as part of the retrofit — for example, when adding new instrumentation loops or integrating third-party vibration monitoring systems — the Mark V architecture supports additional I/O through supplementary boards such as the DS200IIBDG1A (Intelligent Interface Board) or through external signal conditioners and isolators mounted in the same control cabinet. Ensuring that the backplane address assignments for any new or replacement boards do not conflict with existing module addresses is essential to avoid communication faults during startup.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any turbine control system retrofit. For a DS200SHVMG1AED replacement, the recommended approach is a planned outage swap executed during a scheduled maintenance window, with all preparatory steps completed offline in advance.

Prior to the outage, the engineering team should perform a full program backup using the site’s GE Toolbox or legacy programmer interface, capturing the current application logic, calibration constants, and I/O configuration. This backup serves as both a restoration baseline and a reference for verifying that the replacement board’s behavior matches the original after commissioning. HMI screen configurations and alarm setpoints should also be documented, as certain board-level parameter changes can affect displayed values on the operator interface.

During the swap, the replacement DS200SHVMG1AED should be installed with the panel de-energized, with all field wiring connections verified against the documented wiring schedule before power is restored. Upon re-energization, the board should be allowed to complete its self-diagnostic cycle before the control system is returned to automatic mode. Any fault codes generated during startup should be cross-referenced against the Mark V fault dictionary before clearing.

For sites where a cold outage is not feasible, a hot-standby configuration using the Mark V’s redundant controller architecture (where installed) can allow the replacement to be staged while the system remains in service on the redundant path. This approach requires careful coordination with the site’s control room operators and should only be attempted by personnel with direct Mark V experience.

Post-commissioning, a functional verification test covering servo response, speed signal feedback, and protective relay outputs should be completed before the unit is returned to full load operation. NINERMAS supplies each DS200SHVMG1AED with a pre-shipment functional test report to support site acceptance testing and reduce commissioning time.

Retrofit Support FAQ

Q1: Is the DS200SHVMG1AED a direct drop-in replacement for all Mark V panel configurations?
The DS200SHVMG1AED is designed for use within GE Mark V Speedtronic turbine control panels. While it is a like-for-like physical replacement in most standard Mark V configurations, customers should verify the board revision suffix and backplane slot address against their panel’s original bill of materials. Minor revision differences may require jumper or parameter adjustments. NINERMAS can assist with compatibility verification prior to shipment.

Q2: Has the unit been tested before shipment?
Yes. Every DS200SHVMG1AED supplied by NINERMAS undergoes functional testing prior to dispatch. A test report is included with each shipment. Units are packaged in anti-static materials with appropriate shock protection for international freight. The 12-month warranty covers functional defects identified under normal operating conditions from the date of delivery.

Q3: What wiring information do I need to provide for compatibility verification?
To confirm terminal wiring compatibility, please provide your panel’s wiring diagram or terminal board designation (e.g., DS200TBCAG1A), the existing board’s revision suffix, and the Mark V panel serial number or project number if available. This allows NINERMAS to cross-reference known configuration variants and advise on any wiring adaptation requirements before the replacement board is shipped.

Q4: Do you maintain stock for related Mark V components?
NINERMAS maintains inventory of a range of GE Mark V compatible components to support complete retrofit projects. Commonly requested items alongside the DS200SHVMG1AED include power supply boards, processor cards, terminal boards, and communication interface modules. Contact our team with your full bill of materials for a consolidated availability check and lead time confirmation.
