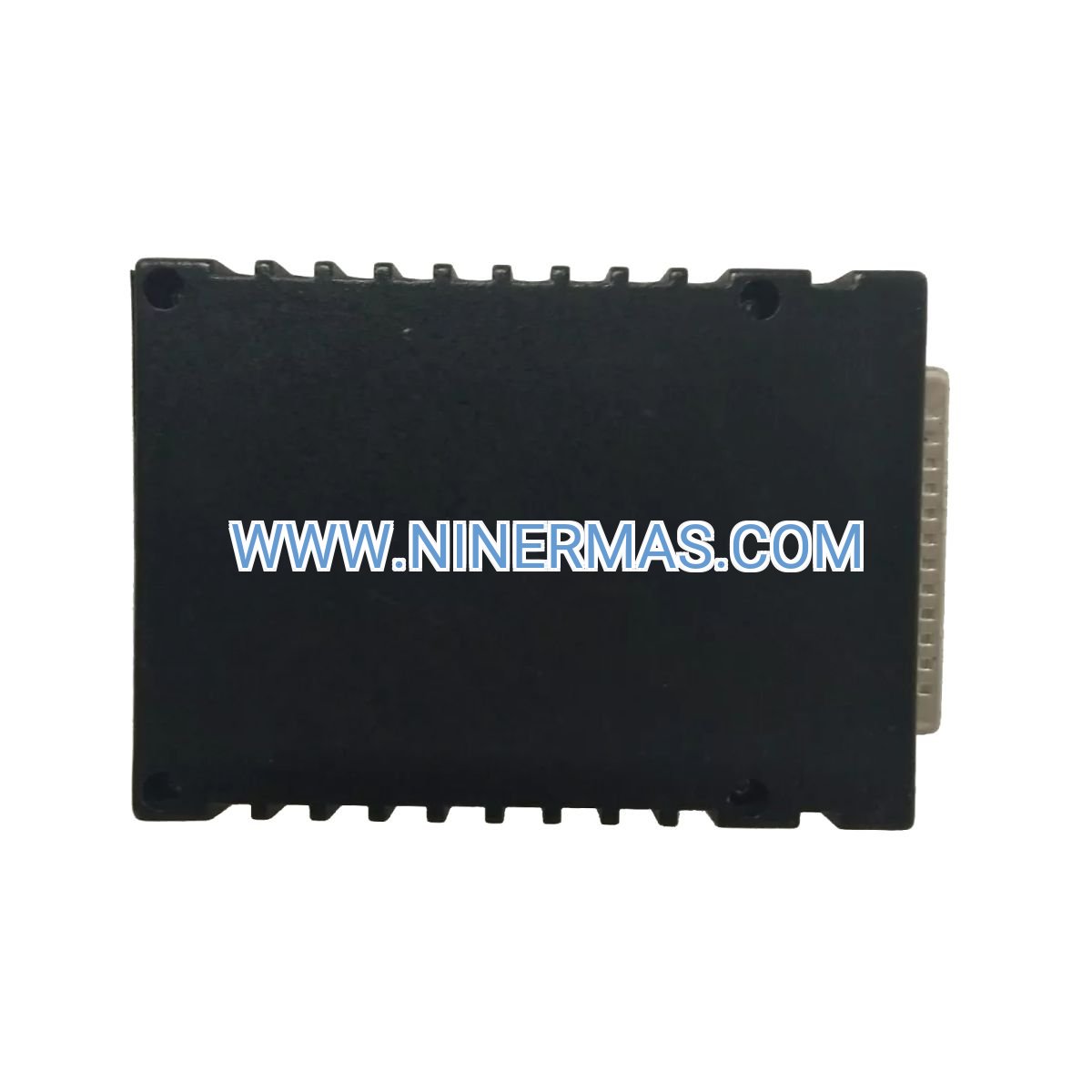

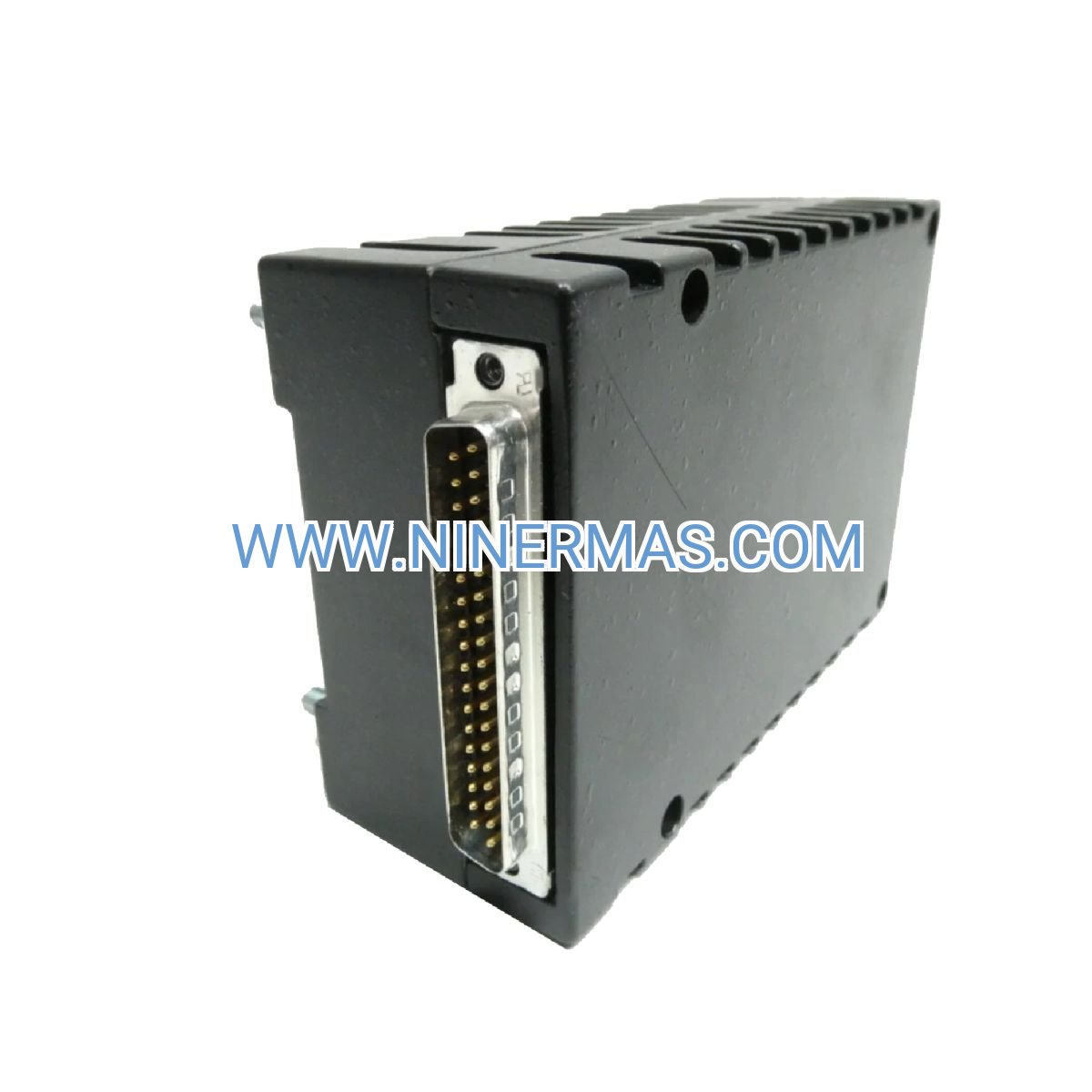

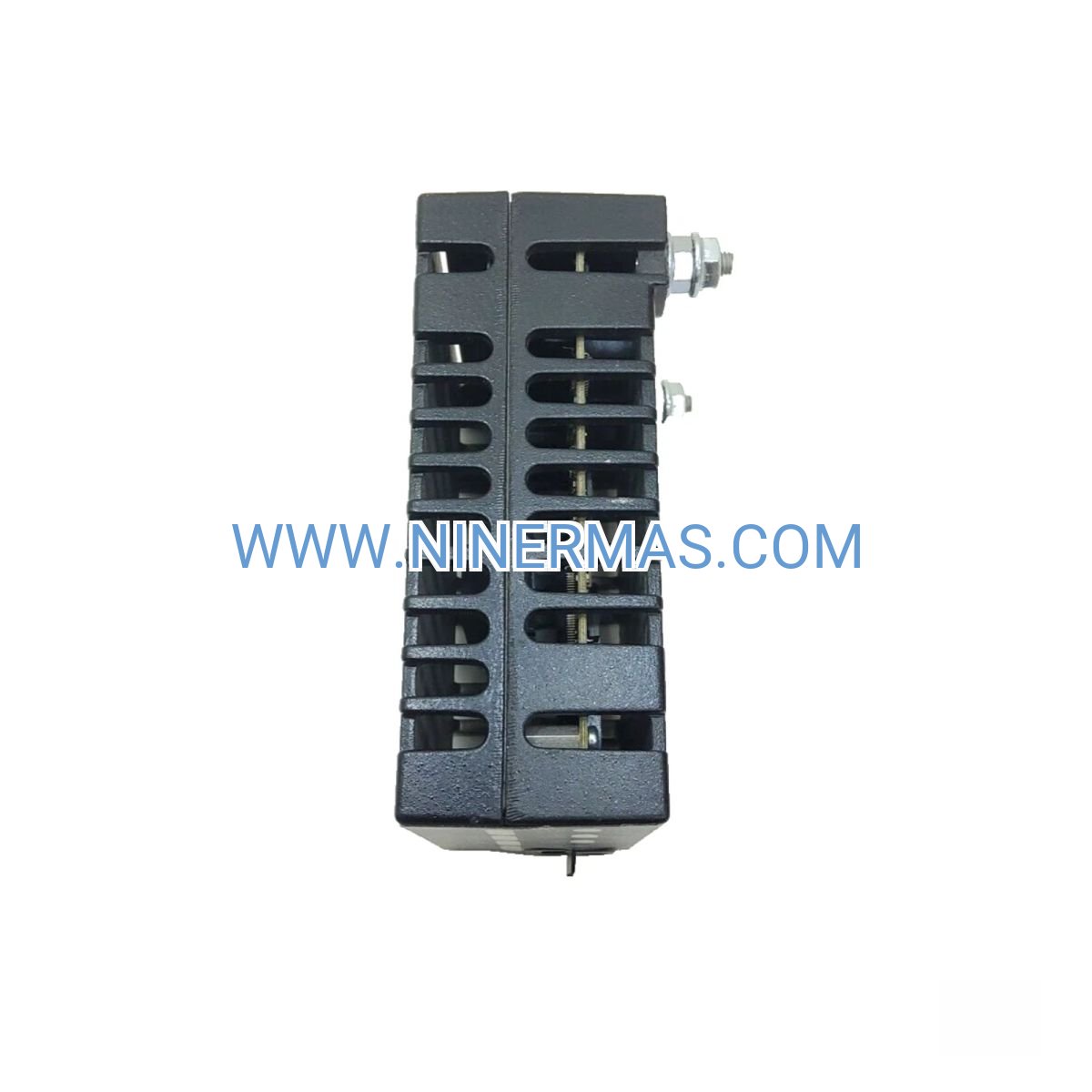

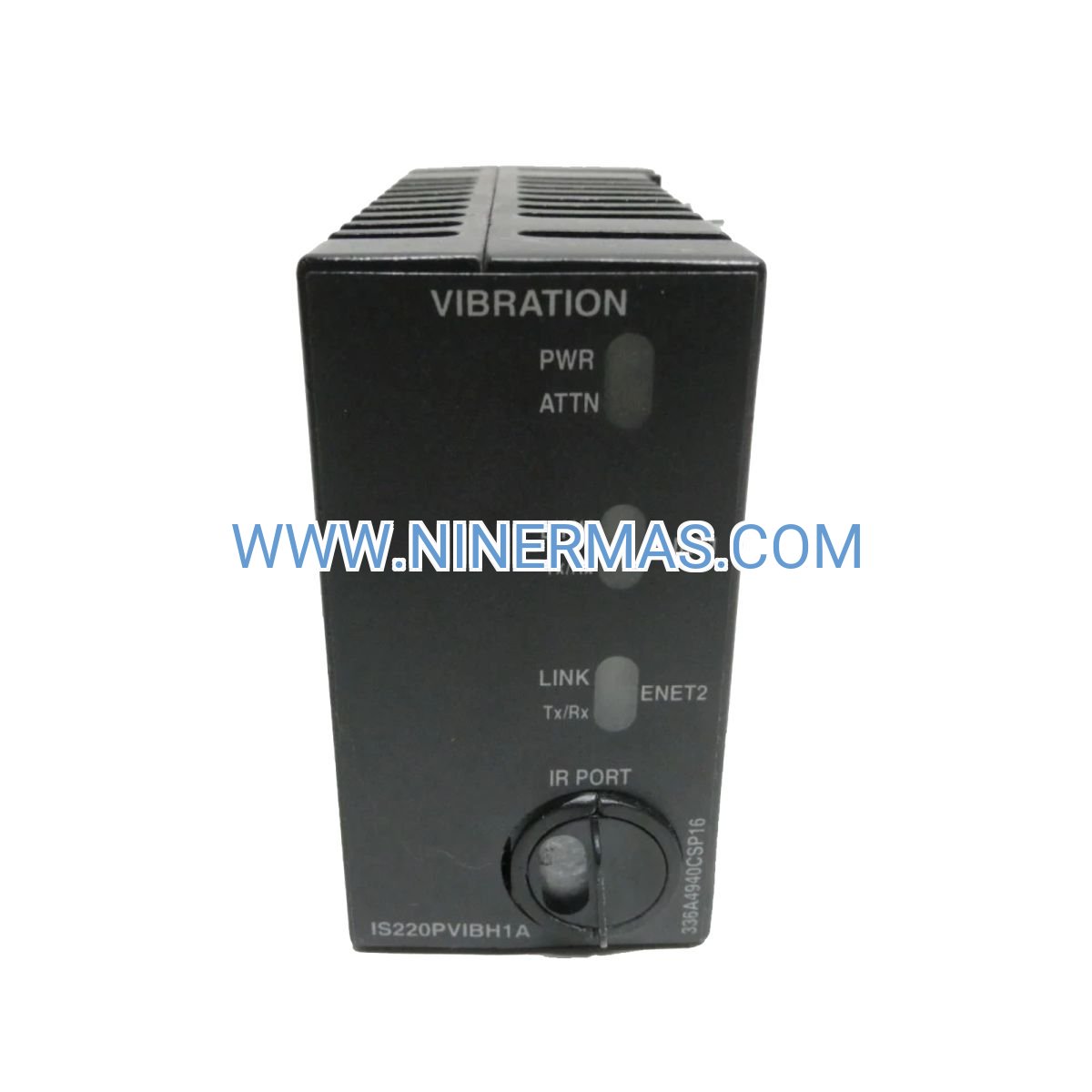

IS220PVIBH1A REV.G Vibration I/O Pack (Industrial-Grade Turbine Health Monitoring)

The IS220PVIBH1A REV.G represents GE Vernova's advanced vibration monitoring technology for mission-critical rotating equipment. This Mark VIe-compatible I/O pack transforms raw sensor signals into actionable intelligence, enabling operators to detect mechanical anomalies before they trigger costly shutdowns. Designed for power generation, oil & gas, and renewable energy sectors, this module delivers microsecond-level data acquisition with industrial-hardened reliability.

Plant engineers rely on this I/O pack to safeguard turbine assets worth millions of dollars. By continuously analyzing vibration signatures from proximity probes and accelerometers, the system identifies bearing degradation, rotor imbalance, and shaft misalignment during early development stages. Integration with Mark VIe control architecture provides seamless data flow to SCADA systems, enabling predictive maintenance strategies that reduce unplanned outages by 35-50%.

Whether you're retrofitting legacy Mark VI installations or commissioning new combined-cycle plants, the IS220PVIBH1A REV.G delivers the precision and durability required for 24/7 operation in harsh industrial environments. Factory-calibrated and hot-swappable, this module minimizes installation complexity while maximizing system uptime.

Core Features & Benefits

→ Multi-Channel Vibration Acquisition
Simultaneous monitoring of 8+ sensor inputs with 24-bit resolution ensures comprehensive coverage of turbine bearing assemblies, thrust positions, and casing vibration points. This parallel processing capability eliminates data gaps during transient events like startups and load changes.

→ Universal Sensor Compatibility
Native support for eddy current proximity probes (8mm/11mm), piezoelectric accelerometers, and velocity transducers eliminates the need for external signal conditioners. Integrated excitation power supplies and IEPE compatibility reduce installation costs by 20-30%.

→ Deterministic IONet Communication
High-speed fiber-optic IONet protocol delivers vibration data to Mark VIe controllers with <1ms latency, enabling real-time trip logic and protective shutdown sequences. Redundant communication paths ensure fail-safe operation during network disturbances.

✓ Extended Temperature Range (-40°C to +70°C)
Military-grade component selection and conformal coating protection allow installation in turbine enclosures, outdoor substations, and offshore platforms without environmental control requirements.

✓ Hot-Swap Capability with Bumpless Transfer
Field-replaceable design with automatic configuration download enables module replacement during operation without process interruption. Non-volatile memory preserves calibration data and alarm setpoints across power cycles.

✓ Built-In Diagnostics & Self-Test
Continuous background monitoring of sensor health, cable integrity, and signal quality generates early warnings for maintenance planning. LED status indicators and embedded web interface simplify troubleshooting.

Typical Application Scenarios

Combined-Cycle Power Plants
In CCGT facilities, the IS220PVIBH1A monitors gas turbine generator bearings, steam turbine journal positions, and HRSG circulation pump vibration. When integrated with the GE IS200TURH1BED protection terminal board, it forms a complete machinery safeguarding system that meets API 670 standards. Operators gain visibility into rotor dynamics during synchronization, load ramping, and frequency regulation events—preventing catastrophic failures that could cost $5-15 million in repairs and lost generation revenue.

Petrochemical Compressor Trains
Refinery and LNG applications demand continuous monitoring of centrifugal compressor vibration across multiple stages. The IS220PVIBH1A processes signals from radial and axial proximity probes, detecting surge conditions, seal rubs, and aerodynamic instabilities. Paired with the GE IS420UCSCH1A controller, it executes anti-surge control algorithms while archiving spectral data for root cause analysis of recurring machinery issues.

Offshore Wind Turbine Drivetrains
Marine environments subject wind turbine gearboxes to extreme vibration and shock loads. This I/O pack monitors main bearing radial displacement, high-speed shaft acceleration, and generator rotor eccentricity—feeding data to condition-based maintenance systems. Integration with the GE IS215WETAH1A wind control board enables automated yaw brake engagement when vibration thresholds indicate imminent gearbox failure, protecting 8-15 MW turbine investments.

Industrial Gas Turbine Mechanical Drives
Pipeline compressor stations and offshore production platforms use Frame 5/6 gas turbines for mechanical drive applications. The IS220PVIBH1A tracks bearing temperature correlation with vibration amplitude, identifying lubrication system degradation before bearing seizure occurs. Remote monitoring via Ethernet/IP connectivity allows centralized surveillance of unmanned facilities across multiple geographic sites.

Steam Turbine Retrofits & Upgrades
When modernizing 1970s-era steam turbines with obsolete Woodward or Westinghouse controls, the IS220PVIBH1A provides a migration path to Mark VIe platforms. Its ability to interface with legacy 4-20mA vibration transmitters preserves existing sensor infrastructure while adding advanced diagnostics like orbit analysis, Bode plots, and waterfall spectrograms.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the IS220PVIBH1A when your application requires high-fidelity vibration monitoring with deterministic communication to Mark VIe controllers. For standalone vibration monitoring without control system integration, consider dedicated condition monitoring platforms. If your system uses Mark VI controllers, verify IONet adapter compatibility or plan for controller upgrades. Applications requiring SIL 3 certification should implement dual-redundant I/O packs with voting logic in the controller layer.

For turbines with more than 8 vibration measurement points, cascade multiple IS220PVIBH1A modules on the same IONet segment. Each module supports unique addressing, allowing systems to scale from small Frame 5 turbines (8-12 points) to large Frame 9 installations (40+ points) without architectural changes.

Extended Functions

Advanced Signal Processing
Embedded DSP algorithms perform real-time FFT analysis, order tracking, and envelope detection. Configurable alarm bands (1X, 2X, subsynchronous) trigger protective actions without external processing hardware. Trend data buffering captures 72 hours of statistical parameters (peak, RMS, crest factor) for post-event analysis.

IIoT & Cloud Connectivity
When paired with the GE IS420ESWBH1A Ethernet switch, vibration data streams to cloud-based analytics platforms via OPC UA or MQTT protocols. Machine learning models hosted on AWS or Azure consume this data to predict remaining useful life (RUL) and optimize maintenance intervals—reducing spare parts inventory by 25-40%.

Customization & OEM Integration
GE Vernova offers factory customization for unique sensor interfaces, specialized filtering requirements, or proprietary communication protocols. OEM partners in turbine manufacturing, compressor packages, and marine propulsion integrate the IS220PVIBH1A into turnkey control panels with pre-configured alarm logic and HMI graphics.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via DHL/FedEx International Priority. Custom configurations (firmware modifications, extended temperature testing) require 10-15 business days. Bulk orders (10+ units) qualify for factory-direct shipment with 3-4 week lead times and volume pricing discounts.

Warranty Coverage: All IS220PVIBH1A modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs (24/36 months) are available with annual calibration verification and priority RMA processing. Warranty claims are processed within 5 business days with advance replacement options for critical applications.

Technical Support: Our application engineering team provides pre-sale consultation on sensor selection, wiring diagrams, and system architecture design. Post-installation support includes remote commissioning assistance, firmware updates, and troubleshooting via phone/email/video conference. Access to GE's global service network ensures on-site support in 180+ countries.

Documentation Package: Each module ships with installation manual (GEH-6700K), quick-start guide, calibration certificate, and RoHS/REACH compliance declarations. Downloadable resources include CAD drawings (STEP/DWG), PLC integration examples, and ToolboxST configuration files.

Frequently Asked Questions

Can the IS220PVIBH1A interface with non-GE turbine control systems?
Yes, through Modbus TCP or Ethernet/IP gateways. While optimized for Mark VIe platforms, the module's standard industrial protocols enable integration with Siemens T3000, Emerson Ovation, or Honeywell Experion DCS systems. Custom protocol converters are available for legacy systems using proprietary fieldbus networks.

What is the maximum cable length between sensors and the I/O pack?
Proximity probes: 300 meters (1000 ft) with shielded twisted-pair cable. Accelerometers (IEPE): 150 meters (500 ft) with low-capacitance coaxial cable. For longer distances, use in-line signal conditioners or fiber-optic vibration transmitters. Cable capacitance and resistance must stay within sensor manufacturer specifications to maintain accuracy.

Does this module support wireless vibration sensors?
Not directly. However, wireless sensor gateways with 4-20mA outputs can connect to the analog input channels. For native wireless integration, consider the GE Bently Nevada 3500 series with wireless adapters, which can share data with Mark VIe controllers via Modbus.

How do I migrate from Mark VI to Mark VIe using this I/O pack?
The IS220PVIBH1A requires Mark VIe controller hardware (IS420UCSCH1A or IS420YDOAS1B). Migration involves replacing the Mark VI VVIB board with the IS220PVIBH1A, updating controller firmware to ToolboxST v8.0+, and re-mapping I/O points in the control logic. GE offers migration services including pre-tested configuration packages and on-site commissioning support.

What preventive maintenance does the I/O pack require?
Minimal. Inspect fiber-optic connectors annually for contamination, verify LED status indicators during routine rounds, and review diagnostic logs quarterly. Firmware updates are released every 18-24 months to address security patches and feature enhancements. No periodic calibration is required—factory calibration remains valid for the module's operational life.

Can I use this module in hazardous area (explosive atmosphere) installations?
The IS220PVIBH1A carries ATEX Zone 2 certification for installation in control rooms adjacent to hazardous areas. For Zone 1/0 applications, mount the module in a purged enclosure (Type X/Y pressurization per IEC 60079-2) or use intrinsically safe barriers on sensor circuits. Consult local electrical codes and GE's hazardous location installation guide (GEH-6421).

Partner with Industrial Control Hub

Secure your turbine assets with genuine GE Vernova components backed by expert technical support. Request a quote today for the IS220PVIBH1A REV.G vibration I/O pack, or consult our engineers to design a complete Mark VIe monitoring solution tailored to your facility's requirements. Volume discounts available for multi-unit projects and system integrators.
