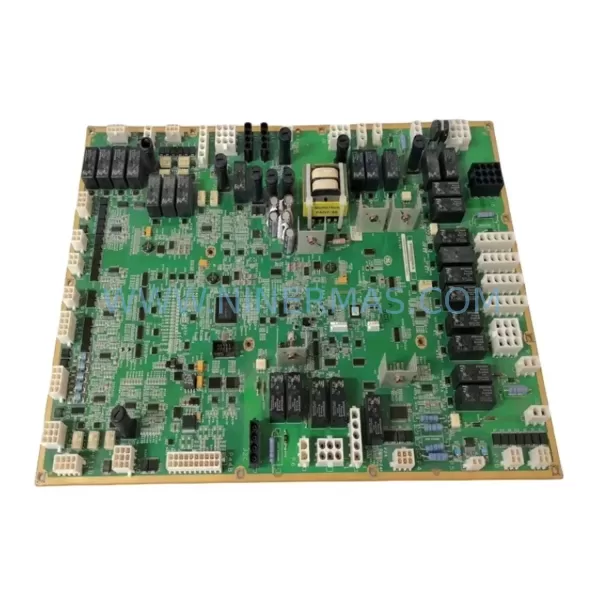

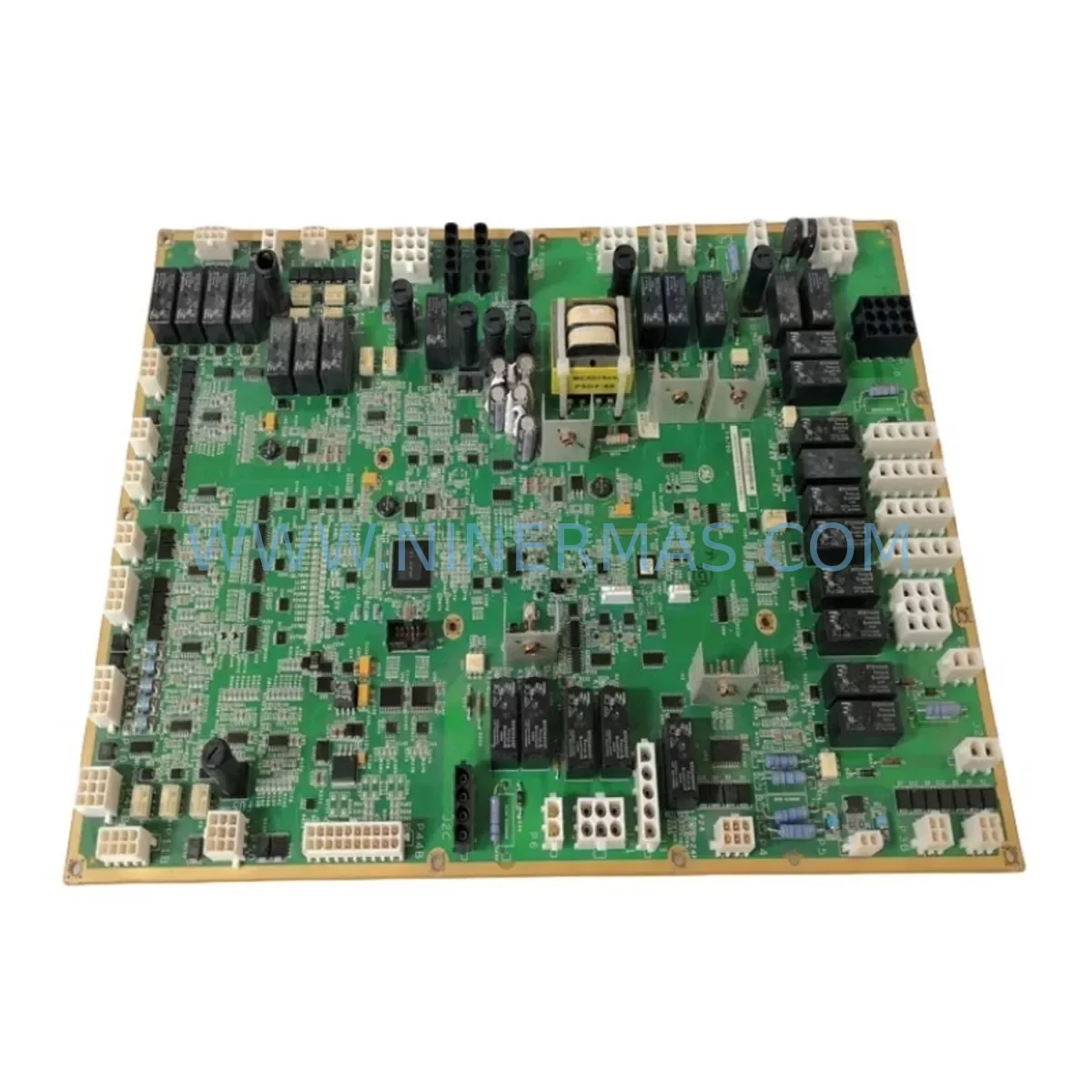

GE IS215WEMAH1A Retrofit-Compatible WEMAH Module

GE IS215WEMAH1A Retrofit-Compatible WEMAH Module: Legacy System Compatibility & Smooth Upgrade

The GE IS215WEMAH1A is a critical control module within the GE Mark VI Turbine Control System platform, widely deployed across power generation, oil & gas, and heavy industrial facilities. As aging Mark VI installations approach end-of-life and OEM support windows close, plant engineers and maintenance teams are increasingly tasked with sourcing retrofit-compatible replacements that preserve existing wiring infrastructure, program logic, and HMI configurations without requiring a full control system overhaul. The IS215WEMAH1A addresses this need directly — serving as a proven drop-in solution for legacy WEMAH-series positions within the Mark VI I/O rack architecture.

Whether your facility is managing a planned outage upgrade, responding to an unplanned module failure, or executing a phased migration from Mark V to Mark VI or Mark VIe, the IS215WEMAH1A provides the electrical and functional compatibility required to restore turbine control continuity with minimal downtime. NINERMAS maintains verified stock of this module and ships with full functional testing documentation and a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS215WEMAH1A into an existing Mark VI control cabinet begins well before the module arrives on site. Retrofit planning must account for the full scope of the control architecture — from the turbine control rack and I/O backplane through to the operator workstation and field instrumentation.

Start by auditing the existing rack layout. The Mark VI system typically houses the IS215WEMAH1A alongside other I/O modules such as the IS215WAIAH1A (analog input), IS215WTBAH1A (terminal board), and IS215WFPAH1A (flame detector input). Each module occupies a defined slot address that must be preserved in the ToolboxST configuration. Swapping a module without verifying the slot assignment will cause the controller — typically an IS215VCMIH2C or IS200VCMIH2C VME controller module — to flag a hardware mismatch alarm and may prevent turbine startup.

Power distribution is another critical checkpoint. The IS215PSAAL1A power supply module feeds the I/O rack, and its available current budget must be confirmed before adding or replacing modules. If the existing power supply is already operating near capacity — common in older installations where additional I/O has been added over the years — a parallel IS200PSAAL1A or upgraded supply may be required before the IS215WEMAH1A can be safely installed.

Field wiring connected to the TREG or TPRO terminal board associated with the WEMAH position should be documented and photographed before any work begins. In most retrofit scenarios, the terminal board itself is retained and only the I/O module is replaced, which eliminates the need to re-terminate field cables. However, if the terminal board is also being upgraded — for example, migrating from a TREG to a TPRO for improved signal isolation — each wire must be re-landed according to the updated terminal assignment drawing.

Communication link integrity must be verified after module installation. The IS215WEMAH1A communicates over the IONet segment managed by the VME controller. After replacement, the IONet diagnostic screen in ToolboxST should confirm that the module is online and responding. If the system also includes an IS215UCVEH2A or IS215UCVEH2B UCV Ethernet module for remote diagnostics or historian connectivity, verify that the new module’s I/O data is correctly appearing in the data stream before returning the unit to service.

For facilities executing a broader migration from Mark V to Mark VI, the IS215WEMAH1A is often part of a larger bill of materials that includes replacement of the IS200TREGH1B terminal board, IS215WFPAH1A flame input module, and IS215WAIAH1A analog input module. Signal isolators may also be required at the field junction box level if the new I/O modules have different input impedance characteristics than the legacy Mark V equivalents. Confirm signal loop calculations before commissioning.

Programming cable access is required for the initial ToolboxST download after module replacement. Ensure that the IS200CABPG1B or equivalent programming cable and laptop with the correct ToolboxST version are available on site before the maintenance window begins. Attempting to commission without the correct software version can result in configuration errors that extend downtime unnecessarily.

Downtime Control During System Migration

Minimizing turbine or process downtime during a Mark VI module replacement requires a structured pre-outage preparation protocol. The goal is to reduce the active maintenance window to the time strictly necessary for physical module swap, program download, and functional verification — typically 2 to 4 hours for a single-module replacement when all preparatory steps have been completed in advance.

Before the outage begins, the existing ToolboxST application should be backed up and archived. This backup preserves the complete I/O configuration, alarm setpoints, control logic, and module addressing — providing a recovery baseline if the replacement module exhibits unexpected behavior. The backup should be stored both locally and on a secure network share accessible from the maintenance laptop.

During the outage, follow the Mark VI module removal sequence: place the controller in manual mode, inhibit relevant alarms, remove the I/O module from the rack, install the IS215WEMAH1A in the same slot, and perform the ToolboxST download. The download process re-establishes the module’s I/O mapping and communication parameters. After download, verify that all analog and digital I/O points associated with the WEMAH position are reading correctly before releasing the turbine for restart.

HMI continuity is maintained throughout this process because the tag names and addresses in CIMPLICITY or iFIX are tied to the ToolboxST configuration, not to the physical module serial number. As long as the slot address and I/O mapping are preserved, the HMI will resume normal display immediately after the controller re-establishes communication with the replacement module.

For facilities with redundant (TMR) Mark VI configurations, the replacement can often be performed with the turbine online by taking the affected redundancy leg out of service, replacing the module, and re-synchronizing the TMR vote before returning the leg to active status. This approach eliminates the need for a full turbine shutdown and is the preferred method for critical baseload units where extended outages carry significant generation cost.

NINERMAS ships the IS215WEMAH1A with a pre-shipment functional test report confirming that the module has been powered, initialized, and verified against GE Mark VI electrical specifications. This documentation supports your site acceptance testing protocol and provides traceability for maintenance records. All units are covered by a 12-month warranty from the date of shipment.

Retrofit Support FAQ

Q1: Is the IS215WEMAH1A a direct drop-in replacement for my existing WEMAH module?
In most Mark VI installations, yes. The IS215WEMAH1A is designed to occupy the same rack slot and use the same backplane connector as other IS215-series WEMAH modules. However, you should confirm the hardware revision of your existing backplane and terminal board before ordering. If your system uses an older IS200-series backplane, minor wiring adapter differences may apply. Contact our technical team with your existing module part number and we will confirm compatibility before shipment.

Q2: What commissioning steps are required after installing the IS215WEMAH1A?
After physical installation, connect the maintenance laptop via the IS200CABPG1B programming cable and open ToolboxST. Navigate to the hardware configuration, confirm the module is recognized in the correct slot, and perform a full application download. Verify all I/O points associated with the WEMAH position — particularly excitation feedback signals and generator protection inputs — before releasing the unit for operation. Document the post-installation I/O scan results as part of your maintenance record.

Q3: Can I use the IS215WEMAH1A in a system that is being migrated from Mark V to Mark VI?
Yes. The IS215WEMAH1A is a Mark VI native module and is fully compatible with new Mark VI rack builds used in Mark V migration projects. During migration, the existing Mark V I/O wiring is typically re-terminated to new Mark VI terminal boards such as the IS200TREGH1B or TPRO series. The IS215WEMAH1A then interfaces with these terminal boards in the new rack. Your migration contractor should provide an I/O cross-reference document mapping Mark V signal addresses to Mark VI equivalents to guide the ToolboxST configuration.

Q4: What does the 12-month warranty cover, and what is your stock availability?
The 12-month warranty covers functional failure of the IS215WEMAH1A under normal operating conditions, including defects in electronic components and firmware. It does not cover damage resulting from incorrect installation, overvoltage, or physical impact. NINERMAS maintains inventory of the IS215WEMAH1A and can confirm current stock and lead time upon inquiry. Units are shipped with a pre-shipment test report. For urgent requirements, expedited shipping is available to most destinations.
