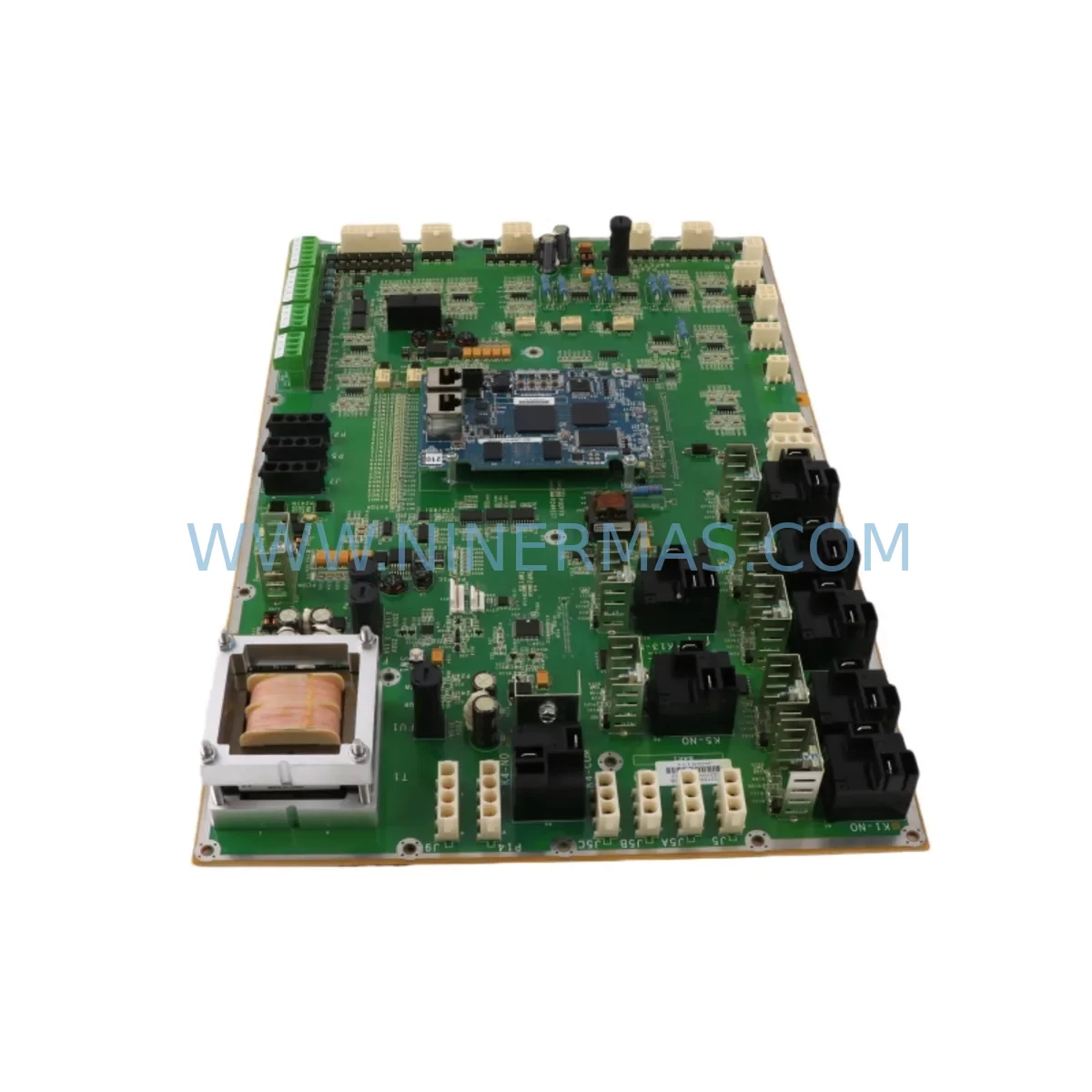

GE IS215WEMAH1B Retrofit-Compatible I/O Module for Legacy Systems

GE IS215WEMAH1B Retrofit-Compatible I/O Module for Legacy Systems

The GE IS215WEMAH1B is a high-reliability analog I/O module designed for the GE Mark VIe turbine control platform. As legacy Mark V and Mark VI systems approach end-of-life and OEM support discontinuation, the IS215WEMAH1B has become a critical retrofit component for engineers tasked with modernizing gas turbine, steam turbine, and compressor control systems without full DCS replacement. Whether you are executing a phased upgrade, restoring a failed control cabinet, or extending the operational life of an existing Mark VIe rack, this module delivers the signal conditioning, terminal compatibility, and firmware alignment required for a smooth transition.

The IS215WEMAH1B functions as an analog input/output interface within the Mark VIe I/O pack architecture. It is typically mounted on a TRPAH or TRPBH terminal board and communicates with the Mark VIe controller — such as the IS420UCSBH1A or IS420UCSBH2A — via the IONet Ethernet backbone. During retrofit planning, engineers must verify that the existing terminal board model matches the wiring pinout of the IS215WEMAH1B, as substituting an incompatible terminal board can result in signal inversion, ground loop issues, or communication faults at startup.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS215WEMAH1B into an existing control architecture requires a structured pre-installation audit. Begin by documenting the current rack layout, including the position of all installed I/O modules, power distribution modules, and communication modules. In a typical Mark VIe cabinet, the IS215WEMAH1B shares the rack with modules such as the IS200VTURH1B (turbine protection I/O), IS215VCMIH2B (VME communication interface), and IS200TREGH1B (terminal board for regulation signals). Confirming that these adjacent modules are functioning correctly before swapping the IS215WEMAH1B prevents misdiagnosis of pre-existing faults as retrofit-induced failures.

Terminal wiring is one of the most time-sensitive steps in any retrofit. The IS215WEMAH1B connects to field instruments — typically 4–20 mA transmitters, RTDs, or thermocouples — through its associated terminal board. Before disconnecting any wiring, photograph and label every terminal connection. Cross-reference the existing loop drawings against the IS215WEMAH1B I/O signal list to confirm channel mapping. If the legacy system used a Mark VI VMIO module with a different terminal board pinout, a wiring adapter or new terminal board such as the TRPAH1C may be required to maintain signal integrity without re-pulling field cables.

Power budget verification is non-negotiable. The IS215WEMAH1B draws power from the Mark VIe I/O power rail. If the existing IS200EPSMG1A power supply module is already operating near capacity due to other I/O modules in the rack, adding or replacing a module without recalculating the load can cause undervoltage trips or intermittent communication dropouts on the IONet segment. Always request a power audit from the site electrical team before finalizing the retrofit bill of materials.

For sites migrating from legacy Modbus RTU or PROFIBUS DP communication architectures to the IONet Ethernet protocol used by the Mark VIe platform, additional planning is required. A protocol gateway or communication bridge module may be needed to maintain connectivity with existing SCADA systems or third-party HMI panels during the transition period. The IS215WEMAH1B itself communicates natively over IONet, so any upstream SCADA integration must be handled at the controller or gateway level — typically through the IS420UCSBH series controller’s Ethernet ports or an IS200AEAAH1A analog output module configured as a bridge interface.

HMI screen validation is often overlooked during I/O module retrofits. After replacing the IS215WEMAH1B, verify that all associated analog tags are correctly mapped in the ToolboxST configuration and that the HMI display — whether a GE Cimplicity workstation or a third-party SCADA panel — reflects accurate engineering unit values. A misconfigured scaling factor in the ToolboxST I/O configuration can cause the HMI to display out-of-range values even when the physical signal is correct, leading to unnecessary alarm activations during the post-retrofit commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer executing a control system retrofit on an operating turbine or compressor train. When replacing the IS215WEMAH1B in a live Mark VIe system, the recommended approach is to pre-configure the replacement module offline using a ToolboxST laptop and a bench test rack before the scheduled maintenance window. This allows the module’s firmware version, I/O channel assignments, and diagnostic parameters to be validated against the site-specific ToolboxST project file without consuming valuable outage time.

During the actual swap, follow the Mark VIe hot-swap procedure if the system architecture supports it. In simplex configurations, a brief control interruption is unavoidable; in TMR (Triple Modular Redundant) configurations, the IS215WEMAH1B can often be replaced in one redundant leg while the other two legs maintain control continuity. Confirm the redundancy architecture with the site DCS engineer before proceeding. After physical installation, use ToolboxST to force a module re-scan, verify IONet communication status, and confirm that all analog channels report expected values before releasing the unit back to automatic control.

Preserving the original program logic is critical. Never overwrite the existing ToolboxST project file without creating a verified backup. Store the backup on both the engineering workstation and an offline USB drive. If the retrofit involves any changes to I/O channel assignments or scaling parameters, document every modification in the site change management system and obtain sign-off from the responsible control engineer before energizing the new module. This protects both the plant and the retrofit team in the event of a post-commissioning incident investigation.

Retrofit Support FAQ

Q1: Is the IS215WEMAH1B a direct drop-in replacement for Mark VI VMIO analog modules?
The IS215WEMAH1B is designed for the Mark VIe platform and is not a direct plug-and-play replacement for Mark VI VMIO series modules due to differences in backplane connector design and communication protocol. A terminal board change and ToolboxST reconfiguration are typically required. Our technical team can review your existing rack layout and provide a detailed compatibility assessment before shipment.

Q2: What commissioning steps are required after installing the IS215WEMAH1B?
After physical installation, connect the engineering laptop running ToolboxST to the Mark VIe controller via the IONet segment. Perform a module discovery scan, verify that the IS215WEMAH1B appears with the correct hardware revision, and download the updated I/O configuration. Confirm all analog channel values against known field instrument readings before returning the system to automatic control. Our team provides pre-shipment functional testing and can supply a test report upon request.

Q3: How do I verify wiring compatibility before installing the IS215WEMAH1B?
Compare the existing terminal board model number against the IS215WEMAH1B’s supported terminal board list (TRPAH / TRPBH). If the current terminal board is incompatible, a new terminal board must be installed and field wiring re-terminated. We recommend requesting the IS215WEMAH1B installation manual and wiring diagram from our sales team prior to scheduling the maintenance window to avoid on-site delays.

Q4: What warranty and stock availability does NINERMAS offer for the IS215WEMAH1B?
All IS215WEMAH1B units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. We maintain in-stock inventory to support urgent retrofit and emergency replacement requirements. Units are functionally tested prior to shipment, and a test report is available upon request. For lead time confirmation and bulk pricing, contact our sales team directly.
