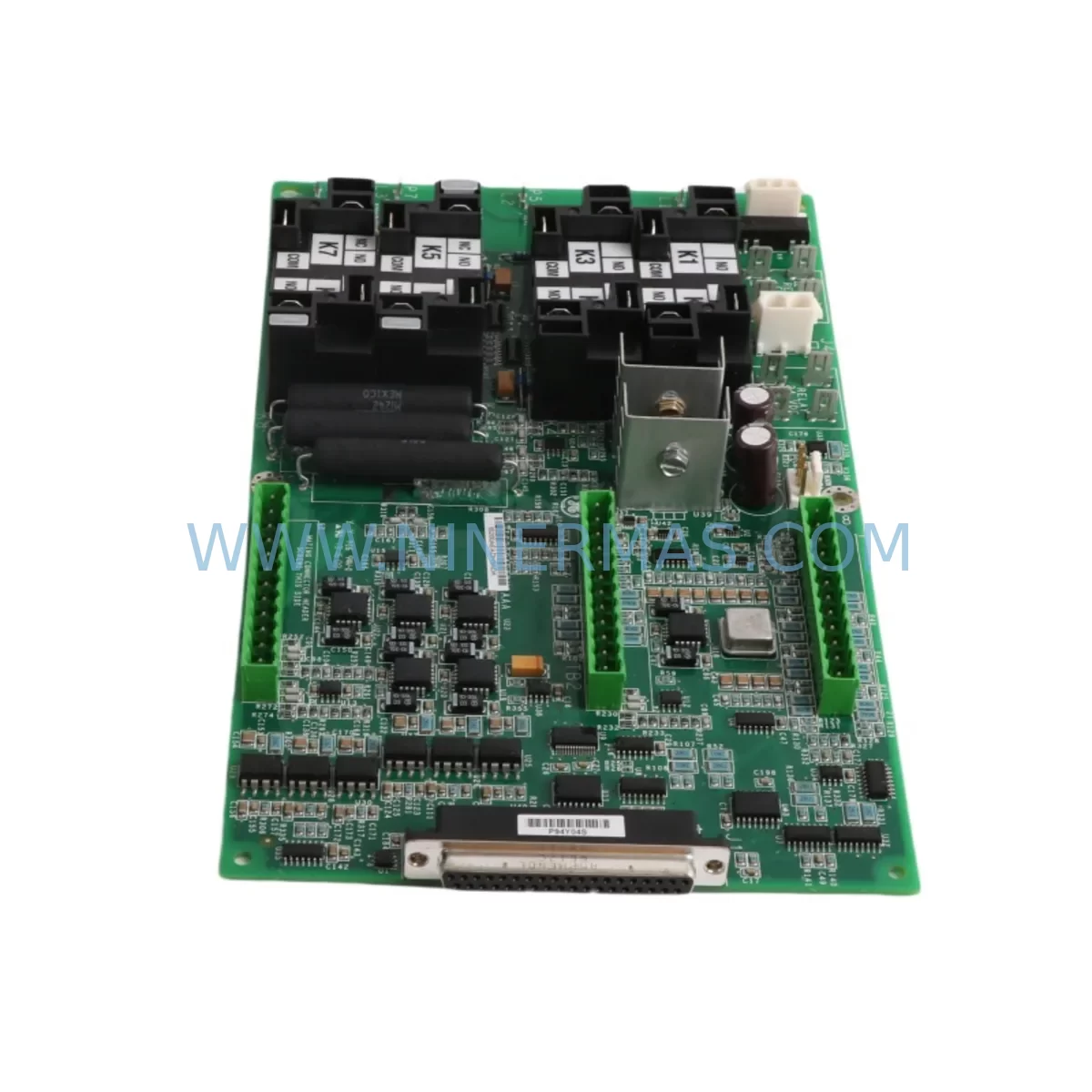

The GE IS200AEADH4A is an original analog input module designed for GE’s IS200 series Mark VI turbine control systems. In industrial environments where unplanned downtime translates directly into production losses and safety risks, having a verified, service-ready spare of the IS200AEADH4A on hand is a cornerstone of any proactive maintenance strategy. NINERMAS supplies this module as a tested, original-source component backed by a 12-month warranty, ensuring your control cabinet can be restored to full operation with minimal delay.

The IS200AEADH4A functions as a critical analog signal acquisition node within the Mark VI distributed control architecture. It interfaces directly with field sensors — thermocouples, RTDs, pressure transmitters, and 4–20 mA process signals — feeding real-time data to the turbine control processor. A failure or degradation of this module can result in loss of process visibility, spurious trips, or unsafe operating conditions. Maintenance engineers responsible for gas turbines, steam turbines, or combined-cycle power plants will recognize the IS200AEADH4A as a high-priority item on any annual inspection or emergency spare list.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the IS200AEADH4A, the scope of inspection should extend beyond the module itself. The IS200 series Mark VI control cabinet is an integrated system, and a fault in one analog input channel often signals stress or aging in adjacent components that share the same power rail, backplane slot, or signal loop.

Begin by verifying the IS200AEADH4A‘s upstream power supply — the IS200EPBAG1A power supply board or equivalent Mark VI power distribution module should be checked for output voltage stability and ripple. A degraded power supply can cause intermittent analog reading errors that mimic a faulty input module. Alongside this, inspect the IS200TBCIH1C terminal board, which provides the physical I/O termination for field wiring connected to the analog input module; corroded terminals or loose connections here are a common root cause of signal drift.

For sites running redundant Mark VI configurations (TMR — Triple Modular Redundancy), the corresponding IS200AEADH4A modules in the R, S, and T controllers should be cross-checked simultaneously. A mismatch in analog readings between redundant channels is an early warning sign that one module is beginning to fail. During this inspection, also review the IS200ACLAH1A analog output module if the control loop includes both input and output functions — aging in one direction often correlates with stress in the other.

Communication integrity is equally important. The IS200EACFG1A IONet communication module manages data exchange between the analog input module and the Mark VI processor. If the IS200AEADH4A is replaced but IONet faults persist, the communication module or its fiber-optic connections should be the next diagnostic target. Similarly, the IS200VCRCH1BBB VME controller card or equivalent processor module should be verified for firmware compatibility with the replacement IS200AEADH4A.

For field signal integrity, inspect the signal isolators and surge protection devices installed on the 4–20 mA loops feeding the IS200AEADH4A. Industrial environments with variable-frequency drives (VFDs), large motors, or arc furnaces nearby are prone to common-mode noise that can degrade analog accuracy over time. Replacing the IS200AEADH4A without addressing upstream signal quality will result in recurring faults.

Procurement engineers building a comprehensive spare parts inventory for a Mark VI-controlled turbine should also consider stocking the IS200TRLYH1C relay output module for trip and alarm circuits, the IS200DSPXH1D digital signal processor board for control logic execution, and the IS200BICLH1C for binary I/O functions. These modules share the same IS200 backplane architecture and are subject to similar aging cycles. A well-structured spare parts kit covering analog input, analog output, digital I/O, relay output, power supply, and communication modules ensures that any single-point failure in the Mark VI cabinet can be resolved within one maintenance shift — minimizing turbine downtime and protecting revenue.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the IS200AEADH4A from service, document all active analog channel readings via the Mark VI HMI (typically a GE Cimplicity or ToolboxST workstation). Record baseline values for all connected sensors. This data serves as the acceptance benchmark after the replacement module is installed.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. For TMR systems, the faulted controller can often be replaced online without a full turbine shutdown — confirm this with your Mark VI system documentation before proceeding. For simplex configurations, a controlled shutdown is required.

Step 3 — Module Removal and Inspection: Remove the IS200AEADH4A from its backplane slot. Inspect the backplane connector pins for corrosion, bent contacts, or debris. Clean with appropriate electronics-grade contact cleaner if necessary. A damaged backplane connector can cause the replacement module to fail prematurely.

Step 4 — Replacement Installation: Insert the new IS200AEADH4A into the correct slot. Ensure the module is fully seated and the locking mechanism is engaged. Restore power and observe the Mark VI diagnostic LEDs for normal startup indication.

Step 5 — Functional Verification: Using ToolboxST or the site SCADA/DCS, verify that all analog channels are reading within expected ranges. Compare against the pre-replacement baseline. Confirm no IONet communication faults are present. Document the replacement in the site maintenance log with the module serial number and date.

Step 6 — Return-to-Service: For TMR systems, verify that the replaced controller has re-synchronized with the other two controllers before returning the turbine to full load. Monitor the system for 24–48 hours post-replacement for any residual anomalies.

NINERMAS ships the IS200AEADH4A with a full functional test report. Each unit undergoes bench testing prior to dispatch, and the 12-month warranty covers both component failure and workmanship. Long-term supply agreements are available for power generation operators and EPC contractors requiring guaranteed stock availability.

Spare Parts Support FAQ

Q1: Is the IS200AEADH4A you supply an original GE component or a third-party replacement?
NINERMAS supplies original IS200AEADH4A modules sourced from authorized channels. Each unit is verified for authenticity and tested for full functional performance before shipment. We do not supply counterfeit or reverse-engineered substitutes.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers any failure attributable to component defect or manufacturing workmanship under normal operating conditions. To initiate a claim, contact NINERMAS at sale@ninermas.com with your order reference and a description of the fault. We will arrange return shipping and provide a replacement or repair within an agreed timeframe.

Q3: Can the IS200AEADH4A be used as a direct replacement for older IS200 series analog input modules with different suffix letters?
Suffix variants within the IS200AEADH4A family (e.g., H1A, H2A, H4A) may have hardware revision differences. NINERMAS recommends confirming the exact part number required for your Mark VI configuration before ordering. Our technical team can assist with compatibility verification based on your system’s ToolboxST configuration file or panel drawing.

Q4: Do you offer long-term supply agreements for IS200 series spare parts?
Yes. NINERMAS supports long-term supply contracts for power generation operators, OEM service providers, and industrial maintenance teams requiring guaranteed stock of IS200 series components including the IS200AEADH4A and related modules. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing and lead time commitments.
