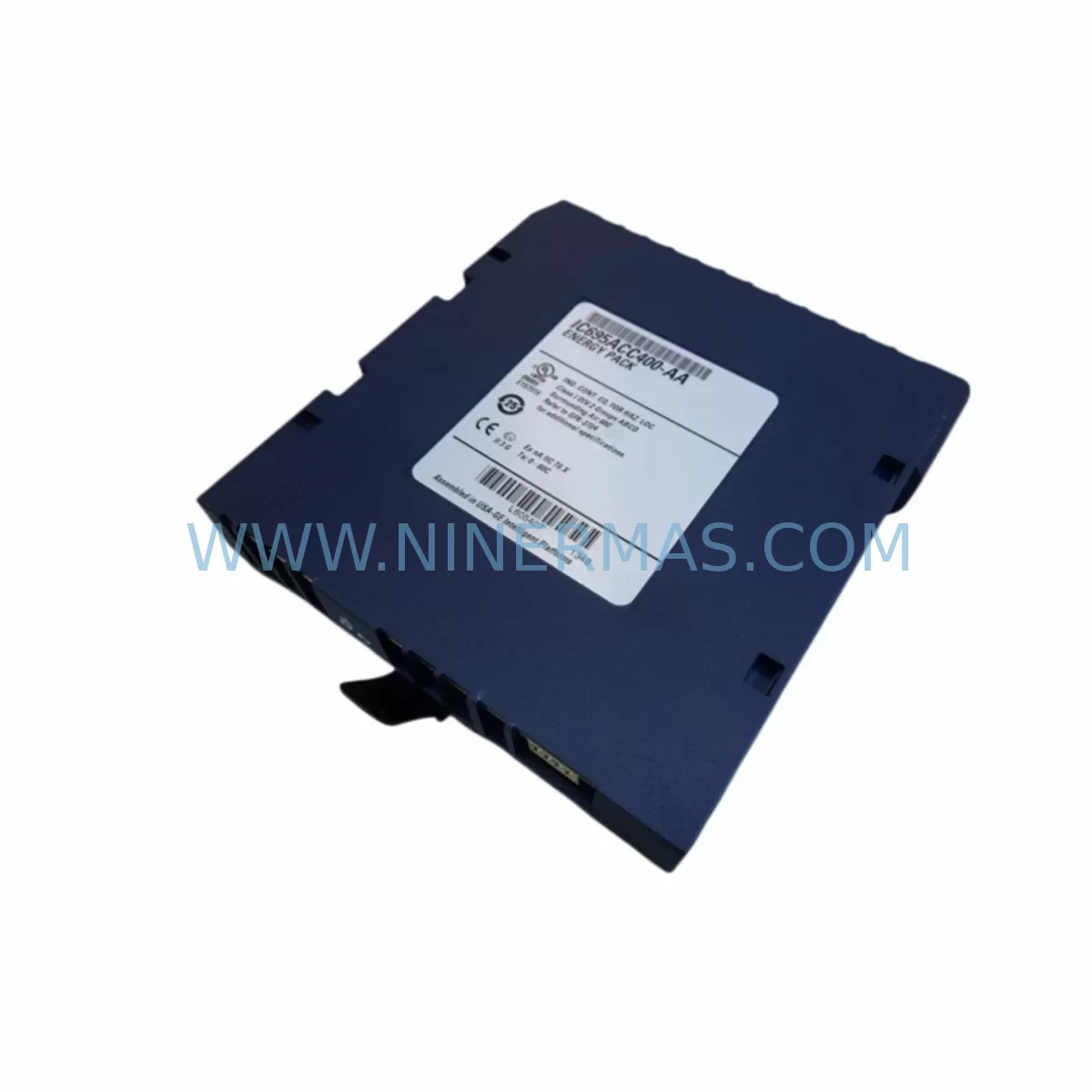

GE IC695ACC400-AA Retrofit-Compatible CPU Energy Pack

GE IC695ACC400-AA Retrofit-Compatible CPU Energy Pack for Legacy PACSystems RX3i Modernization

The GE IC695ACC400-AA is a ruggedized CPU energy pack module engineered for the GE PACSystems RX3i platform, providing sustained backup power to the CPU during power interruptions and controlled shutdowns. As legacy automation systems age and original spare parts reach end-of-life, the IC695ACC400-AA has become a critical component in retrofit projects, discontinued model replacements, and control cabinet upgrades across process manufacturing, oil & gas, water treatment, and discrete manufacturing environments.

Whether you are replacing a failed energy pack in an aging RX3i rack, migrating from an older Series 90-30 platform, or extending the operational life of an existing PACSystems installation, the IC695ACC400-AA delivers the compatibility and reliability required for uninterrupted industrial control.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IC695ACC400-AA into an existing control system begins well before the module arrives on-site. Engineers undertaking a retrofit or spare-parts replacement should first audit the installed RX3i rack configuration. Confirm the backplane model — whether an IC695CHS007 (7-slot), IC695CHS012 (12-slot), or IC695CHS016 (16-slot) — and verify that the target slot adjacent to the CPU is physically available and unobstructed.

Power budget validation is the next critical step. The RX3i power supply module — typically an IC695PSA040 or IC695PSD040 — must have sufficient headroom to support the energy pack alongside all installed I/O and communication modules. In dense configurations that include analog input modules such as the IC695ALG600, high-density digital I/O modules, and communication interface modules like the IC695ETM001 Ethernet module or IC695PBM300 PROFIBUS master, the power margin should be recalculated before installation.

Terminal wiring and field I/O connections are unaffected by the energy pack swap, but it is good practice to document all terminal assignments on modules such as the IC694MDL754 discrete output or IC694ALG220 analog input before any rack disturbance. If the retrofit involves relocating the CPU to a new rack position, module addressing in the Proficy Machine Edition (PME) project must be updated to reflect the new slot assignments, and the program must be re-downloaded and verified.

For sites migrating from the older Series 90-30 platform to PACSystems RX3i, the IC695ACC400-AA is part of a broader upgrade bill of materials that typically includes a new RX3i CPU, updated power supply, and I/O adapter modules. Signal isolation requirements should be reviewed, particularly where legacy 4–20 mA loops interface with new RX3i analog modules. In some installations, signal isolators or marshalling panels may need to be added to maintain loop integrity during the transition.

HMI screen updates are often overlooked during energy pack replacements but become relevant in full platform migrations. If the site uses a GE QuickPanel or third-party HMI communicating via SRTP or Modbus TCP, verify that the CPU IP address and register mapping remain consistent after the upgrade to avoid HMI communication faults on restart.

Downtime Control During System Migration

Minimizing production downtime during an energy pack replacement or broader RX3i retrofit requires a structured pre-outage preparation plan. Before taking the system offline, perform a full backup of the CPU program using Proficy Machine Edition, saving both the hardware configuration and the ladder/function block logic to a secure engineering workstation. Confirm that the backup file opens correctly and that all I/O forcing and override states are documented.

The IC695ACC400-AA replacement itself is a cold-swap procedure — the rack must be de-energized before module insertion. Plan the outage window to coincide with a scheduled maintenance period or shift change to limit production impact. In facilities with redundant CPU configurations using the IC695RMX128 redundancy memory xchange module, a controlled switchover to the secondary CPU can allow the primary rack to be serviced with minimal process interruption.

After installation, power the rack and allow the energy pack to complete its initial charge cycle before returning the system to automatic mode. Verify CPU status LEDs, confirm I/O module health in the PME diagnostics view, and check communication link status for all connected Ethernet and serial devices. A structured loop check — confirming that each field input and output responds correctly — should be completed before handing the system back to operations. The entire replacement procedure, when well-prepared, can typically be completed within a two-to-four hour maintenance window, preserving original program logic and field wiring without modification.

Retrofit Support FAQ

Q1: Is the IC695ACC400-AA a direct replacement for the standard IC695ACC400?
Yes. The IC695ACC400-AA is the ruggedized variant of the IC695ACC400 and is fully compatible with all RX3i backplanes and CPUs that support the standard version. It can be installed in the same slot without any configuration changes in the PME project.

Q2: What commissioning steps are required after installing the IC695ACC400-AA?
After cold-swapping the module into the rack and restoring power, allow the energy pack to complete a full charge cycle (typically 15–30 minutes under normal operating conditions). Verify that the CPU recognizes the module in the hardware configuration diagnostics. No firmware update or re-download of the user program is required for a like-for-like replacement.

Q3: Can this module be used in a rack that also contains third-party I/O or communication modules?
Yes, provided the overall rack power budget is within the capacity of the installed RX3i power supply. The IC695ACC400-AA does not interfere with communication protocols or I/O module operation. Always recalculate the power budget when adding modules to an existing rack configuration.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Units are tested prior to shipment to verify charge and discharge performance. In-stock units are typically available for same-day or next-business-day dispatch. Contact our team for current inventory status and expedited shipping options.
