GE IC695ACC400 Retrofit-Compatible CPU Energy Pack

GE IC695ACC400 Retrofit-Compatible CPU Energy Pack: Legacy System Compatibility & Smooth Upgrade

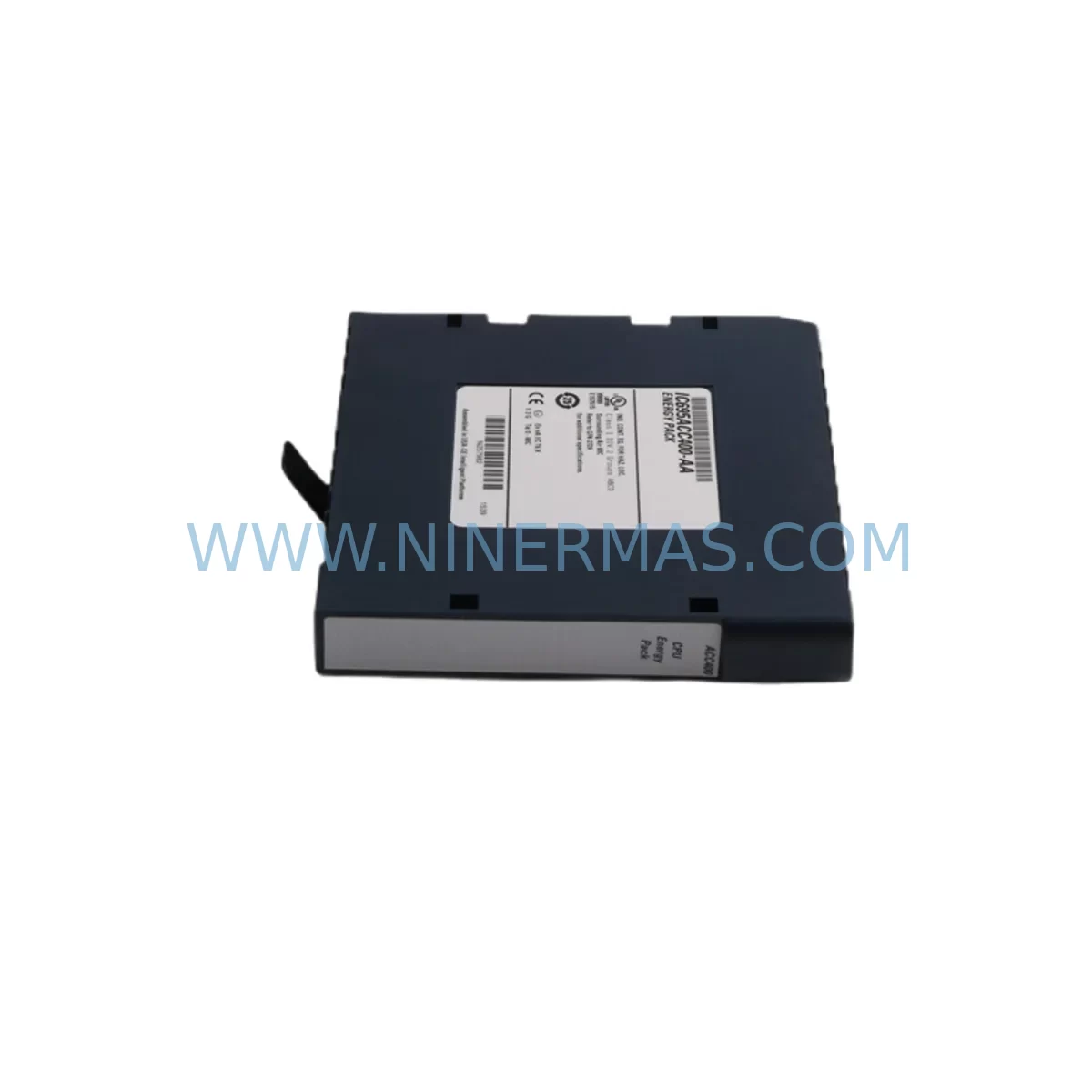

The GE IC695ACC400 is a ruggedized CPU Energy Pack designed for the GE PACSystems RX3i platform, providing reliable backup power to the CPU module during power interruptions and controlled shutdowns. As legacy automation systems age and original spare parts become increasingly difficult to source, the IC695ACC400 has become a critical component in retrofit projects, discontinued model replacements, and control cabinet upgrades across process industries, discrete manufacturing, and infrastructure applications.

NINERMAS maintains verified stock of the IC695ACC400 with full functional testing prior to shipment, a 12-month warranty, and rapid dispatch to support planned maintenance windows and emergency breakdowns alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the IC695ACC400 into an existing PACSystems RX3i control system, engineers must account for several interdependencies across the control cabinet. The IC695ACC400 occupies a dedicated slot on the RX3i universal backplane — typically the IC695CHS012 (12-slot) or IC695CHS016 (16-slot) — so confirming available backplane real estate is the first step in any retrofit plan.

Power budget verification is equally important. The IC695PSA140 or IC695PSD040 power supply modules feeding the backplane must have sufficient headroom to support the energy pack’s charging circuit alongside the CPU and any co-resident I/O modules such as the IC695ALG600 analog input module or IC695MDL654 discrete output module. Overloaded power supplies are a common cause of intermittent energy pack faults in aging control cabinets.

For systems that have been running legacy GE Series 90-30 or Series 90-70 controllers, migration to the PACSystems RX3i platform often involves re-mapping I/O addresses, converting ladder logic using the PACSystems conversion utility, and re-engineering HMI screens in iFIX or Proficy HMI/SCADA to reflect the new tag database. During this transition, the IC695ACC400 ensures that the new RX3i CPU retains its program and data table contents through any unplanned power loss during the cutover period — a critical safeguard when the control system is being commissioned in a live production environment.

Communication module migration is another area requiring careful planning. If the legacy system used a GE SNP or SNPX serial protocol, the retrofit may introduce an IC695PBM300 PROFIBUS master module or an IC695ETM001 Ethernet module to modernize the communication architecture. The IC695ACC400 operates independently of these communication modules, but its presence protects the CPU’s Ethernet configuration and IP address settings from being lost during power cycling — reducing re-commissioning time after each maintenance intervention.

Signal isolation requirements should also be reviewed. Where legacy wiring connects directly to older I/O racks, adding IC695ALG728 analog output modules or IC695MDL740 discrete input modules may require terminal block rewiring. Documenting terminal assignments before the retrofit begins and verifying continuity after installation prevents signal errors that can delay startup. The IC695ACC400 supports this process by allowing the CPU to execute a controlled shutdown sequence, preserving the last-known I/O state for diagnostic review.

Downtime Control During System Migration

Minimizing production downtime is the primary concern in any industrial control system retrofit. The IC695ACC400 directly supports this objective by enabling the PACSystems RX3i CPU to complete an orderly shutdown when main power is lost — writing final data values to non-volatile memory, closing open communication sessions, and logging a timestamped shutdown event to the CPU fault table.

For planned maintenance windows, the recommended approach is to pre-stage the IC695ACC400 alongside any other replacement modules — such as a spare IC695CPE310 CPU or a replacement IC695PSA140 power supply — so that the entire swap can be completed within a single shift. Pre-shipment functional testing by NINERMAS ensures that the energy pack arrives ready to install, eliminating the risk of receiving a defective unit during a time-critical outage.

Where hot-standby redundancy is configured using a pair of IC695CPE330 CPUs and an IC695RMX128 redundancy memory xchange module, the IC695ACC400 must be installed in both the primary and secondary CPU chassis. Asymmetric energy pack configurations — where only one CPU has a functioning energy pack — can cause unexpected redundancy switchovers during power disturbances, extending rather than reducing downtime.

After installation, the commissioning checklist should include verifying the energy pack charge status via the CPU’s built-in web server or through Proficy Machine Edition (PME) diagnostics, confirming that the CPU fault table shows no energy pack-related faults, and performing a controlled power-down test to validate that the shutdown sequence executes correctly before returning the system to production.

Retrofit Support FAQ

Q: Is the IC695ACC400 a direct replacement for all revisions of the GE PACSystems RX3i CPU energy pack?
A: Yes. The IC695ACC400 is compatible across all hardware revisions of the RX3i CPU energy pack. No firmware updates or configuration changes are required in the CPU. Simply insert the module into the designated backplane slot and allow a full charge cycle to complete before testing.

Q: Does replacing the IC695ACC400 require any changes to the PLC program or HMI configuration?
A: No program or HMI changes are needed. The IC695ACC400 is a transparent power support module. The CPU automatically detects its presence and updates the energy pack status bits in the system status reference table, which can be monitored in Proficy Machine Edition without any additional programming.

Q: What wiring or terminal block work is involved in installing the IC695ACC400?
A: The IC695ACC400 connects directly to the RX3i backplane with no external wiring. There are no terminal blocks, field wiring connections, or cable assemblies associated with this module. Installation is limited to inserting the module into the correct backplane slot with the system powered down.

Q: What does NINERMAS’s 12-month warranty cover for the IC695ACC400?
A: All IC695ACC400 units supplied by NINERMAS are functionally tested prior to shipment and covered by a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. A pre-shipment test report is available upon request. For warranty claims or technical support, contact sale@ninermas.com or call +0086 187 5021 5667.
