GE IC693MDL240 Retrofit-Compatible Output Module for Legacy Systems

GE IC693MDL240 Retrofit-Compatible Output Module: Seamless Legacy System Upgrade for Series 90-30 Platforms

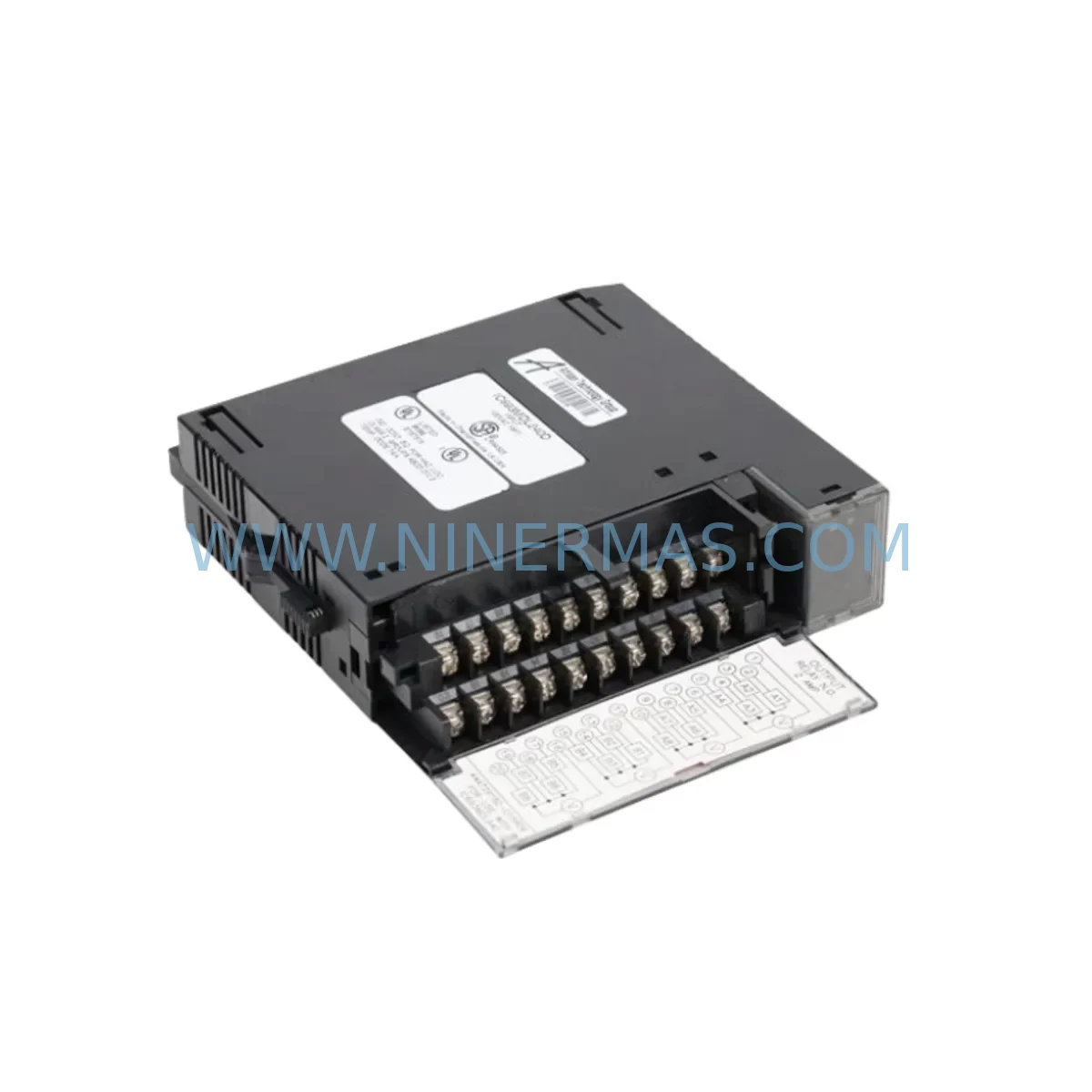

The GE IC693MDL240 is a 120 VAC discrete output module designed for the GE Series 90-30 programmable logic controller platform. With a 0.5A per point output rating and 16 output channels, this module has served as a core I/O component in manufacturing lines, process control panels, and utility automation systems for decades. As GE Fanuc (now Emerson / Proficy) has transitioned its product roadmap, the IC693MDL240 has become a critical spare part for facilities committed to maintaining their existing Series 90-30 infrastructure without undertaking a full control system overhaul.

NINERMAS supplies the IC693MDL240 as a verified retrofit-compatible replacement module, fully tested prior to shipment and backed by a 12-month warranty. Whether you are replacing a failed output module on an active production line, building a spare parts buffer for long-term lifecycle management, or executing a phased control cabinet upgrade, the IC693MDL240 integrates directly into your existing Series 90-30 rack without requiring program changes or hardware reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IC693MDL240 in an operational Series 90-30 system requires a structured approach to avoid unplanned downtime and protect existing program logic. Before initiating the swap, maintenance engineers should confirm the slot address assigned to the outgoing module using the GE Proficy Machine Edition programming environment. The module’s I/O reference address — typically in the %Q discrete output table — must be verified against the current ladder diagram to ensure the replacement module is inserted into the correct rack slot and that no address conflicts exist with adjacent modules such as the IC693MDL241 (120 VAC input module) or IC693MDL340 (relay output module).

Power supply capacity is a critical pre-check. The Series 90-30 rack power supply — commonly the IC693PWR321 or IC693PWR330 — must have sufficient 5 VDC backplane current headroom to support the IC693MDL240 alongside other installed modules. If the existing power supply is operating near its rated capacity, this is an opportune moment to evaluate an upgrade to the IC693PWR331 high-capacity supply, which provides additional margin for expanded I/O configurations.

Terminal block wiring should be documented photographically before removal of the failed module. The IC693MDL240 uses a removable terminal block, which simplifies field replacement — the wiring harness can be transferred directly to the new module without re-terminating individual conductors. Engineers should inspect terminal screws for corrosion and verify torque specifications during reinstallation, particularly in high-vibration or high-humidity environments.

For systems that include a GE IC693CMM321 or IC693CMM311 communications module for Ethernet or serial connectivity, no changes to the communication configuration are required when replacing an output module. The CPU continues to manage I/O scanning and communication independently of the output module swap. However, if the system uses a IC693PCM300 or IC693PCM301 programmable coprocessor module in the same rack, engineers should confirm that the coprocessor’s shared memory map does not reference the specific output module slot being replaced.

HMI screens connected via IC693CMM321 Ethernet or via a dedicated CIMPLICITY or iFIX SCADA node should be reviewed to confirm that any animated output status indicators tied to the %Q addresses of the IC693MDL240 will continue to function correctly after the module swap. In most cases, no HMI reconfiguration is required for a like-for-like module replacement, but this step is essential when the replacement involves a different output module type or point count.

Signal isolation requirements should also be assessed during retrofit planning. In mixed-voltage control cabinets where the IC693MDL240 operates alongside DC input modules such as the IC693MDL654 or analog modules such as the IC693ALG220, proper grounding and shielding practices must be maintained to prevent signal interference. If the control cabinet layout is being reorganized as part of the upgrade, consider grouping AC output modules together and separating them from low-voltage analog and communication modules using grounded metal dividers.

Downtime Control During System Migration

Minimizing production interruption during an IC693MDL240 replacement begins with pre-staging the replacement module and all required tools before the maintenance window opens. Because the Series 90-30 platform does not support hot-swap of standard I/O modules, the CPU must be placed in STOP mode before the module is removed. Engineers should use Proficy Machine Edition to force all outputs associated with the IC693MDL240 to a safe state — typically de-energized — before stopping the CPU, ensuring that actuators, solenoids, and motor starters controlled by the module reach a known safe condition.

The existing ladder program should be backed up to the programming workstation via the IC693CBL316 or IC693CBL301 serial programming cable, or via Ethernet if the IC693CMM321 is installed, immediately before the maintenance window. This backup serves as both a recovery point and a reference for verifying that the program upload from the replacement module matches the expected configuration after the swap is complete.

After installing the IC693MDL240 replacement, the CPU should be powered up in STOP mode and the I/O configuration verified using the hardware configuration tool in Proficy Machine Edition. The module should appear in the correct slot with the correct I/O reference addresses before the CPU is transitioned to RUN mode. A controlled output test — energizing each of the 16 output points individually and confirming field device response — should be completed before returning the system to automatic operation. Total replacement time for a prepared maintenance team is typically 30 to 60 minutes, making the IC693MDL240 one of the more straightforward field replacements in the Series 90-30 ecosystem.

For facilities managing multiple Series 90-30 systems across a plant floor, NINERMAS recommends maintaining a minimum buffer stock of two IC693MDL240 units per production line to eliminate lead-time risk during unplanned failures. Our inventory supply program supports long-term procurement planning with confirmed stock availability and fixed pricing for qualified customers.

Retrofit Support FAQ

Q: Is the IC693MDL240 a direct drop-in replacement for a failed unit in my Series 90-30 rack?
A: Yes. The IC693MDL240 is a direct slot-compatible replacement for any existing IC693MDL240 installed in a Series 90-30 5-slot or 10-slot rack. No hardware modification, adapter, or program change is required for a like-for-like swap. Simply place the CPU in STOP mode, remove the failed module, insert the replacement, and resume normal operation after verifying the I/O configuration in Proficy Machine Edition.

Q: Has this unit been tested before shipment, and what does the 12-month warranty cover?
A: Every IC693MDL240 supplied by NINERMAS undergoes a full functional test under load conditions prior to dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost. Warranty claims are processed directly through NINERMAS with a typical response time of 1–3 business days.

Q: What should I check if the replacement IC693MDL240 does not appear correctly in the hardware configuration after installation?
A: First, confirm the module is fully seated in the backplane connector — partial seating is the most common cause of module recognition failure. Next, verify that the rack power supply (IC693PWR321 or IC693PWR330) is providing adequate 5 VDC backplane current. If the module still does not appear, clear the hardware configuration in Proficy Machine Edition and re-scan the rack. In rare cases, a firmware mismatch between the CPU and the module may require a CPU firmware update — contact NINERMAS technical support for guidance.

Q: Can NINERMAS support long-term supply of the IC693MDL240 for ongoing spare parts programs?
A: Yes. NINERMAS specializes in long-lifecycle spare parts supply for legacy automation platforms including the GE Series 90-30. We support multi-year procurement agreements, consignment stock arrangements, and priority allocation for critical production facilities. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your spare parts program requirements.
