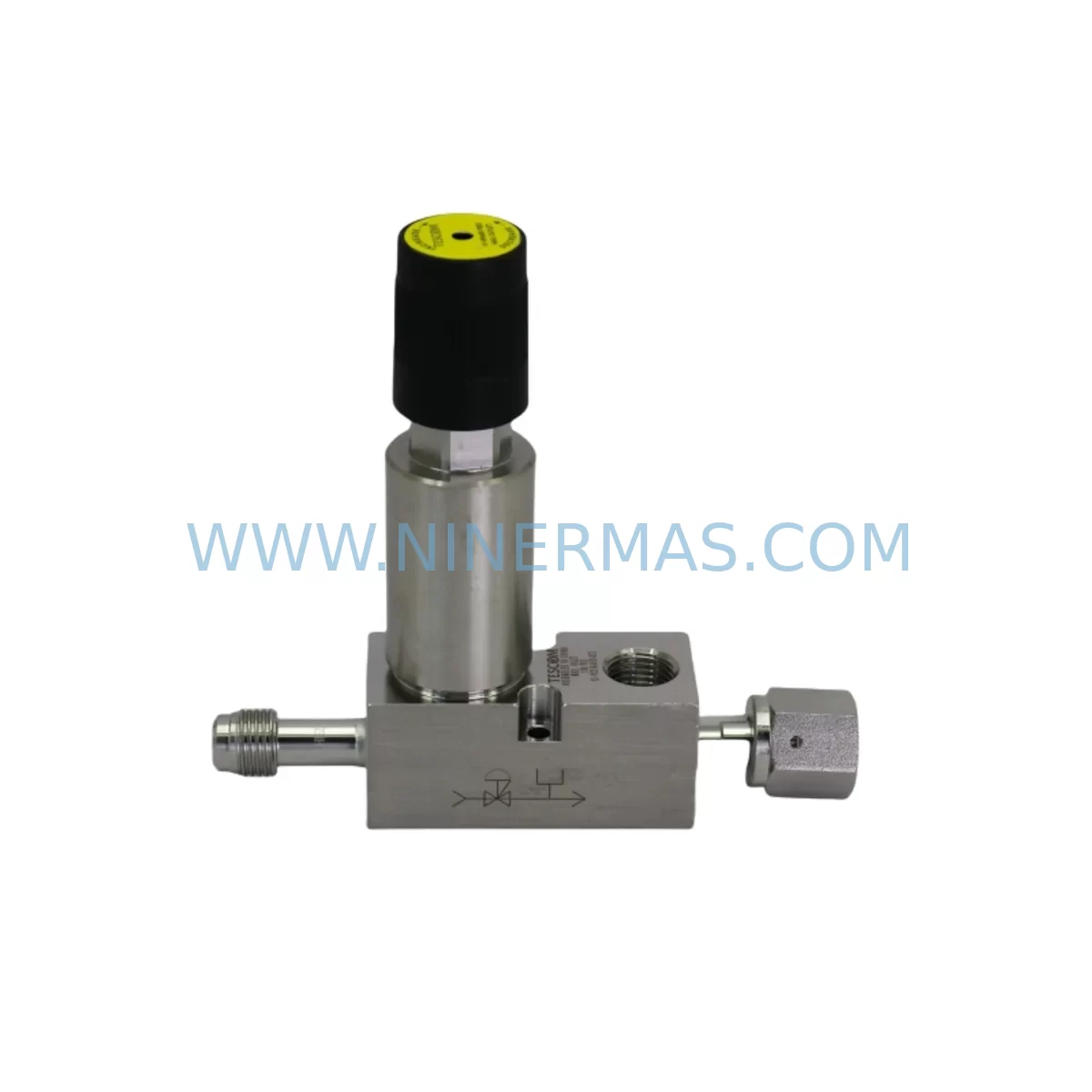

TESCOM 12-1K21AAED-072 Retrofit-Compatible Pressure Regulator for Legacy Systems

TESCOM 12-1K21AAED-072 Retrofit-Compatible Pressure Regulator for Legacy Systems

The TESCOM 12-1K21AAED-072 is a 150 PSI precision pressure regulator engineered for demanding industrial process control environments. Designed as a direct retrofit-compatible replacement for legacy TESCOM SR-40 series regulators, this unit supports seamless integration into existing control cabinets, analytical instrument panels, and process skids without requiring major piping or panel modifications. Whether you are managing a planned upgrade of aging pressure control infrastructure or responding to an unplanned failure of a discontinued component, the 12-1K21AAED-072 provides a reliable, pre-tested solution backed by a 12-month warranty and verified in-stock availability.

Industrial facilities operating TESCOM C3050 series back-pressure regulators, HT-110 high-temperature trim assemblies, and SR-40 dome-loaded regulators frequently encounter obsolescence challenges as original equipment manufacturers phase out legacy configurations. The 12-1K21AAED-072 addresses these challenges by maintaining dimensional compatibility with standard 1/4-inch NPT inlet and outlet connections, allowing direct substitution in most panel-mount and inline installations. Pre-shipment functional testing at rated pressure confirms set-point accuracy and leak integrity before the unit leaves our facility, reducing commissioning time and minimizing the risk of field failures during critical production windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a TESCOM 12-1K21AAED-072 or its SR-40 series equivalent within an operating process control system requires careful pre-planning to avoid unintended pressure excursions or instrument damage. Before initiating the swap, engineers should confirm the upstream supply pressure does not exceed the 150 PSI rated inlet of this unit. If the existing installation uses a TESCOM C3050 back-pressure regulator downstream to maintain a controlled reference pressure, the set-point relationship between the supply regulator and the back-pressure device must be re-verified after installation.

In analytical instrument enclosures and gas chromatograph sample conditioning panels, the 12-1K21AAED-072 is commonly paired with TESCOM 44-1100 series two-stage regulators for carrier gas pressure management, and with TESCOM 26-1000 series back-pressure regulators for column head pressure control. When upgrading these assemblies, technicians should also inspect the condition of associated stainless steel tubing fittings, Swagelok-compatible compression fittings, and inline particulate filters to prevent contamination of the new regulator seat. Replacing the regulator without servicing upstream filtration is a common cause of premature seat wear in high-purity gas applications.

For process skid installations where the 12-1K21AAED-072 controls instrument air or nitrogen supply to pneumatic actuators, the retrofit plan should include verification of the downstream actuator spring range. TESCOM HT-110 high-temperature trim is particularly relevant in heat-traced instrument air lines where ambient temperatures around the regulator body may exceed standard elastomer limits. Confirm that the replacement unit’s trim selection matches the operating temperature profile of the installation before finalizing the order.

Panel space confirmation is straightforward for SR-40 series replacements, as the 12-1K21AAED-072 maintains the same panel-mount footprint. However, if the legacy installation used an older TESCOM 54-2100 series dome-loaded regulator with a remote pilot connection, additional adapter fittings may be required to convert to the self-contained design of the 12-1K21AAED-072. Document the existing tubing routing and fitting sizes before disassembly to accelerate reinstallation. In multi-regulator manifold assemblies, consider replacing adjacent TESCOM 44-2200 series regulators and associated check valves simultaneously to reduce future maintenance downtime.

Downtime Control During System Migration

Minimizing production downtime during a pressure regulator replacement begins with pre-staging all required components before the maintenance window opens. For the TESCOM 12-1K21AAED-072, this means having the replacement unit, appropriate thread sealant (PTFE tape or anaerobic sealant per site standards), calibrated pressure gauges, and a portable leak detection solution ready at the work site before isolating the supply pressure.

The recommended replacement sequence is: isolate upstream supply pressure, vent downstream pressure to zero, remove the legacy regulator, install the 12-1K21AAED-072 with fresh thread sealant on all NPT connections, slowly restore supply pressure while monitoring for leaks, adjust the set-point to match the previously recorded downstream pressure requirement, and perform a final leak check at operating pressure. This sequence typically requires 30 to 60 minutes for a single-regulator replacement in an accessible panel location, and up to 2 hours for confined-space or heat-traced installations.

To protect downstream instrumentation during the changeover, install temporary pressure relief or bleed valves at the downstream isolation point before removing the legacy regulator. This prevents pressure surges from reaching sensitive analytical instruments, flow controllers, or pneumatic positioners connected to the same supply header. After installation, verify that the downstream pressure stabilizes at the required set-point under both no-flow and full-flow conditions before returning the system to automatic control.

Retrofit Support FAQ

Q: Is the TESCOM 12-1K21AAED-072 a direct replacement for the SR-40 series?
A: Yes, the 12-1K21AAED-072 is dimensionally and functionally compatible with standard SR-40 series panel-mount installations using 1/4″ NPT connections at 150 PSI rated inlet pressure. Confirm port size and pressure rating against your existing installation before ordering.

Q: What commissioning steps are required after installation?
A: After installation, slowly restore supply pressure, verify the downstream set-point matches the required operating pressure, perform a full leak check at operating pressure using approved leak detection solution, and document the as-found and as-left pressure readings. No electronic configuration or software changes are required for this mechanical regulator.

Q: Does this unit ship pre-tested?
A: Yes. Every TESCOM 12-1K21AAED-072 unit undergoes pre-shipment functional testing at rated pressure to verify set-point accuracy and leak integrity before dispatch. A test report is available upon request.

Q: What warranty coverage is provided?
A: This unit is covered by a 12-month warranty from the shipment date, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement or repair options to minimize your system downtime.
