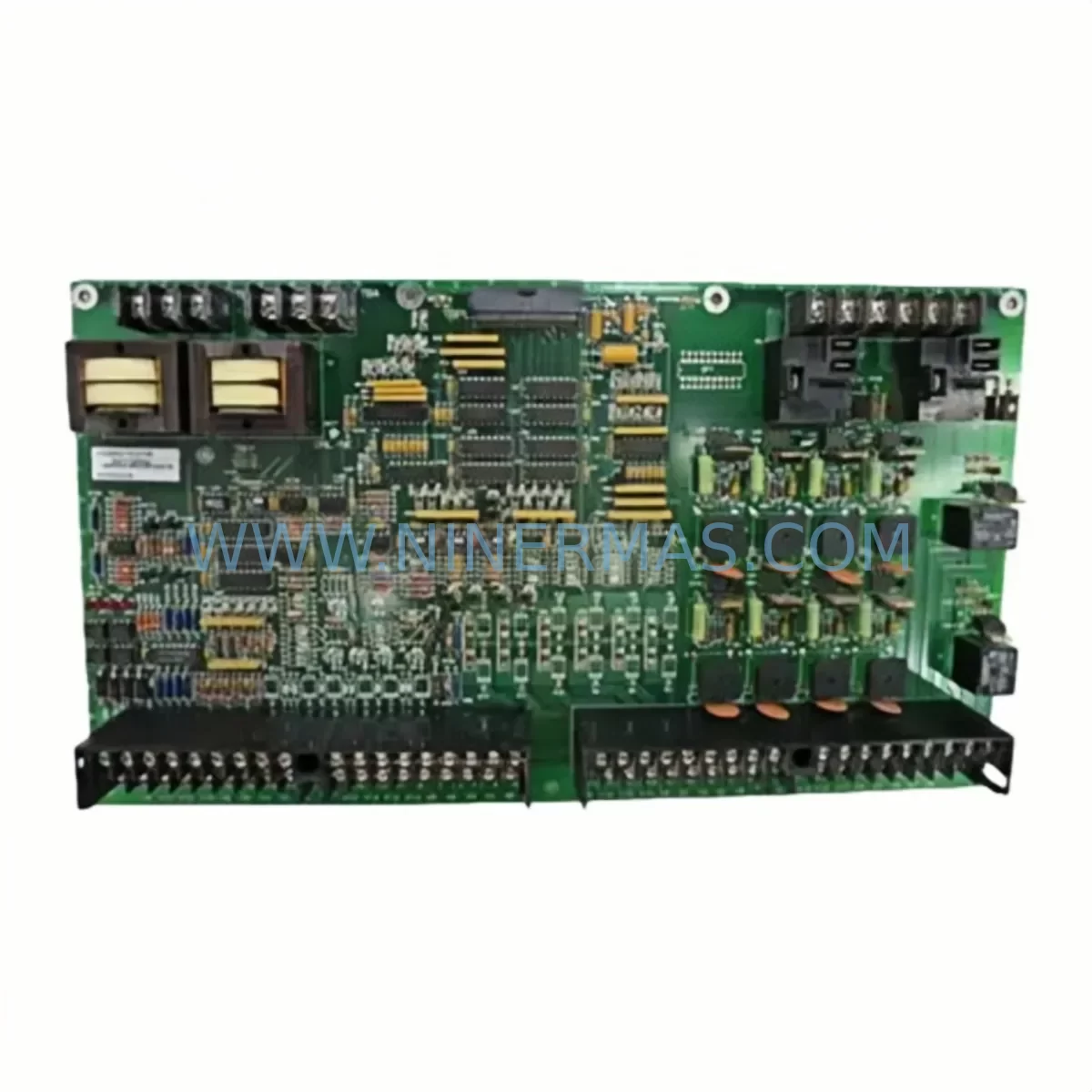

The GE DS200RTBAG2AGL is a ruggedized relay terminal board engineered for demanding industrial control environments, primarily deployed within GE’s Mark V and Mark VI turbine control systems. As a critical interface component between the control logic and field relay outputs, this board plays a central role in ensuring reliable signal switching, output protection, and system integrity across gas turbine, steam turbine, and combined-cycle power generation applications. When this board fails or degrades, the consequences can range from nuisance trips to full unit shutdown — making rapid, verified replacement essential for any maintenance or operations team managing rotating equipment.

At NINERMAS, every DS200RTBAG2AGL unit is sourced from original GE manufacturing channels, inspected against factory specifications, and tested prior to shipment. Our inventory is maintained to support both emergency breakdown recovery and planned annual overhaul schedules, with a 12-month warranty covering all shipped units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DS200RTBAG2AGL in a GE Mark V or Mark VI control system is rarely an isolated task. Experienced maintenance engineers understand that relay terminal board failures are often symptomatic of broader electrical stress within the control cabinet. A thorough site inspection during replacement should encompass the adjacent DS200TCQAG1BHF I/O terminal board, which handles analog and digital signal routing and may exhibit similar wear patterns under the same operating conditions.

The DS200SDCCG3A speed and dynamics control card should be verified for firmware integrity and output signal accuracy, as relay misfires can sometimes originate upstream in the control logic rather than at the terminal board itself. Similarly, the DS200DSPCH1ADA digital signal processor card warrants inspection for any fault codes or communication errors logged during the failure event.

Power supply integrity is a foundational concern. The DS200PCCAG1ABB power supply board and associated DS200TCDAG1ABB terminal board should be checked for output voltage stability, ripple, and thermal performance. Degraded power delivery is a leading cause of premature relay board failure and should be ruled out before returning the unit to service.

Field wiring terminations at the relay board interface are another common failure point. Inspect all terminal blocks, verify torque on screw terminals, and check for signs of oxidation or arcing on relay contacts. If the system uses DS200TBCBG1AAA communication terminal boards for serial or Ethernet connectivity, confirm that communication integrity has not been affected by the relay fault event.

For sites running extended maintenance intervals, consider stocking the DS200EXPSG1ADA expansion power supply and DS200RTBAG1AGL (the predecessor revision) as cross-compatible backup units. Signal isolators between the relay outputs and field devices — particularly in environments with high electromagnetic interference — should also be inspected and replaced on a scheduled basis to prevent false trips and protect the terminal board from transient damage.

HMI panels connected to the Mark V/VI system, such as the GE Cimplicity operator interface, should be reviewed for any alarm history that may indicate intermittent relay faults prior to the confirmed failure. This data is invaluable for root cause analysis and for justifying spare parts budget to procurement management.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: Before removing the DS200RTBAG2AGL, follow your site’s LOTO procedure. Confirm that all relay outputs controlled by this board are in a safe de-energized state and that field devices are isolated.

Step 2 — Document Current Configuration: Photograph or record all wiring terminations, DIP switch settings, and jumper configurations on the existing board. The DS200RTBAG2AGL may have site-specific configuration settings that must be replicated on the replacement unit.

Step 3 — Remove and Inspect: Carefully extract the board from the control cabinet rack. Inspect the board connector pins, backplane interface, and relay contact surfaces for signs of arcing, corrosion, or mechanical damage. This inspection informs whether the failure was electrical, mechanical, or environmental.

Step 4 — Install Replacement Unit: Seat the new DS200RTBAG2AGL firmly into the backplane connector. Reconnect all field wiring per your documented configuration. Verify terminal torque values match GE specifications.

Step 5 — Power-Up and Functional Test: Restore power to the control system and monitor the HMI for fault codes. Perform a relay output functional test by commanding each output through the control system and verifying field device response. Log all test results for your maintenance records.

Step 6 — Return to Service: Once all outputs are confirmed operational and no fault codes are present, return the turbine control system to normal operation. Update your spare parts inventory and initiate a reorder for the consumed DS200RTBAG2AGL unit to maintain your minimum stock level.

Spare Parts Support FAQ

Q1: Is the DS200RTBAG2AGL compatible with both Mark V and Mark VI GE turbine control systems?
The DS200RTBAG2AGL is primarily designed for GE Mark V turbine control systems. Compatibility with Mark VI configurations depends on the specific system revision and backplane architecture. Our technical team can assist with compatibility verification based on your system’s serial number and configuration documentation before you place an order.

Q2: What testing is performed before shipment?
Every DS200RTBAG2AGL unit shipped by NINERMAS undergoes a pre-shipment functional inspection covering relay contact continuity, board connector integrity, and visual inspection for component damage. Units are packaged in anti-static ESD-safe materials to prevent damage during transit. A test report is available upon request.

Q3: How should I manage long-term spare parts inventory for the DS200RTBAG2AGL?
Given that GE Mark V systems are mature platforms with limited OEM support, we recommend maintaining a minimum of one DS200RTBAG2AGL unit on-site for critical turbine applications. For multi-unit power plants or facilities with multiple Mark V systems, a two-unit buffer stock is advisable. NINERMAS offers long-term supply agreements to ensure consistent availability as OEM stocks diminish.

Q4: What is covered under the 12-month warranty?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund after technical review. Contact our team at sale@ninermas.com to initiate any warranty claim.
