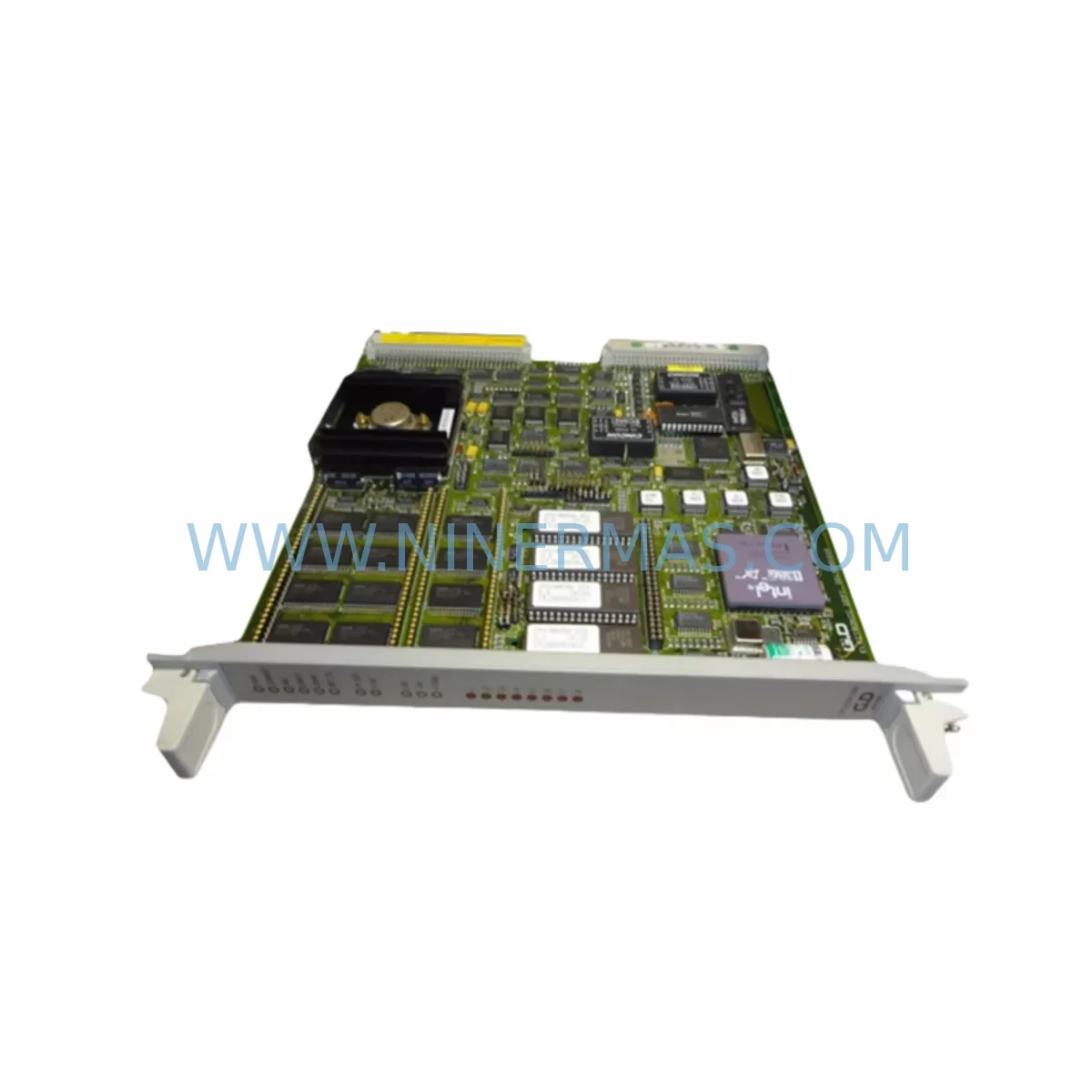

The GD BOLOGNA CPU/NA386 G.D 15AD80H0001 is a retrofit-compatible CPU module engineered for seamless integration into existing NA386-series programmable logic controller platforms. As industrial facilities face mounting pressure to extend the operational life of legacy automation infrastructure — while managing the risks of discontinued component supply — this CPU module provides a verified drop-in replacement path that preserves original program logic, backplane compatibility, and field wiring integrity.

Whether your facility is managing a phased control cabinet upgrade, recovering from an unplanned CPU failure, or executing a structured spare-parts lifecycle program, the CPU/NA386 G.D 15AD80H0001 delivers the hardware continuity needed to maintain production uptime without committing to a full platform migration. NINERMAS maintains in-stock inventory of this module with a 12-month warranty on all spare parts, supporting both emergency replacement and long-term procurement planning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a CPU module in a live or recently shut-down production environment requires careful pre-planning across multiple system layers. Before installing the CPU/NA386 G.D 15AD80H0001, maintenance engineers should conduct a full audit of the existing rack configuration. This includes verifying the slot positions of all installed NA386 I/O modules — including digital input/output cards, analog signal modules, and any specialty function modules — and confirming that module addresses are documented and will be preserved after the CPU swap.

Power supply capacity is a critical checkpoint. The existing NA386 power supply module must be rated to support the CPU’s backplane current draw alongside all installed I/O modules. If the power budget is marginal, this is an appropriate time to evaluate whether a higher-capacity power supply module should be installed concurrently. Similarly, if the system includes a NA386 PROFIBUS-DP communication module or a serial communication interface module, the communication link configuration — including node addresses, baud rates, and master/slave assignments — must be documented before the CPU is removed, as these parameters may need to be re-entered or verified post-swap.

For systems that include an HMI panel — whether a dedicated operator panel connected via RS-232/RS-485 or a SCADA workstation linked through an Ethernet gateway module — the communication driver configuration on the HMI side must be confirmed to remain compatible with the replacement CPU. In many NA386 retrofit scenarios, the HMI screen database and tag mapping remain intact, but the communication port settings on the CPU side should be verified against the original configuration records.

If the control system includes signal isolator modules or I/O terminal expansion blocks between field devices and the NA386 rack, these components are typically unaffected by a CPU swap. However, if analog input scaling or PID loop parameters are stored in the CPU’s data memory rather than in the program itself, these values must be backed up and restored as part of the commissioning procedure. Engineers working on systems that also include a programming cable (such as a USB-to-serial or MPI adapter) should confirm that the cable and programming software version are compatible with the replacement CPU’s firmware before attempting a program upload.

In multi-rack configurations where the NA386 CPU communicates with remote I/O racks via a rack expansion bus module or a remote I/O adapter, the rack addressing scheme must be preserved. Any changes to the CPU’s rack address or I/O map during the swap can cause faults in the remote rack communication, leading to extended commissioning time. Documenting the full rack topology — including the positions of any NA386 bus termination modules — before beginning the retrofit is strongly recommended.

Downtime Control During System Migration

Minimizing production downtime during a CPU replacement is the primary operational concern for most maintenance teams. The most effective strategy is to complete all pre-swap preparation — program backup, I/O address documentation, communication parameter recording, and spare parts staging — before the planned maintenance window begins. With the CPU/NA386 G.D 15AD80H0001 pre-tested and available on-site, the physical swap can typically be completed within a single shift window.

Before powering down the rack, ensure that a verified backup of the current PLC program is stored on at least two independent media (e.g., programming laptop and USB drive). If the system controls a continuous process, coordinate with operations to confirm that the process can be safely held or bypassed during the CPU swap window. For batch processes, plan the swap to coincide with a natural batch break to avoid mid-cycle interruptions.

After installing the replacement CPU, the recommended commissioning sequence is: (1) power on the rack without enabling outputs; (2) upload the program backup and verify the program checksum; (3) confirm I/O module status and address assignments in the CPU’s I/O configuration; (4) verify communication links to HMI panels and any upstream SCADA or DCS systems; (5) perform a controlled output enable with field personnel monitoring critical actuators; (6) confirm analog signal scaling and PID setpoints match pre-swap values. This structured approach protects original program logic, maintains field control continuity, and reduces the risk of process upsets during the transition.

NINERMAS ships all spare parts with pre-shipment functional testing documentation. The CPU/NA386 G.D 15AD80H0001 is dispatched with a test report confirming basic power-on and communication functionality, reducing the risk of receiving a non-functional unit during a time-critical maintenance event. Combined with the 12-month warranty coverage, this provides procurement teams with the confidence needed to maintain strategic spare parts inventory for long-term system support.

Retrofit Support FAQ

Q1: Is the CPU/NA386 G.D 15AD80H0001 a direct drop-in replacement for the original NA386 CPU?
A: Yes, the CPU/NA386 G.D 15AD80H0001 is designed as a retrofit-compatible replacement for the original GD BOLOGNA NA386 series CPU. It is compatible with the NA386 backplane and rack architecture. We recommend verifying the firmware revision and program compatibility with your existing NA386 programming software version before installation. NINERMAS can provide technical documentation to support this verification.

Q2: What commissioning steps are required after installing the replacement CPU?
A: After physical installation, upload your verified program backup, confirm I/O module addressing, check communication link parameters for any connected HMI or SCADA systems, and perform a controlled output enable with field personnel present. Analog scaling values and PID parameters stored in data memory should be verified against pre-swap records. NINERMAS provides pre-shipment test documentation to confirm the module’s basic functionality before it reaches your site.

Q3: How should I verify wiring and terminal compatibility before the swap?
A: The CPU/NA386 G.D 15AD80H0001 connects to the system via the NA386 backplane slot — field wiring connects to I/O modules, not directly to the CPU. No field terminal rewiring is required for a CPU-only swap. However, if the retrofit includes concurrent I/O module replacements or terminal block upgrades, verify terminal pitch, wire gauge compatibility, and signal type (sourcing/sinking) against the replacement module specifications before installation.

Q4: What is NINERMAS’s warranty and supply commitment for this part?
A: All spare parts supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. We maintain in-stock inventory of the CPU/NA386 G.D 15AD80H0001 to support both emergency replacement and planned procurement programs. For long-term supply commitments or volume requirements, contact our team to discuss dedicated stock reservation arrangements.
