BEI E25BB-4R-SB-CCW-8CC Service-Ready Spare Part

BEI E25BB-4R-SB-CCW-8CC Service-Ready Spare Part for Industrial Maintenance

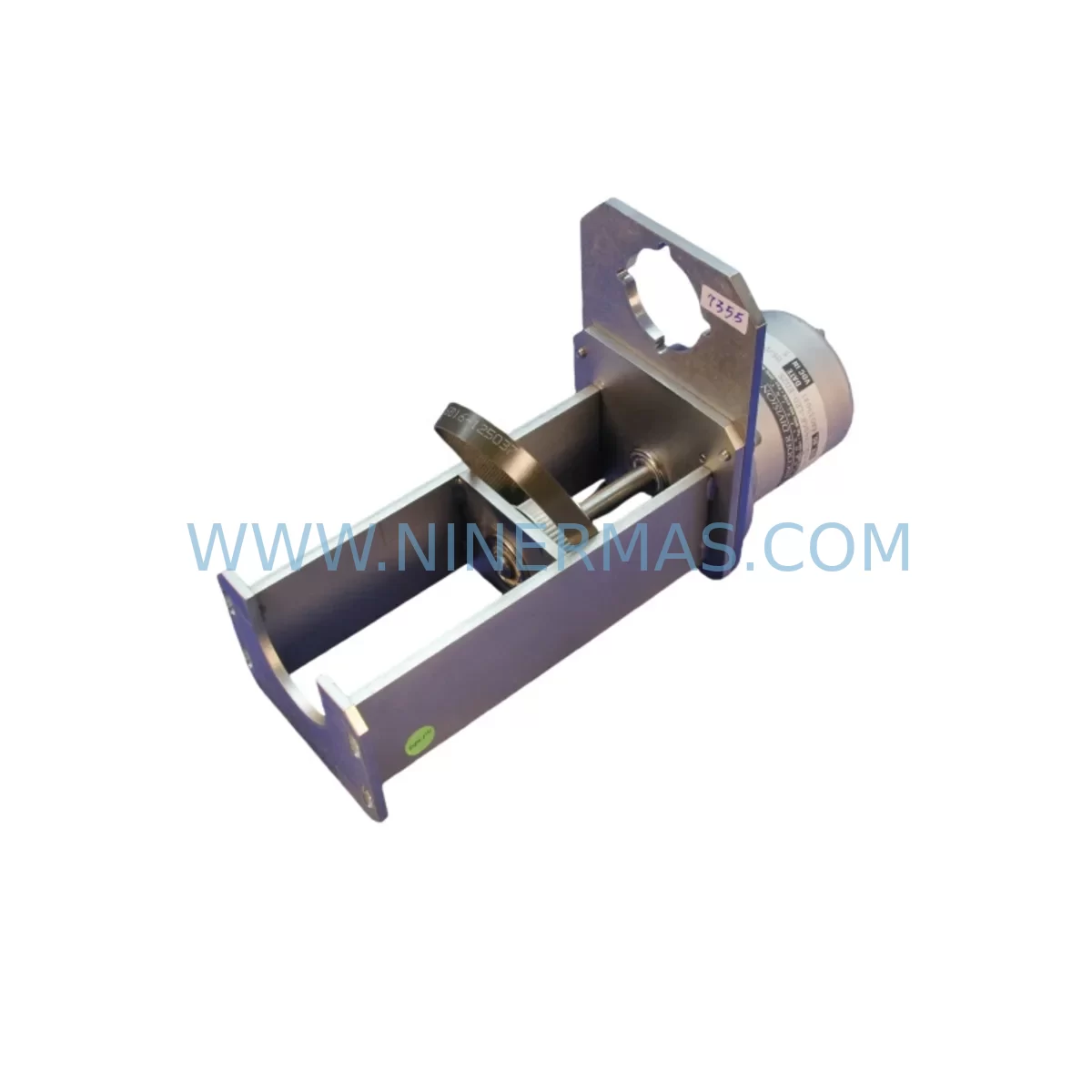

The BEI E25BB-4R-SB-CCW-8CC is a ruggedized incremental encoder engineered for demanding industrial and robotic applications where positional accuracy, vibration resistance, and long-term reliability are non-negotiable. With cross-reference part numbers including 7406R-LED-ED25, 23835-01, 932T0016, GIDX2C7RSML, and 12-1K11AAED-072, this encoder serves as a direct service replacement across multiple OEM platforms and legacy automation systems. Maintenance engineers and procurement teams sourcing this unit can rely on NINERMAS for pre-shipment tested stock, verified compatibility, and a 12-month warranty on every unit shipped.

The E25BB series from BEI Technologies (now part of Sensata Technologies) is widely deployed in robotic joint feedback, servo drive positioning, conveyor tension control, and CNC axis monitoring. Its compact 25mm housing, solid shaft configuration, and CCW (counter-clockwise) output polarity make it a preferred choice for OEM machine builders and system integrators maintaining aging production lines. When this encoder fails or reaches end-of-life, unplanned downtime can cascade across the entire control loop — making fast, verified spare part availability a critical procurement priority.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling preventive maintenance or responding to an encoder fault alarm, the E25BB-4R-SB-CCW-8CC replacement should be treated as part of a broader inspection of the motion control feedback chain. Maintenance engineers should simultaneously verify the condition of the servo drive receiving the encoder signal — units such as the Allen-Bradley Kinetix 5500 or Siemens SINAMICS S120 drive module are common downstream consumers of encoder feedback in mixed-brand control cabinets. A degraded encoder signal can cause erratic positioning, drive fault codes (e.g., encoder loss, feedback mismatch), or complete axis shutdown.

Beyond the encoder itself, the following components in the same electrical circuit should be inspected during the same maintenance window:

• Encoder cable and shielded connector: The BEI MS3106A-style connector or equivalent flying-lead cable should be checked for insulation damage, pin corrosion, and shield continuity. A degraded cable is a frequent root cause of intermittent encoder faults even when the encoder body is functional.
• Signal isolator or encoder splitter: In systems where the encoder signal is distributed to both a PLC counter input and a servo drive, a signal isolator (such as a Phoenix Contact MCR-type or Weidmüller encoder splitter) protects signal integrity. Inspect for output voltage drift or channel imbalance.
• 24VDC power supply rail: Encoders operating at 5–26 VDC are sensitive to supply noise. Verify the DIN-rail power supply (e.g., a PULS PIANO or Siemens SITOP PSU100S) is within tolerance and free of ripple that could corrupt quadrature output.
• PLC high-speed counter module: If the encoder feeds a Siemens S7-300 FM350-1 or Omron CJ1W-CT021 high-speed counter module, verify the module’s input frequency rating matches the encoder’s maximum PPR × RPM output. Overrange conditions can cause missed counts or module faults.
• Terminal block and DIN rail wiring: Phoenix Contact or Wago 280-series terminal blocks used for encoder signal distribution should be inspected for loose ferrules, especially on the A/B/Z differential pairs where impedance mismatch causes signal reflection.
• Coupling and shaft adapter: The mechanical coupling between the encoder shaft and the driven shaft (flexible bellows coupling or rigid hub) should be inspected for wear, misalignment, or backlash that can introduce jitter into the position feedback signal.
• Backup encoder or redundant feedback device: In critical robotic joints or precision CNC axes, a secondary resolver or absolute encoder (such as a Heidenhain ERN 1381 or Stegmann SRS50) may be installed in parallel. Verify its output is consistent with the incremental encoder reading during commissioning.
• HMI position display: On Siemens TP700 Comfort or Allen-Bradley PanelView Plus HMI panels, verify that the position readout updates correctly after encoder replacement and that any zero-reference or homing routine is re-executed.

Procurement engineers should note that the E25BB series has been subject to long lead times from distribution channels due to OEM consolidation under Sensata Technologies. NINERMAS maintains reserved stock of E25BB variants to support emergency replacement orders with same-week dispatch capability.

Site Replacement Workflow

Replacing the BEI E25BB-4R-SB-CCW-8CC on-site requires a structured approach to minimize downtime and avoid re-commissioning errors. Follow this workflow:

1. Document current configuration: Before removal, record the encoder’s wiring diagram, connector pinout, and any drive parameter settings that reference encoder resolution (PPR), direction polarity, and signal type. Take a photo of the terminal block wiring.
2. Isolate the axis: Place the servo drive or motion controller in a safe state (STO — Safe Torque Off, or equivalent). Lock out the mechanical axis to prevent rotation during encoder swap.
3. Remove the old encoder: Loosen the mounting clamp or flange bolts. Disconnect the encoder cable at the MS connector or terminal block. Note the shaft coupling alignment before removal.
4. Install the replacement unit: Mount the new E25BB-4R-SB-CCW-8CC, ensuring the shaft coupling is aligned within the manufacturer’s angular and parallel tolerance (typically ±0.5° and ±0.1 mm). Reconnect the cable using the documented pinout — pay particular attention to the CCW polarity and complementary output wiring (A+/A−, B+/B−, Z+/Z−).
5. Verify signal output: Before enabling the drive, use an oscilloscope or encoder tester to confirm clean quadrature signals on all channels. Check that the Z (index) pulse fires once per revolution.
6. Re-home the axis: Execute the homing or reference-point routine in the PLC or motion controller. Verify that the position feedback matches the mechanical reference position.
7. Run at reduced speed: Perform a slow-speed test cycle before returning to full production speed. Monitor drive feedback for position error alarms or following error faults.
8. Update maintenance records: Log the replacement date, new unit serial number, and any parameter changes in the equipment maintenance system (CMMS).

This workflow is designed to keep total replacement time under 2 hours for a trained maintenance technician, minimizing production line downtime and avoiding the need for a full system re-commissioning.

Spare Parts Support FAQ

Q1: Is the E25BB-4R-SB-CCW-8CC a direct drop-in replacement for units cross-referenced as 23835-01 or 932T0016?
A: Yes. The cross-reference numbers 23835-01, 932T0016, GIDX2C7RSML, and 12-1K11AAED-072 all refer to the same BEI E25BB-4R-SB-CCW-8CC encoder or its OEM-branded equivalent. NINERMAS verifies cross-reference compatibility before shipment. If your application uses a specific PPR value tied to one of these part numbers, please confirm the resolution requirement with our technical team before ordering.

Q2: How is the encoder tested before shipment?
A: Every unit undergoes pre-shipment functional testing including rotation in both directions, signal output verification on all channels (A, /A, B, /B, Z, /Z), supply voltage range check, and visual inspection of the connector and housing. A test report is available upon request for critical applications.

Q3: What is the lead time and warranty coverage?
A: NINERMAS maintains stock of E25BB series encoders for same-week dispatch on standard orders. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and signal output failures under normal operating conditions. Warranty claims are processed with priority for production-critical applications.

Q4: Can NINERMAS supply other BEI encoder variants or related motion control spare parts for the same system?
A: Yes. NINERMAS stocks a broad range of BEI Technologies encoders across the E25, H25, and HS35 series, as well as compatible servo drive feedback cables, signal isolators, and coupling hardware. If you are planning a broader spare parts inventory for your production line, contact our team for a consolidated quotation and long-term supply agreement.
