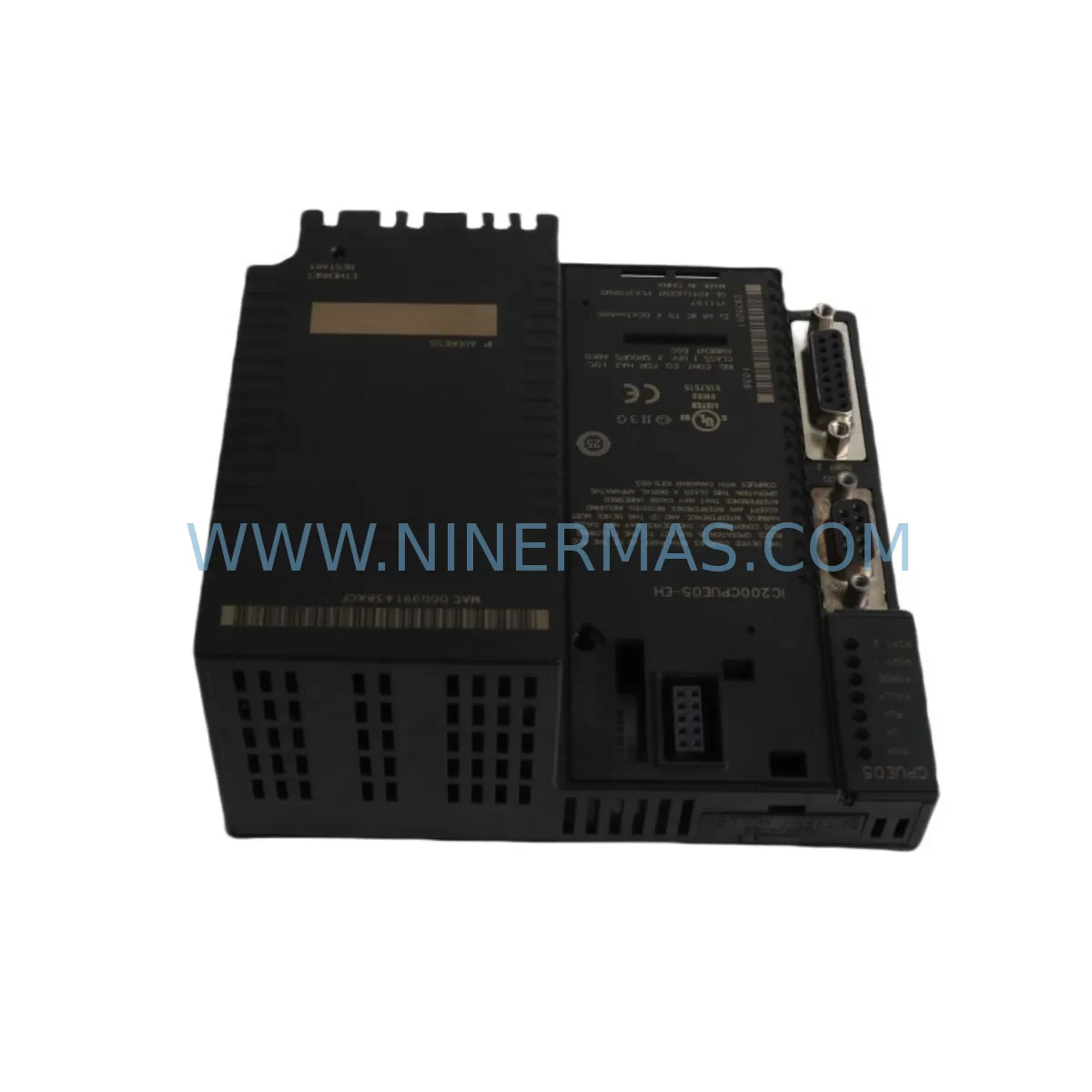

GE IC200CPUE05-EH Retrofit-Compatible CPU for VersaMax Legacy Systems

When a legacy GE VersaMax control system reaches end-of-life or a critical CPU failure brings a production line to a halt, the IC200CPUE05-EH stands as one of the most reliable retrofit-compatible CPU modules available for restoring and extending system operation. Designed for the GE VersaMax Micro and VersaMax modular PLC platform, this CPU module supports Ethernet communications and is widely used in manufacturing, water treatment, material handling, and process automation environments where legacy GE Fanuc control architectures remain deeply embedded in plant infrastructure.

For maintenance engineers managing aging automation systems, the IC200CPUE05-EH provides a direct replacement path without requiring a full control system overhaul. Its compatibility with the VersaMax backplane and I/O architecture means that existing terminal wiring, field device connections, and I/O module assignments can be preserved during the swap — dramatically reducing downtime and the risk of wiring errors during migration. Engineers should verify the existing backplane model (such as the IC200CHS022 or IC200CHS012) to confirm slot compatibility and power budget before installation.

The CPU supports Ethernet-based programming and communications, making it compatible with GE’s Proficy Machine Edition software environment. Before replacement, it is essential to back up the existing ladder logic program and confirm that the replacement unit’s firmware version is compatible with the current project file. In many retrofit scenarios, a firmware update may be required to ensure full program compatibility, particularly when migrating from older IC200CPUE01 or IC200CPUE05 variants.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC200CPUE05-EH retrofit requires a systematic review of all components within the existing VersaMax control cabinet. Maintenance and procurement engineers should treat this replacement as an opportunity to audit the full control architecture and address any adjacent components that may be approaching end-of-life.

Begin with the power supply module — the IC200PWR002 or IC200PWR001 — to confirm it can sustain the current draw of the replacement CPU alongside all installed I/O modules. An undersized or aging power supply is a common cause of intermittent CPU faults after a module swap. Next, inspect all discrete and analog I/O modules such as the IC200MDL640 (24 VDC input) and IC200MDL730 (relay output) for signs of wear, loose terminal connections, or blown fuses on output channels.

For systems using serial communications, verify that the existing RS-232 or RS-485 communication cables and port settings are compatible with the replacement CPU’s serial configuration. If the system communicates with a GE QuickPanel HMI or a third-party operator interface, confirm that the Ethernet IP address, station number, and communication driver settings are documented before the swap. Re-establishing HMI communications is often the most time-consuming step in a VersaMax CPU retrofit if configuration records are incomplete.

In multi-rack VersaMax configurations, the IC200BEM002 bus expansion module and associated rack interconnect cables must be inspected to ensure they are functioning correctly, as a faulty expansion bus can cause I/O communication errors that are easily misdiagnosed as CPU failures. Signal isolators on analog input channels — particularly on 4–20 mA loops connected to pressure transmitters or flow meters — should also be tested to confirm signal integrity after the CPU replacement.

For sites running older GE Series 90-30 or Series 90-70 systems alongside VersaMax equipment, this retrofit may also be the right time to evaluate whether a broader migration to a unified control platform is feasible, using the IC200CPUE05-EH as a bridging solution while longer-term modernization is planned.

Downtime Control During System Migration

Minimizing unplanned downtime during a VersaMax CPU replacement requires preparation that begins well before the maintenance window. The first step is to export and archive the complete machine program from the existing CPU using Proficy Machine Edition, including all variable tables, I/O configuration, Ethernet settings, and any motion or PID control blocks. Store this backup in at least two locations — on the engineering workstation and on a removable drive kept in the control cabinet.

During the physical swap, label all Ethernet and serial cables before disconnection. The IC200CPUE05-EH uses the same form factor as its predecessors, so mechanical installation is straightforward — but confirm that the module locking tab engages fully in the backplane slot to ensure reliable backplane communication. After seating the module, power up the rack and verify that the CPU enters RUN mode without fault LEDs before downloading the program.

For sites where continuous process control is critical, consider staging the replacement during a scheduled maintenance shutdown rather than responding reactively to a CPU failure. Keeping a spare IC200CPUE05-EH in the local spare parts inventory — pre-loaded with the current machine program — allows a trained technician to complete the swap in under 30 minutes, compared to several hours if the replacement unit must be sourced, shipped, and programmed on demand. This proactive inventory strategy is especially important for remote sites or facilities operating 24/7 production schedules.

After the CPU is online, perform a full I/O force test to confirm that all discrete inputs and outputs respond correctly, and verify analog channel scaling against known reference values. Document the completed retrofit with updated wiring diagrams, firmware version records, and a revised spare parts list to support future maintenance planning.

Retrofit Support FAQ

Q: Is the IC200CPUE05-EH a direct drop-in replacement for the IC200CPUE05?
A: Yes, the IC200CPUE05-EH is mechanically and electrically compatible with the IC200CPUE05 and installs in the same backplane slot. However, firmware and program file compatibility should be verified using Proficy Machine Edition before going live, as minor differences in firmware revisions may require a project conversion step.

Q: What testing is performed before shipment?
A: Every IC200CPUE05-EH unit is powered on and functionally tested prior to shipment to verify CPU initialization, Ethernet port operation, and communication readiness. Units are shipped with protective packaging to prevent ESD damage during transit. A 12-month warranty is included from the date of delivery.

Q: Can you supply the IC200CPUE05-EH on an ongoing basis for long-term maintenance contracts?
A: Yes. We maintain stock of the IC200CPUE05-EH and related VersaMax components to support long-term maintenance agreements and annual inspection programs. Procurement engineers are welcome to contact us to discuss blanket order arrangements, lead time commitments, and priority allocation for critical spare parts.

Q: What should I do if the replacement CPU does not communicate with the existing HMI after installation?
A: First, confirm that the Ethernet IP address, subnet mask, and gateway settings on the IC200CPUE05-EH match the original CPU configuration. Check that the HMI communication driver is configured for the correct CPU model and station address. If the HMI uses a serial connection, verify baud rate, parity, and stop bit settings. Our technical support team can assist with remote troubleshooting if on-site resolution is not possible.
