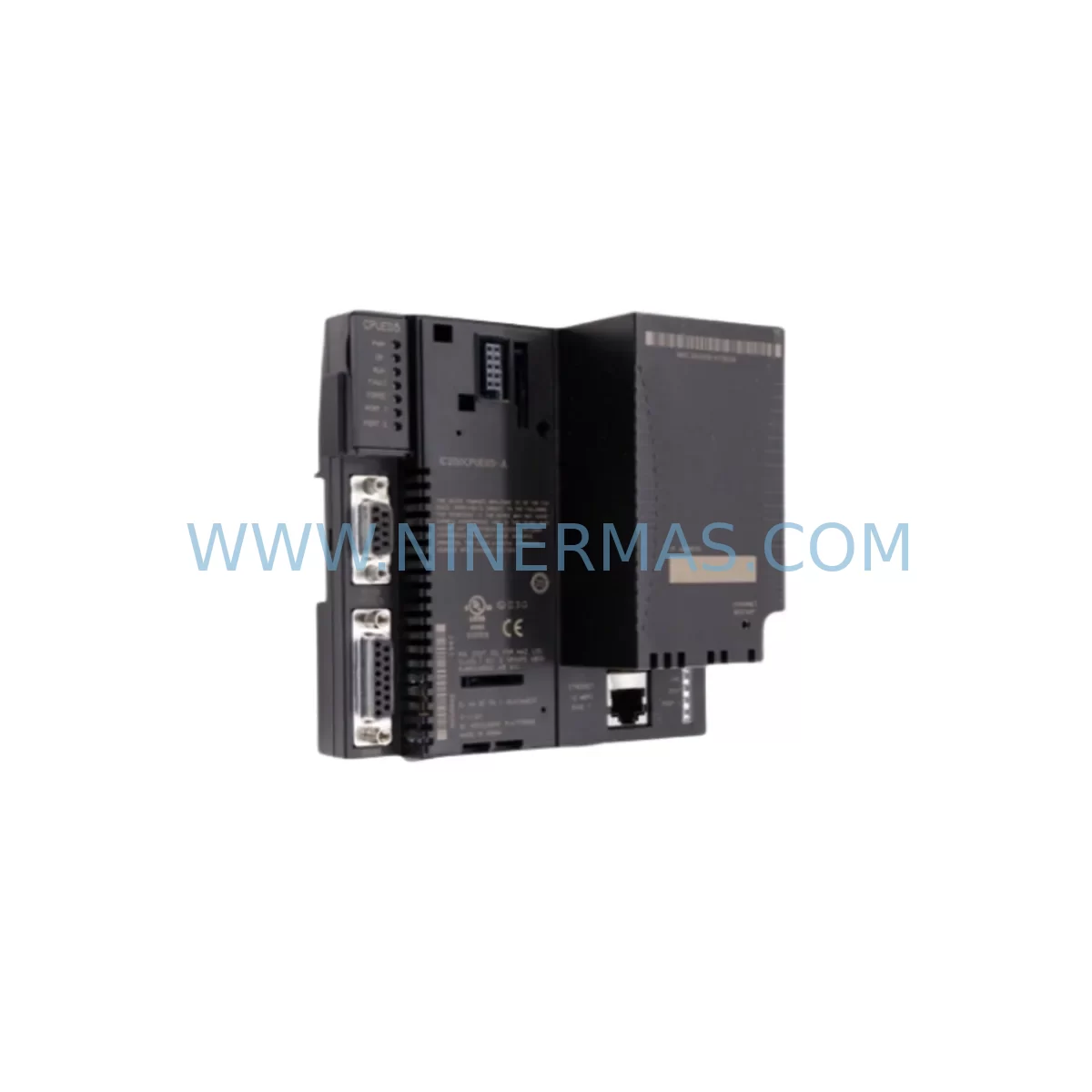

The GE IC200CPUE05-JL is a VersaMax series CPU module engineered for demanding industrial automation environments. As a service-ready original spare part, it is designed to support rapid replacement, minimize unplanned downtime, and maintain full system compatibility within GE VersaMax PLC architectures. Whether you are managing a scheduled annual overhaul, responding to an emergency line stoppage, or building a strategic spare parts inventory for a critical production facility, the IC200CPUE05-JL delivers the reliability and compatibility that maintenance and procurement engineers depend on.

The IC200CPUE05-JL operates as the central processing unit within the GE VersaMax IC200 series platform, coordinating I/O scanning, program execution, and communications across the control cabinet. Its Ethernet-capable CPU design supports direct integration with SCADA systems, HMI panels, and distributed I/O networks, making it a cornerstone component in both legacy system life extension programs and active production line control architectures. With a 12-month warranty and pre-shipment functional verification, this unit is procurement-ready for global industrial customers.

For maintenance engineers managing aging VersaMax installations, sourcing a verified IC200CPUE05-JL replacement is often the fastest path to restoring full system operation. Unlike generic or refurbished alternatives, this original spare part ensures firmware compatibility, I/O map integrity, and communication protocol continuity — critical factors when every hour of downtime carries measurable production cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the IC200CPUE05-JL in a live production environment, a thorough control cabinet inspection is essential to prevent cascading failures and ensure a clean system restart. Maintenance engineers should treat the CPU replacement as an opportunity to audit the full electrical and communication ecosystem surrounding the module.

Begin with the power supply module — the IC200PWR002 or IC200PWR101 should be checked for output voltage stability and capacitor aging. A degraded power supply is a common root cause of CPU faults and intermittent resets in VersaMax systems. Alongside the power supply, inspect the IC200CHS backplane for connector wear, corrosion, or mechanical damage that could cause intermittent bus communication errors after the new CPU is installed.

Next, audit the IC200MDL series I/O modules — both discrete input/output cards and analog signal modules. Verify that terminal block connections are torqued to specification and that no I/O channels show signs of overload or insulation breakdown. If the system includes IC200ALG series analog I/O modules, confirm signal calibration and shielding integrity, as analog channels are particularly sensitive to ground loop interference during a CPU swap.

Communication continuity is equally critical. If the IC200CPUE05-JL is networked via Ethernet to an HMI panel (such as a GE QuickPanel or third-party SCADA terminal), verify IP address configuration and Ethernet switch port assignments before powering up the replacement CPU. For serial-connected devices, inspect the RS-232 communication cable and port termination resistors. Systems using IC200BEM series bus expansion modules or remote I/O drops should have their communication links verified end-to-end after CPU replacement.

Do not overlook signal isolation modules and interposing relays in the output circuit. High-cycle relay outputs adjacent to the CPU rack are a common wear item in VersaMax installations; replacing fatigued relays during a planned CPU swap prevents nuisance trips after system restart. Similarly, inspect fuse blocks and circuit protection devices on the 24VDC control power rail — a blown fuse on the CPU power feed is sometimes misdiagnosed as a CPU failure.

For facilities running long-term spare parts programs, it is advisable to maintain at minimum one IC200CPUE05-JL alongside matched spares for the power supply, at least two I/O modules representative of the installed base, and a set of communication cables. This multi-component inventory strategy ensures that a single component failure does not cascade into a multi-day procurement delay.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Before removing the IC200CPUE05-JL, use GE’s Proficy Machine Edition or equivalent programming software to perform a full program backup to a laptop or USB storage device. Confirm the backup includes all logic blocks, I/O configuration, and communication parameters.

Step 2 — Power Down and Isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Confirm zero-energy state on the 24VDC control rail and the AC input to the power supply module before handling the CPU.

Step 3 — Module Removal: Release the IC200CPUE05-JL from the backplane connector using the module locking tabs. Handle the replacement unit with ESD precautions — use a grounded wrist strap and ESD-safe mat.

Step 4 — Hardware Compatibility Verification: Confirm the replacement IC200CPUE05-JL firmware revision is compatible with your installed I/O modules and communication configuration. If the firmware version differs from the original, a firmware update may be required before program download.

Step 5 — Program Restore and I/O Verification: After seating the new CPU and restoring power, download the backed-up program and perform a full I/O force test to verify all discrete and analog channels respond correctly. Confirm Ethernet communication to HMI and SCADA systems before returning the line to production.

Step 6 — Documentation Update: Record the replacement date, new module serial number, and firmware version in your maintenance log. Update your spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the IC200CPUE05-JL a direct drop-in replacement for other VersaMax CPU variants?
The IC200CPUE05-JL is compatible with the GE VersaMax IC200 backplane architecture. However, CPU variants differ in memory capacity, communication ports, and firmware. Always verify the exact part number against your system’s hardware configuration report before ordering. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: How is the IC200CPUE05-JL tested before shipment?
Each unit undergoes pre-shipment functional verification including power-on self-test, communication port check, and I/O bus integrity validation. Units are shipped in ESD-safe packaging with a test report available upon request. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for ongoing spare parts programs?
Yes. NINERMAS supports long-term supply agreements for critical spare parts including the IC200CPUE05-JL. We offer reserved stock programs, scheduled delivery, and priority allocation for customers managing multi-site or multi-year maintenance contracts. Contact our procurement team to discuss volume pricing and lead-time commitments.

Q4: What is the recommended spare parts holding strategy for VersaMax CPU-based systems?
For production-critical VersaMax installations, we recommend maintaining at least one IC200CPUE05-JL CPU, one matched power supply module, and representative I/O module spares on-site. For facilities with multiple VersaMax racks, a ratio of one CPU spare per five installed units is a common industry benchmark. Annual inventory reviews aligned with planned maintenance shutdowns help ensure spare parts remain current and avoid obsolescence risk.
