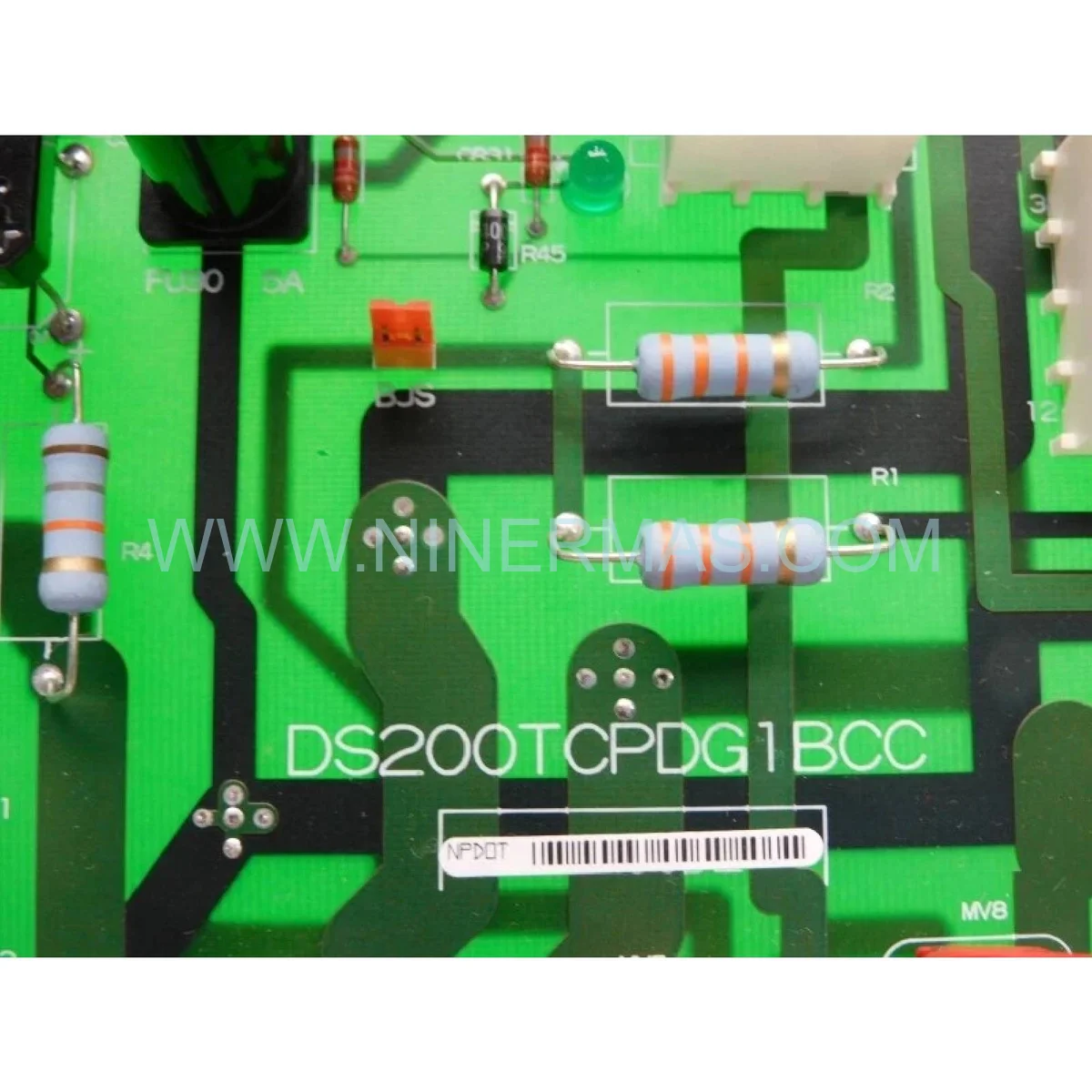

GE DS200TCPDG1B Power Distribution Board – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a power distribution board in a Distributed Control System. The GE DS200TCPDG1B is precisely that kind of mission-critical asset — engineered to serve as the central power backbone within GE Mark V Speedtronic turbine control architectures, where uninterrupted Process Control is not optional but mandatory. In environments governed by DCS Hardware reliability, this board manages regulated DC power delivery to I/O modules, control processors, and Fieldbus communication interfaces simultaneously, making it indispensable to any facility running legacy GE turbine platforms.

What distinguishes the GE DS200TCPDG1B from generic alternatives is its deep integration with the Mark V VME rack ecosystem. Its multi-channel output architecture, combined with independent overcurrent protection per rail, ensures that a fault in one subsystem does not propagate across the entire control loop — a design philosophy rooted in industrial redundancy and safety. For engineers managing Legacy Components in aging Distributed Control System installations, this level of fault isolation is the difference between a controlled shutdown and a catastrophic trip.

Original Factory Sealed units of the DS200TCPDG1B are increasingly scarce. As GE has transitioned its turbine control portfolio toward Mark VIe and beyond, procurement of authentic, untouched boards has become a genuine supply chain challenge. Our inventory is sourced directly from certified industrial channels, stored under climate-controlled conditions, and verified against OEM specifications before dispatch — ensuring you receive a component that performs exactly as GE designed it.

Key Technical Highlights

Multi-Rail Regulated Output: Simultaneously powers analog I/O, digital I/O, and processor modules with ±5% voltage tolerance across all output channels — delivering the Stability that safety-critical turbine systems demand.
High-Speed Fault Response: Independent overcurrent, overvoltage, and thermal shutdown protection per channel enables High-speed fault isolation, preventing cascading failures across interconnected DCS Hardware.
Redundancy-Ready Architecture: Supports dual-board deployment within Mark V VME racks, enabling full Redundancy for continuous operation in power generation facilities where downtime is measured in lost megawatts.
125 VDC Input Tolerance: Accepts input voltage across a 100-140 VDC range, accommodating real-world power supply fluctuations common in industrial substations and remote generation sites.
EMI/RFI Hardened Design: Integrated electromagnetic shielding ensures stable Fieldbus communication and analog signal integrity in high-noise environments such as turbine halls and compressor stations.
Diagnostic LED Array: Per-rail status indicators provide real-time visual feedback, dramatically reducing mean time to repair (MTTR) during emergency maintenance scenarios.

Vertical Industry Applications

Petrochemical & Refining: In fluid catalytic cracking units and distillation column control systems, the DS200TCPDG1B sustains power to critical Process Control loops. A single power distribution failure in these environments can trigger emergency shutdowns costing hundreds of thousands of dollars per hour — this board’s fault-tolerant design directly reduces that risk.

Power Generation (Gas & Steam Turbines): Deployed across Frame 5 through Frame 9 GE gas turbines and industrial steam turbines in combined-cycle plants, this board powers the governor control, valve sequencing, and vibration monitoring modules that keep turbines synchronized to grid frequency.

Mining & Mineral Processing: Large-scale conveyor drives, crusher control systems, and ventilation management platforms in underground and open-pit mining operations rely on robust DCS Hardware. The DS200TCPDG1B’s wide operating temperature range (0°C to 60°C) and humidity tolerance (5-95% non-condensing) make it suitable for harsh mining environments.

Marine & Offshore Platforms: Offshore oil and gas platforms operating GE-based turbine-driven compressors and generators require components certified for marine-grade vibration and humidity exposure. The DS200TCPDG1B’s robust VME form factor and sealed construction meet the demands of offshore Distributed Control System installations.

Pipeline & Compression Stations: Natural gas transmission compressor stations running GE Speedtronic-controlled turbine drivers depend on continuous power distribution to maintain pipeline pressure and flow. Replacing a failed DS200TCPDG1B with a Factory Sealed unit eliminates the risk of introducing latent defects from improperly refurbished Legacy Components.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every DS200TCPDG1B unit we supply undergoes a structured multi-stage verification process before it leaves our facility. 100% Original authenticity is confirmed through OEM part marking inspection, PCB revision cross-referencing, and component-level visual audit. Factory Sealed units are shipped in their original ESD-protective packaging with tamper-evident seals intact.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship, with advance replacement options available for critical applications where waiting for return logistics is not operationally viable. For facilities managing Maintenance Stock programs, we offer reserved inventory agreements that guarantee unit availability against future demand spikes.

Emergency Delivery is a core capability of our supply chain. We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Express — with same-day dispatch available for orders confirmed before 14:00 UTC. Whether your turbine is tripped in a Gulf Coast refinery or an offshore platform in the North Sea, Factory Sealed Condition spare parts can reach your site within 24-72 hours.

This is a Critical Part for Industry Safety. Power distribution failures in turbine control systems can trigger emergency shutdowns, damage downstream I/O modules, and in worst-case scenarios, compromise Safety Instrumented System (SIS) integrity. Stocking a verified DS200TCPDG1B as a hot spare is not a cost — it is risk mitigation with a calculable ROI.

Buyer’s FAQ (Selection Guide)

Q1: How do I verify that a DS200TCPDG1B is 100% original and not a counterfeit or improperly refurbished unit?
Authentic GE boards carry laser-etched part numbers on the PCB substrate that match the label on the board edge connector. Verify the full part number DS200TCPDG1B against GE’s published documentation. Request a Certificate of Conformance and incoming inspection report from your supplier. Factory Sealed units should arrive in original GE ESD bags with unbroken seals — any evidence of prior opening warrants rejection.

Q2: Where can I obtain the official datasheet and wiring diagrams for the DS200TCPDG1B?
GE publishes technical documentation for Mark V Speedtronic systems under reference GEH-6195 (Mark V Speedtronic Control System Manual). This document covers power distribution board installation, wiring, and diagnostic procedures. Contact your GE service representative or authorized distributor for access. We can also provide application-specific technical guidance upon inquiry.

Q3: Is the DS200TCPDG1B compatible with both DS200TCPDG1BCC and DS200TCPDG1BEC system configurations?
Yes. The BCC and BEC suffixes denote manufacturing revision levels reflecting component sourcing changes, not functional differences. Both variants are fully interchangeable within Mark V VME rack installations. Always cross-reference your system’s firmware revision against GE’s compatibility matrix to confirm before installation in safety-critical applications.

Q4: Can this board be used in a Legacy Upgrade scenario where a Mark IV system is being partially modernized?
The DS200TCPDG1B is designed for Mark V architecture. While some physical dimensions are shared with earlier Mark IV hardware, the power distribution topology and connector pinouts differ. For Legacy Upgrade projects bridging Mark IV to Mark V, consult GE’s migration documentation or engage a certified system integrator to validate compatibility before procurement.

Q5: What is the recommended Emergency Repair procedure if the DS200TCPDG1B fails during active turbine operation?
If the system supports hot-swap, initiate a controlled load transfer to the redundant power distribution board before removal. If no redundancy exists, coordinate with operations to execute a planned shutdown sequence per your site’s Emergency Response Plan. Contact us immediately for expedited dispatch of a replacement unit — our emergency logistics team operates 24/7 to support unplanned outage scenarios.

Q6: How should DS200TCPDG1B units be stored as part of a Maintenance Stock program?
Store in a climate-controlled environment at 20-25°C with relative humidity below 60%. Keep units in original ESD-protective packaging and avoid stacking heavy items on top of board assemblies. Inspect stored units annually for signs of oxidation on connector pins. Electrolytic capacitors have a shelf life of approximately 10 years under proper storage conditions — factor this into your long-term Maintenance Stock rotation strategy.
