Bently Nevada 330704-000-060-10-02-CN 3300 XL Proximity Probe: Legacy System Retrofit & Compatibility Upgrade

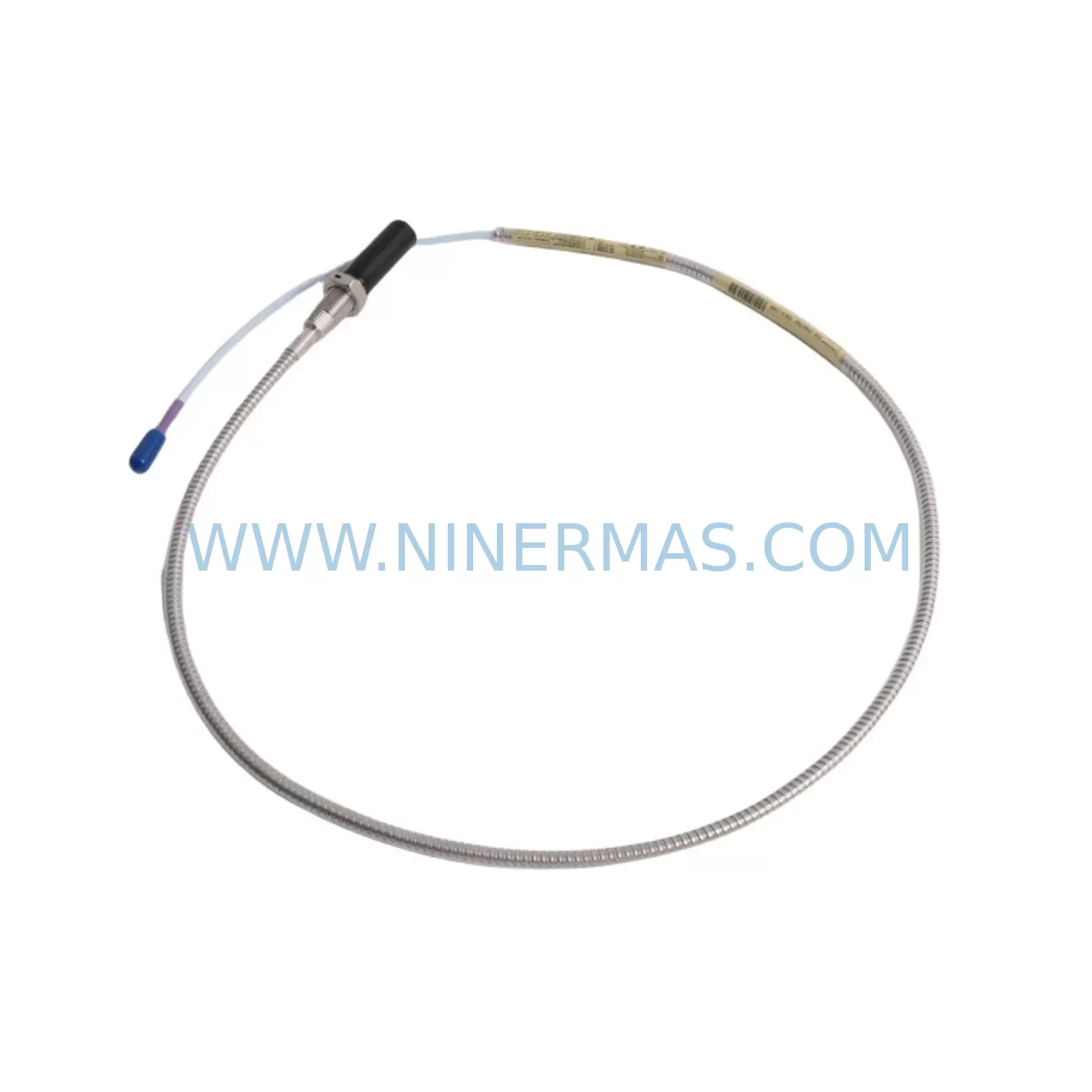

The Bently Nevada 330704-000-060-10-02-CN is an 11mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for non-contact vibration, position, and speed measurement in rotating machinery. As legacy Bently Nevada 3300 Series installations reach end-of-life or require modernization, this probe serves as the cornerstone retrofit component for plants seeking to extend system life, replace discontinued parts, and maintain continuous machinery protection without full-system replacement.

Whether you are upgrading a turbine protection panel, replacing worn probes on a compressor train, or migrating from an older 7200 Series platform to the 3300 XL architecture, the 330704-000-060-10-02-CN delivers the dimensional and electrical compatibility required for a smooth, low-risk transition.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330704-000-060-10-02-CN into an existing machinery protection system begins well before the probe arrives on site. Engineers must audit the full measurement chain: the probe itself, the 330130-080-00-00 extension cable, and the matched 330180-X1-05 3300 XL Proximitor® Sensor (driver). These three components form an inseparable system — substituting any one element without verifying the others is the most common cause of calibration failure during retrofit.

For plants running older Bently Nevada 3500 Series rack systems, the probe signal feeds into a 3500/42M Proximitor®/Seismic Monitor module. Before swapping the probe, confirm the module’s input configuration matches the 3300 XL probe’s sensitivity (typically 7.87 V/mm). If the rack houses a 3500/20 Power Supply, verify that the supply voltage is stable and within specification, as voltage sag during startup can cause false OK relay trips immediately after probe replacement.

Plants migrating from the legacy 7200 Series to the 3300 XL platform must account for the difference in probe tip diameter and gap range. The 7200 Series used a 7.9 mm probe with a different sensitivity curve; installing the 11 mm 330704-000-060-10-02-CN without replacing the driver will produce incorrect vibration readings. In these cases, the 330180-X1-05 Proximitor® Sensor must be replaced simultaneously, and the 3500/42M channel must be reconfigured to accept the new sensitivity value.

For DCS-integrated systems, the 4–20 mA analog output from the Proximitor® driver connects to the plant’s DCS I/O card — commonly a Honeywell, Emerson, or Yokogawa analog input module. Confirm the input card’s signal range and impedance before commissioning. If the plant uses a Modbus RTU or PROFIBUS DP communication gateway to relay vibration data to the control room, verify that the gateway’s polling address and scaling factors are updated to reflect the new probe’s sensitivity after replacement.

Wiring adaptation is another critical step. The 330704-000-060-10-02-CN uses a 2-pin connector at the probe body; the extension cable must be inspected for continuity and insulation resistance before reuse. If the existing extension cable shows signs of jacket damage or connector corrosion — common in high-temperature or high-humidity environments such as steam turbine bearing pedestals — replace it with a new 330130-series extension cable of matching length. Reusing a degraded cable with a new probe is a frequent source of intermittent OK relay faults that are difficult to diagnose after installation.

Rack space and physical installation must also be confirmed. The probe holder thread (typically M14×1 or equivalent) must match the existing bracket. If the bearing housing has been modified or the bracket has been replaced with a non-OEM part, measure the internal thread and probe body diameter before installation. Forcing a mismatched probe into a bracket risks damaging the probe tip and the bearing housing surface, which can introduce measurement error and require additional downtime for correction.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement requires a structured pre-outage preparation process. Before the planned maintenance window, gather the existing calibration records for the measurement channel, including the original gap voltage, sensitivity, and OK relay setpoints. These values — typically documented in the 3500 Series rack configuration file or the plant’s machinery protection database — serve as the baseline for post-installation verification.

Where possible, perform a bench test of the new 330704-000-060-10-02-CN probe with its matched 330180-X1-05 Proximitor® Sensor before the outage begins. Use a calibrated gap simulator or a non-ferrous target plate to verify the probe’s output voltage at the nominal gap (typically 1.0 mm = approximately 7.87 V for 3300 XL probes). Confirming probe health before installation eliminates the risk of discovering a defective component after the machine is already shut down.

During the outage, follow a disciplined sequence: remove the old probe, inspect the bracket and bearing housing surface, install the new probe to the correct gap, torque the locknut, reconnect the extension cable, and verify the OK relay status at the 3500/42M module before restarting the machine. If the plant’s DCS uses a machinery protection bypass switch, engage it only for the duration of the probe swap and release it immediately after the OK relay is confirmed healthy.

For critical machines where even brief unmonitored operation is unacceptable, consider a temporary portable vibration monitor — such as a handheld data collector connected to the extension cable — to maintain continuous vibration surveillance during the probe swap. This approach is particularly valuable on high-speed compressors and steam turbines where bearing failure can occur within seconds of a protection gap.

After installation, document the new gap voltage, sensitivity verification result, and OK relay status in the plant’s maintenance management system. Update the 3500 rack configuration file if any channel parameters were adjusted, and notify the DCS engineering team if scaling factors in the I/O card or communication gateway were modified. Proper documentation reduces the risk of configuration drift during future maintenance cycles and supports the 12-month warranty claim process if a defect is identified after installation.

Retrofit Support FAQ

Q1: Is the 330704-000-060-10-02-CN a direct drop-in replacement for my existing 3300 XL probe?
A: Yes, within the 3300 XL ecosystem. If your existing probe is also an 11 mm 3300 XL model with the same cable length (6.0 m) and connector type, the 330704-000-060-10-02-CN is a direct replacement. Always verify the extension cable part number and Proximitor® driver model before installation to confirm full system compatibility.

Q2: Can this probe replace a Bently Nevada 7200 Series probe without changing the driver?
A: No. The 7200 Series and 3300 XL Series use different probe tip diameters and sensitivity curves. Replacing a 7200 Series probe with the 330704-000-060-10-02-CN requires simultaneous replacement of the Proximitor® driver with a 3300 XL-compatible unit and reconfiguration of the monitor channel. Mixing series components will produce incorrect vibration readings and may cause nuisance trips or missed alarms.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
A: Every 330704-000-060-10-02-CN unit is bench-tested for output voltage, sensitivity, and OK relay function before shipment. The 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. It does not cover damage caused by incorrect installation, mismatched system components, or operation outside the specified gap range and temperature limits.

Q4: What is the typical lead time, and do you maintain stock?
A: We maintain inventory of the 330704-000-060-10-02-CN to support urgent retrofit and emergency replacement requirements. Standard orders ship within 3–5 business days. For large-quantity orders or projects requiring multiple matched probe/cable/driver sets, contact our sales team to confirm availability and arrange pre-shipment inspection documentation.
