Bently Nevada 31000-00-00-00-070-03-02 Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 31000-00-00-00-070-03-02 Service-Ready Spare Part for Industrial Maintenance

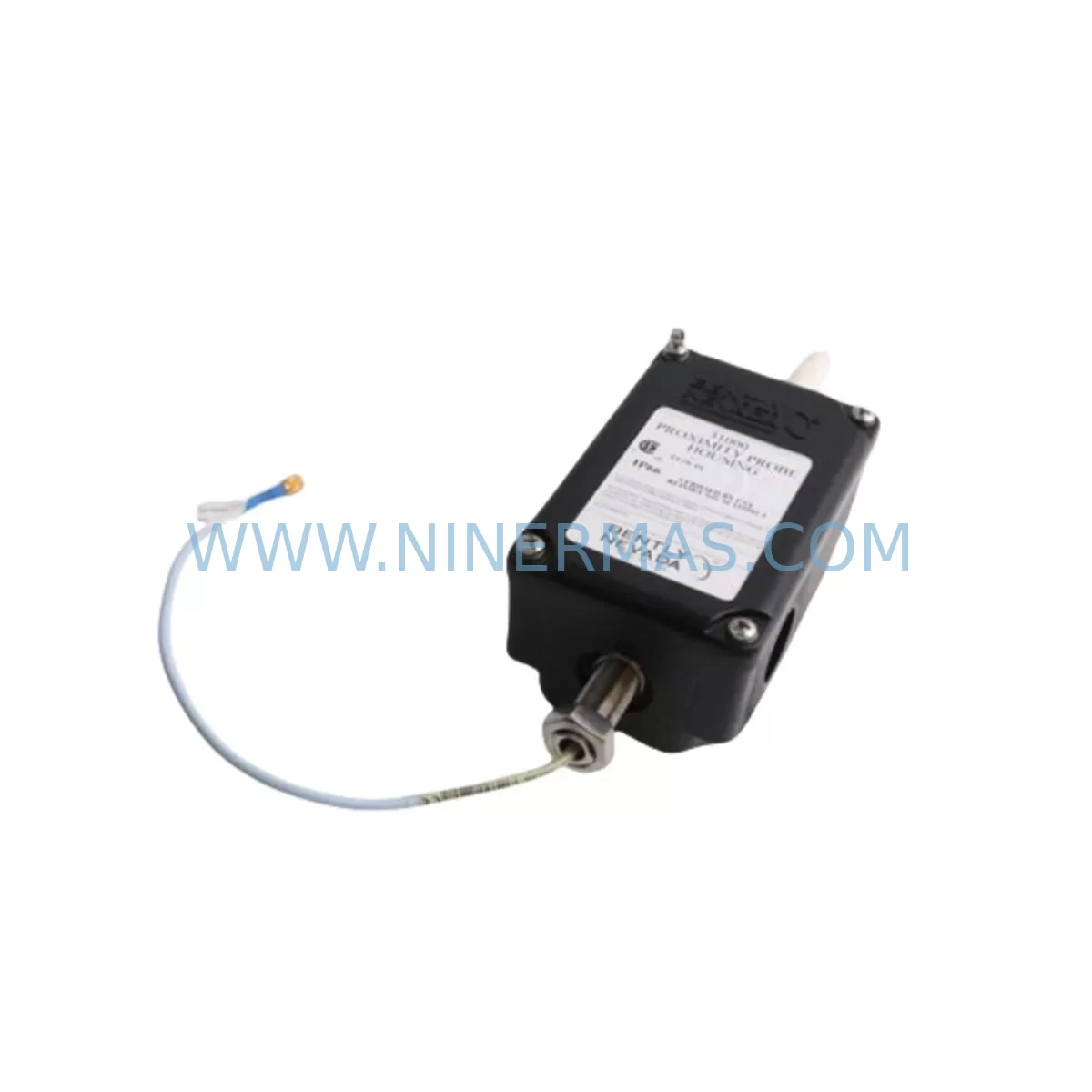

The Bently Nevada 31000-00-00-00-070-03-02 Ruggedized Proximity Probe Housing is a critical spare part for continuous vibration monitoring systems deployed in rotating machinery protection environments. Engineered to withstand harsh industrial conditions — including high-vibration, high-temperature, and chemically aggressive atmospheres — this ruggedized housing ensures the mechanical integrity and signal accuracy of the proximity probe assembly throughout its operational lifecycle. Whether you are managing a planned annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory for your control room, the 31000-00-00-00-070-03-02 is a service-ready replacement that restores system performance with minimal downtime.

Designed for compatibility with the Bently Nevada 3300 Series proximity transducer system, this housing protects the probe tip and cable assembly from mechanical damage, fluid ingress, and electromagnetic interference. Maintenance engineers working on turbines, compressors, pumps, and gearboxes rely on this component to maintain the dimensional accuracy required for reliable gap voltage readings. A compromised or worn housing can introduce measurement drift, false alarms, or complete signal loss — all of which carry significant consequences in machinery protection applications where trip setpoints are tightly defined.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-00-00-00-070-03-02 housing during a scheduled or emergency maintenance window, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure system reliability. Begin by verifying the condition of the proximity probe itself — typically a Bently Nevada 330130 or 330180 series probe — checking for tip damage, cable jacket abrasion, and connector corrosion. The extension cable, often a 330130-045-00-00 or equivalent, should be inspected for continuity and insulation resistance, as a degraded cable will introduce noise into the gap voltage signal even with a new housing installed.

The Proximitor sensor — such as the 3300 XL 8mm or 3300 NSv — should be checked for output voltage stability and calibrated against the target material if the probe assembly has been repositioned. Confirm that the barrier or signal conditioner in the junction box is functioning correctly, particularly in hazardous area installations where intrinsic safety barriers protect the measurement circuit. Terminal blocks and field wiring within the local junction box should be inspected for loose connections, moisture ingress, and corrosion, as these are common sources of intermittent signal faults that are often misattributed to the probe or housing.

At the rack level, verify that the 3500/40M or 3500/42M proximitor I/O module is receiving a clean signal within the expected gap voltage range (typically -2 VDC to -18 VDC for standard 5mm probes). If the system uses a 3500/22M transient data interface or a 3500/92 communication gateway, confirm that the channel configuration and alarm setpoints remain consistent with the machinery protection philosophy. For older installations using the 3300/16 or 3300/20 monitor cards, this maintenance event is also an appropriate time to assess whether the monitor hardware is approaching end-of-life and whether a migration to the 3500 platform should be planned.

Procurement engineers should note that the 31000-00-00-00-070-03-02 is a long-lead item in some regions, and maintaining a minimum stock of two to four units per critical machine train is a widely adopted best practice in petrochemical, power generation, and LNG facilities. Pairing this housing with a stocked set of 330130 probes, extension cables, and a spare Proximitor sensor ensures that the complete measurement chain can be restored within a single shift, minimizing the risk of extended unplanned downtime.

Site Replacement Workflow

Before removing the existing probe assembly, record the current gap voltage and compare it against the baseline established during the last calibration. This reading confirms whether the housing failure has already affected measurement accuracy or whether the replacement is purely preventive. De-energize the measurement circuit at the junction box and disconnect the extension cable before loosening the housing from its mounting bracket. Inspect the mounting surface for corrosion or mechanical damage that could affect the probe’s radial position relative to the shaft.

Install the 31000-00-00-00-070-03-02 replacement housing and torque to the manufacturer’s specification. Reconnect the extension cable and re-energize the circuit. Verify the gap voltage at the Proximitor output and adjust the probe position if necessary to achieve the target gap (typically 1.0 mm to 1.5 mm for 5mm probes, corresponding to approximately -7.87 VDC). Document the as-left gap voltage in the maintenance management system and update the calibration record. If the machine is equipped with a Bently Nevada System 1 condition monitoring platform, confirm that the new baseline is reflected in the trend data before returning the machine to service.

This workflow applies equally to direct replacement of obsolete housings from earlier Bently Nevada product generations, including components originally specified for the 7200 series transducer system. The 31000-00-00-00-070-03-02 is dimensionally and functionally compatible with a wide range of legacy installations, making it a preferred choice for facilities seeking to standardize their spare parts inventory without undertaking a full system upgrade.

Spare Parts Support FAQ

Q: Is the 31000-00-00-00-070-03-02 compatible with both the 3300 and 7200 series proximity transducer systems?
A: Yes. The ruggedized housing is designed for use across multiple Bently Nevada proximity probe families, including the 3300 XL, 3300 NSv, and 7200 series. Always verify the probe tip diameter and thread specification against your installation drawing before ordering to confirm dimensional compatibility.

Q: What is the recommended inventory strategy for this spare part in a critical rotating machinery application?
A: For machinery classified as critical or essential, a minimum stock of two to four housings per machine train is recommended. This ensures that a complete probe assembly replacement can be completed within a single maintenance shift without waiting for procurement lead times, which can range from two to eight weeks depending on regional availability.

Q: How is the 31000-00-00-00-070-03-02 tested before shipment?
A: Each unit undergoes functional inspection and dimensional verification prior to dispatch. Our quality control process includes visual inspection for mechanical defects, thread integrity check, and confirmation of material certification where applicable. A 12-month warranty covers manufacturing defects under normal operating conditions.

Q: Can this housing be used as a long-term replacement for discontinued or obsolete Bently Nevada probe housings?
A: Yes. The 31000-00-00-00-070-03-02 is frequently used as a service-ready replacement for older housings that are no longer available through standard distribution channels. Its ruggedized construction and broad compatibility make it suitable for life extension programs on aging machinery protection systems, reducing the need for full transducer system upgrades in the near term.

—
