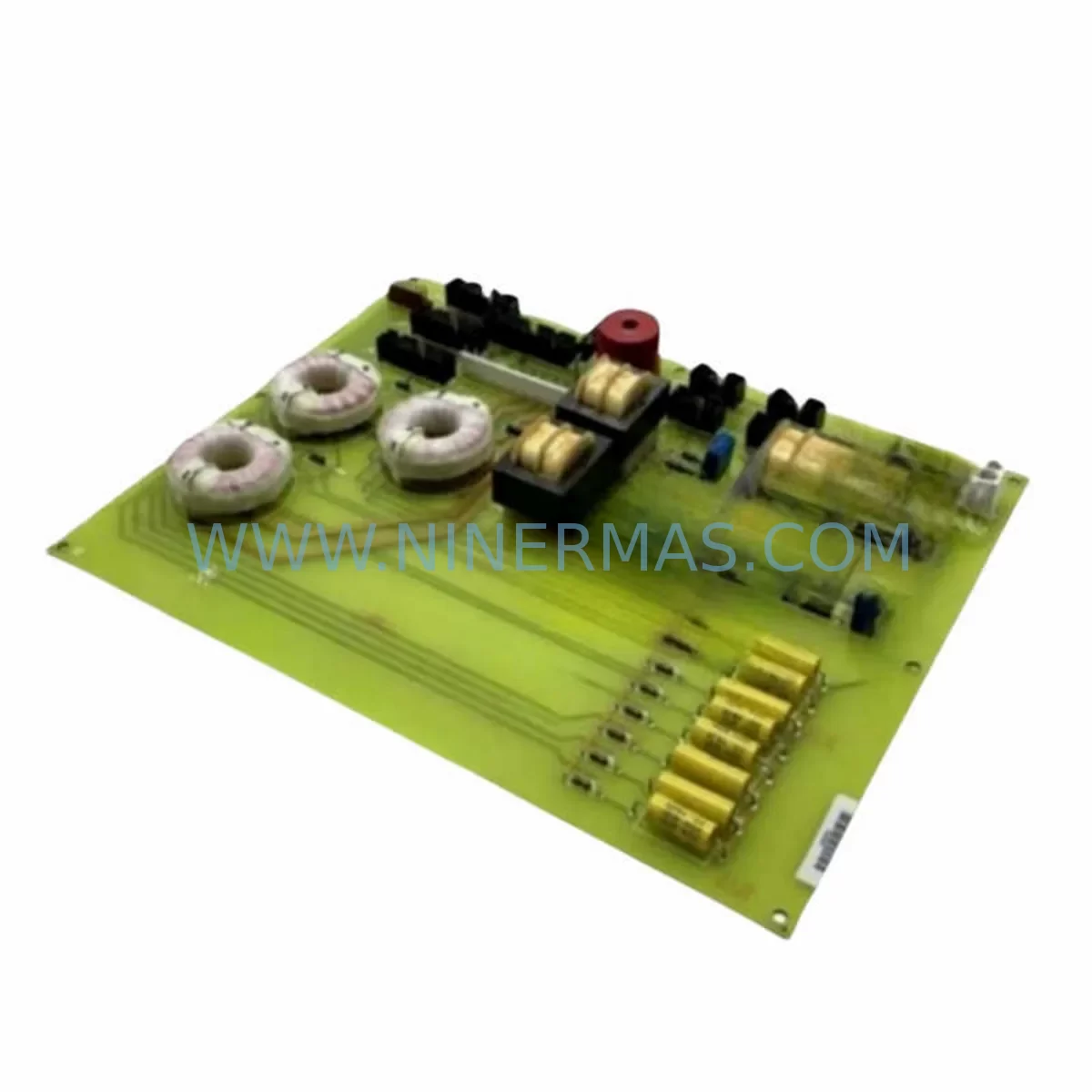

The GE DS200TCEBG1AAB is a ruggedized relay output module engineered for continuous-duty service within GE Mark V turbine control systems and DS200-series distributed control architectures. Designed to withstand elevated ambient temperatures, vibration, and electrical noise common in power generation, oil & gas, and heavy processing environments, this module delivers reliable discrete output switching for critical actuator and interlock circuits. Sourcing a verified, service-ready DS200TCEBG1AAB spare is essential for any maintenance team responsible for uptime on aging Mark V panels — where OEM production has ceased and lead times on inferior substitutes can extend planned outages into unplanned shutdowns.

At NINERMAS, every DS200TCEBG1AAB unit is sourced from controlled supply chains, subjected to pre-shipment functional verification, and backed by a 12-month warranty. We support maintenance engineers and procurement teams across the full spare parts lifecycle — from initial compatibility confirmation through long-term blanket stock arrangements — ensuring your Mark V control cabinet remains operational well beyond the original OEM support window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A relay output module like the DS200TCEBG1AAB sits at the intersection of the control system’s logic and the physical plant — it is the last electronic component before a solenoid valve opens, a motor starter energizes, or an emergency shutdown interlock trips. When planning a Mark V panel overhaul or annual turbine outage, maintenance engineers should treat this module as part of a coordinated spare parts review rather than an isolated replacement.

Begin with the DS200TCQAG1B or DS200TCQCG1B I/O terminal boards that interface directly with the TCEB relay module — damaged terminal blocks or corroded wiring ferrules on these boards can cause relay output faults that are misdiagnosed as module failures. Simultaneously inspect the DS200SDCIG1A DC power supply card that feeds the relay coil bus; a sagging 24 VDC rail will cause intermittent relay dropout without triggering a hard fault alarm. The DS200TCDAG1A analog I/O board sharing the same card cage should also be checked for backplane connector integrity, as vibration-induced micro-fretting on the edge connector is a common root cause of multi-module faults in turbine environments.

For the interlock and protection circuits driven by the DS200TCEBG1AAB, verify the downstream terminal strip assemblies and DIN-rail mounted relay bases for contact oxidation — particularly in coastal or high-humidity installations. If the module drives solenoid valves through intermediate signal isolators or intrinsic safety barriers, those components should be bench-tested during the same outage window. The DS200TCEAG1A (an earlier relay output variant in the same family) is a useful cross-reference for wiring diagrams when the original panel documentation is incomplete.

Communication health across the Mark V IONET or ARCNET backbone should be validated using the DS200SIOBG1A serial I/O board diagnostics before and after any relay module swap — a module replacement that disturbs the backplane can introduce network timing errors that only manifest under load. Finally, ensure the HMI workstation running Cimplicity or the Mark V operator interface reflects the correct I/O map after the replacement; a misconfigured point alias will cause the new relay output to appear faulted even when the hardware is fully functional.

Stocking one to two spare DS200TCEBG1AAB units per Mark V panel — alongside matched spares for the power supply, I/O terminal boards, and communication modules — is the minimum recommended inventory posture for facilities operating without OEM field service contracts. NINERMAS supports blanket purchase orders and long-term supply agreements to help procurement teams maintain this posture without tying up capital in excess inventory.

Site Replacement Workflow

Step 1 — Pre-Outage Preparation: Confirm the installed revision suffix of the existing module (G1AAB vs. G1AAC, etc.) against your panel’s bill of materials. The DS200TCEBG1AAB suffix denotes a specific hardware revision; substituting a different suffix without engineering review can introduce relay timing or coil voltage mismatches. Request a compatibility confirmation from NINERMAS before ordering if your panel documentation is incomplete.

Step 2 — Safe Isolation: De-energize the relay output bus per your site LOTO procedure. Verify zero voltage on all relay output terminals using a calibrated multimeter before touching the card cage. The DS200 backplane remains live on the logic side even when the relay bus is isolated — treat all backplane connectors as energized until confirmed otherwise.

Step 3 — Module Extraction and Inspection: Remove the DS200TCEBG1AAB using the card extraction lever. Inspect the ejected module for visible relay coil burn marks, PCB corrosion, or cracked relay bodies. Photograph the wiring harness and terminal assignments before disconnecting — Mark V field wiring is often undocumented at the terminal level in older installations.

Step 4 — Replacement and Verification: Seat the new DS200TCEBG1AAB firmly until the backplane connector is fully engaged. Re-energize the relay bus and confirm each output channel actuates correctly via the Mark V diagnostic display or HMI force function. Log the replacement in your maintenance management system with the new module’s serial number and the NINERMAS shipment reference for warranty tracking.

Step 5 — Post-Replacement Monitoring: Monitor relay output status for the first 72 hours of operation. Intermittent faults during this burn-in window typically indicate backplane connector seating issues or downstream wiring problems rather than module defects — reseat the card and re-inspect field terminations before concluding the module is faulty.

Spare Parts Support FAQ

Q1: Is the DS200TCEBG1AAB still available as a new OEM part, or is this a refurbished unit?
GE has discontinued active production of most DS200-series modules. NINERMAS supplies units sourced from authorized surplus channels and controlled industrial inventories. Each unit undergoes functional pre-shipment testing. Where new-surplus stock is available, it is offered preferentially; refurbished units are clearly identified and carry the same 12-month warranty. Contact our team for current stock classification before ordering.

Q2: How do I confirm compatibility with my specific Mark V panel revision?
Provide your panel serial number, the existing module’s full part number including suffix (e.g., DS200TCEBG1AAB), and your Mark V software version. NINERMAS engineers will cross-reference against known hardware revision matrices and advise on any required configuration changes. Compatibility confirmation is provided at no charge prior to purchase.

Q3: What is included in the 12-month warranty, and how are warranty claims handled?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. It excludes damage caused by incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed by contacting sale@ninermas.com with the shipment reference and a description of the failure mode. NINERMAS will arrange return shipping and provide a replacement or credit within an agreed lead time.

Q4: Can NINERMAS support a long-term supply agreement for DS200TCEBG1AAB and related Mark V spares?
Yes. NINERMAS offers blanket purchase orders and annual supply agreements for critical spare parts including the DS200TCEBG1AAB and associated DS200-series modules. Long-term agreements include priority allocation, fixed pricing for the agreement term, and dedicated account management. Contact our team to discuss volume requirements and delivery scheduling aligned with your planned maintenance calendar.
