GE DS200TCEAG2BTF Retrofit-Compatible TCEA Board for Legacy Systems

GE DS200TCEAG2BTF Retrofit-Compatible TCEA Board for Legacy Speedtronic Mark V Systems

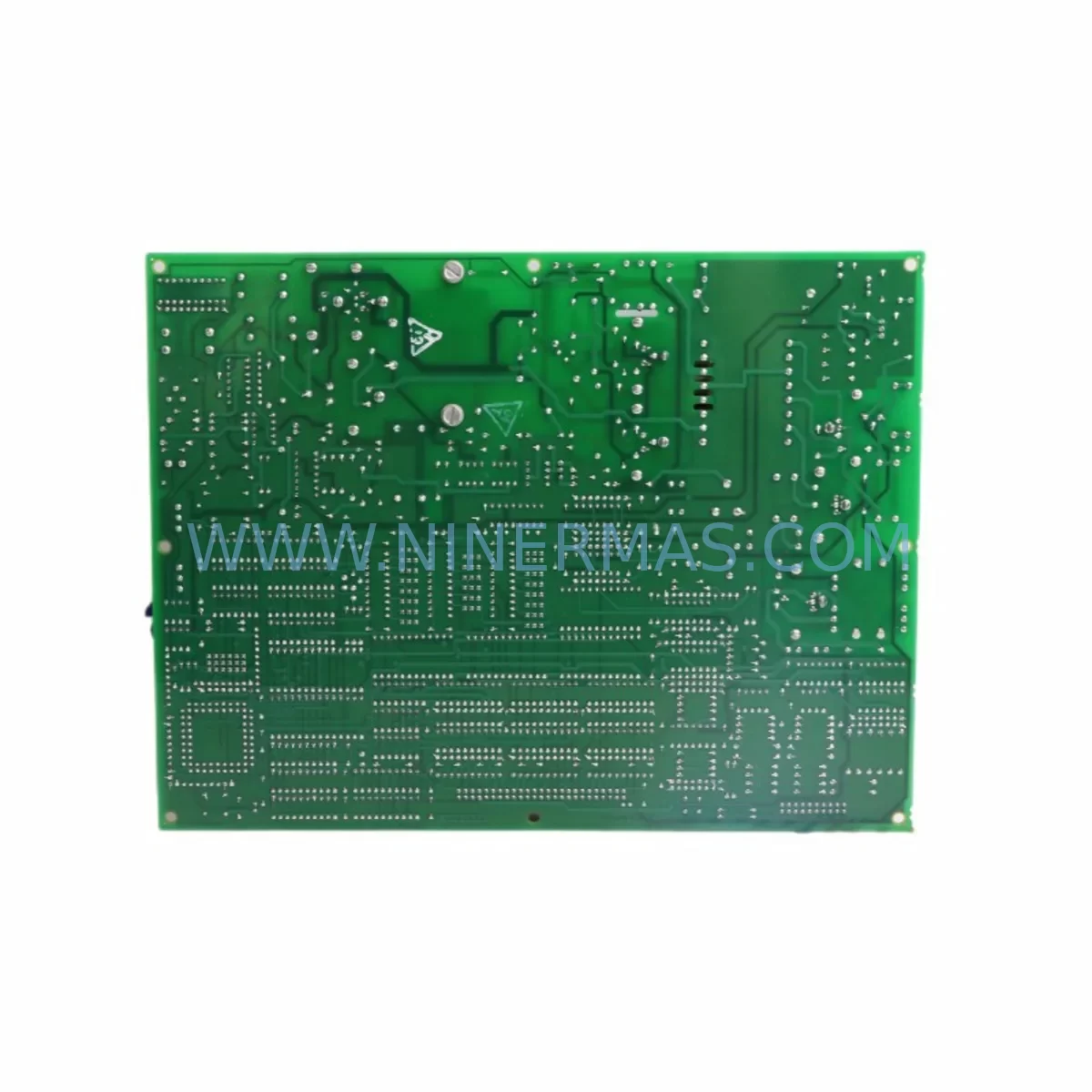

The GE DS200TCEAG2BTF is a Turbine Control Electronics Assembly (TCEA) board designed for the GE Speedtronic Mark V turbine control platform. As gas turbine operators face increasing pressure to extend the operational life of aging Mark V systems — many of which have been in continuous service since the early 1990s — the DS200TCEAG2BTF has become a critical spare part for both emergency replacement and planned retrofit programs. NINERMAS maintains verified stock of this board with full pre-shipment functional testing and a 12-month warranty, supporting customers across power generation, oil and gas, and petrochemical industries.

The Mark V platform, while no longer in active production by GE, remains widely deployed across combined-cycle power plants, simple-cycle peakers, and industrial cogeneration facilities. The DS200TCEAG2BTF interfaces directly with the Mark V , , and controller racks, handling critical turbine excitation and control signal processing. When this board fails, the turbine typically trips and cannot be restarted until the board is replaced or repaired — making rapid availability and verified compatibility essential for minimizing unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TCEAG2BTF within an operating Mark V system requires careful pre-outage planning to avoid extended downtime and configuration errors. Before the replacement window, maintenance engineers should pull the existing Mark V configuration printout and verify the board’s slot assignment, jumper settings, and the associated I/O terminal board connections. The TCEA board works in close coordination with the DS200TCDAG1A terminal board, which carries the field wiring for analog and discrete turbine signals. If the terminal board shows signs of corrosion or damaged screw terminals, it is advisable to replace both boards simultaneously during the same outage window.

Power supply integrity is a prerequisite for any Mark V board replacement. The DS200PSDAG1A power supply module — or its site-installed equivalent — must be verified to deliver stable +5 VDC and ±15 VDC rails before the new DS200TCEAG2BTF is seated. Voltage deviations outside tolerance can damage the replacement board immediately upon power-up. A calibrated multimeter check at the backplane connector is recommended before insertion.

For sites running multiple redundant controllers, the replacement can often be performed on the standby or controller while the controller maintains turbine control, significantly reducing risk. After physical installation, the Mark V system will perform an automatic self-test sequence. Engineers should monitor the diagnostic LEDs on the DS200TCEAG2BTF and cross-reference with the Mark V fault log to confirm the board has passed initialization. Any persistent fault codes should be compared against the GE Speedtronic Mark V maintenance manual before attempting turbine restart.

Sites planning a longer-term migration from Mark V to Mark VI or Mark VIe should note that the DS200TCEAG2BTF is not directly compatible with the Mark VI I/O architecture. A full migration typically involves replacing the controller racks with IS200 series Mark VI hardware, re-terminating field wiring to new IS200 terminal boards such as the IS200TBAIH1C, and reconfiguring the turbine control application in GE’s ToolboxST environment. During the transition period, some operators choose to maintain a parallel Mark V system as a fallback, keeping critical spares such as the DS200TCEAG2BTF, DS200SDCIG2A signal conditioning board, and DS200EXPSG1A expansion board in local inventory to support the legacy system until full cutover is complete.

For facilities managing multiple turbine strings, it is common to standardize spare parts across units. The DS200TCEAG2BTF is used across a range of GE Frame 5, Frame 6, and Frame 7 turbine configurations running Mark V controls, making it a high-priority spare for any multi-unit power plant or refinery with GE turbine assets. Coordinating procurement of this board alongside other high-wear Mark V components — including the DS200DSPCH7BBB DSP control board, DS200GDDDG1AEB gate drive board, and DS200UDSIG1A universal digital signal board — allows maintenance teams to consolidate shipping, reduce lead times, and negotiate better pricing on multi-line purchase orders.

Downtime Control During System Migration

Unplanned turbine trips caused by TCEA board failure can result in significant lost generation revenue or process disruption. The most effective strategy for minimizing downtime is to maintain at least one verified spare DS200TCEAG2BTF on-site, pre-tested and ready for immediate installation. NINERMAS ships all boards with a functional test report, allowing site engineers to confirm board health before the unit is needed in an emergency.

For planned replacement during a scheduled outage, the recommended sequence is: (1) back up the current Mark V configuration to the historian or engineering workstation; (2) de-energize the affected controller rack following site lockout/tagout procedures; (3) photograph the existing board’s jumper configuration before removal; (4) install the DS200TCEAG2BTF and verify jumper settings match the original; (5) restore power and monitor the self-test sequence; (6) perform a controlled turbine start with operations personnel standing by. This sequence typically allows a board swap to be completed within a two-to-four hour maintenance window, well within the tolerance of most planned outage schedules.

Where the Mark V system is operating in simplex (non-redundant) mode, the replacement window represents a full turbine outage. In these cases, pre-staging the replacement board at site — rather than ordering after failure — is critical. NINERMAS supports emergency dispatch for verified in-stock items, with same-day or next-business-day shipping available for urgent requirements. All boards are packaged in anti-static ESD bags with foam cushioning to ensure safe transit and arrive ready for immediate installation without additional conditioning.

Protecting the original program logic during migration is equally important. The Mark V application software resides in the controller’s EEPROM and is not stored on the TCEA board itself, so a direct board replacement does not risk overwriting the turbine control program. However, if the replacement is part of a broader Mark V-to-Mark VI migration, the existing control logic must be manually converted or re-engineered in ToolboxST, as the two platforms use incompatible programming environments. Engaging a qualified GE controls engineer or certified integrator for the software migration phase is strongly recommended to preserve original control logic intent and avoid introducing new trip conditions.

Retrofit Support FAQ

Q1: Is the DS200TCEAG2BTF a direct drop-in replacement for all Mark V TCEA variants?
The DS200TCEAG2BTF is compatible with the standard GE Speedtronic Mark V platform across most Frame 5, 6, and 7 turbine applications. However, some site-specific hardware revisions or custom Mark V configurations may use different TCEA variants. Always cross-reference the part number on the failed board and the Mark V rack drawing before ordering. NINERMAS can assist with compatibility verification based on your turbine frame type and Mark V software revision.

Q2: What pre-shipment testing is performed on the DS200TCEAG2BTF?
Every DS200TCEAG2BTF dispatched by NINERMAS undergoes functional testing on a GE Mark V-compatible test bench. The test verifies power rail response, backplane communication, and signal processing functions. A test report is included with each shipment. The board is covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: Can the DS200TCEAG2BTF be used in a Mark VI or Mark VIe system?
No. The DS200TCEAG2BTF is designed exclusively for the Mark V platform and is not compatible with Mark VI or Mark VIe hardware. The Mark VI uses IS200 series boards with a different backplane architecture, I/O addressing scheme, and communication protocol. If you are migrating from Mark V to Mark VI, NINERMAS can advise on the appropriate IS200 series replacement boards and migration hardware required for your specific turbine configuration.

Q4: What is the typical lead time and do you maintain stock?
NINERMAS maintains verified inventory of the DS200TCEAG2BTF and can confirm stock availability at time of inquiry. For in-stock items, standard lead time is 3–7 business days for international shipments, with expedited options available for urgent requirements. All orders include a 12-month warranty and full pre-shipment test documentation. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock and arrange dispatch.
