FORNEY RM DR6101E Service-Ready Spare Part for Industrial Maintenance

FORNEY RM DR6101E Service-Ready Spare Part for Industrial Maintenance

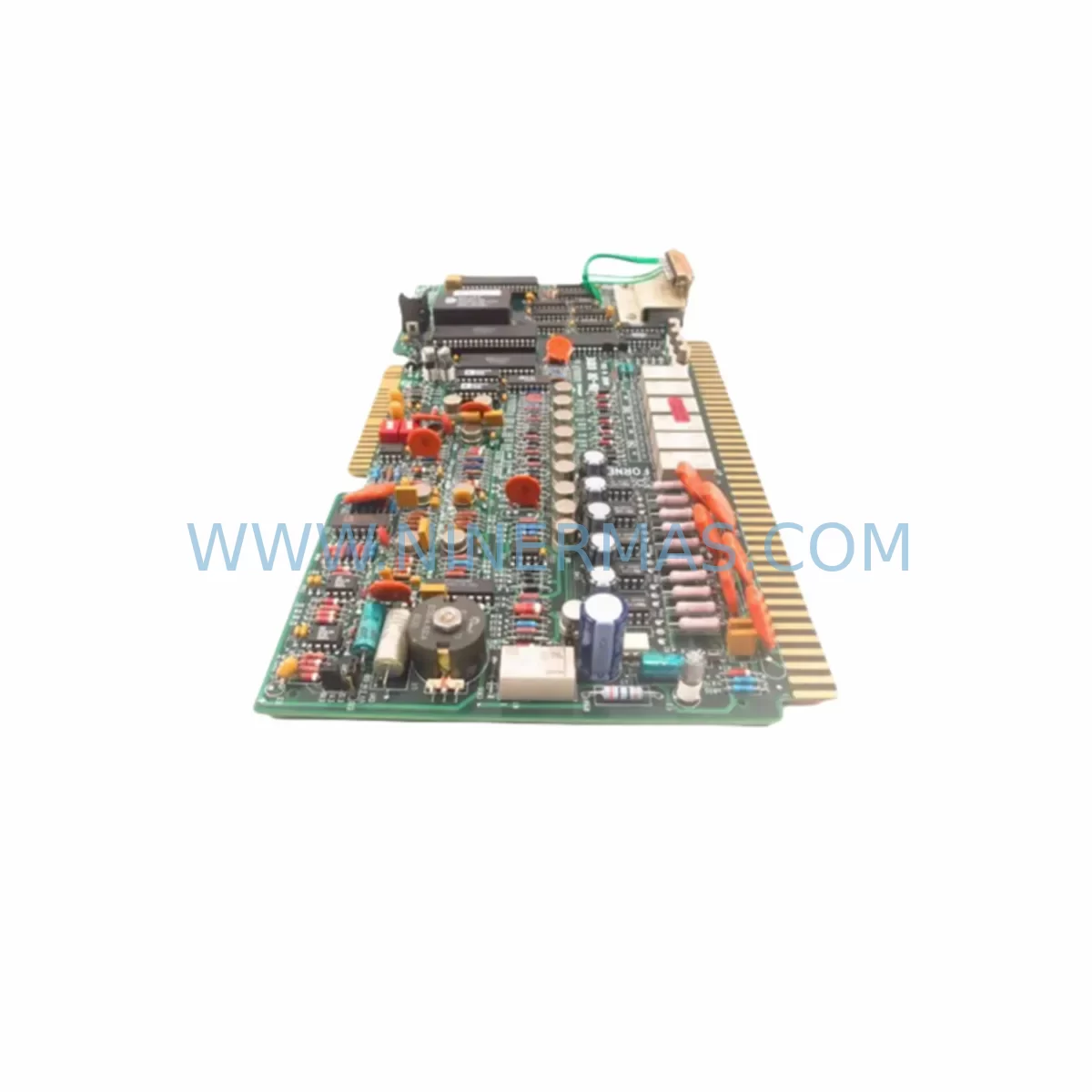

The FORNEY RM DR6101E is a service-ready digital relay module engineered for the FORNEY RM Series control architecture. Designed to meet the demanding requirements of industrial automation environments, this spare part supports rapid on-site replacement, minimising unplanned downtime and restoring production continuity with confidence. Whether you are managing a scheduled annual overhaul, responding to an emergency fault condition, or building a proactive spare parts inventory for a critical control cabinet, the RM DR6101E delivers the compatibility, reliability, and long-term supply assurance that maintenance and procurement engineers depend on.

NINERMAS stocks the RM DR6101E as an original, tested component backed by a 12-month warranty. Every unit undergoes pre-shipment functional verification to ensure it meets FORNEY factory specifications before leaving our facility. We support long-term procurement programmes for customers managing legacy RM Series installations across multiple sites or regions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a FORNEY RM DR6101E relay module is identified for replacement during a control cabinet inspection or fault diagnosis, experienced maintenance engineers treat the event as a trigger for a broader system health review. A single relay failure in an RM Series rack rarely occurs in isolation — thermal stress, vibration, and electrical transients affect neighbouring components simultaneously.

Begin by auditing the RM Series power supply module that feeds the relay rack. Degraded DC bus voltage or ripple on the 24 V rail is a leading cause of premature relay contact wear and false trip events. If the power supply is approaching its rated service life, scheduling a concurrent replacement alongside the RM DR6101E eliminates a second maintenance window.

Next, inspect the RM Series digital input modules (DI cards) that feed command signals to the relay outputs. Worn input optocouplers or contaminated terminal blocks can cause intermittent command signals that stress relay contacts through excessive switching cycles. Cleaning or replacing the associated terminal block assemblies and cage-clamp connectors at the same time ensures a clean signal path after the relay swap.

For installations where the RM DR6101E interfaces with a FORNEY RM Series communication module — such as a PROFIBUS DP or Modbus RTU interface card — verify that the backplane connector seating is secure and that the communication module firmware is current. A loose backplane connection can generate spurious relay commands that accelerate contact erosion on the new module.

If the relay output circuit drives an electromechanical contactor or motor starter, check the contactor coil suppression diode or RC snubber network. Missing or failed suppression components generate voltage spikes that shorten relay contact life significantly. Replacing the suppression element costs a fraction of a relay module and protects the new RM DR6101E from day one.

Maintenance planners should also review the signal isolators and barriers in any 4–20 mA analogue loops that share the same control cabinet. While the RM DR6101E is a digital relay device, analogue signal integrity in the same enclosure affects overall system reliability. Zener barriers or galvanic isolators with degraded isolation resistance can introduce ground loops that affect relay logic indirectly through PLC input noise.

For sites running FORNEY RM Series HMI panels or operator interface terminals connected to the same control network, confirm that the HMI communication link remains stable after the relay replacement. A brief communication interruption during module hot-swap can trigger alarm states that require manual reset — coordinating the replacement with the HMI operator prevents unnecessary production delays.

Finally, review the fuse protection on the relay output circuits. Blade fuses or cylindrical fuse holders protecting the RM DR6101E output loads should be inspected for discolouration, loose contacts, or fuse element degradation. Replacing aged fuse holders as part of the same maintenance event is a low-cost step that significantly reduces the risk of nuisance trips after the relay module is restored to service.

NINERMAS maintains stock of complementary RM Series components to support complete cabinet restoration projects. Contact our technical sales team to discuss multi-line spare parts orders, consignment stock arrangements, or long-term supply agreements for critical FORNEY RM Series installations.

Site Replacement Workflow

Step 1 — Isolation and safety: De-energise the control cabinet following your site LOTO (Lockout/Tagout) procedure. Confirm zero-voltage on the RM Series rack bus before removing the RM DR6101E module. For safety-rated circuits, verify that the associated safety relay or safety PLC has been placed in a safe state before proceeding.

Step 2 — Module extraction: Release the DIN rail locking tab or backplane ejector lever (depending on RM Series rack generation). Note the wiring terminal assignments and photograph the existing wiring before disconnection. The RM DR6101E uses a plug-in terminal block on most rack variants, allowing wiring to remain intact during module swap — confirm this against your specific rack revision.

Step 3 — Compatibility verification: Confirm that the replacement RM DR6101E matches the hardware revision of the installed unit, particularly the contact rating and coil voltage specification. FORNEY RM Series racks may span multiple hardware generations; the DR6101E designation covers the primary variant, but suffix letters (e.g., DR6101E vs. DR6101E/1) may indicate minor hardware revisions. Contact NINERMAS if you require cross-reference confirmation.

Step 4 — Installation and wiring: Seat the new module firmly into the backplane slot until the locking mechanism engages. Reconnect or verify the plug-in terminal block seating. Torque all screw terminals to the manufacturer’s specified value to prevent loose connections under vibration.

Step 5 — Commissioning and test: Re-energise the rack and perform a functional output test from the PLC or DCS controller. Verify that the relay energises and de-energises correctly in response to command signals. Log the replacement in your maintenance management system (CMMS) with the new module serial number and installation date to support the 12-month warranty period.

Step 6 — Documentation: Update your spare parts inventory record to reflect the consumed RM DR6101E unit and initiate a replenishment order to maintain your minimum stock level. NINERMAS recommends holding a minimum of one spare RM DR6101E per active RM Series rack for sites where unplanned downtime carries significant production cost.

Spare Parts Support FAQ

Q1: Is the FORNEY RM DR6101E still in production, and can NINERMAS guarantee long-term supply?
The RM DR6101E is a mature industrial component within the FORNEY RM Series lifecycle. NINERMAS specialises in long-lifecycle spare parts sourcing and maintains strategic stock of RM Series modules to support customers through extended system lifecycles. We offer long-term supply agreements and consignment stock programmes for customers with ongoing maintenance requirements. Contact our team to discuss your annual consumption forecast and secure a dedicated allocation.

Q2: How does NINERMAS verify the authenticity and condition of the RM DR6101E before shipment?
Every RM DR6101E unit shipped by NINERMAS undergoes a pre-shipment inspection that includes visual examination for physical damage, contact resistance measurement, coil continuity check, and functional switching test under rated load conditions. Units that do not meet FORNEY factory specifications are quarantined and not offered for sale. All shipped units are covered by our 12-month warranty from the date of shipment.

Q3: Can the RM DR6101E replace earlier DR6101 variants without hardware or software modification?
In the majority of RM Series rack installations, the RM DR6101E is a direct plug-in replacement for earlier DR6101 variants. However, customers should verify the contact rating, coil voltage, and backplane connector type against their installed rack generation before ordering. NINERMAS provides free pre-order compatibility consultation — supply your rack model number and existing module part number and our technical team will confirm compatibility before you commit to a purchase.

Q4: What is the recommended spare parts stocking strategy for RM Series relay modules?
For control systems with four or more RM Series relay modules installed, NINERMAS recommends maintaining a minimum of two RM DR6101E spare units on-site. For critical production lines where a relay failure would cause an immediate line stop, consider a higher buffer of three to five units depending on your mean time between failures (MTBF) data. Annual maintenance contracts with NINERMAS can include automatic replenishment triggers to ensure your spare parts buffer is never depleted without notice.
