FORNEY IDD-IIU 3832122 Safety-Reliable Flame Detector

FORNEY IDD-IIU 3832122 Safety-Reliable Flame Detector for Critical Control Sites

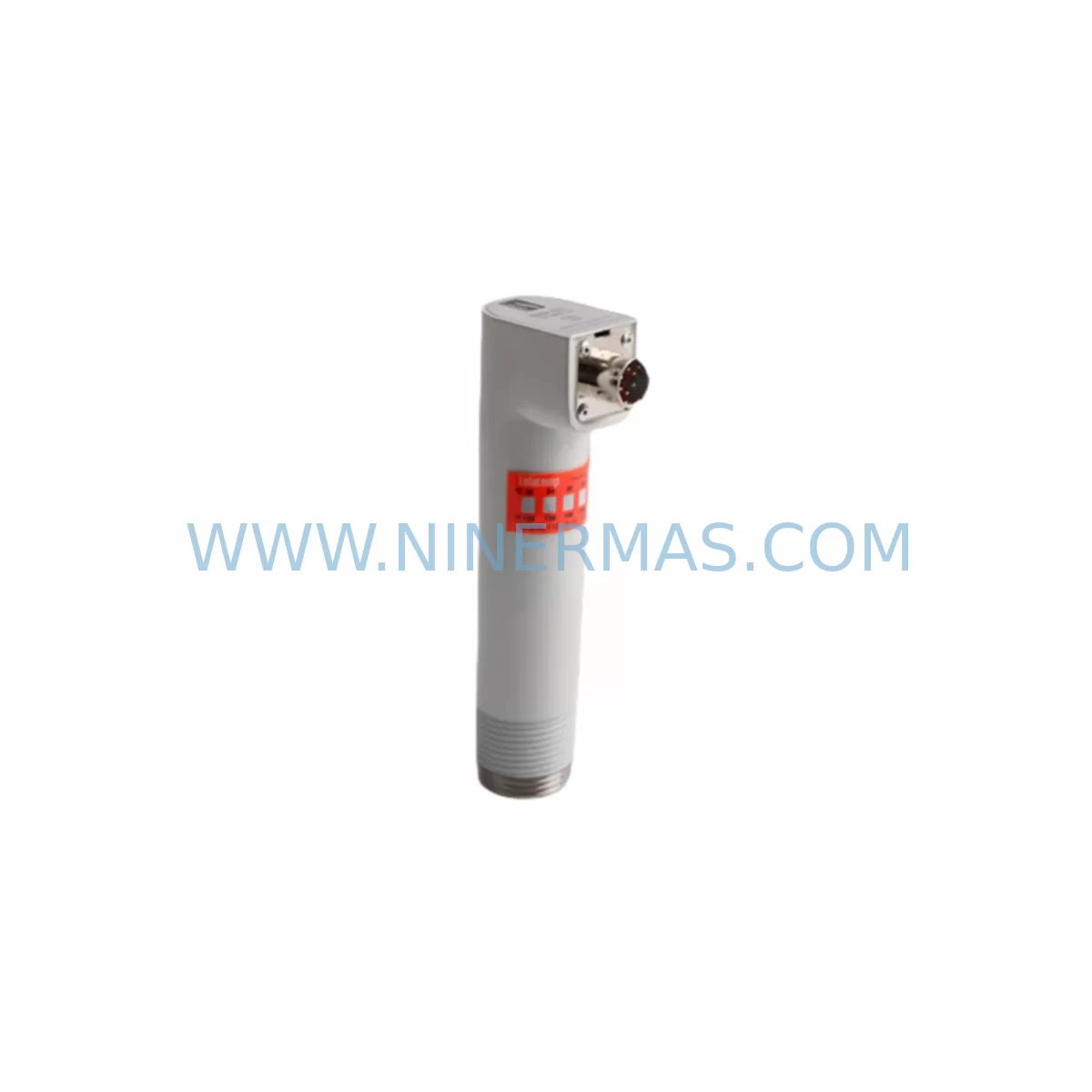

The FORNEY IDD-IIU 3832122 is a safety-grade flame detection module engineered for continuous, uninterrupted operation in critical industrial combustion control environments. Designed as part of the FORNEY IDD/IIU flame detection series, this unit delivers reliable UV-based flame sensing for burner management systems (BMS) where control interruption, signal drift, or missed flame events carry significant safety and operational consequences.

In petrochemical plants, power generation facilities, cement kilns, steel reheat furnaces, and waste incineration systems, the integrity of flame detection directly governs burner safety interlocks and emergency shutdown (ESD) sequences. The IDD-IIU 3832122 is built to maintain stable signal output under conditions of high electromagnetic interference (EMI), elevated ambient temperatures, vibration, and airborne particulates — all common in heavy industrial combustion environments. Its robust housing and shielded signal circuitry reduce the risk of spurious trips, nuisance shutdowns, and undetected flame loss events that can compromise both personnel safety and process continuity.

For facilities operating legacy FORNEY flame management panels, the IDD-IIU 3832122 serves as a direct replacement or upgrade-compatible component within existing detector head mounts and signal conditioning circuits. Engineers planning a burner control modernization project should verify detector head mounting dimensions, signal cable routing, and amplifier input compatibility — particularly when integrating with FORNEY IDD amplifier modules or third-party burner management controllers. The 3832122 variant is optimized for UV detection ranges suited to natural gas, fuel oil, and mixed-fuel burner applications.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Flame detection reliability is only as strong as the weakest link in the burner safety chain. When deploying or replacing the FORNEY IDD-IIU 3832122, a comprehensive control cabinet risk audit should address every component in the detection-to-interlock signal path.

Starting at the detector head, the IDD-IIU 3832122 interfaces with FORNEY IDD signal amplifier modules, which condition the raw UV sensor output into a clean relay or analog signal suitable for the burner management controller. In systems where the amplifier card is also aging, simultaneous replacement of both the detector and its paired amplifier eliminates the risk of signal mismatch or calibration drift between mismatched component generations. FORNEY IDD amplifier boards are commonly housed in dedicated flame detection panels alongside relay output modules and manual reset circuits.

Power supply stability is a critical upstream concern. Flame detection circuits powered by aging or undersized 24 VDC power supply units are vulnerable to voltage sag during motor starts or contactor switching events — conditions that can cause false flame-loss signals and unnecessary burner trips. Installing a dedicated, regulated 24 VDC DIN-rail power supply with sufficient current headroom for the full detector and amplifier load is a recommended risk mitigation step during any burner control upgrade.

Signal isolation is equally important in mixed-signal control cabinets. Where the IDD-IIU 3832122 output feeds into a PLC analog input card or a safety relay module, signal isolators or galvanic separation barriers prevent ground loop interference from corrupting the flame signal. In high-EMI environments — such as those near variable frequency drives (VFDs), large contactors, or welding equipment — shielded signal cables with proper grounding at a single point further protect signal integrity.

For facilities using programmable safety controllers or safety PLCs (SIL-rated), the flame detection relay output from the IDD-IIU 3832122 typically feeds a dedicated safety input module. Verifying the input voltage threshold, response time, and diagnostic coverage of the safety input card ensures the overall safety function meets the required SIL level. Emergency shutdown (ESD) relay modules in the same panel should be tested for contact integrity and response time as part of the same maintenance window.

Communication between the burner management panel and the plant DCS or SCADA system — often via Modbus RTU, PROFIBUS DP, or hardwired 4–20 mA signals — should be verified for continuity and correct scaling after any detector replacement. HMI flame status displays and alarm setpoints should be confirmed against the new detector’s output characteristics before returning the burner to service.

Critical Industrial Safety Applications

The FORNEY IDD-IIU 3832122 is deployed across a wide range of critical industrial combustion sites where flame detection failure carries severe safety and regulatory consequences:

Petrochemical & Refinery Plants: Fired heaters, process furnaces, and flare pilots in refinery environments demand continuous, fail-safe flame monitoring. The IDD-IIU 3832122 supports burner safety interlocks that prevent fuel accumulation and uncontrolled ignition events in high-consequence process areas.

Power Generation: Coal, gas, and oil-fired boilers in thermal power stations rely on UV flame detectors to confirm burner ignition and maintain safe combustion throughout load cycling. The 3832122 provides the detection reliability needed to support automatic burner management sequences without operator intervention.

Cement & Lime Kilns: Rotary kiln burner systems operating on pulverized coal or alternative fuels require robust flame detection capable of withstanding high dust loading, radiant heat, and vibration. The IDD-IIU 3832122’s ruggedized design supports stable operation in these demanding thermal environments.

Steel & Metals Processing: Reheat furnaces, annealing lines, and ladle preheaters in steel plants use multi-burner combustion systems where individual flame monitoring is essential for both product quality and safety. Reliable flame detection prevents cold spots, incomplete combustion, and fuel-rich conditions that risk furnace damage or explosion.

Waste-to-Energy & Incineration: Municipal solid waste and industrial waste incineration facilities operate under strict emissions and safety regulations. Continuous flame confirmation ensures complete combustion and supports regulatory compliance for dioxin and CO emission limits.

Water Treatment & Chemical Processing: Thermal oxidizers and direct-fired process heaters in water treatment and specialty chemical plants use burner management systems where the IDD-IIU 3832122 provides the safety-critical flame signal that governs fuel valve control and emergency shutdown.

Safety and Quality FAQ

Q1: What warranty does Ninermas provide for the FORNEY IDD-IIU 3832122?
All FORNEY IDD-IIU 3832122 units supplied by Ninermas carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional inspection before dispatch. Contact sale@ninermas.com for warranty claim procedures and RMA support.

Q2: Is the IDD-IIU 3832122 compatible with existing FORNEY flame detection panels?
Yes. The IDD-IIU 3832122 is designed for direct compatibility within the FORNEY IDD/IIU flame detection panel series. Before installation, verify the detector head mounting thread, flange dimensions, signal cable connector type, and amplifier input voltage range against your existing panel documentation. Ninermas technical support can assist with compatibility confirmation based on your panel model and serial number.

Q3: How should the IDD-IIU 3832122 be commissioned after installation?
After mechanical installation and signal cable connection, verify 24 VDC supply voltage at the amplifier input terminals. Perform a flame simulation test using a calibrated UV test lamp to confirm detector response and relay output switching. Check HMI flame status indication and alarm acknowledgment sequences. Record the commissioning test results in the plant maintenance log before returning the burner to automatic operation.

Q4: Can Ninermas supply the IDD-IIU 3832122 for long-term maintenance contracts and critical spare parts programs?
Yes. Ninermas maintains stock of FORNEY IDD-IIU series components to support planned maintenance shutdowns, emergency replacements, and long-term spare parts agreements. For facilities managing multiple burner systems or multi-site operations, Ninermas can discuss framework supply agreements with reserved stock allocation and priority dispatch. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your supply requirements.
