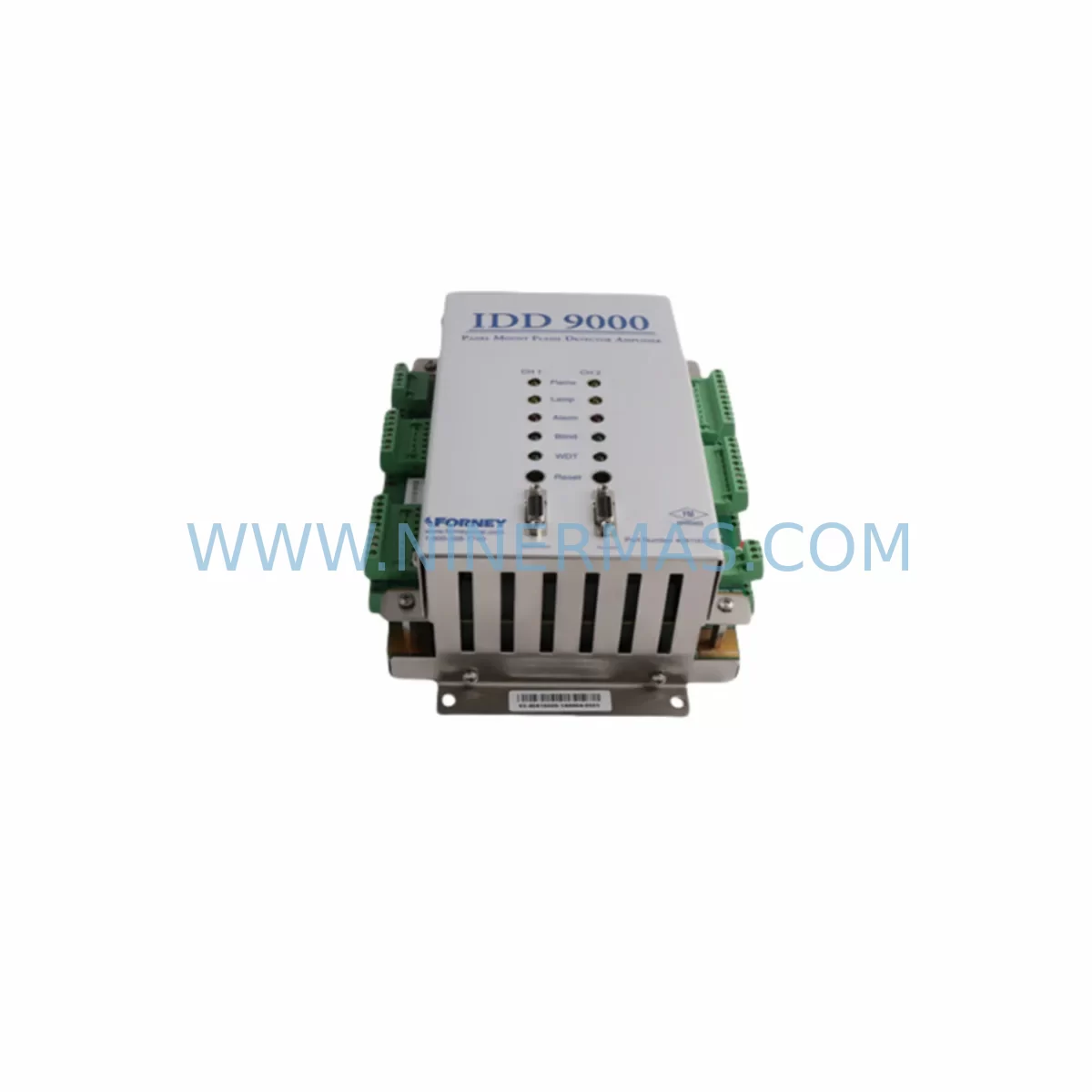

FORNEY IDD 9000 408100-00 Retrofit Flame Detector

FORNEY IDD 9000 408100-00 Retrofit Flame Detector: Legacy-Compatible Upgrade for Industrial Burner Management Systems

The FORNEY IDD 9000 408100-00 is a ruggedized flame detection module engineered for continuous, reliable operation in harsh industrial environments. Designed as a direct retrofit replacement for discontinued and end-of-life flame detection components within legacy FORNEY burner management and combustion control systems, this module enables facilities to extend the operational life of existing control infrastructure without committing to a full system overhaul. Whether you are managing a coal-fired boiler, a process heater, or a multi-burner combustion train, the IDD 9000 408100-00 provides a proven upgrade path that preserves your existing wiring topology, panel layout, and control logic.

Industrial plants operating legacy FORNEY IDD series flame scanners and detection amplifiers frequently encounter obsolescence challenges as original equipment manufacturers discontinue support for older model lines. The IDD 9000 408100-00 addresses this directly by maintaining backward-compatible signal outputs and mounting footprints consistent with earlier IDD-series modules, reducing the engineering effort required during replacement. Before installation, engineers should verify the supply voltage range — typically 24 VDC or 120 VAC depending on the panel configuration — and confirm that the terminal block pinout matches the existing field wiring. In most retrofit scenarios, the original cable harness can be reused without modification, significantly reducing downtime during the changeover.

When integrating the IDD 9000 408100-00 into an existing burner management system (BMS), it is essential to confirm compatibility with the flame relay output logic used by the safety PLC or hardwired interlock circuit. Systems built around legacy FORNEY 5000 series flame amplifiers or IDD 8000 series scanner heads may require a signal conditioning adapter or relay interface module to bridge output voltage levels. The module’s UV/IR detection sensitivity settings should be verified against the original scanner calibration records to ensure flame-on and flame-out response times remain within the safety system’s functional requirements. If the existing system uses a FORNEY IDD 9100 or IDD 9200 scanner head, the 408100-00 amplifier module is typically a direct plug-in replacement on the same DIN rail or panel-mount bracket.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the FORNEY IDD 9000 408100-00 into an operational combustion control system requires a structured pre-installation review. Begin by auditing the control cabinet for available panel space — the IDD 9000 module occupies a standard DIN rail slot, but adjacent components such as the burner management relay module, the safety PLC I/O rack, and the power distribution terminal blocks must be accounted for in the layout. In cabinets where space is constrained, it may be necessary to reorganize the terminal strip arrangement or relocate auxiliary components such as signal isolators or surge protection modules.

Power supply capacity is a critical checkpoint. The existing 24 VDC SMPS (switched-mode power supply) feeding the flame detection circuit must have sufficient headroom to support the IDD 9000 408100-00 alongside other loads on the same rail, including any FORNEY IDD 9100 scanner heads, UV sensor assemblies, and associated relay coils. If the power budget is marginal, a dedicated sub-rail supply or a higher-capacity DIN rail power supply module should be installed prior to the flame detector replacement.

For systems that include a Modbus RTU or PROFIBUS communication link between the BMS and the plant DCS or SCADA, verify whether the IDD 9000 series supports the required protocol natively or requires an external protocol gateway. In many legacy FORNEY installations, the flame detection data is transmitted via hardwired discrete I/O to the safety PLC rather than over a fieldbus, which simplifies the retrofit considerably. However, if the plant has undergone a partial modernization and now uses an Ethernet-based control network, a serial-to-Ethernet converter or a dedicated communication module may be needed to maintain data visibility at the HMI workstation.

During the physical installation, label all existing field wiring before disconnection and photograph the original terminal block layout. The IDD 9000 408100-00 uses a standard screw-terminal or push-in terminal interface; confirm the wire gauge and ferrule type are compatible with the new module’s terminal specification. After reconnection, perform a point-to-point continuity check before energizing the circuit. The flame relay output should be verified in both the flame-present and flame-absent states using a calibrated UV/IR test lamp or by briefly exposing the scanner head to a controlled ignition source under supervised conditions.

If the existing system includes a FORNEY IDD 9000 series programming cable or handheld configuration tool, use it to transfer the sensitivity and timing parameters from the outgoing module’s documentation to the replacement unit. Where original calibration records are unavailable, start with the manufacturer’s default settings and adjust on-site during the first supervised burner light-off. Coordinate with the plant safety officer to ensure the BMS bypass and inhibit procedures are followed throughout the commissioning process.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a flame detection module in an active combustion system. The IDD 9000 408100-00 retrofit is designed to be completed within a planned maintenance window, typically during a scheduled burner outage or a boiler inspection period. To protect the original program logic in the safety PLC, export and archive the current ladder logic or function block diagram before any hardware changes are made. If the BMS uses a dedicated flame safety controller rather than a general-purpose PLC, ensure that the controller’s configuration file is backed up to a secure location.

Where the plant operates multiple burners on a common combustion train, it may be possible to isolate and retrofit one flame detection channel at a time while maintaining production on the remaining burners, subject to the plant’s safety management procedures. This staged approach reduces the total production impact and allows the commissioning team to validate each replacement module before proceeding to the next. Coordinate with the control room operator to monitor the BMS status display and confirm that the flame signal from the newly installed IDD 9000 408100-00 is correctly reflected on the HMI screen before returning the burner to service.

For facilities where continuous operation is mandatory, consider pre-staging the replacement module on a bench test rig to verify its output characteristics before the maintenance window begins. This pre-commissioning step, combined with a pre-prepared wiring harness and a documented switchover procedure, can reduce the actual in-cabinet installation time to under two hours for a single-channel replacement. All units supplied by NINERMAS are shipped pre-tested and include a 12-month warranty, providing additional assurance that the replacement module will perform to specification from the first light-off.

Retrofit Support FAQ

Q1: Is the FORNEY IDD 9000 408100-00 a direct replacement for the IDD 8000 series flame amplifier?
In most installations, yes. The IDD 9000 408100-00 shares the same DIN rail mounting footprint and relay output configuration as the IDD 8000 series. However, you should verify the supply voltage, terminal pinout, and scanner head connector type against your existing panel documentation before installation. Where minor wiring differences exist, a short adapter harness is typically sufficient to complete the retrofit.

Q2: What commissioning steps are required after installing the IDD 9000 408100-00?
After physical installation and wiring verification, set the UV/IR sensitivity trim to match the original calibration records. Perform a flame-on / flame-out functional test using a controlled ignition source or a calibrated UV test lamp. Confirm that the relay output state is correctly read by the safety PLC or BMS interlock circuit, and verify that the HMI flame status display updates correctly. Document all settings and test results in the plant maintenance log.

Q3: Can this module be used with third-party UV or IR scanner heads?
The IDD 9000 408100-00 is optimized for use with FORNEY IDD-series scanner heads, including the IDD 9100 and IDD 9200 UV/IR assemblies. Compatibility with third-party scanner heads depends on the signal output type and connector interface of the scanner. Consult the scanner head datasheet and compare the signal levels with the IDD 9000 input specification before attempting a cross-brand installation.

Q4: What warranty and stock availability does NINERMAS provide for this module?
All FORNEY IDD 9000 408100-00 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are shipped pre-tested and include a test report. NINERMAS maintains dedicated stock of IDD 9000 series modules to support urgent replacement requirements and long-term spare parts programs. Contact sale@ninermas.com or call +0086 187 5021 5667 for current availability and lead times.
