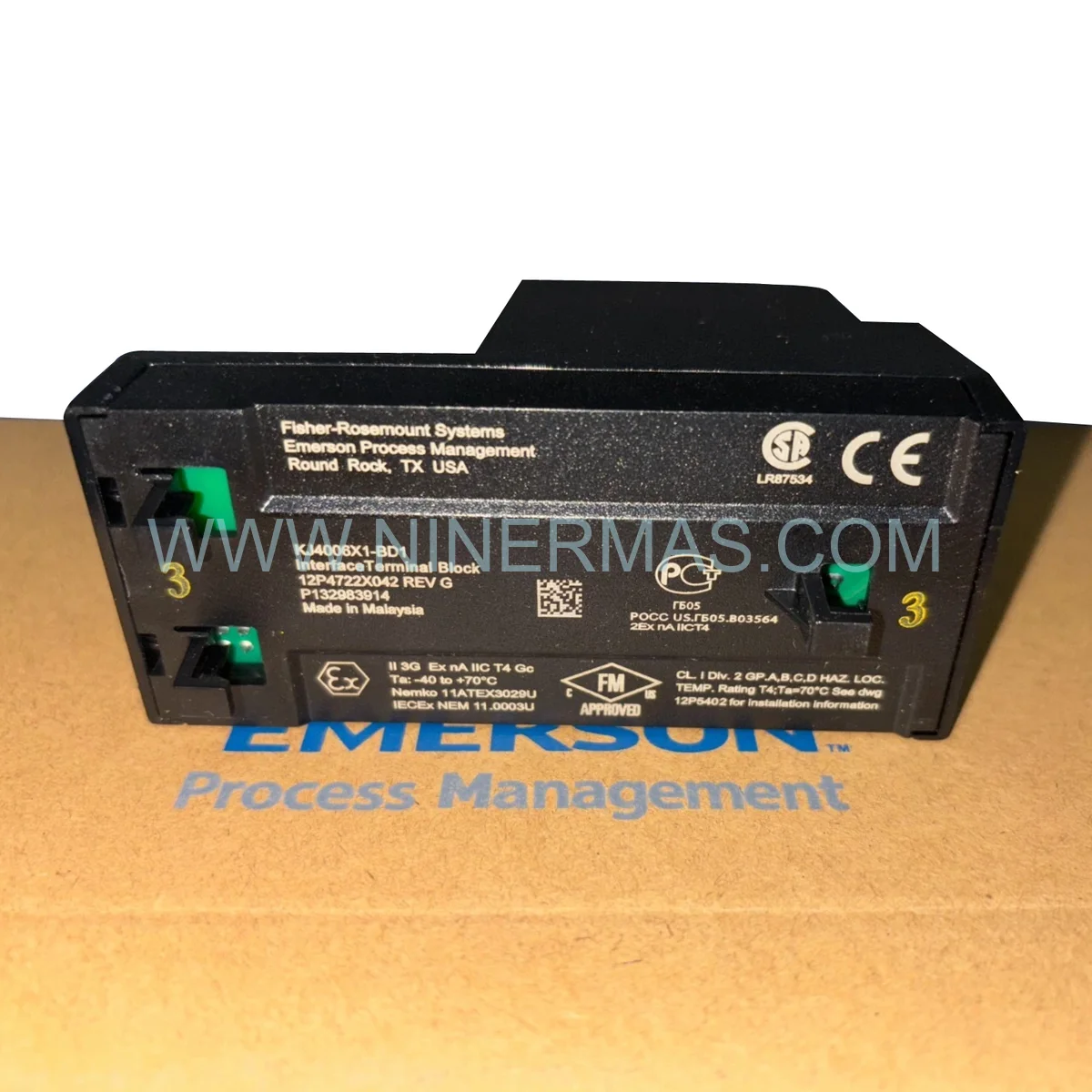

Emerson KJ4006X1-BD1 Interface Terminal Block (DeltaV) Original Spare Part RFQ

Emerson KJ4006X1-BD1 Interface Terminal Block | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Emerson KJ4006X1-BD1 is far more than a passive wiring accessory — it is a mission-critical node in the I/O signal chain that directly governs system availability. The KJ4006X1-BD1 bridges DeltaV S-Series I/O cards and field instrumentation with precision-engineered screw terminals, a 35 VDC / 1 A field power bus, and a rotary keying mechanism that eliminates card-type mismatch at the hardware level. In high-uptime environments — refineries, LNG terminals, pharmaceutical batch reactors — this level of passive error-proofing translates directly into reduced unplanned downtime and lower MTTR (Mean Time To Repair).

Durability under adversarial conditions is a non-negotiable requirement for any automation component deployed outside climate-controlled rooms. The KJ4006X1-BD1 operates across a validated range of 40 °C to +70 °C, withstands 10 g shock loads (½-sinewave, 11 ms) and continuous vibration up to 0.7 g (13.2-150 Hz). Its ISA-S71.04-1985 Class G3 conformal coating provides a chemical barrier against H , chlorine, and other corrosive airborne contaminants common in petrochemical and wastewater environments. Installation teams should verify DIN rail torque specifications and confirm rotary key position prior to I/O card insertion to prevent nuisance faults during commissioning.

Maintaining a certified spare of the KJ4006X1-BD1 in your critical-spares inventory is a straightforward risk-mitigation measure. As a legacy-compatible component within the DeltaV S-Series ecosystem, sourcing lead times can extend significantly when demand spikes — particularly during turnaround seasons. Stocking one or two units per control cabinet tier eliminates the single-point-of-failure risk associated with field wiring interface components and supports rapid swap-out without re-termination of field cables.

Key Operational Features

Rotary Keying for Zero-Error Integration: Hardware-enforced I/O card compatibility — prevents mismatch between AI, AO, DI, and DO card types at the mechanical level, supporting Seamless Integration across mixed I/O architectures.
35 VDC / 1 A Field Power Bus: Onboard loop power eliminates external power supplies for 4-20 mA transmitters, reducing panel footprint and wiring complexity.
High Availability Design: Hot-swap capable (with no I/O card installed and no field wiring connected), enabling I/O card replacement without process interruption in fault-tolerant Redundancy configurations.
Broad Certification Portfolio: FM/CSA (Class I, Div. 2, Groups A , T4), ATEX Zone 2, IECEx, DNV, and ABS — enabling global deployment in classified hazardous areas.
Calibration-Free, Zero-Maintenance Construction: Factory-sealed with no user-serviceable parts; eliminates periodic calibration overhead and reduces lifecycle maintenance cost.
ISA G3 Conformal Coating: Protects against corrosive industrial atmospheres, extending service life in chemically aggressive environments without additional enclosure upgrades.

Maintenance & Performance Benchmarks

The KJ4006X1-BD1 is engineered to perform consistently across a wide spectrum of industrial network architectures — from compact skid-mounted DeltaV systems with fewer than 50 I/O points to large-scale distributed control networks spanning thousands of field devices across multiple process units.

In small-to-medium installations, the terminal block’s removable design allows pre-wiring in the shop environment, dramatically compressing on-site commissioning schedules. In large-scale architectures, the standardized footprint and universal keying system simplify spare-parts management: a single terminal block SKU covers multiple I/O card types, reducing the number of unique part numbers that maintenance teams must track and stock.

For Process Optimization in aging DCS infrastructure, the KJ4006X1-BD1 supports System Integration with both legacy DeltaV S-Series hardware and newer VIM (Vertical I/O Module) rack configurations. This backward compatibility is a key enabler of phased modernization strategies — allowing facilities to upgrade I/O cards incrementally without replacing field wiring infrastructure, preserving capital investment while improving Operational Excellence metrics such as OEE (Overall Equipment Effectiveness) and process uptime.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every KJ4006X1-BD1 unit shipped by NINERMAS COMPANY LIMITED is dispatched in Original Factory Packaging, preserving the manufacturer’s protective measures and ensuring the component arrives in field-ready condition. For in-stock units, same-day dispatch is available on orders confirmed before the daily cut-off, supporting urgent maintenance scenarios where production continuity is at stake.

Our global supply network is specifically structured to address the sourcing challenges associated with EOL (End-of-Life) and legacy DeltaV I/O Modules. As Emerson continues to evolve its DeltaV platform, certain S-Series components transition to limited-availability status — making pre-positioned inventory from specialist distributors a critical element of any long-term asset management strategy. We maintain buffer stock across multiple fulfillment nodes to support Worldwide Express Logistics to North America, Europe, the Middle East, Southeast Asia, and beyond.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the KJ4006X1-BD1 in a DeltaV S-Series cabinet?
Mount the terminal block onto the I/O carrier or DIN rail first, then connect all field wiring to the screw terminals. Only after field wiring is complete and verified should the I/O card be inserted. The rotary keying mechanism will auto-configure to the card type upon first insertion. Refer to Document 12P5404 for hazardous-area-specific torque and clearance requirements.

Q2: Is the KJ4006X1-BD1 compatible with all DeltaV firmware versions?
The terminal block is a passive hardware component with no embedded firmware. It is compatible with all DeltaV S-Series I/O card generations regardless of DeltaV software version. Firmware compatibility concerns apply to the I/O cards themselves, not to the terminal block interface.

Q3: Can the terminal block be removed while the system is powered?
Yes — but only under two simultaneous conditions: (1) no I/O card is installed in the associated slot, and (2) no field wiring is connected to the terminal block. Removing the terminal block with field wiring attached or an I/O card installed while powered is not permitted and may cause signal disruption or equipment damage.

Q4: What is the warranty process for a KJ4006X1-BD1 purchased through NINERMAS?
All units carry a 1-year warranty from the date of shipment. In the event of a verified defect, contact sale@ninermas.com with your order reference and a description of the fault. Our technical team will coordinate return authorization and expedited replacement to minimize your downtime exposure.

Q5: Does the KJ4006X1-BD1 support HART pass-through for analog I/O cards?
HART signal pass-through is a function of the paired AI or AO I/O card, not the terminal block itself. The KJ4006X1-BD1 provides the physical wiring interface; HART communication capability depends on the specific DeltaV I/O card installed. Confirm HART support with the I/O card datasheet for your application.

Q6: How does the rotary keying system prevent installation errors in multi-card cabinets?
The rotary key physically locks the terminal block to accept only the I/O card type for which it was last configured. If a technician attempts to insert an incompatible card type, the mechanical key prevents full seating — providing a tactile and visual indication of mismatch before any electrical connection is made. This is a core Operational Excellence feature that reduces commissioning errors in high-density I/O cabinets.
