Emerson KJ3002X1-BG2 12P1731X082 Spare Part for Maintenance

Emerson KJ3002X1-BG2 12P1731X082 Spare Part for Maintenance: Thermocouple Input Replacement & Downtime Risk Control

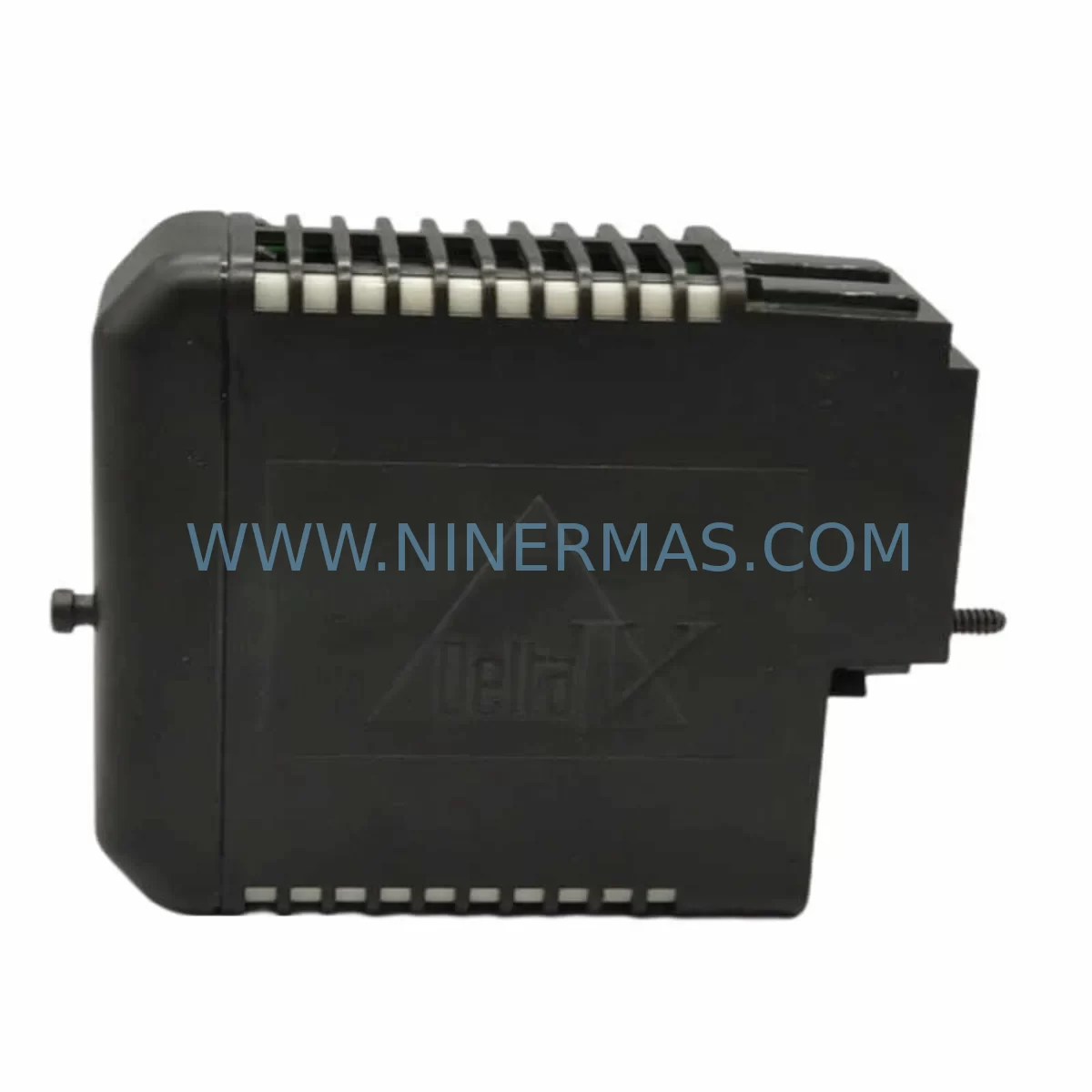

The Emerson KJ3002X1-BG2 12P1731X082 is a DeltaV Series thermocouple input module designed for high-accuracy temperature measurement in critical process control environments. As a service-ready original spare part, this module supports direct replacement in DeltaV distributed control system (DCS) cabinets without requiring firmware reconfiguration or system re-engineering. For maintenance engineers managing aging DeltaV installations in oil & gas, chemical processing, power generation, or pharmaceutical manufacturing, holding a verified stock unit of the KJ3002X1-BG2 12P1731X082 is a fundamental element of any proactive spare parts strategy.

The module interfaces directly with thermocouple sensors across multiple standard types (J, K, T, E, R, S, B) and delivers millivolt-level signal conditioning with cold junction compensation onboard. Its plug-and-play compatibility with the DeltaV I/O subsystem means that field replacement can be completed within a single maintenance window, minimising process interruption and restoring loop integrity rapidly. Each unit supplied by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty covering manufacturing defects and operational failure under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a thermocouple input module such as the KJ3002X1-BG2 12P1731X082 is identified as a failure point during routine control cabinet inspection or loop integrity testing, experienced maintenance engineers understand that the fault rarely exists in isolation. A systematic inspection of the surrounding I/O infrastructure is essential to prevent repeat failures and ensure a durable restoration of process control.

Begin by verifying the DeltaV I/O carrier or backplane that hosts the KJ3002X1-BG2. Carrier boards such as the KJ3001X1-BA1 or equivalent S-Series I/O carriers can develop contact oxidation or mechanical wear at the module slot, which may cause intermittent signal loss even after a module swap. Inspect the carrier’s terminal block connections and confirm that thermocouple extension cables are correctly matched to the sensor type — mismatched alloy pairs are a common source of measurement drift that is often misdiagnosed as module failure.

The DeltaV controller card associated with this I/O node — typically an MD Controller (KJ2003X1-BA1) or SD Controller — should be checked for firmware currency and diagnostic alarm logs. Controller-level faults can mask or mimic I/O module failures, and a module replacement without controller health verification may result in a recurring fault condition. Similarly, the DeltaV Power Supply module (KJ4001X1-BA1) or equivalent redundant power supply feeding the I/O bus should be load-tested; degraded bus voltage is a known cause of thermocouple module read errors and CJC offset faults.

For temperature loops in high-criticality applications — such as reactor temperature control, heat exchanger monitoring, or fired heater management — it is advisable to simultaneously inspect the associated DeltaV CHARM I/O modules or legacy KJ3003X1 RTD input modules installed in the same cabinet zone. These modules share the same environmental stressors and often exhibit correlated degradation patterns. Procurement engineers should consider bundling the KJ3002X1-BG2 12P1731X082 with a spare KJ3003X1 RTD module and a KJ3002X1-BG1 variant to cover the full thermocouple and resistance temperature input range within a single purchase order.

Signal wiring integrity is equally critical. Thermocouple field wiring routed through Phoenix Contact or Weidmüller terminal blocks in the marshalling cabinet should be inspected for insulation breakdown, particularly in high-vibration or high-humidity environments. Signal isolators — such as those in the MTL or Pepperl+Fuchs range — installed between field sensors and the DeltaV I/O should be tested for drift, as a failing isolator will produce erroneous temperature readings that are indistinguishable from a module fault at the DCS level. Fuse holders and miniature circuit breakers (MCBs) protecting the thermocouple loop circuits should also be inspected and replaced on a scheduled basis as part of the annual cabinet maintenance cycle.

For sites operating DeltaV systems beyond their original design life, the DeltaV CIOC (CHARMs I/O Card) and associated CHARM baseplates represent the migration path for legacy S-Series I/O. Procurement teams planning a phased modernisation should evaluate whether stocking additional KJ3002X1-BG2 12P1731X082 units for the interim period is more cost-effective than an accelerated migration, particularly where the installed base of S-Series I/O remains large and the migration timeline extends beyond 24 months.

Site Replacement Workflow

Replacing the KJ3002X1-BG2 12P1731X082 in a live DeltaV system follows a structured procedure that minimises process disruption and ensures system compatibility is maintained throughout the intervention.

Step 1 — Pre-Replacement Verification: Confirm the replacement module’s part number and revision suffix against the installed unit. The KJ3002X1-BG2 designation includes a revision identifier (12P1731X082) that should be matched or confirmed as cross-compatible with the target DeltaV system version. Download and retain the current module configuration from DeltaV Explorer before removal.

Step 2 — Safe State Confirmation: Place affected control loops in manual mode at the DeltaV workstation. Notify the operations team and confirm that process conditions are stable before proceeding. For redundant I/O configurations, verify that the redundant module is active and healthy before removing the faulted unit.

Step 3 — Module Removal and Installation: The KJ3002X1-BG2 12P1731X082 is a hot-swappable module in DeltaV S-Series configurations. Unlatch the module from the I/O carrier, slide it clear, and insert the replacement unit. The DeltaV system will automatically detect the new module and download the stored configuration within 60–90 seconds under normal network conditions.

Step 4 — Loop Verification: Return loops to automatic mode sequentially. Verify thermocouple readings against independent temperature references (portable calibrators or adjacent redundant sensors) to confirm measurement accuracy. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

Step 5 — Faulted Module Disposition: Retain the removed module for failure analysis if the fault mode is unclear. NINERMAS can provide technical support for fault characterisation on returned units within the warranty period.

Spare Parts Support FAQ

Q1: Is the KJ3002X1-BG2 12P1731X082 compatible with all DeltaV S-Series controller versions?
The KJ3002X1-BG2 12P1731X082 is designed for use within the Emerson DeltaV S-Series I/O architecture and is compatible with MD, MD Plus, SD, and SD Plus controllers running DeltaV v10.3 and above. For sites running earlier firmware versions, compatibility should be confirmed against the DeltaV hardware compatibility matrix prior to procurement. NINERMAS technical staff can assist with compatibility verification based on your system version and installed base details.

Q2: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and operational failure under normal service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, installation date, and a description of the fault. Replacement or repair will be arranged within the agreed service timeline.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for the KJ3002X1-BG2 12P1731X082?
Yes. NINERMAS offers long-term spare parts supply agreements for critical DeltaV components, including the KJ3002X1-BG2 12P1731X082. These arrangements can include reserved stock allocation, scheduled delivery, and priority fulfilment for emergency requirements. Long-term supply programmes are particularly suited to sites with large DeltaV installed bases or those operating under extended maintenance contracts where parts availability is a critical risk factor.

Q4: What pre-shipment testing is performed on each unit?
Each KJ3002X1-BG2 12P1731X082 unit dispatched by NINERMAS undergoes functional verification prior to shipment. This includes power-on testing, channel signal integrity checks, and communication bus response verification. Units that do not meet functional acceptance criteria are quarantined and not dispatched. Test records are retained and can be provided upon request for quality assurance documentation purposes.
