Emerson KJ3002X1-BG2 12P1731X062 Retrofit-Compatible I/O for Legacy Systems

Emerson KJ3002X1-BG2 12P1731X062 Retrofit-Compatible I/O for Legacy Systems

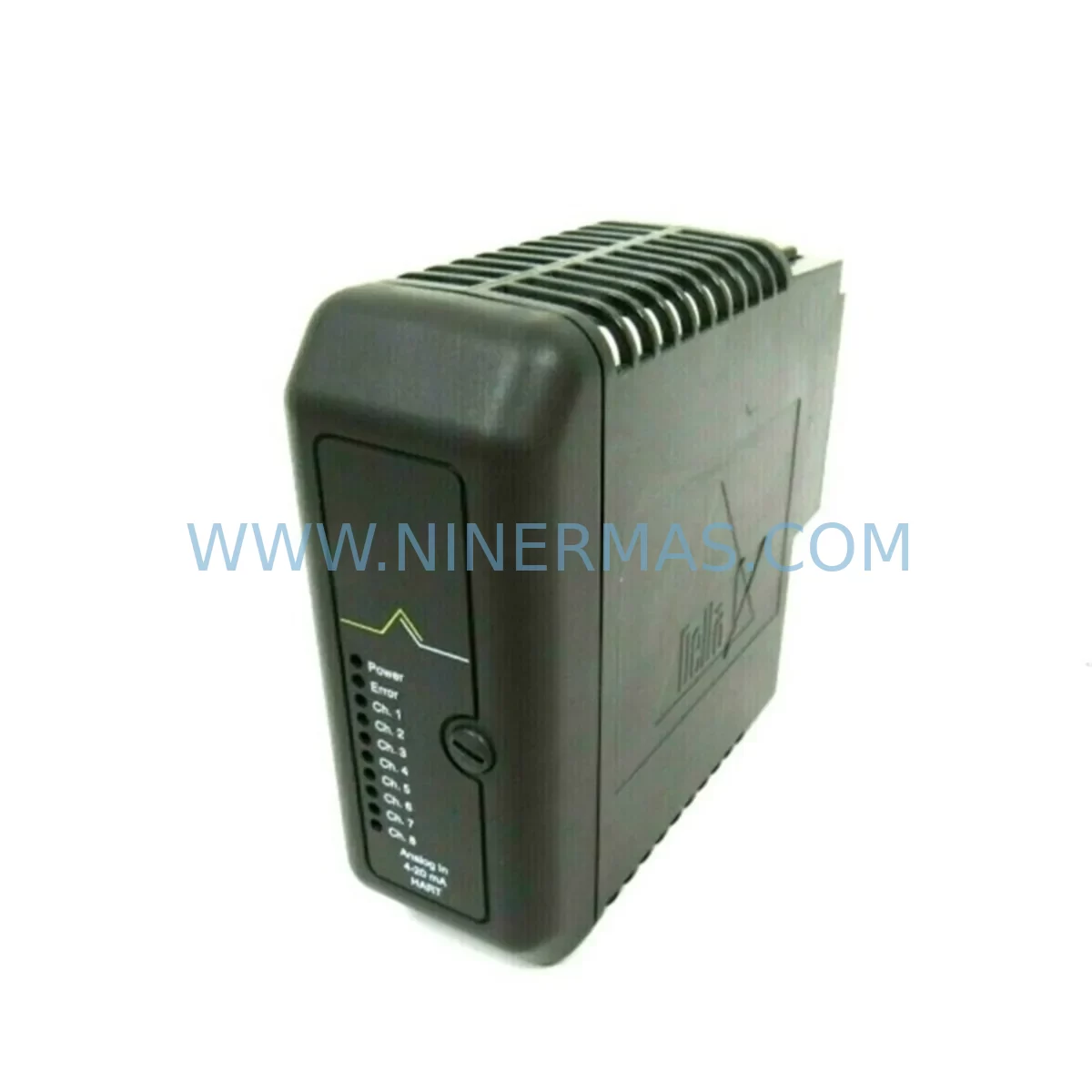

The Emerson KJ3002X1-BG2 (12P1731X062) is a proven I/O module widely deployed in DeltaV M-Series distributed control systems across process industries including oil & gas, chemical, power generation, and pharmaceutical manufacturing. As aging automation infrastructure reaches end-of-life and OEM support windows close, plant engineers and maintenance teams are increasingly tasked with sourcing reliable retrofit-compatible replacements that preserve existing program logic, minimize rewiring, and reduce unplanned downtime.

NINERMAS maintains verified inventory of the KJ3002X1-BG2 to support both emergency breakdown recovery and planned system modernization projects. Each unit is subject to pre-shipment functional testing and is backed by a 12-month warranty, giving procurement and engineering teams confidence in long-term operational continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3002X1-BG2 into an existing DeltaV M-Series control system begins well before the module arrives on site. A structured retrofit plan reduces risk, protects production continuity, and ensures that the replacement module performs identically to the original.

Power Budget Verification: Before installing any replacement I/O module, confirm that the existing DeltaV M-Series power supply module — such as the KJ1501X1-BA1 or equivalent — has sufficient headroom to support the additional load. Overloaded power supplies are a leading cause of intermittent faults following module swaps. Review the power budget worksheet in the DeltaV hardware reference manual and measure actual rail voltages at the carrier before proceeding.

Backplane and Carrier Inspection: The KJ3002X1-BG2 seats into a standard DeltaV M-Series carrier. Inspect the carrier connector pins for corrosion, bent contacts, or debris before insertion. If the carrier itself is damaged or shows signs of thermal stress, consider replacing it with a compatible DeltaV M-Series I/O carrier at the same time to avoid a repeat outage. Confirm the module address DIP switch or electronic addressing matches the original slot assignment recorded in the system configuration database.

Terminal Wiring and Field Cable Continuity: The KJ3002X1-BG2 uses screw-terminal field wiring consistent with the broader DeltaV M-Series I/O family. Before disconnecting field cables, photograph or document the existing wiring layout and verify continuity with a loop tester. Cross-reference the wiring schedule against the I/O list in the DeltaV Explorer to confirm signal tag assignments. This step is especially critical when replacing modules in legacy installations where as-built drawings may not reflect field modifications made over years of operation.

Communication Link Integrity: Unlike migrations involving third-party controllers or fieldbus gateways — where engineers must reconfigure PROFIBUS DP, FOUNDATION Fieldbus H1, or Modbus RTU communication parameters — a same-series KJ3002X1-BG2 replacement requires no protocol reconfiguration. The DeltaV controller, whether a KJ2003X1-BA1 MD Controller or a KJ2005X1-BA1 MD Plus Controller, will recognize the replacement module automatically upon system restart, provided the module address and I/O type are correctly matched.

HMI and Operator Interface Validation: After module installation, verify that all associated DeltaV Operate graphics display correct process values and alarm states. In systems where the KJ3002X1-BG2 feeds signals to downstream DeltaV SIS logic solvers or interfaces with a DeltaV Batch recipe engine, perform a full I/O checkout against the functional design specification before returning the loop to automatic control.

I/O Expansion and System Growth: For plants planning broader control system upgrades beyond a single module replacement, the KJ3002X1-BG2 retrofit is often the first step in a phased migration. Subsequent phases may involve adding DeltaV CHARM I/O cards for wireless or intrinsically safe field devices, integrating AMS Device Manager for HART-enabled instrument diagnostics, or expanding the control network with additional DeltaV workstation nodes. Planning these phases in parallel with the immediate replacement reduces total project cost and minimizes future disruption.

Downtime Control During System Migration

Unplanned downtime is the primary risk in any I/O module replacement on a live process control system. The KJ3002X1-BG2 retrofit strategy is designed to minimize exposure through a combination of pre-staging, parallel verification, and disciplined change management.

Pre-Staging and Bench Testing: NINERMAS ships each KJ3002X1-BG2 with a pre-shipment functional test report. Upon receipt, bench-test the module against a spare DeltaV carrier if available, or use the DeltaV hardware diagnostics utility to confirm module health before the scheduled maintenance window. This eliminates the risk of discovering a defective unit during a live cutover.

Protecting Existing Program Logic: Export and archive the current DeltaV control module configuration, including all function block parameters, tuning constants, and interlock logic, before beginning any hardware work. Store the backup on a secure engineering workstation and confirm the backup integrity by performing a comparison against the live database. This ensures that if the replacement process encounters an unexpected complication, the original configuration can be restored without data loss.

Maintaining Field Control Continuity: Where process conditions permit, place affected control loops in manual mode at the DeltaV Operate console before removing the original module. Coordinate with the operations team to confirm that manual operation is safe and that any associated safety instrumented functions remain active through independent DeltaV SIS channels. For critical loops where manual operation is not acceptable, schedule the replacement during a planned shutdown or turnaround.

Commissioning and Return to Service: After installing the KJ3002X1-BG2, perform a structured I/O checkout: verify each channel against the field instrument, confirm signal scaling and engineering units in DeltaV Explorer, and check alarm setpoints against the alarm management database. Return loops to automatic control one at a time, monitoring process response for at least one full control cycle before proceeding to the next loop. Document all findings in the site maintenance management system.

Retrofit Support FAQ

Q1: Is the KJ3002X1-BG2 a direct drop-in replacement for the original module in my DeltaV M-Series system?
Yes. The KJ3002X1-BG2 (12P1731X062) is designed for direct slot replacement within the DeltaV M-Series carrier and backplane architecture. No hardware modification to the enclosure or carrier is required. Confirm the module address assignment matches the original configuration in DeltaV Explorer before powering up.

Q2: What pre-shipment testing does NINERMAS perform on the KJ3002X1-BG2?
Each unit undergoes functional verification prior to shipment, including power-on self-test, channel integrity checks, and backplane communication validation where test equipment permits. A test report is available upon request. All units are covered by NINERMAS’s standard 12-month warranty from the date of shipment.

Q3: Can I use the KJ3002X1-BG2 in a system that has been partially migrated to DeltaV S-Series or CHARM I/O?
The KJ3002X1-BG2 is native to the DeltaV M-Series hardware platform. In hybrid installations where M-Series and S-Series or CHARM I/O coexist on the same DeltaV network, the module will continue to operate normally within its M-Series carrier, managed by the same DeltaV controller. No additional configuration is required for the KJ3002X1-BG2 itself, though overall system architecture should be reviewed by a qualified DeltaV engineer.

Q4: What is the lead time and availability for the KJ3002X1-BG2?
NINERMAS maintains stock of the KJ3002X1-BG2 to support both emergency and planned procurement. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for real-time availability confirmation and expedited shipping options. Standard lead time for in-stock units is 1–3 business days to most destinations.
