EMERSON KJ3002X1-BC1 12P0681X072 Retrofit-Compatible Analog Input Module

EMERSON KJ3002X1-BC1 12P0681X072 Retrofit-Compatible Analog Input Module: Seamless Legacy System Upgrade

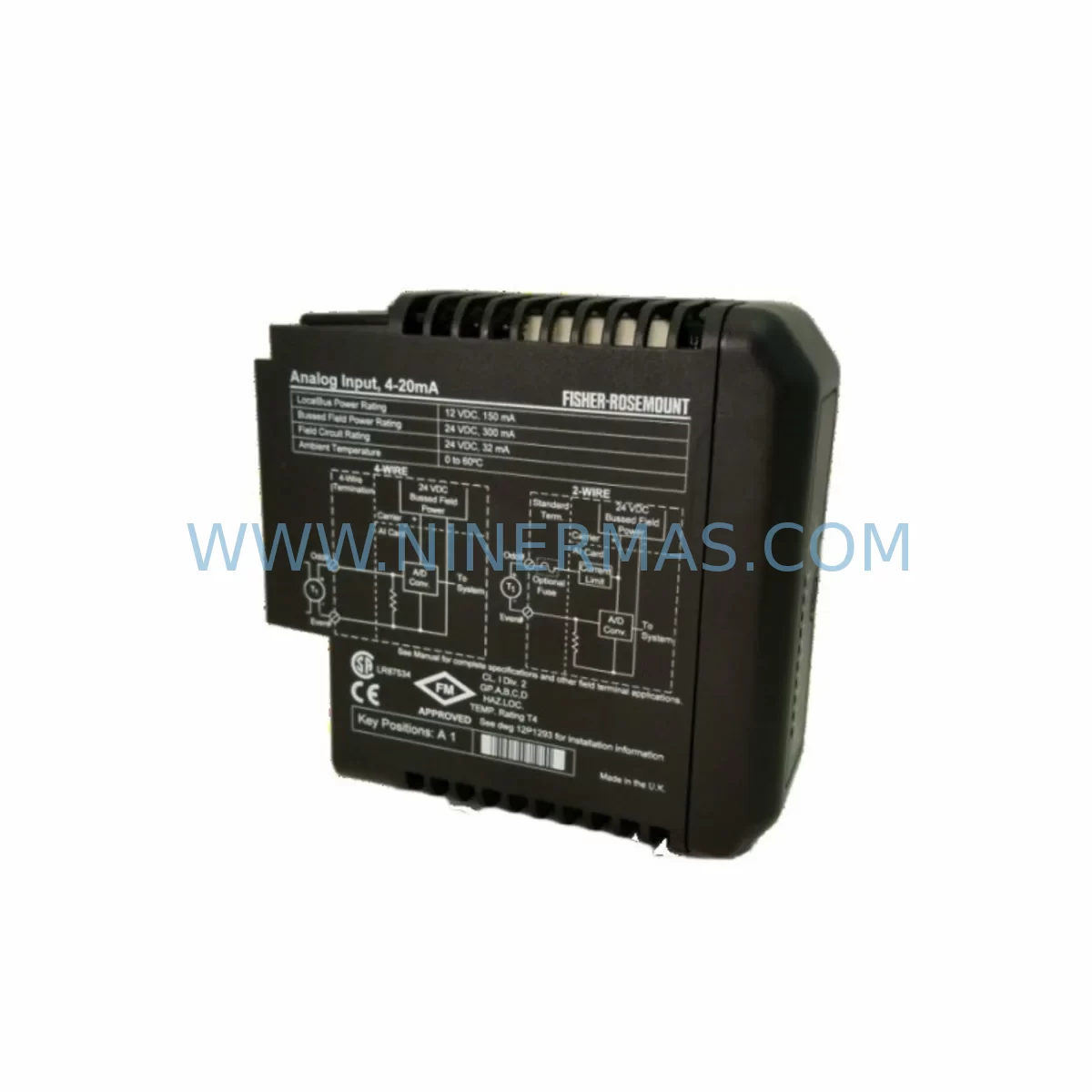

The EMERSON KJ3002X1-BC1 12P0681X072 is a ruggedized analog input module engineered for demanding industrial environments and purpose-built to support the modernization of aging DeltaV distributed control systems. As process plants face increasing pressure to extend the operational life of existing control infrastructure while maintaining safety and reliability, this module provides a proven, drop-in compatible solution for facilities that cannot afford the risk or cost of a full platform migration. Whether you are replacing a failed card in a critical loop, expanding I/O capacity in an existing marshalling cabinet, or executing a phased retrofit of a legacy control system, the KJ3002X1-BC1 12P0681X072 delivers the signal integrity, environmental resilience, and system compatibility required for uninterrupted production.

Designed to operate within the EMERSON DeltaV Series 2 hardware architecture, this module slots directly into standard DeltaV carrier assemblies and communicates natively over the DeltaV backplane bus without requiring firmware patches or protocol converters. Field engineers replacing an earlier-generation KJ3002X1-BA1 or KJ3002X1-BB1 will find that terminal wiring assignments, module addressing, and controller tag references remain fully compatible, significantly reducing the engineering hours required for cutover. The module supports up to 8 channels of 4–20 mA or 1–5 V analog input signals, with each channel independently configurable for HART pass-through communication, enabling simultaneous process variable acquisition and smart field device diagnostics without additional multiplexers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3002X1-BC1 12P0681X072 into an operating plant begins with a thorough pre-retrofit audit of the existing control cabinet. Engineers should document the current carrier assembly model — typically a KJ3001X1-BA1 8-slot carrier or a KJ3001X1-CA1 4-slot carrier — and confirm that available backplane slots are physically unobstructed and that the carrier’s internal bus is free of faults flagged in the DeltaV Diagnostics workspace. Power budget verification is equally critical: the KJ3002X1-BC1 draws from the carrier’s 24 VDC bus, and the associated KJ3006X1-BA1 power supply module must have sufficient headroom to support the additional load, particularly in cabinets where multiple I/O modules are being upgraded simultaneously.

Field wiring continuity should be confirmed at the terminal block level before the old module is removed. In many legacy installations, the marshalling cabinet connects field instruments through a KJ3224X1-BA1 CHARM I/O card or through conventional screw-terminal junction blocks; in either case, the wiring polarity and shield grounding practices established during the original installation must be preserved. If the plant is also migrating from a legacy Modbus RTU network to a PROFIBUS DP or FOUNDATION Fieldbus H1 backbone, a KJ3221X1-BA1 PROFIBUS interface module or a KJ3222X1-BA1 Fieldbus H1 interface module will need to be commissioned in parallel, and the DeltaV controller’s I/O assignment tables must be updated before the new analog input module is brought online.

For facilities running EMERSON DeltaV SIS safety instrumented systems alongside the basic process control system, the retrofit plan must account for the separation of safety and non-safety I/O. The KJ3002X1-BC1 12P0681X072 is a non-SIS module and must not be installed in a carrier assembly designated for KJ3112X1-BA1 SIS analog input cards. Clearly labeling carrier assemblies and verifying slot assignments in the DeltaV SIS Engineering environment before cutover will prevent inadvertent cross-wiring between safety and non-safety loops. Where the retrofit also involves replacing a KJ3002X1-BA1 in a remote I/O enclosure connected via a KJ3204X1-BA1 EIOC Ethernet I/O controller, the engineer should confirm that the EIOC firmware version supports the ruggedized module variant and that the network switch port connecting the remote enclosure is configured for the correct VLAN.

HMI screen updates are often overlooked during module-level retrofits. If the plant’s DeltaV Operate graphics reference specific channel diagnostic faceplates tied to the predecessor module’s device type, those faceplates should be reviewed and updated in DeltaV Operate Configure to reflect the KJ3002X1-BC1’s HART diagnostic parameters. Operators should be briefed on any changes to alarm setpoints or channel status indicators before the new module is commissioned. A pre-commissioning functional test using a Beamex MC6 or equivalent loop calibrator on each of the 8 channels will confirm signal accuracy and HART communication integrity before the module is placed in service.

Downtime Control During System Migration

Minimizing production interruption during a module-level retrofit requires a disciplined cutover methodology. The recommended approach is to pre-configure the replacement KJ3002X1-BC1 12P0681X072 offline using a DeltaV Simulate environment, importing the existing module configuration from a DeltaV Explorer export file. This allows the engineering team to verify that all 8 channel configurations, HART device descriptors, and alarm parameters are correctly transferred before the physical swap takes place. The actual hot-swap procedure — supported by the DeltaV Series 2 carrier architecture — can typically be completed in under 15 minutes per module, provided that the carrier assembly remains powered and the controller continues to execute its control strategy using the last known good values held in the controller’s memory during the brief module absence.

To further protect original program logic, the DeltaV controller’s module redundancy settings should be reviewed before cutover. In non-redundant configurations, the control strategy will enter a degraded mode during the swap interval; operators should be advised to monitor affected loops manually and be prepared to switch to local control at the field instrument level if process conditions require intervention. For critical loops where even a brief interruption is unacceptable, a temporary bypass using a KJ3002X1-BC1 installed in a spare slot on the same carrier — with the field signal temporarily re-patched — can maintain continuous signal acquisition throughout the swap. After the new module is seated and recognized by the DeltaV controller, the engineer should confirm module health in the DeltaV Diagnostics workspace, verify that all HART device addresses are correctly resolved, and perform a live comparison of process variable readings against the field instrument’s local display before returning the loop to automatic control.

Shipping lead times and inventory availability are key factors in downtime planning. NINERMAS maintains ready stock of the KJ3002X1-BC1 12P0681X072 and can support same-day dispatch for urgent breakdown replacements. All modules are subject to pre-shipment functional testing, and each unit is shipped with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Retrofit Support FAQ

Q1: Is the KJ3002X1-BC1 12P0681X072 a direct replacement for the KJ3002X1-BA1 and KJ3002X1-BB1?
A: Yes. The KJ3002X1-BC1 12P0681X072 is backward compatible with earlier revisions of the KJ3002X1 analog input module family. Terminal wiring, backplane slot assignment, and DeltaV controller tag references are preserved, so no re-engineering of the control strategy is required. The primary difference is the extended operating temperature range of the BC1 ruggedized variant, which makes it suitable for remote I/O enclosures in outdoor or thermally challenging environments.

Q2: What commissioning steps are required after installing the replacement module?
A: After seating the module in the carrier, the DeltaV controller will automatically detect and configure the new module based on the existing I/O assignment. The engineer should confirm module health in DeltaV Diagnostics, verify HART device addresses on each active channel, and perform a loop check using a calibrated signal source on each channel to confirm that process variable scaling and alarm setpoints are correctly applied. If HART pass-through is in use, confirm that the AMS Device Manager can communicate with each field device through the new module.

Q3: Can the module be installed in a carrier that also houses KJ3002X1-BA1 modules?
A: Yes. Mixed-revision installations within the same carrier assembly are supported by the DeltaV Series 2 architecture. Each module slot is independently addressed, and the controller manages each module’s configuration individually. There is no requirement to replace all modules in a carrier simultaneously, which allows for a phased retrofit approach that minimizes risk and spreads capital expenditure over multiple maintenance windows.

Q4: What does the 12-month warranty cover, and how is it supported?
A: The 12-month warranty covers manufacturing defects and operational failures under normal service conditions from the date of shipment. NINERMAS provides direct warranty support; in the event of a confirmed module failure within the warranty period, a replacement unit will be dispatched after the defective module is returned for inspection. Pre-shipment functional testing is performed on every unit to minimize the risk of infant mortality failures in the field. For warranty claims or technical support, contact sale@ninermas.com or call +0086 187 5021 5667.
