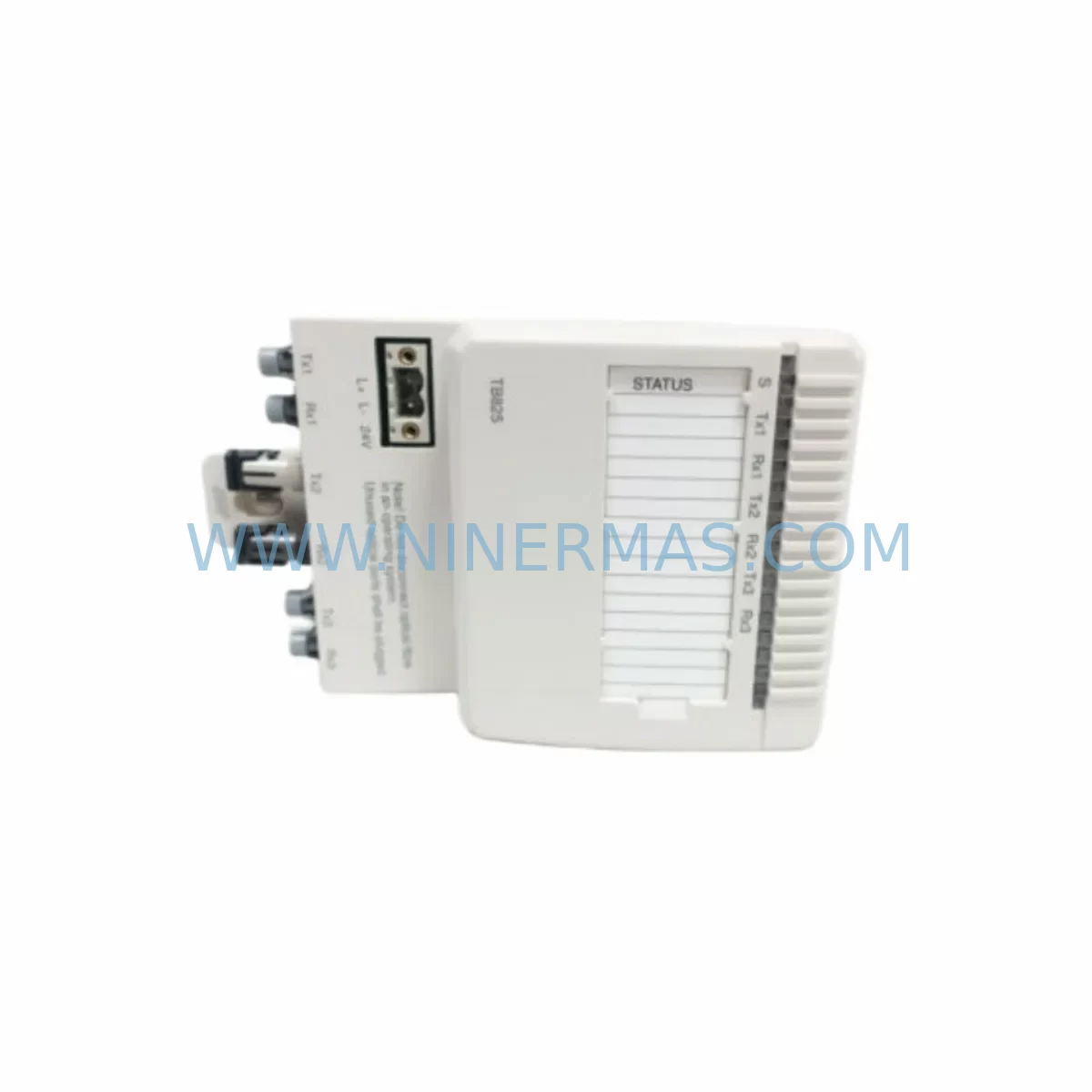

The ABB TB825 (Part No. 3BSE036634R1) is a field-proven terminal unit designed for use within ABB’s S800 I/O platform — one of the most widely deployed distributed I/O architectures in process automation, power generation, and manufacturing. As plants age and original equipment reaches end-of-life, the TB825 continues to serve as a critical interface between field wiring and the S800 I/O modules, making it an essential component in any legacy system retrofit, control cabinet upgrade, or spare parts lifecycle extension program.

At NINERMAS, we maintain verified stock of the TB825 3BSE036634R1 to support customers undertaking planned or emergency replacements. Every unit is inspected and function-tested prior to shipment, backed by a 12-month warranty and full export documentation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the TB825 3BSE036634R1 into an ongoing retrofit project, engineers must account for the full scope of the S800 I/O cluster. The TB825 acts as the physical wiring interface for paired I/O modules such as the AI810 (analog input), AO810 (analog output), DI810 (digital input), and DO810 (digital output). Each of these modules slots directly into the corresponding terminal unit, so confirming the correct TB model for each I/O type is the first step in any bill-of-materials review.

In cabinet upgrade scenarios, the existing TB820 or TB840 terminal units may already be installed alongside the TB825 in a mixed I/O cluster. Before ordering replacements, document the full rack layout, including the TP830 termination panel positions and any SA801 or SA811 power supply modules feeding the I/O cluster. Power budget verification is critical — the S800 I/O bus draws from a shared 24 VDC rail, and adding or replacing modules without recalculating load can cause intermittent faults or bus resets.

For plants migrating from legacy PROFIBUS DP networks to Ethernet-based architectures, the CI854 PROFIBUS DP Interface or CI840 ModuleBus Optical Interface may need to be evaluated alongside the TB825 replacement. Communication coupler firmware versions must be compatible with the AC800M controller’s software revision to avoid protocol handshake failures during commissioning. If the site is running an older version of ABB’s Control Builder M, a software patch or upgrade may be required before the new I/O configuration can be downloaded.

Field wiring continuity is another key concern. The TB825’s screw terminals must be re-terminated with the original wiring schedule, and each channel’s signal type (mA, VDC, dry contact) must be verified against the I/O module’s input range. Mislabeled or undocumented field cables are a common source of commissioning delays — a pre-retrofit wiring audit using the plant’s existing loop drawings is strongly recommended. Where drawings are unavailable, a live signal trace with a calibrated loop calibrator should be performed before the old terminal unit is removed.

HMI integration should also be validated. If the plant uses ABB’s 800xA System or a third-party SCADA connected via OPC, the I/O channel tags mapped to the TB825’s physical terminals must remain consistent after replacement. Any change in module slot position or rack address will require a corresponding update in the HMI faceplate configuration and alarm database.

Downtime Control During System Migration

Minimizing production downtime during a terminal unit replacement requires a structured hot-swap or planned-outage strategy. For non-redundant I/O clusters, the safest approach is to schedule the TB825 swap during a planned maintenance window, with the AC800M controller placed in manual override mode to hold the last known output states while the field wiring is re-terminated.

Before powering down the affected I/O cluster, export a full backup of the AC800M application program using Control Builder M. This preserves the current logic, I/O configuration, and module address assignments. After the TB825 is installed and field wiring is re-connected, perform a channel-by-channel loop check before returning the controller to automatic mode. This process typically takes 2–4 hours per cluster depending on the number of I/O channels and the quality of existing documentation.

For redundant S800 I/O configurations, the replacement can often be performed with zero process interruption by switching control to the redundant path, replacing the faulty terminal unit, and then re-synchronizing the redundant pair. Confirm that the CI854 or CI840 coupler supports hot-insertion for the specific firmware version installed on site before attempting a live swap.

NINERMAS ships the TB825 3BSE036634R1 with full factory-equivalent packaging and ESD protection. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express freight options available for emergency shutdowns. All units are accompanied by a test report and certificate of conformity to support site acceptance procedures.

Retrofit Support FAQ

Q1: Is the TB825 3BSE036634R1 a direct replacement for my existing TB825 unit?
Yes. The TB825 3BSE036634R1 is the standard part number for this terminal unit and is a direct mechanical and electrical replacement for any TB825 currently installed in an S800 I/O cluster. No hardware modifications are required. Verify the wiring schedule and module address assignment before powering up.

Q2: Can I use the TB825 with both AI810 and DI810 modules?
The TB825 is designed for use with specific S800 I/O module types. Confirm the correct terminal unit model for each I/O module type using ABB’s S800 I/O Hardware Product Guide (document 3BSE020924). Using an incompatible terminal unit may result in incorrect signal conditioning or physical connector mismatch.

Q3: What commissioning steps are required after installation?
After mechanical installation and field wiring re-termination, power up the I/O cluster and verify that the module appears correctly in Control Builder M’s hardware tree. Perform a full I/O channel test using the forced value function to confirm signal integrity on each channel. Check for any diagnostic alarms on the CI coupler and confirm communication link status before returning to automatic control.

Q4: What warranty and supply assurance does NINERMAS provide?
All TB825 3BSE036634R1 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. We maintain buffer stock to support both planned procurement and emergency replacement scenarios. Each unit is tested and shipped with a certificate of conformity. For volume orders or long-term supply agreements, contact our sales team directly.
