Emerson KJ3002X1-BB1 12P0683X092 Retrofit-Compatible I/O Module

Emerson KJ3002X1-BB1 12P0683X092 Retrofit-Compatible I/O Module for Legacy DeltaV S-Series Systems

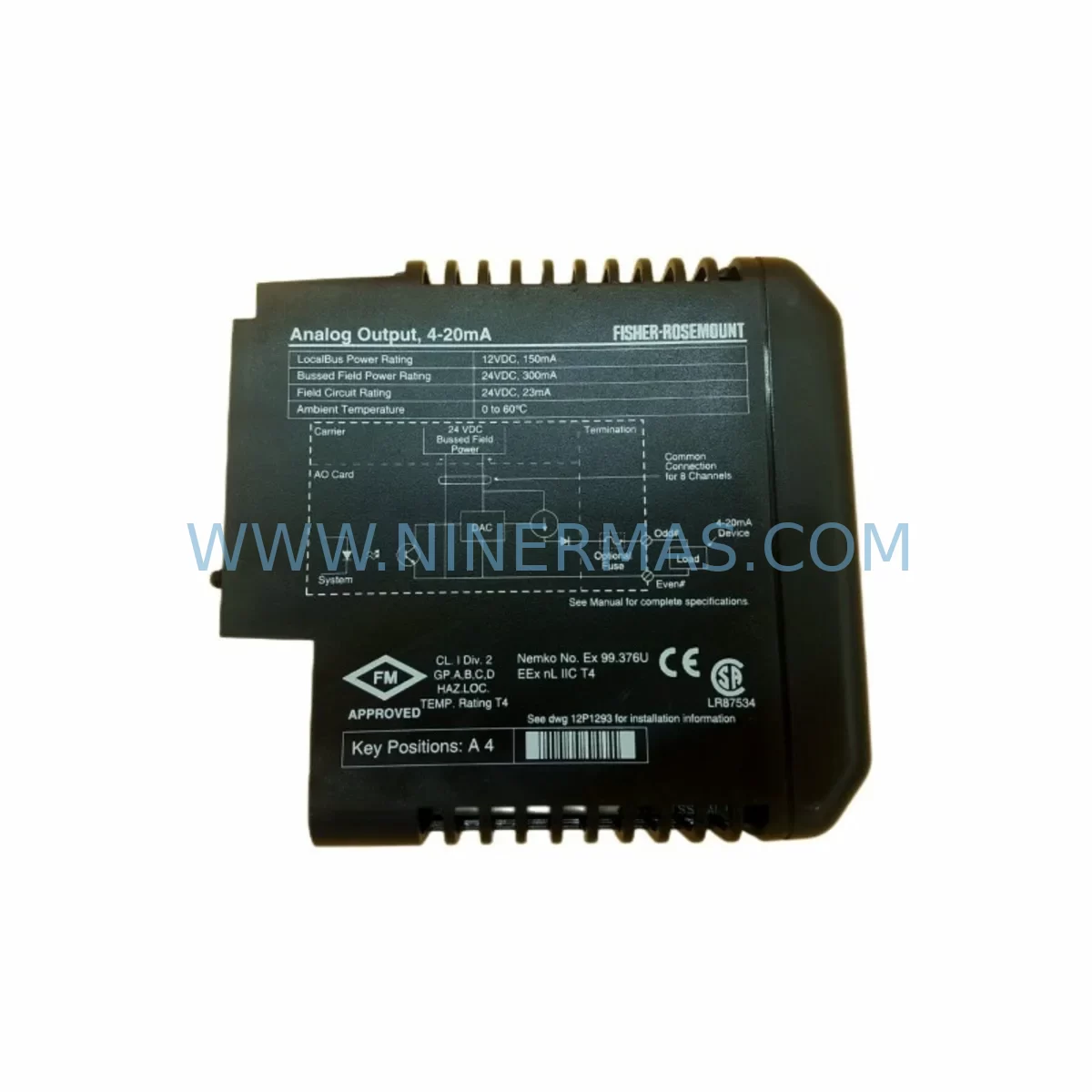

The Emerson KJ3002X1-BB1 (Part No. 12P0683X092) is a DeltaV S-Series I/O module engineered for seamless integration into existing distributed control system (DCS) architectures. As legacy automation platforms approach end-of-life, this module serves as a critical retrofit-compatible replacement component, enabling plant engineers and system integrators to extend the operational lifespan of their DeltaV S-Series control infrastructure without requiring a full platform migration. NINERMAS maintains verified in-stock inventory of this module, backed by a 12-month warranty on all spare parts.

Whether you are managing a brownfield upgrade, replacing a failed I/O card in a running production line, or executing a phased DCS modernization program, the KJ3002X1-BB1 provides the electrical and functional compatibility required to minimize engineering rework and reduce overall project risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KJ3002X1-BB1 into a legacy DeltaV environment requires a structured pre-installation assessment. Before removing the failed or obsolete I/O card, engineers should document the existing module’s tag assignments, channel configurations, and alarm setpoints from the DeltaV Explorer database. This baseline ensures that the replacement module can be commissioned to an identical functional state with minimal disruption to the running process.

The physical installation begins with confirming the target slot on the DeltaV S-Series carrier (e.g. KJ3001X1-BA1). The carrier’s backplane connector must be inspected for pin damage or corrosion, particularly in high-humidity or chemically aggressive environments. Once the KJ3002X1-BB1 is seated, the system controller — typically a DeltaV MD Plus Controller (KJ2003X1-BA1) or DeltaV M5Plus Controller — will automatically detect the new module during the next scan cycle, provided the DeltaV version supports hot-swap I/O replacement.

Field wiring termination is a critical checkpoint. The marshalling cabinet’s terminal blocks must be verified against the original I/O termination drawings. In many legacy installations, field cables are connected through HART multiplexers or signal isolators (such as the MTL5000 series or P+F KFD2 range) that condition analog signals before they reach the I/O module. These intermediate devices must remain in the signal path during the retrofit to preserve measurement accuracy and loop integrity.

For plants migrating from older DeltaV versions or from third-party DCS platforms such as Honeywell TDC 3000 or ABB Advant OCS, the KJ3002X1-BB1 can serve as the I/O front-end in a hybrid architecture where a DeltaV Virtual I/O Module (VIOM) or Electronic Marshalling (CHARM) module handles protocol translation at the marshalling layer. This approach allows engineers to reuse existing field wiring while transitioning control logic to the DeltaV platform incrementally.

Power budget verification is mandatory before adding any I/O module to an existing rack. The DeltaV Power Supply (KPS0100X1) or its redundant pair must have sufficient headroom to support the additional load. In older installations where the power supply is already near capacity, a supplementary DeltaV Auxiliary Power Supply may be required. Failure to account for power budget is one of the most common causes of unexpected module faults during retrofit commissioning.

Communication link integrity should be validated end-to-end after module installation. The DeltaV control network — typically running on a dedicated 100 Mbps Ethernet control network — must show stable communication between the new I/O module, the controller, and the DeltaV Application Station. Network switches in the control room cabinet, such as the Cisco IE 2000 or equivalent industrial-grade managed switch, should be checked for port errors or CRC faults that could indicate cabling issues introduced during the physical installation.

Finally, HMI faceplate verification in DeltaV Operate or DeltaV Live confirms that all process variables associated with the replaced I/O module are displaying correctly. Operators should perform a live comparison between field instrument readings and HMI displayed values before returning the loop to automatic control. Any discrepancy in engineering units, range scaling, or alarm limits must be resolved in the DeltaV module database before sign-off.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary engineering objective during any DCS I/O retrofit. For the KJ3002X1-BB1 replacement, the recommended approach is to pre-configure the module offline using a DeltaV Engineering workstation before the scheduled maintenance window. The module’s I/O channel parameters, tag names, engineering unit ranges, and alarm limits should be fully defined and downloaded to the controller in advance, so that the physical swap becomes a simple plug-and-verify operation rather than a full commissioning exercise.

Where process conditions permit, the affected I/O loops should be placed in manual control mode at the DeltaV Operate console before the module is removed. This preserves the last known output state on field actuators — such as control valves or variable speed drives — and prevents process upsets caused by loss of the I/O signal during the card swap. For critical loops where manual mode is not acceptable, a temporary bypass using a portable loop calibrator or signal simulator can maintain a fixed 4–20 mA signal to the actuator during the transition.

The original control module database should be exported and archived before any changes are made to the DeltaV system. This backup preserves the complete program logic, including function block configurations, PID tuning parameters, interlock logic, and sequence of events (SOE) settings. In the event of an unexpected commissioning issue, the archived database allows rapid rollback to the pre-retrofit system state, limiting exposure to extended downtime.

Post-installation, a structured loop check procedure — covering signal continuity, zero and span verification, and alarm function testing — should be completed for every channel on the KJ3002X1-BB1 before the loops are returned to automatic. NINERMAS recommends that all replacement modules undergo a factory acceptance test (FAT) prior to shipment, verifying channel-by-channel functionality against the original module specification. This pre-shipment testing, combined with the 12-month warranty coverage, ensures that field teams receive a fully verified spare part ready for immediate installation.

Retrofit Support FAQ

Q1: Is the KJ3002X1-BB1 (12P0683X092) a direct drop-in replacement for the original Emerson DeltaV S-Series I/O module?
A: Yes. The KJ3002X1-BB1 is designed as a form-fit-function replacement for the original DeltaV S-Series I/O slot. No mechanical modification to the carrier or backplane is required. However, engineers should verify the DeltaV firmware version on the controller to confirm compatibility with the replacement module’s hardware revision.

Q2: What commissioning steps are required after installing the KJ3002X1-BB1?
A: After physical installation, the module must be recognized and assigned in DeltaV Explorer. The engineer should download the pre-configured module database to the controller, perform a channel-by-channel loop check, verify HMI tag mapping in DeltaV Operate, and confirm alarm setpoints before returning loops to automatic control. Total commissioning time for a single module replacement is typically 2–4 hours for an experienced DeltaV engineer.

Q3: Can this module be used in a system running an older version of DeltaV software?
A: The KJ3002X1-BB1 is compatible with DeltaV v10.3 and above. Systems running earlier versions may require a firmware upgrade on the MD or M5Plus controller before the new module will be recognized. NINERMAS recommends confirming the installed DeltaV version with your system administrator before placing an order, and we can advise on compatibility based on your specific system configuration.

Q4: What warranty and stock availability does NINERMAS provide for this module?
A: NINERMAS maintains verified in-stock inventory of the KJ3002X1-BB1 (12P0683X092) and offers a 12-month warranty on all spare parts. Each unit is subject to pre-shipment functional testing to confirm channel integrity and communication readiness. For long-term procurement planning or volume orders, NINERMAS can provide a dedicated stock commitment program to support your spare parts lifecycle management strategy. Contact us at sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
