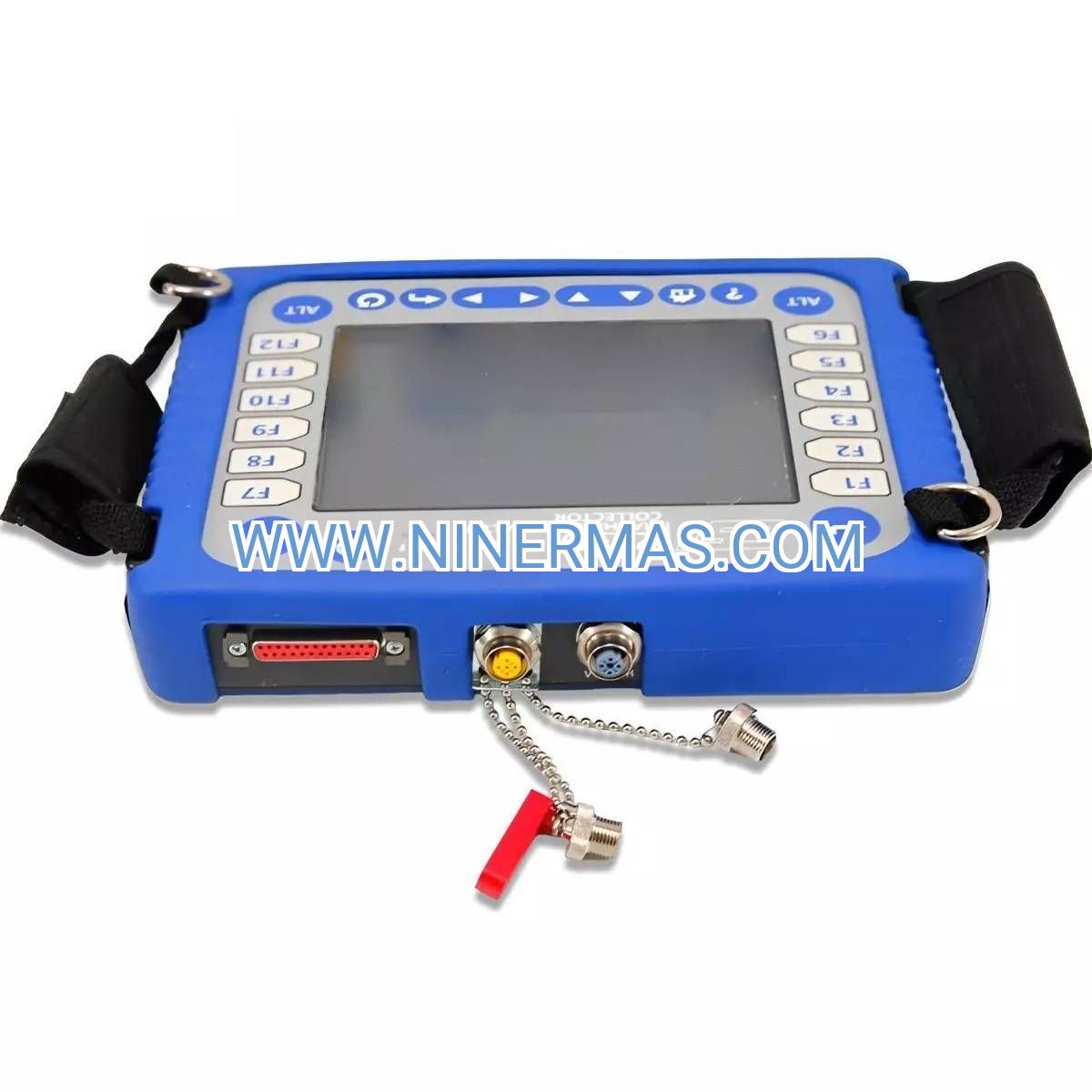

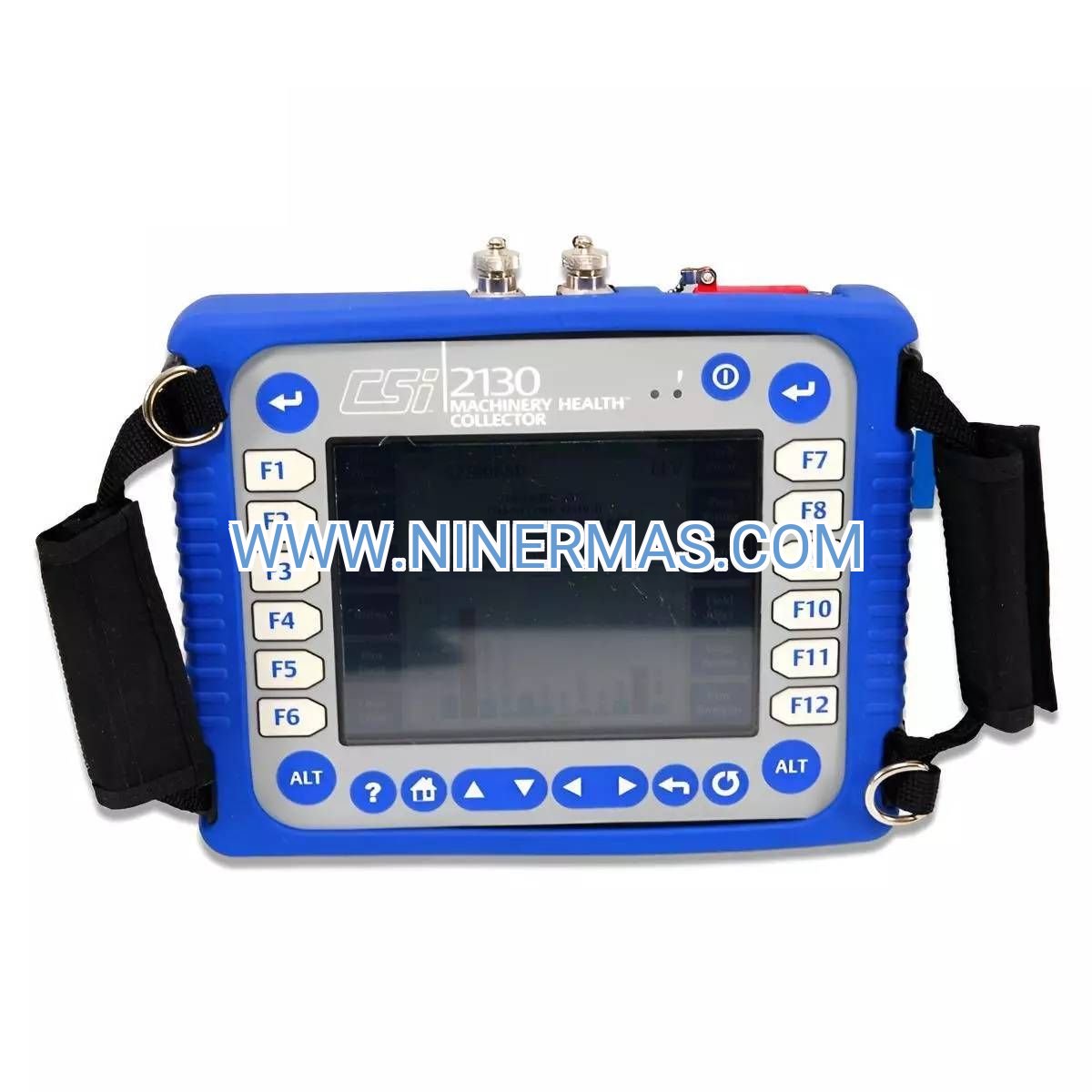

CSI 2130 Vibration Analyzer (Industrial-Grade Machinery Health Monitor)

The CSI 2130 represents Emerson's flagship solution for industrial vibration diagnostics and predictive maintenance programs. Engineered for reliability engineers and maintenance professionals, this portable dual-channel analyzer transforms complex vibration signatures into actionable intelligence, preventing unexpected equipment failures across rotating machinery assets.

Designed for harsh manufacturing environments, the CSI 2130 combines advanced FFT processing with intuitive touchscreen operation, enabling technicians to identify bearing defects, shaft misalignment, rotor unbalance, and resonance conditions within minutes. Its rugged IP54-rated construction withstands oil mist, dust, and temperature extremes common in process industries.

Whether you're managing a fleet of centrifugal pumps in a chemical plant or monitoring turbine-generator sets in power generation facilities, the CSI 2130 delivers laboratory-grade accuracy in a field-portable package. Seamless AMS Suite connectivity ensures your vibration data integrates directly into enterprise asset management workflows, reducing mean time to repair by up to 45%.

Core Features & Benefits

→ Dual-Channel Simultaneous Acquisition
Capture phase relationships between measurement points for precise cross-channel diagnostics. Essential for identifying coupling misalignment and structural resonance issues that single-channel analyzers miss.

→ Extended Frequency Range (0.5 Hz – 40 kHz)
Covers ultra-low-speed gearbox monitoring through high-frequency bearing fault detection. Analyze everything from 30 RPM ball mills to 24,000 RPM spindle motors with a single instrument.

→ 12,800-Line FFT Resolution
Unmatched spectral clarity separates closely-spaced fault frequencies in complex gearbox signatures. Detect early-stage bearing defects before they escalate into catastrophic failures.

→ Route-Based Data Collection Workflow
Pre-programmed measurement routes eliminate operator error and ensure consistent data quality across shifts. Download routes from AMS Suite, execute field surveys in half the time, upload for automated trending.

→ 8-Hour Battery Autonomy
Complete full-day route surveys without recharging interruptions. Hot-swappable battery design maintains power during extended outage investigations.

→ Integrated Balancing Modules
Perform single-plane and two-plane field balancing with vector-based correction calculations. Reduce vibration amplitudes by 80% without removing equipment from service.

Typical Application Scenarios

✓ Petrochemical Refinery Operations
Challenge: Centrifugal compressor trains operating at 15,000+ RPM require continuous monitoring to prevent seal failures and process shutdowns.
Solution: CSI 2130's high-frequency capability detects impeller rubs and thrust bearing wear 4-6 weeks before failure, enabling planned maintenance during turnarounds.

✓ Pulp & Paper Mill Reliability
Challenge: Paper machine dryer sections contain 60+ bearing assemblies where a single failure halts production worth $50,000/hour.
Solution: Weekly route-based surveys with automated alarming identify degrading bearings at Stage 2 defects, allowing replacement during scheduled breaks.

✓ Power Generation Turbine Monitoring
Challenge: Steam turbine-generator sets demand precision balancing and alignment to maintain efficiency and prevent catastrophic blade failures.
Solution: Dual-channel phase analysis pinpoints misalignment angles within 0.5°, guiding laser alignment procedures that extend bearing life by 300%.

✓ Food Processing Sanitary Equipment
Challenge: Stainless steel mixers and conveyors in washdown environments require non-invasive diagnostics that don't compromise hygiene protocols.
Solution: Magnetic-mount accelerometers and IP54-rated analyzer enable quick surveys without disassembly, maintaining HACCP compliance.

✓ Automotive Manufacturing Assembly Lines
Challenge: Robotic transfer systems and conveyor drives require 99.9% uptime to meet just-in-time production schedules.
Solution: Continuous monitoring integration with PLC systems triggers maintenance alerts before defects impact cycle times, preventing line stoppages.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CSI 2130 when your predictive maintenance program requires portable diagnostics with laboratory-grade accuracy. Ideal for facilities managing 50+ critical rotating assets where route-based surveys justify dedicated instrumentation. For permanent online monitoring of mission-critical equipment, consider pairing with Emerson AMS 6500 machinery monitors.

Extended Functions

Advanced Diagnostic Modules:

• Bearing Fault Analysis: Automated detection algorithms identify BPFO, BPFI, BSF, and FTF frequencies with severity grading
• Order Tracking: Synchronous time averaging isolates gear mesh patterns from background noise in variable-speed applications
• Transient Capture: Triggered waveform recording captures startup/shutdown events and intermittent faults
• ODS (Operating Deflection Shape): Animated mode shape visualization identifies structural resonances and mounting issues

IoT & Industry 4.0 Integration:

• RESTful API enables custom integration with MES and ERP systems
• MQTT protocol support for IIoT edge computing architectures
• Cloud-based analytics with Emerson Plantweb Insight for machine learning-driven anomaly detection

Customization Options:

• Custom route templates tailored to specific equipment types (pumps, motors, fans, gearboxes)
• Branded reporting templates with customer logos and compliance documentation
• Extended temperature range models (-40°C to +70°C) for extreme environments

Delivery & Service Guarantee

Standard Lead Time: 5-7 business days for in-stock units | 3-4 weeks for factory-direct orders with custom configurations

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended 36-month service plans available with annual calibration verification.

Technical Support:

• Pre-sales application engineering consultation to validate suitability for your machinery types
• Post-sales training on route setup, data interpretation, and AMS Suite integration
• Remote diagnostics support via TeamViewer for troubleshooting and software updates
• Access to Emerson's global service network for calibration and repair services

Documentation Package:

• Quick Start Guide with illustrated setup procedures
• Comprehensive User Manual (PDF + printed)
• Calibration Certificate traceable to NIST standards
• AMS Suite integration guide with sample route templates

Frequently Asked Questions

How does the CSI 2130 integrate with existing CMMS platforms like SAP PM or Maximo?
The analyzer exports data in CSV and XML formats compatible with most CMMS systems. For direct integration, AMS Suite middleware provides bi-directional synchronization with SAP, Maximo, and Oracle EAM through standard APIs.

What is the recommended calibration interval for maintaining measurement accuracy?
Emerson recommends annual calibration verification to maintain ±5% amplitude accuracy. High-precision applications (aerospace, medical device manufacturing) may require semi-annual calibration per ISO 10816 standards.

Can the CSI 2130 perform real-time monitoring or is it limited to periodic surveys?
The CSI 2130 is optimized for route-based periodic surveys. For continuous online monitoring, integrate with Emerson AMS 6500 machinery monitors that provide 24/7 surveillance with automatic alarm notification.

What training is required for technicians to effectively use the CSI 2130?
Basic operation requires 4-8 hours of hands-on training. Advanced diagnostics (ODS analysis, transient capture) benefit from Emerson's 3-day Machinery Health Analyst certification course, which covers ISO 18436 Category II competencies.

Does the analyzer support wireless sensor connectivity for hard-to-reach measurement points?
The standard CSI 2130 uses wired ICP sensors. For wireless applications, consider Emerson's WirelessHART vibration transmitters (702 series) that integrate with the same AMS Suite platform.

How does battery performance degrade in extreme cold environments like Arctic facilities?
Lithium-ion batteries lose approximately 20% capacity at -10°C. For sub-zero operations, use the optional heated carrying case or specify the extended-temperature battery pack that maintains 90% capacity at -20°C.

Take Action: Prevent Downtime Before It Happens

Transform your maintenance strategy from reactive firefighting to proactive asset management. The CSI 2130 pays for itself by preventing a single catastrophic failure—whether that's a $200,000 turbine rebuild or a $500,000 production loss from unplanned downtime.

Ready to implement predictive maintenance? Contact our application engineers for a customized equipment assessment and ROI analysis specific to your facility's asset portfolio.
