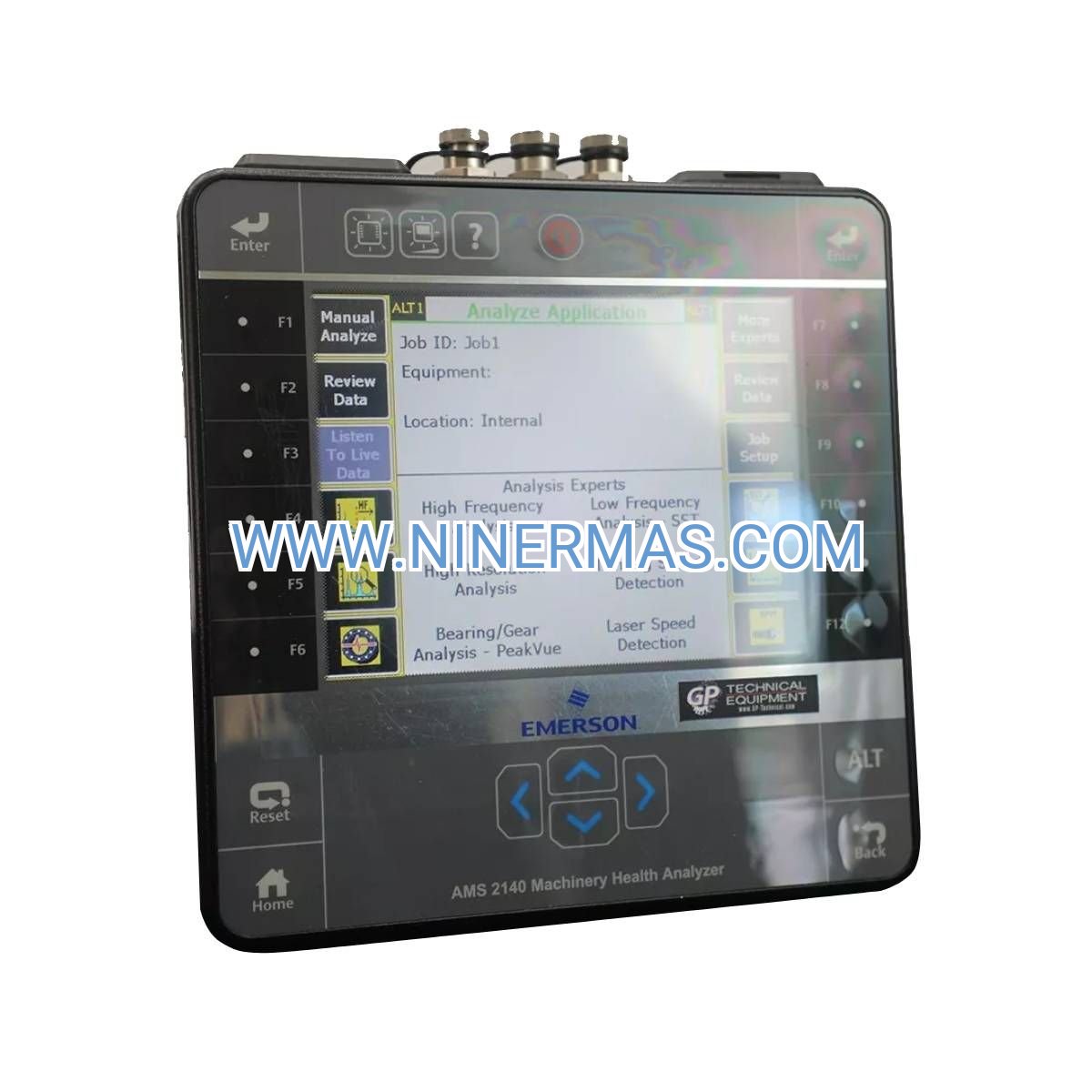

AMS 2140 Vibration Analyzer (Industrial-Grade Portable Diagnostic Platform)

The AMS 2140 represents Emerson's flagship portable vibration analysis solution, engineered for reliability professionals who demand precision diagnostics in challenging industrial environments. This four-channel analyzer combines 24-bit analog-to-digital conversion with 120 dB dynamic range to capture subtle fault signatures that single-channel instruments miss, enabling early detection of bearing degradation, shaft misalignment, rotor imbalance, and structural looseness across rotating equipment fleets.

Designed for process plants, power generation facilities, and manufacturing operations, the AMS 2140 addresses the critical challenge of unplanned downtime through route-based data collection and advanced spectral analysis. Maintenance teams gain actionable intelligence on pumps, motors, compressors, fans, and gearboxes—transforming reactive repair strategies into proactive condition monitoring programs that extend asset life and optimize maintenance budgets.

With rugged IP54-rated construction, intuitive touchscreen operation, and seamless integration with AMS Suite: Machinery Health Manager software, this analyzer delivers laboratory-grade measurement accuracy in field-deployable form. Whether you're establishing baseline vibration signatures during commissioning or tracking degradation trends over years of operation, the AMS 2140 provides the diagnostic depth and workflow efficiency that modern reliability programs require.

Application Scenarios

→ Critical Rotating Equipment Surveillance
Deploy the AMS 2140 for periodic assessment of high-value turbomachinery, centrifugal compressors, and multi-stage pumps where catastrophic failure carries six-figure consequences. Four simultaneous measurement channels enable comprehensive analysis of bearing housings, motor drive ends, and gearbox casings in a single site visit, reducing inspection time by 60% compared to sequential single-channel methods. Pair with Bently Nevada 3500/42E permanent monitors for continuous protection between route-based inspections.

→ Bearing Defect Identification Programs
Leverage advanced envelope analysis algorithms to isolate bearing fault frequencies masked by process noise and gear mesh harmonics. The analyzer's 80 kHz frequency range and 12,800 FFT line resolution detect outer race spalling, inner race pitting, and ball defects at inception stages—typically 4-8 weeks before audible symptoms emerge. Complement your program with Bently Nevada 3300 XL proximity sensors for non-contact shaft monitoring on journal bearings.

→ Multi-Site Reliability Standardization
Establish consistent vibration measurement protocols across geographically distributed facilities using pre-configured route templates and standardized alarm criteria. Upload baseline data to centralized AMS Suite databases for enterprise-wide trending, enabling corporate reliability teams to identify systemic issues and share best practices. Integrate with Emerson CSI 2140 analyzers for cross-platform compatibility during fleet expansions.

→ Commissioning & Acceptance Verification
Document as-installed vibration characteristics of new equipment to validate contractor alignment work and establish warranty baseline records. Capture time-synchronized, four-channel data during startup transients to verify soft-foot conditions, piping strain, and foundation resonances before final acceptance. Use alongside Emerson A6110 shaft monitors for permanent installation on critical assets post-commissioning.

→ Troubleshooting Complex Vibration Issues
Investigate intermittent faults, variable-speed drive interactions, and process-induced excitation using transient capture and orbit analysis capabilities. The analyzer's 204.8 kHz sampling rate resolves high-frequency phenomena in direct-drive systems and high-speed spindles, while phase measurement tools pinpoint imbalance correction planes and coupling misalignment vectors. Expand diagnostic coverage with Emerson EPRO PR6480 modules for DCS-integrated shutdown protection.

Core Features & Benefits

✓ Simultaneous Four-Channel Acquisition – Capture vibration signatures from motor, pump, and gearbox measurement points in parallel, eliminating time-skew errors and enabling true cross-channel phase analysis for precise fault localization

✓ Laboratory-Grade Measurement Precision – 24-bit A/D converters with 120 dB dynamic range resolve micro-vibration signatures buried in high-amplitude process noise, detecting incipient faults 30-50% earlier than 16-bit systems

✓ Route-Based Workflow Automation – Download pre-programmed measurement sequences from AMS Suite software, execute field inspections with guided prompts, then auto-upload results for alarm evaluation and trend charting without manual data entry

✓ Wireless Data Synchronization – Built-in Wi-Fi and Ethernet connectivity enable real-time upload to Emerson AMS Wireless infrastructure, bridging portable diagnostics with continuous monitoring ecosystems

✓ Field-Hardened Industrial Construction – IP54-rated enclosure withstands dust, moisture, and mechanical shock in harsh plant environments; 8+ hour battery life supports full-shift operation without recharging interruptions

✓ Accelerated Technician Proficiency – High-resolution color touchscreen with context-sensitive menus and real-time spectral displays reduces training time by 40% compared to button-driven legacy analyzers

Technical Parameters & Selection Guide

Selection Criteria: Choose the AMS 2140 when your reliability program requires multi-point simultaneous measurement for phase analysis, operates in harsh industrial environments demanding IP54 protection, or needs seamless integration with existing AMS Suite software infrastructure. For applications requiring only single-channel sequential measurement, consider the CSI 2140 portable analyzer as a cost-optimized alternative.

Extended Functions

Advanced Diagnostic Modes: Beyond standard FFT analysis, the AMS 2140 offers envelope analysis for bearing diagnostics, time-synchronous averaging for gearbox analysis, orbit plots for rotating machinery assessment, and transient capture for intermittent fault investigation. Cepstrum analysis identifies gear mesh sidebands and modulation patterns indicative of tooth wear or eccentricity.

Enterprise Integration Capabilities: The analyzer functions as a mobile data collection node within comprehensive machinery health ecosystems. Bi-directional synchronization with AMS Suite: Machinery Health Manager enables centralized route management, automatic alarm evaluation, and cross-site trending. Export data to third-party CMMS platforms via CSV or integrate with Emerson A6120 permanent monitors for hybrid portable/fixed monitoring architectures.

Customization & Accessories: Expand measurement capabilities with Emerson D25782 coiled accelerometer cables for flexible sensor routing, magnetic mounting bases for rapid sensor placement, and calibrated reference accelerometers for field verification. Custom route templates and alarm libraries available for industry-specific applications (pulp & paper, petrochemical, power generation).

Delivery & Service Assurance

Lead Time: Standard configurations ship within 5-7 business days from order confirmation. Custom-configured units with pre-loaded route templates or specialized sensor kits require 10-14 business days for preparation and factory calibration verification.

Warranty Coverage: Each AMS 2140 includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty encompasses hardware components, firmware, and factory calibration accuracy. Extended warranty programs available for 24- or 36-month coverage periods.

Technical Support: Emerson's global support network provides application engineering consultation, firmware updates, calibration services (NIST-traceable), and remote troubleshooting assistance. Access to online knowledge base, video tutorials, and ISO 18436-certified vibration analyst training resources included with purchase.

Documentation Package: Complete technical documentation includes user manual, quick-start guide, calibration certificate, sensor compatibility matrix, and AMS Suite software integration guide. Digital resources accessible via Emerson customer portal for firmware downloads and application notes.

Frequently Asked Questions

Q: Which accelerometer types work with the AMS 2140 for industrial vibration monitoring?
A: The analyzer accepts ICP/IEPE piezoelectric accelerometers (most common for industrial applications), velocity transducers for low-frequency machinery, and proximity probes when paired with external power supplies. It provides constant-current excitation for IEPE sensors and supports both AC-coupled (for vibration) and DC-coupled (for shock) measurement modes.

Q: Can the AMS 2140 display live vibration spectra during field data collection?
A: Yes, the touchscreen displays real-time time waveforms and FFT spectra during measurement acquisition, allowing technicians to verify data quality, identify obvious faults immediately, and adjust measurement parameters (frequency range, averaging) before moving to the next equipment location—eliminating wasted trips for incomplete data.

Q: How does the AMS 2140 compare to the older CSI 2140 model for machinery diagnostics?
A: Both share similar four-channel architecture and core analysis capabilities. The AMS 2140 offers faster processing (reduced measurement time), larger touchscreen display (improved field usability), enhanced battery life (8+ vs. 6 hours), and optimized integration with current AMS Suite software versions. The CSI 2140 remains fully supported for existing installations.

Q: What is the maximum route size for vibration data collection with the AMS 2140?
A: Internal memory accommodates routes with thousands of measurement points. Practical capacity depends on data density—FFT line count, number of averages, and measurement types per point. Typical industrial routes containing 200-500 measurement points with standard settings (3200 lines, 4 averages) are easily stored with room for multiple routes.

Q: Does the AMS 2140 support ISO vibration severity standards for alarm setup?
A: Yes, the analyzer includes pre-programmed alarm templates based on ISO 10816 and ISO 20816 vibration severity standards for various machine classes (small machines, medium machines, large foundations, etc.). Users can also create custom alarm setpoints based on asset-specific baseline data and operational experience.

Q: Can the AMS 2140 integrate with wireless vibration monitoring systems?
A: Absolutely. Built-in Wi-Fi enables direct upload to Emerson AMS Wireless infrastructure, creating a hybrid monitoring architecture where the portable analyzer provides detailed diagnostics while wireless sensors deliver continuous surveillance—optimizing both coverage and cost-effectiveness.

Request Your Quote

Transform your maintenance strategy from reactive to predictive with the AMS 2140 Vibration Analyzer. Our technical team provides application consultation, sensor selection guidance, and AMS Suite integration support to ensure successful deployment. Contact us today for pricing, delivery timelines, and customized training packages tailored to your facility's reliability objectives.
