Bently Nevada PWA47620-02 Shaft Position Monitor | Dual-Channel Axial Radial Tracking | API 670 Certified

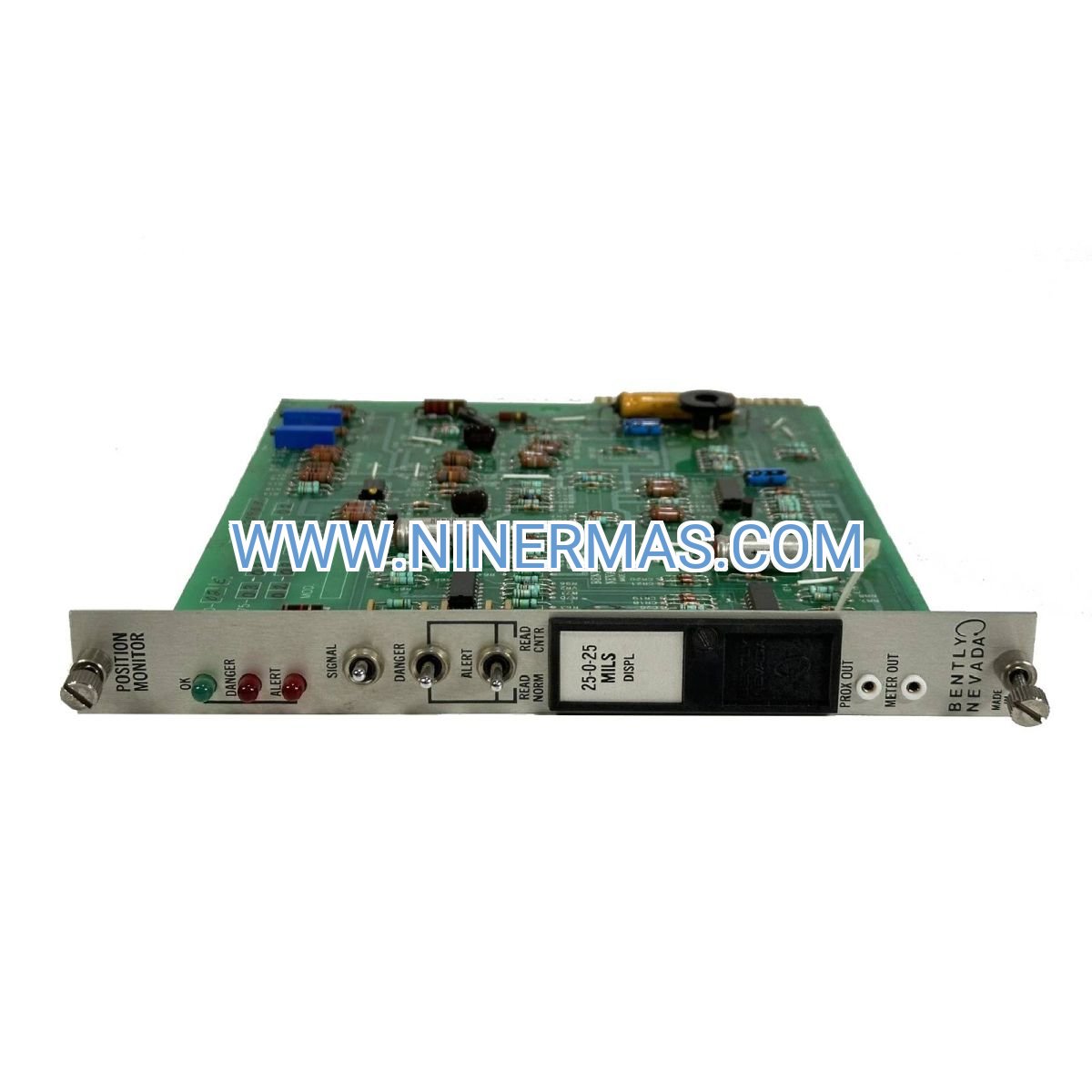

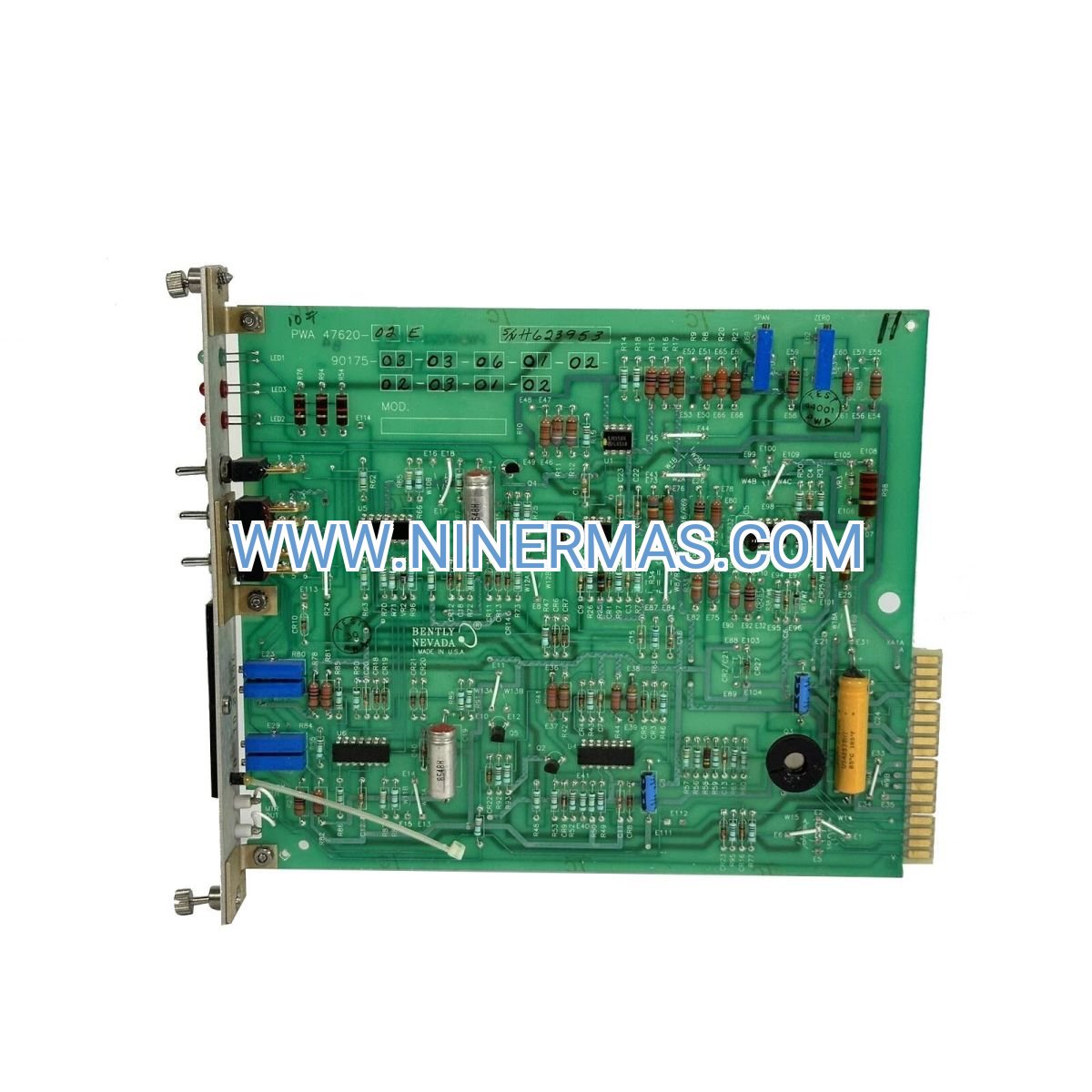

Bently Nevada PWA47620-02 Shaft Position Monitor (Industrial-Grade Turbomachinery Protection System)

The Bently Nevada PWA47620-02 is a precision shaft position monitor designed for critical turbomachinery applications, utilizing dual-channel measurement technology to achieve real-time axial and radial displacement tracking. Through high-resolution proximity probe signal processing (0.1 mil/2.5 μm), it delivers continuous shaft position monitoring, enabling early fault detection, vibration analysis, and rotor dynamic protection.

Engineered for high-reliability environments including power generation plants, petrochemical facilities, oil & gas compression stations, and industrial rotating equipment systems, this monitor addresses critical challenges such as thrust bearing wear, rotor axial shift, radial runout anomalies, and inadequate alarm response during transient operating conditions.

Featuring API 670 compliance, modular rack-mount architecture, and seamless integration with 3300 XL/3500 monitoring frameworks, the PWA47620-02 offers superior measurement accuracy, robust EMI immunity, flexible alarm configuration, and comprehensive diagnostic capabilities. Ideal for design engineers, EPC contractors, plant maintenance teams, and OEM system integrators seeking certified turbomachinery protection solutions. Contact our application engineers for customized configuration guidance and technical specifications.

Core Features & Technical Advantages

• Dual-Channel Precision Measurement
  Simultaneous axial and radial position tracking via independent proximity probe channels, with 0.1 mil (2.5 μm) resolution ensuring accurate detection of micro-level shaft displacement and bearing clearance changes.
• API 670 Compliance & Industry Certification
  Fully compliant with API 670 machinery protection system standards, meeting stringent requirements for alarm logic, voting schemes, and fail-safe operation in critical process industries.
• Advanced Signal Processing Architecture
  Incorporates digital filtering, temperature compensation, and adaptive calibration algorithms to minimize noise interference and maintain measurement stability across -30°C to +65°C ambient conditions.
• Comprehensive Protection Functions
  Integrated multi-level alarm (Alert/Danger), automatic probe fault detection, power supply monitoring, and relay output isolation, reducing unplanned shutdowns and maintenance overhead.
• Flexible System Integration
  Compatible with Bently Nevada 3300 XL and 3500 rack systems, supporting 4-20mA output, Modbus protocol, and relay contact interfaces for seamless DCS/PLC/SCADA connectivity.
• Intuitive Operator Interface

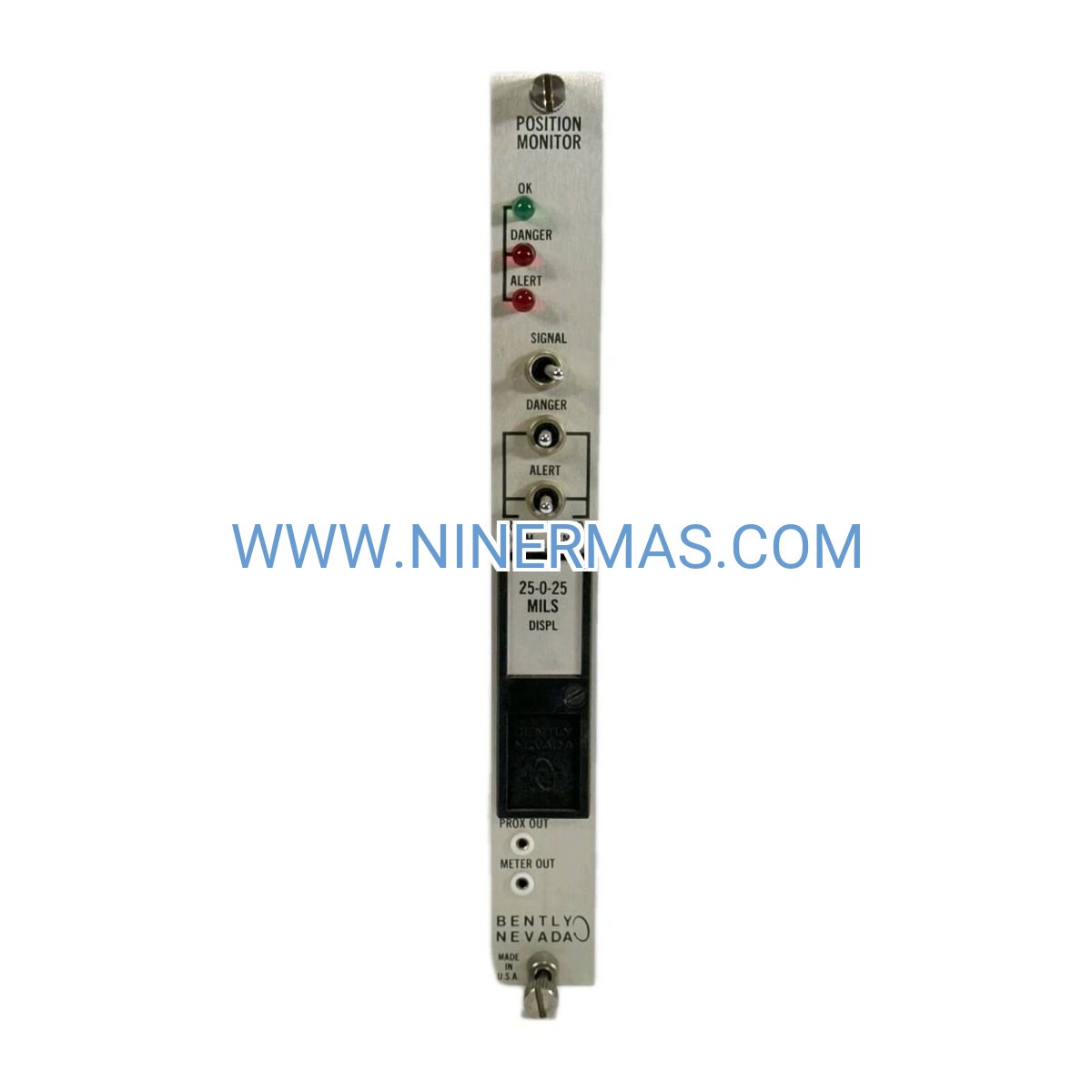

  Front-panel LED status indicators and optional LCD display module provide real-time position values, alarm status, and diagnostic codes, enabling rapid troubleshooting without external tools.

Typical Application Scenarios

This shaft position monitor is specifically designed for applications demanding high shaft position accuracy, continuous operation reliability, and compliance with international safety standards, including:

• Steam & Gas Turbine Generator Sets
  Monitors thrust bearing axial displacement and rotor eccentricity in power plant turbines, preventing catastrophic failures due to bearing wear or thermal expansion during load transients.
• Centrifugal & Axial Compressors
  Ensures safe operation of high-speed compressors in oil & gas, petrochemical, and air separation plants by tracking rotor position relative to magnetic bearings or thrust collars, supporting surge protection and anti-friction bearing health assessment.
• Large Industrial Pumps & Blowers
  Provides continuous axial float and radial runout monitoring for boiler feed pumps, cooling water pumps, and induced draft fans, reducing maintenance costs and extending mean time between overhauls (MTBO).
• Rotating Equipment in Hazardous Areas
  Suitable for Zone 1/Division 1 classified locations when paired with appropriate barriers, serving refineries, LNG terminals, and offshore platforms requiring SIL-rated machinery protection.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical, mechanical, and performance specifications. Custom configurations are available based on project-specific requirements.

Selection Recommendations: When specifying this monitor, consider the following parameters: maximum shaft displacement range, probe-to-target gap voltage, required alarm response time, environmental conditions (temperature/vibration/EMI), and control system interface requirements (analog/digital/relay). For assistance, please provide machinery type, operating speed, bearing configuration, and existing monitoring infrastructure details. Our engineers will recommend optimal probe selection and mounting configurations.

Extended Capabilities & Customization Options

• Multi-Channel Expansion: Supports cascading with additional modules for simultaneous monitoring of multiple bearing positions or multi-shaft configurations
• Remote Monitoring Integration: Optional Ethernet/Modbus TCP gateway for cloud-based condition monitoring and predictive maintenance platforms
• Hazardous Area Certification: ATEX/IECEx intrinsically safe barriers available for Zone 0/1 installations
• Custom Alarm Logic: Programmable voting schemes (1oo2, 2oo3) and time-delay filters to minimize nuisance trips
• Historical Data Logging: Integrated trend recording with USB/SD card export for root cause analysis and compliance documentation

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 3-5 business days from stock; custom-configured units require 10-15 business days for factory programming and testing.

Warranty: Backed by a comprehensive 24-month warranty covering materials and workmanship, with optional extended service agreements available.

Technical Support: Includes remote commissioning assistance, on-site installation guidance (region-dependent), and access to certified application engineers for troubleshooting and optimization.

Documentation Package: Each unit ships with complete electrical schematics, terminal wiring diagrams, calibration certificates, operation manuals (English/Chinese), and configuration software (where applicable), ensuring streamlined installation and compliance with plant documentation requirements.

Frequently Asked Questions (FAQ)

Q: How does the PWA47620-02 shaft position monitor integrate with existing Bently Nevada systems?
A: The monitor is fully compatible with 3300 XL and 3500 rack architectures. Integration requires matching the probe power supply voltage, verifying signal cable specifications (RG59 coaxial recommended), and configuring alarm setpoints via front-panel controls or proprietary software. Consult factory documentation for specific rack slot assignments and backplane compatibility.

Q: What is the maximum number of probes this monitor can support?
A: The PWA47620-02 supports two independent proximity probe channels. For applications requiring more than two measurement points (e.g., multi-bearing turbines), additional monitor modules can be installed in adjacent rack slots with synchronized alarm outputs.

Q: What energy savings or efficiency improvements can be expected?
A: While the monitor itself does not directly reduce energy consumption, early detection of bearing wear, misalignment, or rotor rubs prevents efficiency degradation in rotating machinery. Studies indicate that proactive vibration and position monitoring can reduce unplanned downtime by 30-50% and extend bearing life by 20-40%, translating to significant operational cost savings.

Q: What are the environmental and installation requirements?
A: The monitor operates reliably in -30°C to +65°C ambient temperatures with IP20 protection (rack-mount). For harsh environments, specify IP65-rated enclosures. Ensure adequate ventilation in control cabinets, maintain <80% relative humidity (non-condensing), and avoid direct exposure to corrosive gases or excessive vibration (>0.5g RMS).

Q: Does the monitor support remote monitoring and data acquisition?
A: Yes. The 4-20mA analog outputs can be interfaced with DCS/SCADA systems, and optional Modbus RTU/TCP gateways enable integration with plant-wide asset management platforms. For advanced diagnostics, consider pairing with Bently Nevada System 1 software for real-time trending and predictive analytics.

Q: Is factory calibration required, or can field calibration be performed?
A: Units ship with factory calibration certificates traceable to NIST standards. Field recalibration is possible using certified proximity probe simulators and following procedures outlined in the service manual. Annual calibration verification is recommended for critical safety applications per API 670 guidelines.

Request a Custom Solution

To receive a detailed selection proposal, quotation, or application-specific technical support, please provide the following information: project name, application type (turbine/compressor/pump), design shaft displacement range, number of monitoring points, probe type and cable length, power supply specifications, and control system interface requirements. Our engineering team will deliver a tailored recommendation with drawings and compliance documentation within 24-48 hours.
