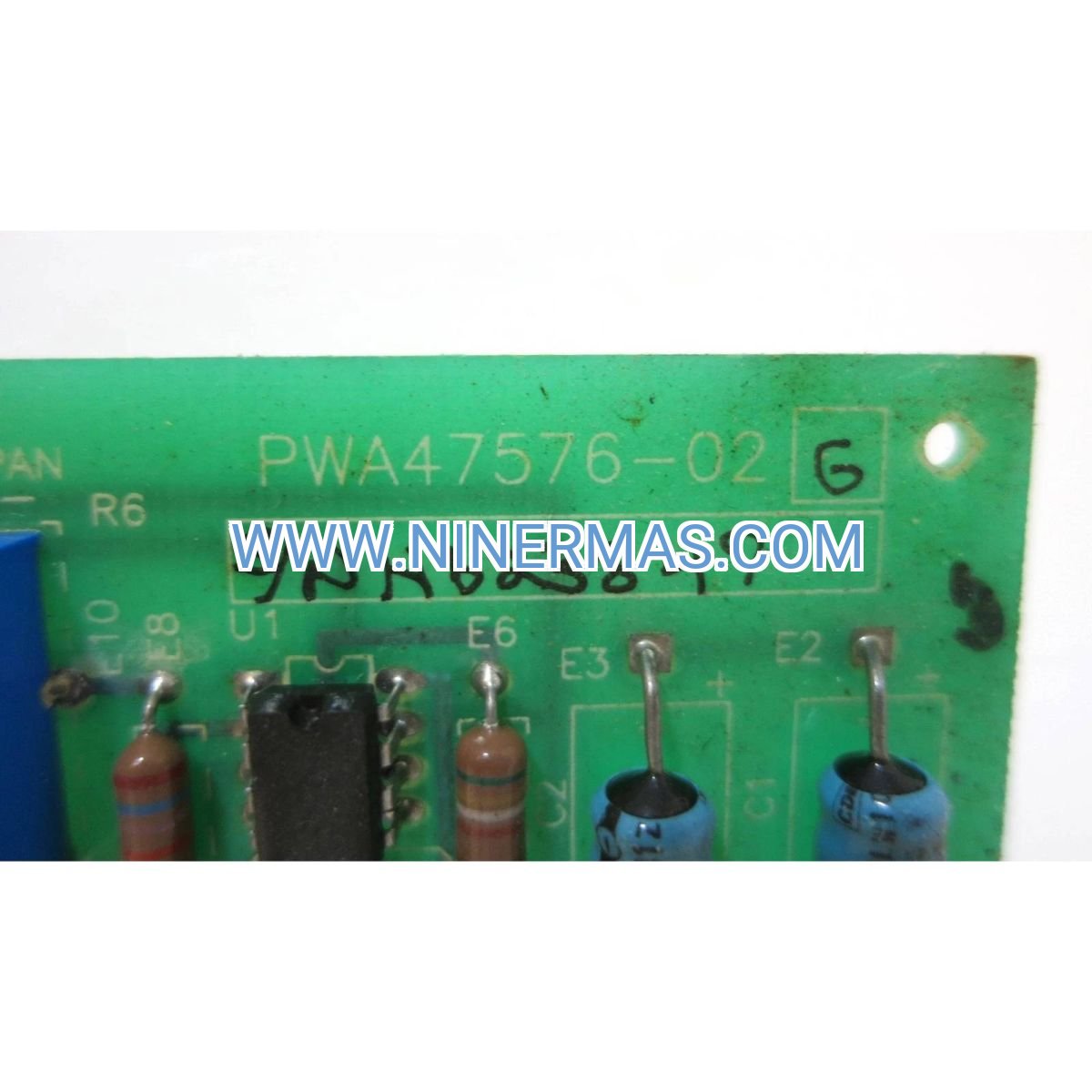

Bently Nevada PWA47576-02 Display Panel PCB | 9000 Series Monitor Interface Module

Bently Nevada PWA47576-02 Display Panel PCB (Industrial-Grade HMI Interface Module)

The Bently Nevada PWA47576-02 is a precision-engineered display front panel PCB designed exclusively for the 9000 Series vibration monitoring systems. Through integrated LCD display technology, tactile keypad interface, and multi-color LED status indicators, this module delivers real-time visualization of critical machinery health parameters, alarm conditions, and configuration settings. It serves as the primary human-machine interface (HMI) for operators and maintenance personnel in industrial rotating equipment monitoring applications.

Widely deployed across power generation facilities, oil & gas processing plants, petrochemical refineries, pulp & paper mills, and heavy manufacturing operations, this display panel PCB addresses common challenges including: unclear alarm visibility, difficult on-site parameter adjustment, time-consuming troubleshooting due to poor interface design, and frequent replacement needs in harsh industrial environments. The PWA47576-02 is engineered to withstand demanding conditions while maintaining consistent performance.

Featuring field-replaceable modular design, plug-and-play installation compatibility, RoHS environmental compliance, and extended operational lifespan, this display panel PCB is ideal for plant maintenance teams, instrumentation engineers, OEM service providers, and industrial automation integrators. Contact our technical specialists to verify compatibility with your specific 9000 Series monitor model and obtain installation guidance.

Core Features & Technical Advantages

• High-Contrast LCD Display Technology
  Equipped with industrial-grade LCD screen providing clear visualization of vibration data, alarm status, and configuration menus even under challenging ambient lighting conditions. Supports multi-parameter simultaneous display for efficient monitoring.
• Intuitive Keypad Interface
  Tactile membrane keypad with clearly labeled function keys enables quick parameter adjustment, alarm acknowledgment, and menu navigation without requiring external programming tools or computer connections.
• Multi-Color LED Status Indicators
  Dedicated LED arrays provide instant visual feedback for power status, alarm conditions (Alert/Danger), and operational modes, allowing operators to assess system health at a glance from across the control room.
• Field-Replaceable Modular Design
  Standardized form factor and connector interface enable rapid replacement during maintenance windows, minimizing system downtime. No specialized tools or calibration required for installation.
• Enhanced Environmental Protection
  Conformal coating and sealed construction protect sensitive electronic components from moisture, dust, and chemical exposure common in industrial environments, extending service life and reducing failure rates.
• RoHS Compliance & Quality Assurance
  Manufactured to meet RoHS environmental standards and Bently Nevada's stringent quality control processes, ensuring reliable performance and regulatory compliance for global installations.

Typical Application Scenarios

This display panel PCB is engineered for industrial environments requiring reliable, continuous machinery condition monitoring with local operator interface capabilities:

• Power Generation & Turbine Monitoring
  Essential for steam turbines, gas turbines, and generator sets in power plants where operators need immediate access to vibration trends, bearing temperature data, and alarm conditions without accessing centralized control systems.
• Oil & Gas Processing Facilities
  Deployed on compressor trains, pump stations, and rotating equipment in upstream/midstream/downstream operations where harsh environmental conditions and remote locations demand robust local HMI solutions.
• Petrochemical & Refining Operations
  Critical for monitoring high-speed rotating machinery in process units where early fault detection through vibration analysis prevents catastrophic failures and unplanned shutdowns.
• Heavy Manufacturing & Metal Processing
  Applied to rolling mills, crushers, conveyors, and large motor-driven equipment where maintenance teams require on-site diagnostic capabilities for predictive maintenance programs.
• Pulp & Paper Production Lines
  Supports continuous monitoring of paper machine drives, refiners, and auxiliary equipment in environments with high humidity, temperature variations, and airborne contaminants.

Technical Specifications & Compatibility Guide

To ensure proper integration and optimal performance, please review the following technical parameters and compatibility requirements:

Selection & Compatibility Considerations

When selecting this display panel PCB, please verify the following parameters to ensure compatibility with your existing system:

• Monitor Model Verification: Confirm your 9000 Series monitor model number and firmware revision to ensure interface protocol compatibility
• Physical Dimensions: Verify panel cutout dimensions match your existing installation to avoid modification requirements
• Connector Compatibility: Ensure internal wiring harness matches the connector pinout of the PWA47576-02
• Environmental Conditions: Assess ambient temperature, humidity, and contamination levels at installation location

For technical assistance with compatibility verification or custom configuration requirements, please provide your existing monitor model number, serial number, and application details. Our engineering team will recommend the appropriate solution and provide installation support documentation.

Extended Functionality & Integration Options

• Alarm Configuration Flexibility
  Supports on-panel configuration of Alert and Danger alarm setpoints, hysteresis values, and time delays without requiring external software tools, enabling rapid commissioning and field adjustments.
• Diagnostic Mode Access
  Built-in diagnostic menus provide access to self-test routines, sensor health checks, and historical alarm logs, facilitating faster troubleshooting and reducing mean time to repair (MTTR).
• Multi-Language Support
  Display interface supports multiple language options (availability depends on monitor firmware version), improving usability for international installations and multilingual operations teams.
• Data Trending Capability
  Certain 9000 Series configurations allow on-screen trending of vibration parameters over user-selectable time periods, enabling operators to identify developing issues without accessing centralized systems.

Delivery, Service & Technical Support

Lead Time & Availability: Standard stock items typically ship within 1-3 business days. Custom configurations or large quantity orders may require 5-10 business days. Please inquire for current availability and expedited shipping options.

Warranty Coverage: All new units include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options and service agreements are available for critical applications.

Installation & Commissioning Support: Comprehensive installation instructions, wiring diagrams, and configuration guides are provided with each unit. Remote technical support is available during installation. On-site commissioning services can be arranged for complex integrations or multi-unit deployments (availability varies by region).

Technical Documentation Package: Each shipment includes detailed technical documentation covering installation procedures, connector pinouts, configuration menu navigation, troubleshooting flowcharts, and maintenance recommendations to support your engineering and maintenance teams.

Spare Parts & Lifecycle Management: We maintain inventory of critical spare components and can provide lifecycle management support including obsolescence monitoring, upgrade path recommendations, and migration planning for aging 9000 Series installations.

Frequently Asked Questions (FAQ)

Q: How do I verify that the PWA47576-02 display panel PCB is compatible with my existing Bently Nevada 9000 Series monitor?
A: Compatibility depends on your specific monitor model and firmware version. Please provide your monitor's model number (typically found on the rear panel nameplate) and serial number. Our technical team will cross-reference this information against compatibility matrices and confirm fitment. In most cases, the PWA47576-02 is a direct replacement for original display panels in 9000 Series units manufactured after 1995.

Q: Can this display panel PCB be installed without shutting down the entire monitoring system?
A: Installation procedures vary by monitor configuration. In many cases, the display panel can be replaced during a planned maintenance window with the monitor powered down, but connected sensors and I/O modules can remain in place. However, we recommend following Bently Nevada's official installation procedures and coordinating with your operations team to schedule appropriate downtime. Typical replacement time is 15-30 minutes for experienced technicians.

Q: What is the expected service life of the PWA47576-02 display panel, and what factors affect longevity?
A: Under normal industrial operating conditions (temperature within specification, proper ventilation, no excessive vibration or shock), the display panel typically provides 10-15 years of reliable service. Primary wear factors include LCD backlight degradation (typically 50,000+ hours), membrane keypad contact wear (dependent on usage frequency), and environmental exposure. Regular cleaning and protection from direct sunlight or chemical exposure can extend service life.

Q: Does the display panel require calibration or configuration after installation?
A: The PWA47576-02 is a plug-and-play replacement component that inherits configuration from the host 9000 Series monitor. No calibration is required for the display itself. However, you may need to verify alarm setpoints, display preferences, and language settings after installation to ensure they match your operational requirements. Configuration is performed through the keypad interface using menu navigation.

Q: Is the PWA47576-02 compatible with remote monitoring systems or SCADA integration?
A: The display panel itself is a local HMI component and does not directly interface with remote monitoring systems. However, the host 9000 Series monitor may support communication protocols (such as Modbus, 4-20mA outputs, or relay contacts) that enable integration with SCADA, DCS, or plant-wide condition monitoring systems. The display panel provides local visualization and configuration capabilities that complement, rather than replace, remote monitoring infrastructure.

Q: What environmental protection does the display panel offer, and can it be used in hazardous area classifications?
A: The PWA47576-02 features conformal coating and sealed construction providing protection against moisture, dust, and chemical exposure typical of industrial environments. When properly installed in a 9000 Series monitor enclosure, the assembly can achieve IP65-equivalent front panel protection. However, hazardous area certification (ATEX, IECEx, NEC Class/Division) depends on the complete monitor assembly and enclosure rating, not the display panel alone. Consult your monitor's certification documentation and local electrical codes for hazardous area installations.

Request Technical Support & Quotation

To receive detailed compatibility verification, application-specific recommendations, pricing quotation, or technical support, please provide the following information to our engineering team:

• Project name and application description
• Existing Bently Nevada 9000 Series monitor model number and serial number
• Quantity required (single replacement or multiple units)
• Installation timeline and any expedited delivery requirements
• Environmental conditions at installation site (temperature range, humidity, contamination)
• Any special configuration or documentation requirements

Our technical specialists will respond with personalized recommendations, compatibility confirmation, and comprehensive quotation including shipping options to your location.
