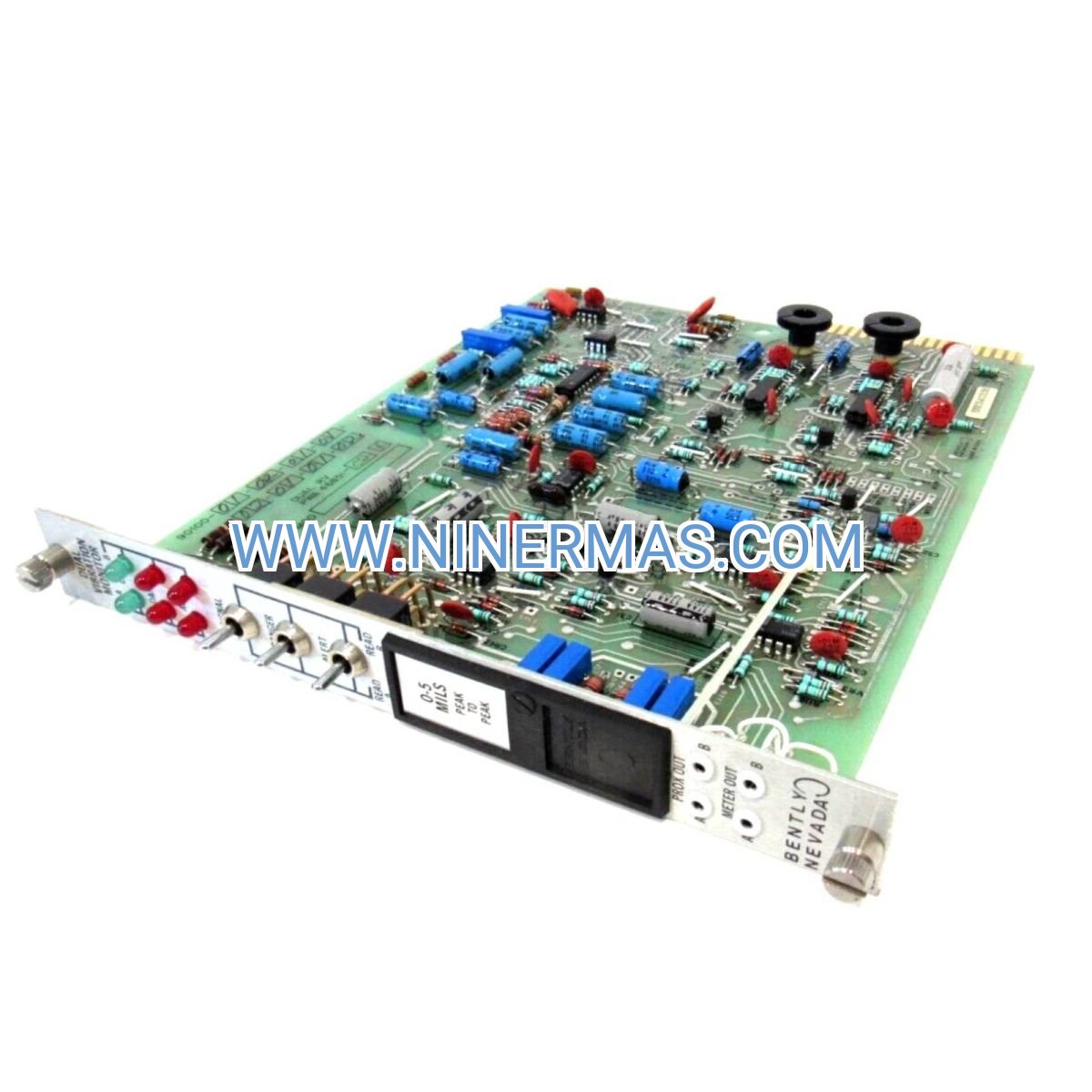

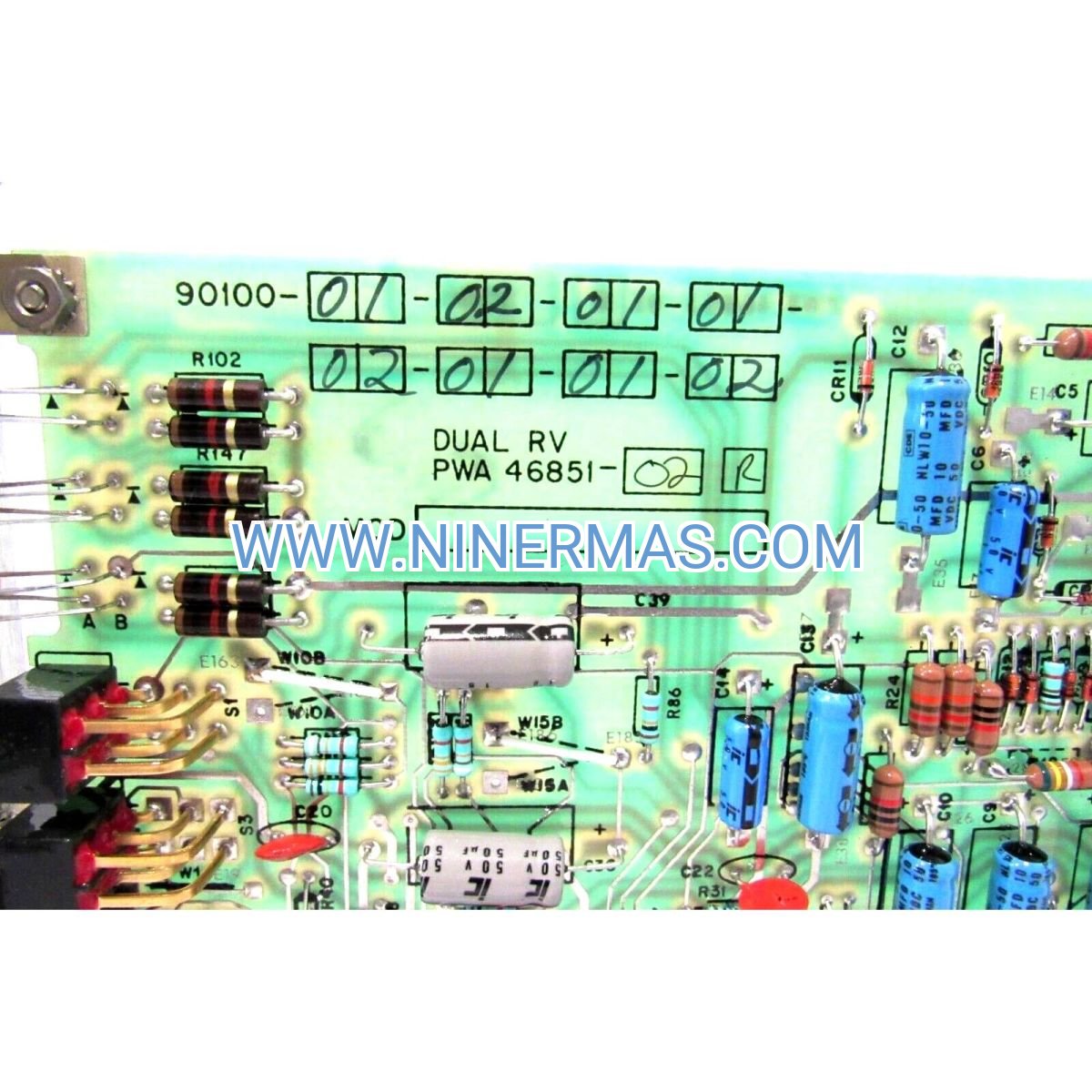

Bently Nevada PWA46851-02 PCB Main Board (Industrial Vibration Monitoring Module)

The Bently Nevada PWA46851-02 is a precision-engineered main board module designed for the 90100 series dual-channel vibration monitoring system. Through advanced signal processing algorithms and integrated alarm logic, this PCB delivers real-time machinery health monitoring, enabling predictive maintenance strategies that reduce unplanned downtime and extend equipment lifespan.

Ideal for critical rotating machinery applications across power generation, oil & gas, petrochemical, and heavy manufacturing sectors, this module addresses common challenges including sensor signal conditioning, multi-parameter monitoring, alarm threshold management, and seamless integration with distributed control systems (DCS) and supervisory control and data acquisition (SCADA) platforms.

Featuring field-replaceable design and standardized interfaces, the PWA46851-02 offers rapid deployment for both new installations and retrofit projects. Engineering teams, maintenance departments, system integrators, and OEM partners can leverage this module to build robust condition monitoring solutions. Contact our technical specialists for application-specific configuration guidance and quotation.

Core Functions & Technical Advantages

• Dual-Channel Signal Processing
  Simultaneous monitoring of two independent vibration channels with high-resolution analog-to-digital conversion, ensuring accurate detection of bearing faults, unbalance, misalignment, and resonance conditions in rotating equipment.
• Intelligent Alarm Management
  Configurable multi-level alarm thresholds (Alert, Danger, Trip) with programmable delay timers and hysteresis settings, minimizing false alarms while providing reliable protection for critical assets valued at millions of dollars.
• Universal Serial Communication
  Built-in RS-232/RS-485 interface supporting Modbus RTU and proprietary Bently Nevada protocols, enabling seamless data exchange with PLCs, HMIs, and plant-wide monitoring networks for centralized diagnostics and trending analysis.
• Field-Replaceable Architecture
  Hot-swappable design with plug-and-play connectivity reduces mean time to repair (MTTR) from hours to minutes, maintaining production continuity in 24/7 industrial environments where every minute of downtime costs thousands in lost revenue.
• Industrial-Grade Reliability
  Conformal-coated PCB with wide operating temperature range (-30°C to +65°C), electromagnetic compatibility (EMC) compliance, and vibration/shock resistance per IEC 60068 standards, ensuring stable performance in harsh plant floor conditions.
• Comprehensive Self-Diagnostics
  Continuous internal health monitoring with automatic fault detection for power supply anomalies, sensor open/short circuits, and communication errors, with clear LED indicators and diagnostic codes for rapid troubleshooting.

Typical Application Scenarios

This module is engineered for applications demanding high reliability, continuous operation, and precise vibration measurement, particularly in:

• Power Generation Facilities
  Steam turbines, gas turbines, generators, and auxiliary equipment monitoring in coal-fired, combined-cycle, and nuclear power plants, where unplanned outages can cost $500K-$1M per day in lost generation capacity and grid penalties.
• Oil & Gas Production & Refining
  Compressors, pumps, motors, and gearboxes in upstream extraction, midstream pipeline compression, and downstream refinery processes, protecting assets operating under extreme pressures and temperatures while meeting API 670 machinery protection standards.
• Petrochemical & Chemical Processing
  Critical rotating equipment in continuous process industries where machinery failures can trigger safety incidents, environmental releases, or production losses exceeding millions annually, requiring SIL-rated monitoring solutions.
• Pulp & Paper Manufacturing
  High-speed paper machines, refiners, and dryer sections where bearing failures cause web breaks and extended downtime, with vibration monitoring enabling condition-based maintenance that reduces spare parts inventory by 30-40%.
• Steel & Metal Production
  Rolling mills, blast furnace blowers, and material handling systems in harsh, high-temperature environments with heavy dust and electromagnetic interference, where ruggedized monitoring prevents catastrophic failures of multi-million dollar equipment.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key specifications for the PWA46851-02 main board module:

Selection Considerations: When specifying this module, engineering teams should verify: (1) compatibility with existing 90100 monitor chassis and firmware version, (2) sensor types and cable lengths for signal integrity, (3) alarm relay ratings versus connected load requirements, (4) communication protocol compatibility with plant DCS/SCADA systems, and (5) environmental conditions including temperature extremes and electromagnetic interference sources. For custom configurations or integration with legacy systems, our application engineers provide detailed selection worksheets and system architecture reviews.

Extended Capabilities & Integration Options

• Multi-Parameter Monitoring
  Supports simultaneous measurement of displacement, velocity, and acceleration with automatic unit conversion and peak/RMS calculations, enabling comprehensive machinery diagnostics from a single monitoring point.
• Trend Data Logging
  Optional data historian integration via Modbus registers, capturing vibration trends, alarm events, and diagnostic parameters for long-term analysis, regulatory compliance documentation, and machine learning-based predictive analytics.
• Remote Diagnostics & Configuration
  Compatible with Bently Nevada System 1 software suite for remote parameter adjustment, waveform capture, and expert system diagnostics, reducing site visits and enabling centralized monitoring of geographically distributed assets.
• Redundant Architecture Support
  Dual-module configurations with automatic failover for critical safety applications requiring SIL 2/3 certification, ensuring continuous protection even during module replacement or maintenance activities.

Delivery, Service & Quality Assurance

Lead Time: Standard new modules ship within 3-5 business days from our certified distribution center. Custom-configured or tested modules require 7-10 business days. Expedited shipping available for emergency shutdowns and critical path projects.

Warranty: All PWA46851-02 modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for mission-critical applications.

Technical Support: Complimentary pre-sales application engineering assistance, including sensor selection, wiring diagrams, and system integration guidance. Post-sales support includes remote diagnostics, firmware updates, and on-site commissioning services (subject to location and scope).

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring schematics, Modbus register map, alarm configuration guide, and troubleshooting flowcharts in PDF format, facilitating rapid deployment and maintenance.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system with full traceability. Each unit undergoes 100% functional testing including signal accuracy verification, alarm logic validation, and burn-in testing to ensure field-ready reliability.

Frequently Asked Questions (FAQ)

Q: How do I integrate the Bently Nevada PWA46851-02 with my existing 90100 vibration monitor system?
A: The PWA46851-02 is designed as a direct replacement main board for 90100 series monitors. Installation requires powering down the monitor chassis, removing the existing board via card-edge connector, and inserting the new module until fully seated. Configuration parameters are typically stored in non-volatile memory, but we recommend documenting current settings before replacement. Detailed installation procedures are provided in the technical manual, and our engineers can provide remote guidance during the swap.

Q: What is the maximum number of vibration sensors this module can monitor simultaneously?
A: The PWA46851-02 supports two independent vibration measurement channels. Each channel can accept signals from proximity probes (Bently Nevada 3300 XL series), accelerometers (ICP/IEPE type), or velocity sensors (seismic transducers). For applications requiring more than two measurement points, multiple modules can be installed in separate monitor chassis with centralized data aggregation via serial communication networks.

Q: What energy savings or efficiency improvements can I expect from implementing this vibration monitoring solution?
A: While the module itself is a diagnostic tool rather than an energy-saving device, predictive maintenance enabled by continuous vibration monitoring typically reduces energy consumption by 8-12% through early detection of mechanical issues like misalignment, unbalance, and bearing wear that increase friction and power draw. Additionally, preventing catastrophic failures avoids energy-intensive emergency repairs and production restarts. ROI studies show payback periods of 6-18 months for critical rotating equipment.

Q: What are the environmental requirements for installing this PCB module? What is its protection rating?
A: The PWA46851-02 operates reliably in industrial environments with temperatures from -30°C to +65°C and humidity up to 95% RH (non-condensing). When installed in a standard 90100 monitor chassis, the assembly achieves IP20 protection, suitable for indoor control room or equipment-mounted enclosures. For harsh outdoor or hazardous area installations, the monitor chassis should be housed in NEMA 4X or explosion-proof enclosures rated for the specific environment (Class I Div 2, Zone 2, etc.).

Q: Can this module support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes, the PWA46851-02 features RS-232/RS-485 serial communication supporting Modbus RTU protocol (industry standard) and proprietary Bently Nevada protocols. This enables integration with PLCs (Allen-Bradley, Siemens, Schneider), DCS systems (Honeywell, Emerson DeltaV, ABB), SCADA platforms (Wonderware, iFIX, Ignition), and condition monitoring software (System 1, AMS Suite). Typical data available includes real-time vibration values, alarm status, diagnostic codes, and configuration parameters. For Ethernet/IP or Profinet connectivity, external protocol converters or gateway modules are recommended.

Q: Is this module compatible with legacy 90100 monitors, or only newer firmware versions?
A: The PWA46851-02 maintains backward compatibility with most 90100 series monitor chassis manufactured since the mid-1990s. However, optimal performance and access to advanced features require firmware version 3.0 or later. We recommend verifying your current monitor's firmware version (displayed during power-up or via serial command) before ordering. Firmware upgrade services are available if needed to ensure full compatibility and feature access.

Request Technical Support & Quotation

To receive detailed application engineering support, custom configuration assistance, or project quotation, please provide the following information to our technical sales team:

• Project name and application overview (industry, equipment type, criticality)
• Existing monitor system details (90100 chassis model, firmware version, current configuration)
• Sensor specifications (type, manufacturer, sensitivity, cable length)
• Alarm requirements (threshold levels, relay contact ratings, response time)
• Communication needs (protocol, network architecture, data points required)
• Environmental conditions (temperature range, humidity, vibration, EMI sources)
• Quantity required and delivery timeline
• Installation support needs (commissioning, training, documentation)

Our application engineers will respond within 24 hours with tailored recommendations, system architecture diagrams, and competitive pricing. For urgent requirements or technical emergencies, expedited support is available.
