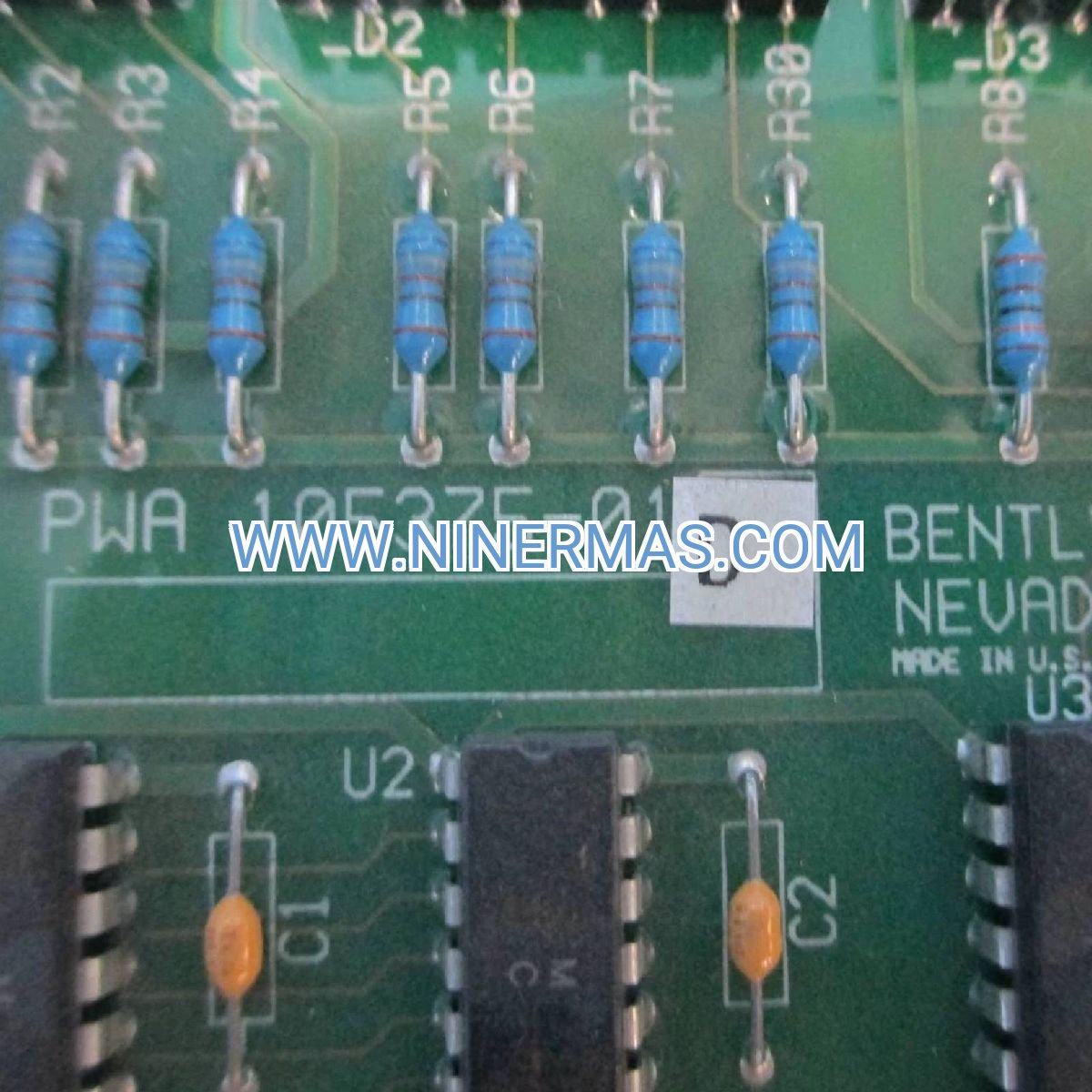

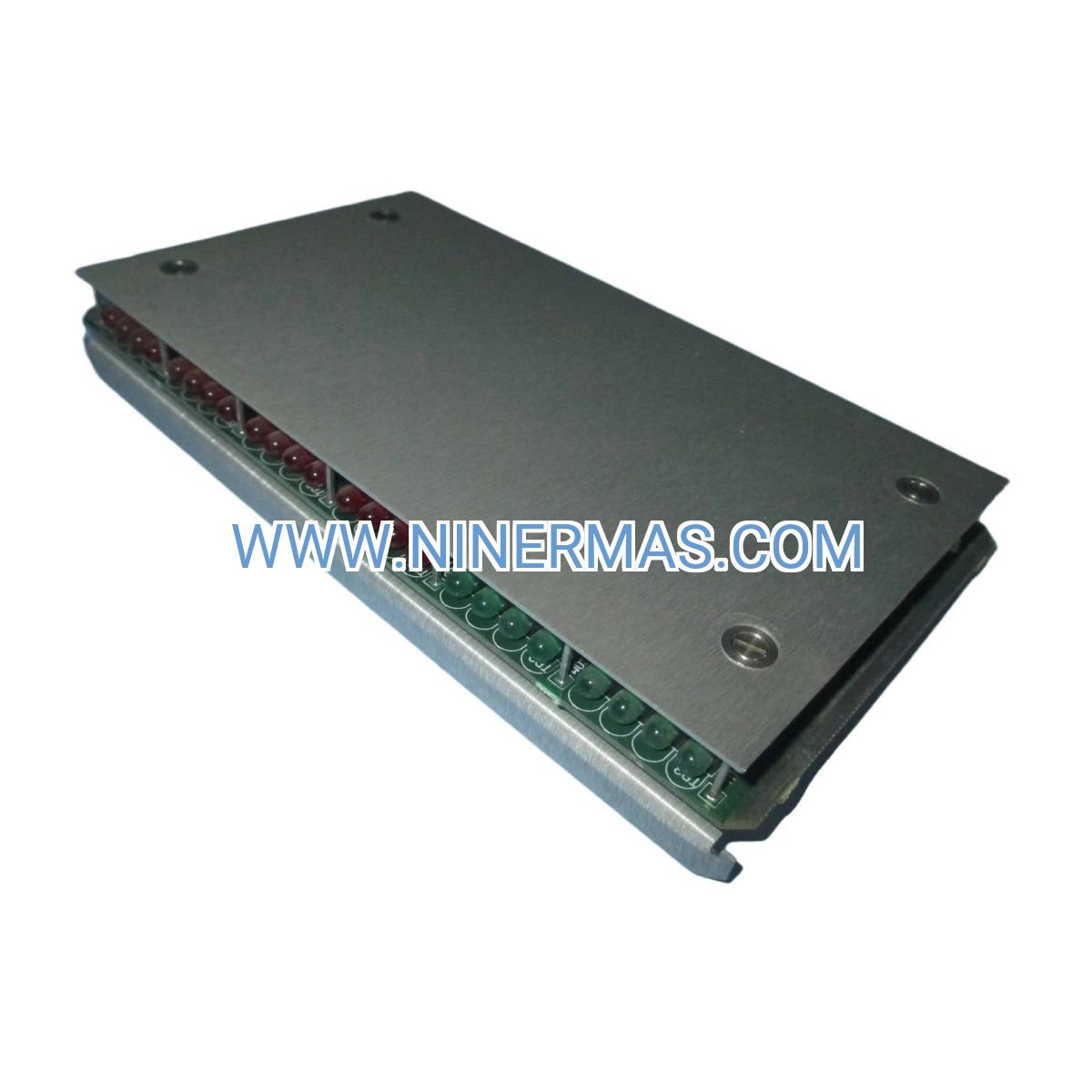

Bently Nevada PWA105375-01 TDXnet Interface Module (Industrial-Grade Transient Data Acquisition System)

The Bently Nevada PWA105375-01 TDXnet Interface Module is a professional-grade data acquisition device designed for System 1 condition monitoring platforms. Through high-speed sampling technology (102.4 kHz) and 16-bit resolution analog-to-digital conversion, it captures critical transient vibration and dynamic events during machinery startup, shutdown, and abnormal operating conditions, enabling predictive maintenance and fault diagnostics.

This module is specifically engineered for power generation plants, petrochemical facilities, oil & gas operations, heavy manufacturing, and rotating machinery applications where continuous monitoring of turbines, compressors, pumps, and motors is essential. It addresses challenges such as intermittent fault detection, startup/shutdown event analysis, insufficient data resolution, and delayed alarm response in traditional monitoring systems.

Featuring standardized design with flexible configuration options, the PWA105375-01 delivers real-time transient capture, seamless System 1 integration, Ethernet-based data transmission, and comprehensive diagnostic capabilities. Ideal for reliability engineers, maintenance teams, OEM integrators, and plant operators seeking advanced machinery health monitoring solutions. Contact our application engineers for system configuration and technical consultation.

Core Features & Technical Advantages

• High-Speed Transient Data Capture
  Equipped with 102.4 kHz sampling rate and 16-bit ADC resolution, the module accurately captures fast-changing vibration signatures during critical machine events, including startup acceleration, coast-down deceleration, and transient fault conditions that traditional monitoring may miss.
• Seamless System 1 Integration
  Native compatibility with Bently Nevada System 1 software platform enables centralized data management, automated event triggering, and correlation analysis with steady-state monitoring data for comprehensive machinery health assessment.
• Ethernet-Based Communication
  Utilizes standard Ethernet (TDXnet protocol) for reliable, high-bandwidth data transmission to System 1 servers, supporting remote monitoring, distributed architectures, and integration with plant-wide SCADA/DCS systems.
• Intelligent Event Triggering
  Configurable trigger conditions based on vibration levels, speed changes, or external digital inputs ensure automatic capture of critical events without continuous manual monitoring, reducing data storage requirements while maintaining diagnostic coverage.
• Multi-Channel Input Capability
  Supports multiple analog input channels for simultaneous monitoring of radial vibration, axial position, phase reference, and process parameters, providing complete machine condition visibility during transient operations.
• Robust Industrial Design
  Built to withstand harsh industrial environments with wide operating temperature range, EMI/RFI immunity, and conformal coating protection, ensuring reliable performance in power plants, refineries, and offshore platforms.
• Comprehensive Diagnostic Tools
  Works with System 1 analysis software to generate Bode plots, polar plots, shaft centerline plots, and waterfall diagrams from transient data, enabling root cause analysis of rotor dynamic issues, bearing faults, and balance problems.

Typical Application Scenarios

The PWA105375-01 TDXnet Interface Module is engineered for applications requiring detailed transient event analysis and continuous machinery protection:

• Steam & Gas Turbine Monitoring
  Captures critical startup and shutdown vibration data for large turbines in power generation facilities, enabling detection of rub events, blade resonance, and thermal growth issues that only occur during speed transitions.
• Rotating Compressor Surveillance
  Monitors centrifugal and axial compressors in petrochemical and gas processing plants, identifying surge conditions, aerodynamic instabilities, and bearing degradation through high-resolution transient analysis during load changes.
• Critical Pump Systems
  Provides transient data acquisition for boiler feed pumps, pipeline pumps, and process pumps where startup cavitation, hydraulic instability, or mechanical looseness requires detailed diagnostic investigation beyond steady-state monitoring.
• Motor-Driven Equipment
  Analyzes variable frequency drive (VFD) motor applications, detecting electrical faults, rotor bar issues, and resonance problems during acceleration/deceleration cycles in mining, metals, and manufacturing operations.
• Predictive Maintenance Programs
  Supports condition-based maintenance strategies by automatically capturing baseline transient signatures and comparing subsequent events to detect gradual degradation trends before catastrophic failures occur.

Technical Specifications & Configuration Guide

To facilitate system design and integration, we provide key technical parameters for the PWA105375-01 module. Custom configurations are available based on specific application requirements.

Key Technical Parameters:

• Sampling Rate: 102.4 kHz per channel (configurable)
• Resolution: 16-bit analog-to-digital conversion
• Input Channels: Multiple analog inputs (configuration dependent)
• Input Types: Compatible with Bently Nevada proximity probes, accelerometers, velocity sensors
• Communication: Ethernet (TDXnet protocol) to System 1 host
• Trigger Modes: Level, speed-based, external digital, manual
• Data Storage: Buffered memory with configurable pre/post-trigger capture
• Operating Temperature: -30°C to +65°C (industrial grade)
• Power Requirements: 24 VDC (typical for System 1 rack mounting)
• Mounting: Standard System 1 rack or DIN rail compatible
• Certifications: CE, UL/cUL, ATEX/IECEx (zone dependent)

Configuration Recommendations:
When specifying the PWA105375-01, consider: number of monitored machines, required sampling rates, trigger strategy (automatic vs. manual), network architecture (local vs. remote System 1 server), environmental conditions, and integration with existing Bently Nevada 3500 or ADAPT monitoring systems. Our application engineers can assist with channel mapping, trigger logic programming, and System 1 software configuration.

Advanced Integration Capabilities

• System 1 Software Suite: Full integration with System 1 Evolution, TDI (Transient Data Interface), and Data Manager for automated event correlation, trending, and reporting
• 3500 Rack Compatibility: Works alongside Bently Nevada 3500 continuous monitoring systems, sharing sensor inputs and providing complementary transient analysis to steady-state protection
• ADAPT Integration: Compatible with ADAPT (Automated Diagnostics for Adaptive Processing Technology) for advanced pattern recognition and automated fault diagnosis
• Third-Party Connectivity: Supports OPC, Modbus TCP, and custom API integration with plant historians (OSIsoft PI, GE Proficy), CMMS systems, and enterprise asset management platforms
• Remote Access: Enables secure remote diagnostics and expert analysis through System 1 web interface and mobile applications, reducing on-site troubleshooting time

Delivery, Service & Technical Support

Lead Time: Standard new units typically ship within 3-5 business days from stock; custom configurations or large quantity orders may require 2-4 weeks. Expedited shipping available upon request.

Warranty & Support: All PWA105375-01 modules include manufacturer's warranty (minimum 12 months from shipment date). We provide technical consultation for system integration, startup commissioning support, and ongoing application assistance. Remote troubleshooting and on-site service available depending on location and service agreement.

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, System 1 configuration guide, dimensional drawings, and calibration certificates. Software configuration files and example trigger logic templates available upon request.

Training & Certification: We can arrange Bently Nevada System 1 operator training, TDXnet configuration workshops, and transient data analysis seminars for your maintenance and engineering teams.

Frequently Asked Questions (FAQ)

Q: How does the PWA105375-01 TDXnet Interface Module integrate with existing Bently Nevada monitoring systems?
A: The module connects directly to your System 1 network via Ethernet and can share sensor inputs with 3500 rack monitors using signal splitters or dedicated transducers. Configuration is performed through System 1 software, and data automatically synchronizes with your existing machinery database for unified analysis.

Q: What is the maximum number of machines that can be monitored with one TDXnet interface?
A: Channel capacity depends on the specific module configuration, typically supporting 4-16 analog input channels. For large installations with multiple machines, multiple TDXnet modules can be networked to a single System 1 server, with each module assigned to specific equipment or measurement points.

Q: What sampling rates and data storage capacity are available for transient event capture?
A: The PWA105375-01 samples at 102.4 kHz per channel with configurable pre-trigger and post-trigger buffer lengths (typically 10-60 seconds total capture time). Actual storage depends on System 1 server capacity; events are automatically archived and can be retained indefinitely for trend analysis and historical comparison.

Q: Can the TDXnet module operate in hazardous area classifications?
A: Standard modules are designed for safe area installation (control room or equipment shelter mounting). For hazardous area applications, the module is typically installed in a purged/pressurized enclosure or safe area with intrinsically safe barriers on field wiring. Consult factory for specific ATEX/IECEx zone requirements.

Q: What communication protocols does the module support for integration with plant DCS or SCADA systems?
A: Primary communication is via TDXnet protocol to System 1 software. System 1 then provides standard industrial protocols including OPC DA/UA, Modbus TCP/IP, and custom APIs for integration with third-party systems. Direct module-to-DCS communication is not supported; data exchange occurs through the System 1 platform.

Q: Is remote monitoring and diagnostics capability included with the PWA105375-01?
A: Yes, when connected to System 1 with appropriate licensing, the module supports remote access via System 1 web client and mobile apps. Authorized users can view live transient captures, configure trigger conditions, and download historical event data from any location with secure network connectivity.

Request Technical Consultation & Quotation

To receive detailed application engineering support, system configuration recommendations, or pricing information, please provide the following details: project name, application type (turbine/compressor/pump/motor), number of monitored machines, required measurement points per machine, existing Bently Nevada system configuration (if applicable), environmental conditions, and timeline. Our specialists will respond with customized solutions and technical proposals within 24-48 hours.
