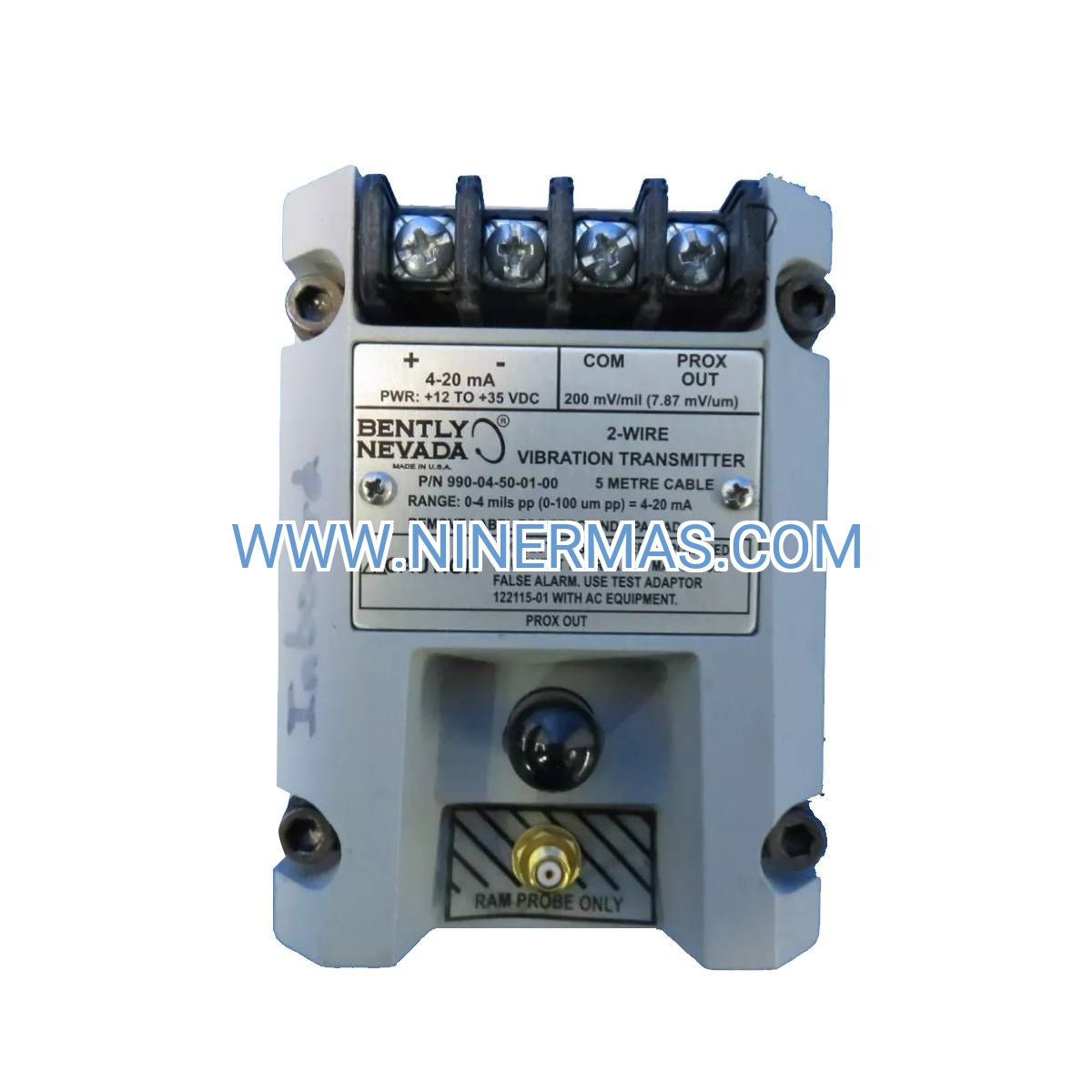

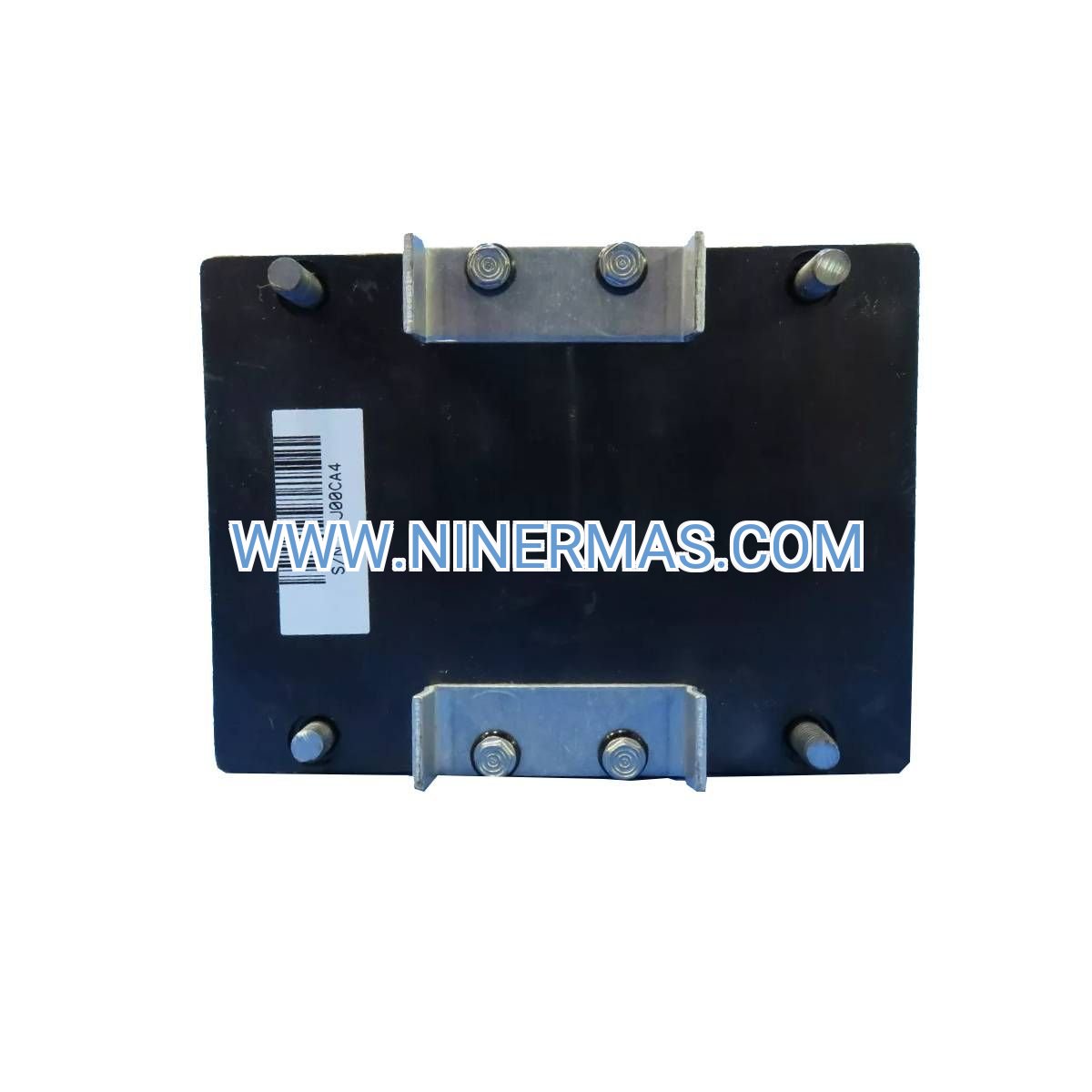

990-04-50-01-00 Industrial Vibration Transmitter (Factory-Calibrated 4-20mA System)

The 990-04-50-01-00 represents a turnkey vibration monitoring solution for rotating equipment manufacturers and plant engineers. This pre-calibrated transmitter converts mechanical vibration into a standardized 4-20 mA current signal, eliminating the need for external signal conditioning hardware. Designed for direct integration into centrifugal compressors, industrial pumps, electric motors, and process fans, it provides continuous machinery health data to your existing control infrastructure.

Plant maintenance teams face mounting pressure to prevent unplanned downtime while managing aging equipment fleets. Traditional vibration monitoring required expensive standalone systems or complex sensor networks. The 990 series bridges this gap by delivering enterprise-grade vibration measurement through a simple two-wire connection to standard PLC analog inputs, SCADA systems, or distributed control platforms.

Built for harsh industrial environments, this transmitter combines AISI 303/304 stainless steel construction with FEP-insulated coaxial cabling to withstand corrosive atmospheres, temperature extremes from -35°C to +85°C, and 100% condensing humidity. The result: reliable vibration data that enables condition-based maintenance strategies, reduces catastrophic bearing failures, and extends mean time between repairs by up to 40% in typical applications.

Core Features & Benefits

→ Plug-and-Play Integration: Factory-calibrated probe-cable-transmitter assembly ships ready for installation. No field calibration, no signal conditioning modules, no specialized training required. Connect to any 4-20 mA analog input and start monitoring within minutes.

→ Universal Control System Compatibility: The industry-standard current loop output interfaces seamlessly with Allen-Bradley, Siemens, Schneider Electric, Honeywell, and Yokogawa control platforms. Eliminates vendor lock-in and simplifies spare parts management across multi-site operations.

→ Precision Measurement Architecture: 0-4 mils peak-to-peak range (0-100 μm pp) captures vibration signatures from normal operation through early fault development. Linear output scaling ensures accurate trending for ISO 10816 compliance and API 670 machinery protection applications.

→ Industrial-Grade Durability: Stainless steel transducer housing resists chemical attack in petrochemical, pulp and paper, and wastewater treatment facilities. FEP cable insulation maintains dielectric integrity in high-moisture environments where PVC jackets fail.

→ Simplified Panel Installation: Included 35mm DIN rail clips enable tool-free mounting in standard control enclosures. Compact form factor (0.82 kg system weight) fits crowded panels without requiring additional support structures.

✓ Cost-Effective Predictive Maintenance: Detect bearing wear, shaft misalignment, and rotor imbalance weeks before failure. Typical ROI achieved within 6-12 months through avoided emergency repairs and production losses.

Typical Application Scenarios

Centrifugal Air Compressor Monitoring: OEM equipment builders integrate the 990 transmitter into compressor skid packages to provide end users with continuous vibration surveillance. When bearing wear develops, the rising 4-20 mA signal triggers maintenance alerts before catastrophic failure damages impellers or seals. Reduces warranty claims and enhances equipment reputation.

Chemical Process Pump Protection: Refineries and chemical plants install these transmitters on critical transfer pumps handling corrosive fluids. The stainless steel construction withstands aggressive atmospheres while monitoring for cavitation, misalignment, and mechanical seal degradation. Prevents costly product spills and environmental incidents.

Electric Motor Condition Monitoring: Manufacturing facilities retrofit existing motor control centers with vibration transmitters to implement condition-based maintenance programs. The 4-20 mA output feeds directly into PLC analog cards, enabling automated alarm generation and maintenance work order creation through existing CMMS integration.

Cooling Tower Fan Surveillance: Power generation and HVAC systems use these transmitters to monitor large cooling fans operating in high-humidity environments. Early detection of blade imbalance or bearing failure prevents secondary damage to gearboxes and drive systems, reducing repair costs by 60-70%.

Food Processing Equipment Integration: Sanitary equipment manufacturers specify the 990 series for mixers, centrifuges, and conveyor systems where washdown environments demand corrosion-resistant sensors. The sealed stainless steel construction meets IP65 ingress protection requirements for food-grade installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 990-04-50-01-00 configuration when your application requires 0-4 mils measurement range, 5-meter cable length, DIN rail panel mounting, and operation in non-hazardous areas. For higher vibration levels (pumps, fans), consider the 0-8 or 0-10 mils range options. Hazardous location installations require approval code 01 (Division 2) or 05 (ATEX Zone 0/2). Verify that your machinery's normal vibration levels fall within the lower 25-75% of the selected range for optimal measurement resolution.

Extended Functions

SCADA Integration & Trending: The 4-20 mA output integrates with Wonderware, Ignition, and FactoryTalk historians for long-term vibration trending. Configure alarm setpoints at 50%, 75%, and 90% of full scale to implement three-tier alert strategies (advisory, caution, danger) aligned with ISO 20816 severity zones.

Wireless Gateway Compatibility: Pair with 4-20 mA wireless transmitters (Emerson Smart Wireless, Honeywell OneWireless) to retrofit legacy equipment without conduit installation. Enables vibration monitoring on rotating equipment in remote locations or hazardous areas where wiring is cost-prohibitive.

Multi-Point Monitoring Arrays: Deploy multiple 990 transmitters on critical machinery trains (motor-gearbox-pump assemblies) to create vibration profiles across bearing locations. Differential analysis between measurement points identifies fault propagation paths and pinpoints failure origins.

Custom Calibration Services: Factory can provide alternative range scaling (e.g., 0-3 mils, 0-6 mils) or non-linear output curves for specialized applications. Consult technical support for feasibility and lead times on custom configurations.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom approval codes or non-standard cable lengths require 4-6 weeks factory lead time. Expedited processing available for critical outage situations (contact sales for emergency service options).

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty includes factory repair or replacement at manufacturer's discretion. Does not cover damage from improper installation, overvoltage, or mechanical abuse.

Technical Support: Access to Bently Nevada application engineers for installation guidance, troubleshooting, and vibration analysis consultation. Support available via phone, email, and online portal Monday-Friday 8:00 AM - 5:00 PM EST.

Documentation Package: Each transmitter ships with calibration certificate, installation manual, wiring diagrams, and dimensional drawings. Additional resources including 3D CAD models, product datasheets, and application notes available through the Bently Nevada Media Library at bntechsupport.com.

Frequently Asked Questions

What power supply voltage does the 990-04-50-01-00 vibration transmitter require?
The transmitter operates on standard 4-20 mA loop power, typically 24 VDC supplied by your PLC analog input card or dedicated loop power supply. Minimum supply voltage is 12 VDC; maximum is 30 VDC. Verify your analog input module provides sufficient loop power (minimum 500 ohms load resistance at 24 VDC).

Can I install this transmitter in Division 2 hazardous locations?
The 990-04-50-01-00 configuration (approval code 00) is rated for non-hazardous areas only. For Division 2 installations, order model 990-04-50-01-01 with CSA/FM approval. ATEX Zone 2 applications require approval code 05. Consult the ordering guide or contact technical support for hazardous location certifications.

How do I calculate the vibration level from the 4-20 mA output signal?
The output scales linearly: 4 mA = 0 mils, 20 mA = 4 mils peak-to-peak. Use the formula: Vibration (mils pp) = [(Current - 4 mA) / 16 mA] × 4 mils. Example: 12 mA reading = [(12-4)/16] × 4 = 2.0 mils pp. Most PLCs can perform this scaling automatically in the analog input configuration.

What is the recommended mounting orientation for the proximity probe?
Mount the probe perpendicular to the shaft surface with the probe tip 40 mils (1.0 mm) from the shaft when the machine is at rest. The factory calibration assumes this gap. Ensure the mounting bracket provides rigid support to prevent probe vibration. Avoid mounting near shaft keyways, coupling hubs, or surface discontinuities that cause electrical runout.

Does the system require periodic recalibration?
Under normal operating conditions, the 990 transmitter maintains calibration accuracy for 3-5 years. Annual verification is recommended for critical machinery protection applications. Recalibration is required if the probe, cable, or transmitter is replaced, or if the system experiences overvoltage or mechanical shock events.

Can I extend the cable length beyond the standard 5 meters?
The 990 series is available with 7-meter cable as a standard option (model 990-04-70-01-00). Cable extensions beyond 7 meters degrade signal quality and are not recommended. For remote installations, consider mounting the transmitter closer to the machinery and extending the 4-20 mA output wiring, which can run hundreds of meters without signal loss.

Request Technical Consultation

Our vibration monitoring specialists are available to assist with sensor selection, installation planning, and integration support. Contact our team to discuss your specific machinery monitoring requirements, request custom configurations, or schedule a technical review of your predictive maintenance program.

Next Steps: Add the 990-04-50-01-00 to your cart for immediate purchase, or reach out to our sales team for volume pricing, custom cable lengths, or hazardous location certifications. We offer expedited shipping for critical maintenance situations and can coordinate with your maintenance shutdown schedule.
