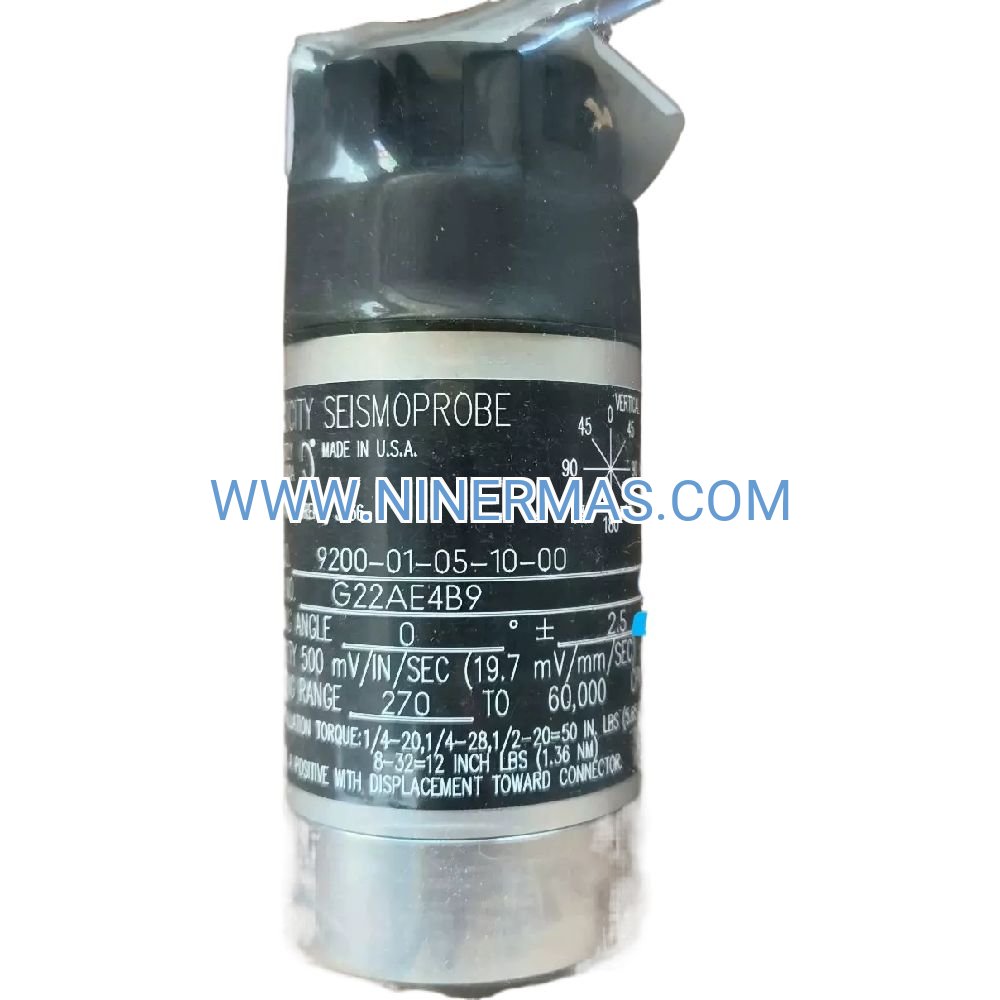

9200-01-05-10-00 Seismoprobe Velocity Sensor (Industrial-Grade Vibration Monitoring)

The 9200-01-05-10-00 Seismoprobe represents a precision-engineered velocity transducer designed for continuous vibration surveillance in mission-critical rotating machinery. Delivering 20mV/mm/s sensitivity across a 4.5-1000Hz operational bandwidth, this two-wire sensor provides reliable early-warning detection of bearing degradation, mechanical unbalance, and structural resonance in power generation, petrochemical processing, and heavy industrial applications.

Built to withstand extreme operating conditions from -40°C to +121°C, the stainless steel housing ensures long-term measurement accuracy in corrosive atmospheres and high-vibration environments. The terminal block mounting configuration delivers secure installation on bearing housings, gearbox casings, and motor frames while simplifying field wiring compared to conventional three-wire velocity sensors.

API 670 and ISO 10816 compliance guarantees compatibility with machinery protection standards, making this Seismoprobe the preferred choice for turbomachinery monitoring, compressor train surveillance, and pump condition assessment programs. Integrate seamlessly with Bently Nevada monitoring systems or third-party DCS/PLC platforms for comprehensive asset health management.

Core Features & Performance Advantages

✓ Simplified Two-Wire Architecture
Reduces installation complexity and wiring costs by 40% compared to traditional three-wire velocity sensors. Single cable run from sensor to monitoring system minimizes potential failure points and accelerates commissioning timelines.

✓ Extended Frequency Coverage (4.5-1000Hz)
Captures low-frequency unbalance conditions at 1X running speed while simultaneously detecting high-frequency bearing defects and gear mesh issues. Eliminates the need for multiple sensor types in most rotating equipment applications.

✓ Robust Terminal Block Connection
Vibration-resistant electrical termination prevents intermittent signal loss in high-shock environments. Field-replaceable connection block enables rapid sensor swaps without cable modifications during maintenance activities.

✓ High Signal Output (20mV/mm/s)
Strong output voltage ensures clean signal transmission over cable runs up to 300 meters without signal conditioners. Maintains measurement accuracy even in electrically noisy industrial environments with VFD interference.

✓ Industrial-Grade Construction
Stainless steel housing resists chemical attack from lubricants, coolants, and process fluids. Hermetically sealed design prevents moisture ingress in outdoor installations and washdown environments.

✓ Standards Compliance
API 670 certification validates performance for machinery protection systems in oil & gas facilities. ISO 10816 alignment ensures compatibility with international vibration severity standards.

Typical Application Scenarios

→ Steam & Gas Turbine Monitoring
Deploy on turbine bearing pedestals to detect thrust bearing wear, journal bearing degradation, and rotor unbalance before catastrophic failure. The 4.5Hz low-frequency response captures subsynchronous vibration phenomena critical for turbine diagnostics. Pair with tachometer inputs for order tracking analysis of blade pass frequencies.

→ Centrifugal Compressor Surveillance
Monitor compressor train bearings, gearbox casings, and driver motors in continuous process applications. The wide frequency range identifies both mechanical issues (unbalance, misalignment) and aerodynamic instabilities (surge, rotating stall). Integration with shutdown systems prevents secondary damage during upset conditions.

→ Large Motor & Generator Protection
Install on induction motors above 100HP and synchronous generators to track bearing condition and detect rotor bar defects. The 1000Hz upper frequency limit captures twice-line-frequency components indicative of electrical faults. Trending velocity RMS values enables predictive maintenance scheduling.

→ Pump & Fan Condition Monitoring
Implement on critical process pumps, cooling tower fans, and induced draft fans where unplanned downtime impacts production. Velocity measurement correlates directly with ISO 10816 severity zones for straightforward alarm setpoint configuration. Terminal block mounting accommodates tight installation spaces on pump pedestals.

→ Gearbox Health Assessment
Mount on gearbox housings to detect gear tooth wear, bearing spalling, and lubrication breakdown. High sensitivity reveals early-stage damage signatures before audible noise or temperature rise occurs. Combine with oil analysis programs for comprehensive gearbox reliability strategies.

Technical Parameters & Selection Guide

Selection Criteria: Choose this Seismoprobe for permanent installations requiring long-term reliability in harsh environments. The 20mV/mm/s sensitivity suits most industrial machinery with vibration levels between 0.5-50 mm/s RMS. For higher sensitivity applications (precision spindles, low-speed equipment), consider alternative sensor configurations. Verify monitoring system input impedance exceeds 10kΩ for optimal signal fidelity.

Extended Functions & Integration Capabilities

Multi-Channel Monitoring Systems
Connect up to 16 Seismoprobes to rack-mounted vibration monitors for comprehensive machinery surveillance. Supports simultaneous trending, alarm management, and data logging across entire process trains.

Wireless Retrofit Solutions
Pair with wireless vibration transmitters to eliminate cabling costs in brownfield installations. Battery-powered wireless nodes enable monitoring of previously inaccessible equipment locations.

Predictive Analytics Integration
Stream velocity data to cloud-based condition monitoring platforms for machine learning-driven fault detection. API connectivity enables integration with enterprise asset management (EAM) and computerized maintenance management systems (CMMS).

Custom Calibration Services
Factory recalibration available to maintain NIST-traceable accuracy over sensor lifecycle. Custom sensitivity configurations accommodate specialized measurement requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations require 4-6 weeks manufacturing lead time. Expedited processing available for critical outage support.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects and performance deviations from published specifications. Extended warranty programs available for long-term projects.

Technical Support: Application engineering assistance includes sensor selection, mounting recommendations, and system integration guidance. Post-installation troubleshooting support via phone and email.

Documentation Package: Each sensor includes calibration certificate, installation manual, dimensional drawings, and wiring diagrams. Digital documentation library accessible via customer portal.

Frequently Asked Questions

How does velocity measurement differ from displacement monitoring for bearing protection?
Velocity sensors measure vibration velocity (mm/s) which correlates directly with vibration energy and machinery stress levels. Displacement probes measure shaft motion (microns) and excel at detecting rotor dynamic issues like oil whirl. For comprehensive bearing protection, combine this velocity Seismoprobe with proximity displacement probes to monitor both casing vibration and shaft motion simultaneously.

What cable specifications are required for proper signal transmission?
Use shielded twisted-pair cable with minimum 18 AWG conductors for runs up to 300 meters. Shield must be grounded at monitoring system end only to prevent ground loops. Avoid routing sensor cables in the same conduit as power cables to minimize electromagnetic interference. For cable runs exceeding 300 meters, implement 4-20mA vibration transmitters for loop-powered signal conditioning.

Can this sensor operate in hazardous area classifications?
The standard 9200-01-05-10-00 configuration is suitable for general industrial environments. For Class I Division 2 or ATEX Zone 2 installations, verify monitoring system provides intrinsically safe barriers. Consult factory for explosion-proof housing options if required for Zone 1 or Division 1 applications.

What mounting torque specifications prevent sensor damage during installation?
Apply 20-25 Nm (15-18 ft-lbs) torque to mounting stud using calibrated torque wrench. Over-torquing damages internal spring elements and shifts frequency response. Under-torquing causes resonance amplification and measurement errors. Ensure mounting surface flatness within 0.025mm and perpendicularity within 1 degree for accurate vibration vector measurement.

How frequently should velocity sensors undergo recalibration?
Manufacturer recommends annual calibration verification for critical machinery protection applications. Sensors in benign environments (low vibration, stable temperature) may extend calibration intervals to 24 months. Recalibration mandatory after any mechanical impact, exposure to temperatures exceeding +121°C, or if trending data shows unexplained sensitivity drift.

What alarm setpoints align with ISO 10816 vibration severity standards?
For rigid foundation machines (turbines, generators), set Alert at 7.1 mm/s RMS and Danger at 11.2 mm/s RMS per ISO 10816-2 Group 2. Flexible foundation machines (motors, pumps) use Alert at 4.5 mm/s and Danger at 7.1 mm/s per Group 1 criteria. Adjust setpoints based on machine criticality, operating speed, and historical baseline data.

Request Technical Consultation

Our vibration monitoring specialists provide complimentary application reviews to optimize sensor selection, placement strategy, and system architecture for your specific machinery portfolio. Contact our engineering team to discuss your condition monitoring requirements and receive customized recommendations.

Ready to implement proactive bearing protection? Add the 9200-01-05-10-00 Seismoprobe to your cart or request a formal quotation with quantity pricing for multi-sensor installations.
