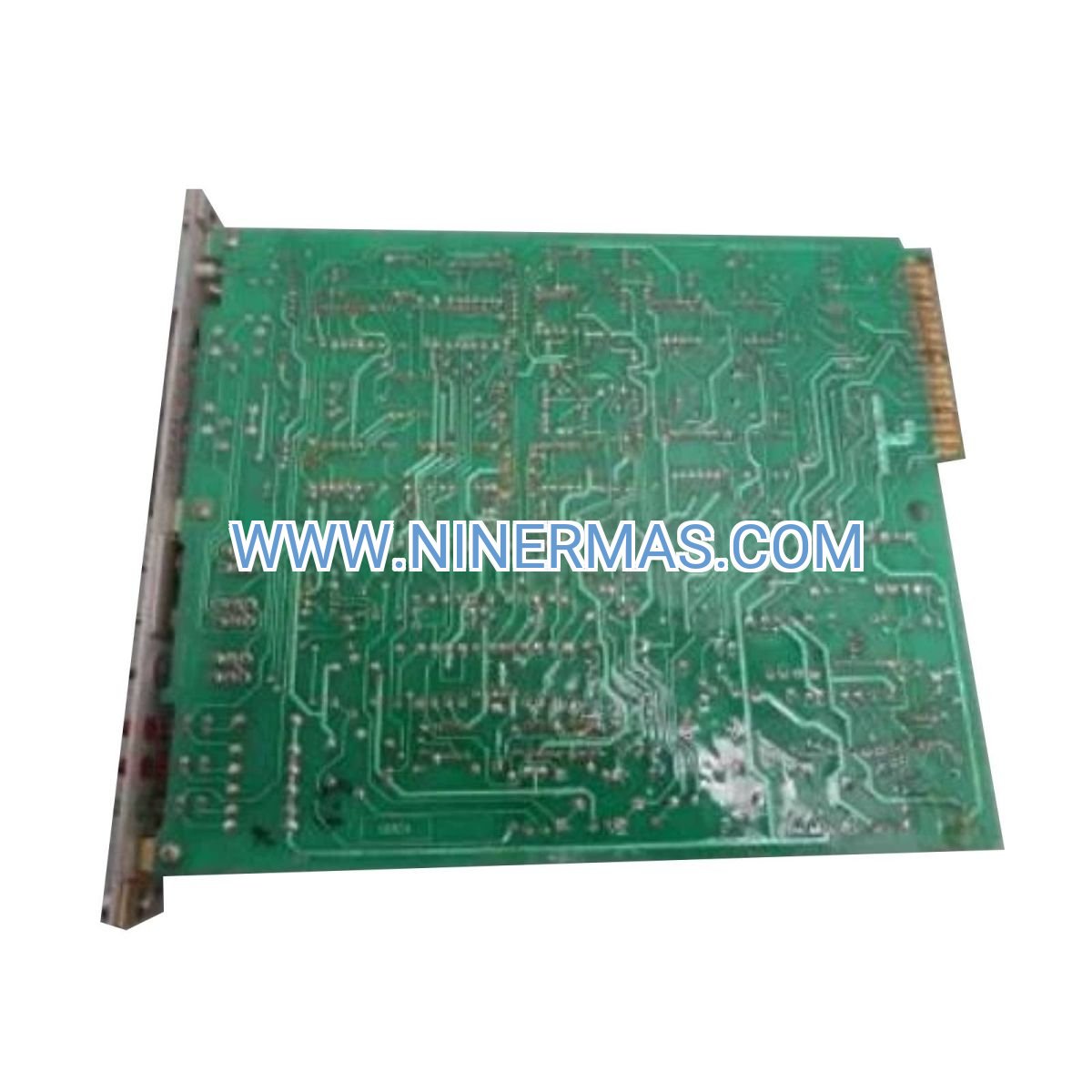

Bently Nevada 90199-22-01-06-02-02 Dual Thermocouple Monitor (Industrial-Grade Temperature Control System)

The Bently Nevada 90199-22-01-06-02-02 is a precision dual-channel thermocouple monitoring module designed for critical industrial temperature measurement applications. Through advanced NIST-compliant linearization algorithms and automatic cold junction compensation (CJC), this monitor delivers accurate, real-time temperature data with 4-20mA analog output, ensuring seamless integration into distributed control systems (DCS), programmable logic controllers (PLC), and supervisory control and data acquisition (SCADA) platforms.

Engineered for demanding environments including power generation facilities, petrochemical plants, turbomachinery installations, and heavy industrial manufacturing, this dual TC monitor addresses common challenges such as temperature measurement drift, sensor compatibility issues, inadequate environmental protection, and unreliable signal transmission over long distances. The module supports seven internationally recognized thermocouple types (J, K, T, E, R, S, B) with an exceptional operating range from -200°C to +1370°C (-328°F to +2498°F).

Featuring robust construction with industrial-grade components, comprehensive EMI/RFI protection, and field-proven reliability in harsh conditions, the 90199-22-01-06-02-02 is the preferred choice for instrumentation engineers, control system integrators, maintenance departments, and OEM equipment manufacturers. Contact our application engineers for customized configuration guidance, technical specifications, and competitive project pricing.

Core Features & Technical Advantages

• Dual-Channel Independent Monitoring
  Simultaneously measures two separate temperature points with isolated input channels, enabling differential temperature analysis, redundant measurement for critical processes, or monitoring of multiple zones within a single equipment assembly. Each channel operates independently with dedicated signal conditioning.
• NIST-Compliant Linearization
  Implements National Institute of Standards and Technology (NIST) polynomial linearization algorithms for all supported thermocouple types, ensuring measurement accuracy within ±0.5% of span across the entire operating range. This eliminates manual calibration requirements and maintains long-term stability.
• Universal Thermocouple Compatibility
  Field-configurable support for J, K, T, E (base metal) and R, S, B (noble metal) thermocouples allows flexible deployment across diverse applications—from moderate-temperature process monitoring to extreme high-temperature turbine exhaust measurement—without hardware modifications.
• Automatic Cold Junction Compensation
  Integrated precision CJC circuitry continuously monitors terminal block temperature and applies real-time corrections, eliminating errors caused by ambient temperature variations at connection points. This feature is critical for installations in non-climate-controlled environments.
• Industry-Standard 4-20mA Output
  Provides isolated, loop-powered 4-20mA analog signals proportional to measured temperature, compatible with virtually all industrial control systems, chart recorders, and data acquisition equipment. Output scaling is user-configurable to match specific process requirements.
• Comprehensive Fault Detection
  Built-in diagnostics detect open thermocouple circuits, short circuits, out-of-range conditions, and sensor degradation. Fault conditions trigger configurable alarm outputs and drive the 4-20mA signal to predefined safe states (upscale/downscale burnout), ensuring fail-safe operation.
• Modular 9000 Series Architecture
  Hot-swappable module design within the Bently Nevada 9000 Series rack system enables rapid replacement without system shutdown, reducing mean time to repair (MTTR). Common power supply and communication backplane simplify installation and reduce spare parts inventory.
• Industrial Environmental Rating
  Operates reliably in temperatures from -30°C to +65°C with up to 95% non-condensing humidity. Conformal coating protects against corrosive atmospheres, dust, and vibration typical in heavy industrial settings. Meets CE, UL, and CSA safety certifications.

Typical Application Scenarios

This dual thermocouple monitor is engineered for temperature-critical applications where measurement accuracy, system reliability, and operational continuity are paramount:

• Steam & Gas Turbine Monitoring
  Measures bearing metal temperatures, exhaust gas temperatures (EGT), and casing temperatures in power generation turbines. Dual-channel capability enables simultaneous monitoring of inlet and outlet temperatures for thermal efficiency calculations and predictive maintenance programs.
• Petrochemical Process Control
  Monitors reactor vessel temperatures, distillation column profiles, and heat exchanger performance in refineries and chemical plants. NIST linearization ensures compliance with process safety management (PSM) requirements and environmental regulations.
• Industrial Furnace & Kiln Systems
  Controls heating profiles in metal heat treatment furnaces, ceramic kilns, and glass melting operations. High-temperature R, S, and B thermocouple support enables accurate measurement up to 1370°C, critical for metallurgical quality control.
• Compressor & Pump Protection
  Provides bearing temperature monitoring for critical rotating equipment in oil & gas, water treatment, and HVAC applications. Alarm outputs integrate with emergency shutdown (ESD) systems to prevent catastrophic failures from overheating.
• Boiler & Heat Recovery Systems
  Monitors flue gas temperatures, economizer performance, and superheater outlet conditions in industrial boilers and waste heat recovery units. Accurate temperature data optimizes combustion efficiency and reduces fuel consumption by 3-8%.
• Food & Pharmaceutical Manufacturing
  Ensures precise temperature control in pasteurization, sterilization, and drying processes where product quality and regulatory compliance depend on validated temperature profiles. 4-20mA outputs integrate with batch control systems for complete traceability.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility with your application, please review the following technical parameters:

Selection Considerations

When specifying the 90199-22-01-06-02-02 for your application, please consider the following factors:

• Thermocouple Type Selection: Match TC type to your temperature range and environment (K-type for general purpose -200°C to +1260°C; R/S-type for high-temperature furnaces up to 1370°C; J-type for reducing atmospheres; T-type for cryogenic applications).
• Installation Environment: Verify ambient temperature at installation location remains within -30°C to +65°C. For outdoor or extreme environments, consider additional enclosure protection (NEMA 4X or IP65 rated panels).
• System Integration: Confirm compatibility with existing 9000 Series rack infrastructure or plan for complete rack assembly including power supply module, communication interface, and chassis.
• Wiring Distance: For thermocouple wire runs exceeding 100 meters, use extension-grade wire matching TC type and consider shielded cable to minimize EMI pickup. 4-20mA output supports distances up to 1000 meters with appropriate loop resistance.
• Calibration Requirements: Standard factory calibration is traceable to NIST standards. For applications requiring certified calibration documentation (pharmaceutical, aerospace), specify calibration certificate at time of order.

For assistance with system design, thermocouple selection, or custom configuration requirements, please provide our application engineers with: process temperature range, measurement point locations, ambient conditions, control system interface requirements, and any industry-specific certifications needed. We will recommend the optimal configuration and provide detailed installation drawings.

Advanced Configuration Options

• Dual-Sensor Redundancy Mode: Configure both channels to monitor the same measurement point with automatic switchover on sensor failure, ensuring continuous operation in critical safety applications.
• Differential Temperature Measurement: Calculate and output the temperature difference between two points (ΔT), useful for heat exchanger efficiency monitoring and thermal gradient analysis.
• Custom Alarm Setpoints: Program high/high-high and low/low-low alarm thresholds with adjustable hysteresis and time delays to prevent nuisance trips while ensuring rapid response to genuine fault conditions.
• Digital Communication Interface: Optional Modbus RTU or HART protocol overlay on 4-20mA signals enables remote configuration, diagnostics, and asset management integration without additional wiring.
• Explosion-Proof Certification: ATEX, IECEx, and FM-approved intrinsically safe (IS) barrier configurations available for installation in Class I Division 1 hazardous locations (oil & gas, chemical processing).

Delivery, Service & Quality Assurance

Lead Time: Standard configuration modules ship from stock within 3-5 business days. Custom-configured units or large project quantities typically require 10-15 business days. Expedited processing available for critical outages.

Warranty Coverage: All Bently Nevada 90199 series modules include a comprehensive 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years.

Technical Support: Lifetime technical support includes remote troubleshooting assistance, configuration guidance, and firmware updates. On-site commissioning and training services available in major industrial regions (quoted separately based on location).

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, configuration worksheets, dimensional drawings, and calibration certificate. CAD files and loop diagrams available in AutoCAD DWG and PDF formats upon request.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system. All units undergo 100% functional testing including temperature simulation across full span, alarm verification, and 48-hour burn-in at elevated temperature before shipment.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 90199-22-01-06-02-02 dual thermocouple monitor integrate with existing DCS or PLC systems?
A: The module provides industry-standard 4-20mA analog outputs that connect directly to analog input cards on virtually all control systems (Honeywell, Emerson DeltaV, Siemens PCS7, Allen-Bradley, etc.). Output scaling is configurable to match your system's engineering units. For digital integration, optional Modbus RTU or HART communication overlays enable direct connection to fieldbus networks without additional signal converters.

Q: What is the maximum number of thermocouple monitoring points supported in a single 9000 Series rack?
A: A standard 9000 Series 19-inch rack accommodates up to 16 single-width modules. Since each 90199-22-01-06-02-02 monitors two temperature points, a fully populated rack can handle 32 independent thermocouple inputs. Multiple racks can be networked for larger installations requiring hundreds of measurement points.

Q: What energy savings can be achieved through precise temperature monitoring with this module?
A: Accurate temperature measurement enables tighter process control, reducing energy waste from over-heating or excessive safety margins. In boiler and furnace applications, maintaining optimal combustion temperatures through precise monitoring typically reduces fuel consumption by 3-8%. In heat exchanger applications, accurate ΔT measurement can improve heat recovery efficiency by 5-12%, translating to significant annual energy cost savings in continuous-operation facilities.

Q: What are the environmental protection and installation requirements for the 90199 module?
A: The module itself is rated for -30°C to +65°C ambient temperature with 5-95% non-condensing humidity and features conformal coating for corrosive atmosphere protection. It must be installed in a 9000 Series rack within a suitable control panel enclosure. For outdoor installations or harsh environments (coastal, chemical plants), we recommend NEMA 4X (IP65) rated panels with climate control to maintain optimal operating conditions and maximize service life.

Q: Does the system support remote monitoring and data logging capabilities?
A: Yes. When equipped with optional communication modules, the 9000 Series system supports Modbus RTU, Modbus TCP/IP, and OPC connectivity for integration with SCADA systems, historians (OSIsoft PI, Wonderware), and cloud-based IIoT platforms. This enables real-time remote monitoring, trend analysis, alarm notification via email/SMS, and long-term data archiving for compliance documentation and predictive maintenance analytics.

Q: Can this monitor be used in hazardous area installations (explosive atmospheres)?
A: The standard 90199-22-01-06-02-02 is suitable for installation in safe areas or Zone 2 / Division 2 classified locations when mounted in appropriate enclosures. For Zone 1 / Division 1 applications, intrinsically safe (IS) barrier configurations are available that allow thermocouple sensors to be installed in hazardous zones while the monitoring module remains in the safe area. ATEX, IECEx, and FM certifications can be provided with proper system design.

Q: What is the typical calibration interval and can field calibration be performed?
A: Factory calibration is stable for 24-36 months under normal operating conditions. Annual verification is recommended for critical applications or regulatory compliance (FDA, ISO). Field calibration can be performed using precision temperature simulators (Fluke 754, Transmille 3050) following procedures in the service manual. For applications requiring certified calibration, modules can be returned to authorized service centers for NIST-traceable recalibration with documentation.

Request Technical Support & Project Quotation

To receive detailed application engineering support, customized system configuration recommendations, or project pricing for the Bently Nevada 90199-22-01-06-02-02 dual thermocouple monitor, please provide the following information:

• Project name and application description (turbine monitoring, process control, furnace, etc.)
• Number of temperature measurement points required
• Temperature range for each measurement point and preferred thermocouple type
• Ambient environmental conditions (temperature, humidity, vibration, hazardous area classification)
• Control system interface requirements (4-20mA only, Modbus, HART, OPC, etc.)
• Any industry-specific certifications needed (ATEX, FM, SIL rating, FDA compliance)
• Delivery timeline and installation support requirements

Our instrumentation specialists will respond within 24 hours with technical recommendations, system architecture drawings, and competitive project pricing.
