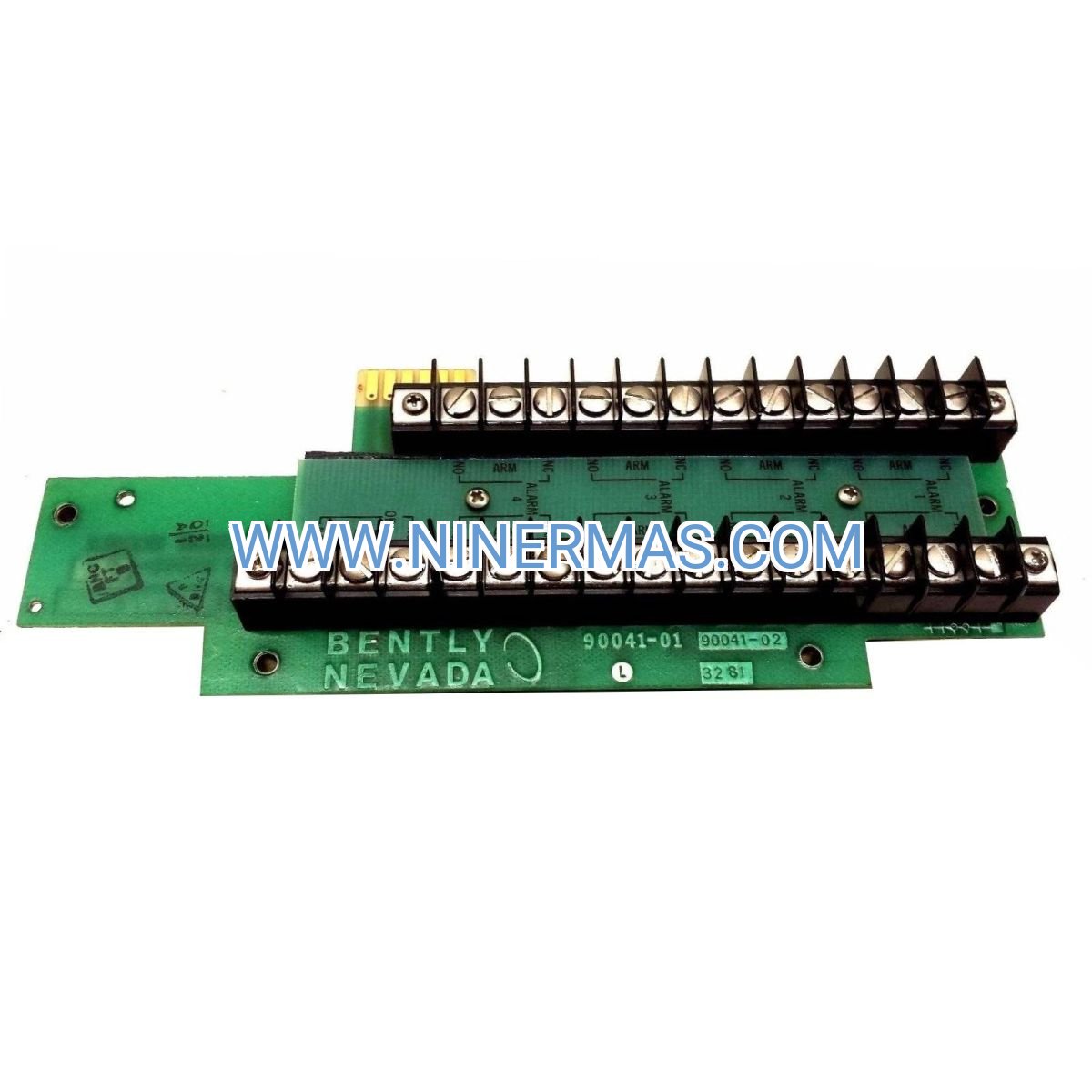

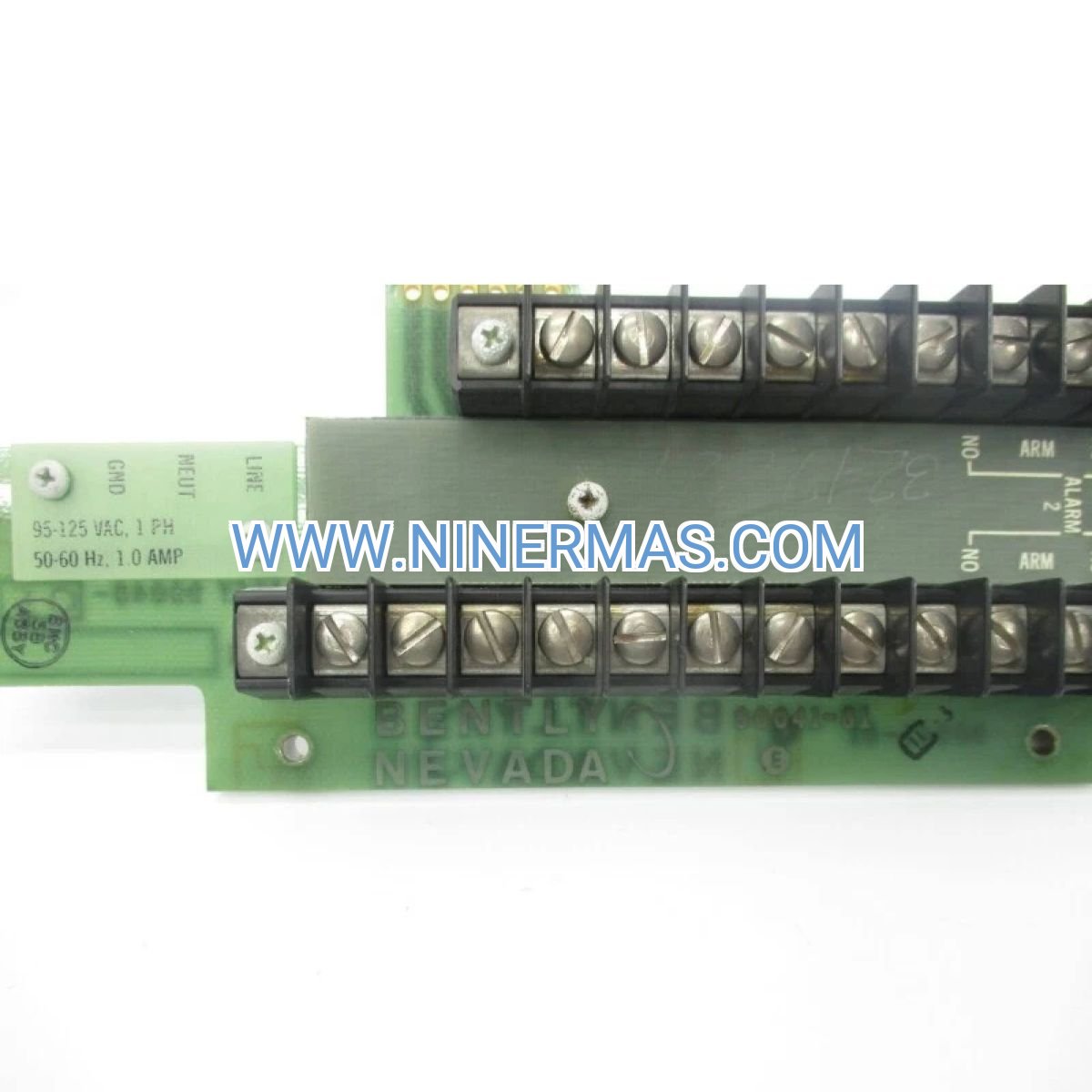

Bently Nevada 90041-01 Discrete Alarm Relay Module (Industrial-Grade Alarm Interface Solution)

The Bently Nevada 90041-01 Discrete Alarm Relay Module is a professional-grade industrial control component designed for critical vibration monitoring and machinery protection systems. Through high-isolation relay switching technology and fast-response circuitry, it enables reliable alarm signal transmission from 9000 Series monitors to external Emergency Shutdown (ESD) systems, Programmable Logic Controllers (PLCs), or Distributed Control Systems (DCS).

Ideal for power generation plants, petrochemical facilities, oil & gas processing, heavy manufacturing, and rotating machinery applications where continuous monitoring and immediate fault response are essential. This module addresses common challenges including signal isolation requirements, contact rating limitations, slow alarm response times, and incompatibility between monitoring systems and plant control infrastructure.

Featuring standardized design with customizable configuration options, the 90041-01 delivers exceptional electrical isolation (2500VAC), robust contact ratings (5A SPDT), ultra-fast response (<10ms), and universal compatibility with Bently Nevada 9000 Series monitors. Suitable for design engineers, system integrators, maintenance teams, and end-user facilities requiring proven reliability in mission-critical applications. Contact our application engineers for system integration guidance and technical specifications.

Core Functions & Advantages

• High-Isolation Alarm Switching
  Provides 2500VAC isolation between monitor circuits and external control systems, preventing ground loops and electrical interference while ensuring personnel safety and equipment protection in harsh industrial environments.
• Robust Contact Performance
  Features 5-ampere SPDT (Form C) relay contacts rated for both AC and DC loads, capable of directly driving panel indicators, solenoid valves, alarm annunciators, and PLC/DCS digital inputs without additional interface hardware.
• Ultra-Fast Response Time
  Achieves relay actuation in less than 10 milliseconds from alarm trigger, ensuring immediate notification and enabling rapid shutdown sequences to prevent catastrophic machinery damage during abnormal vibration events.
• Comprehensive Protection Features
  Incorporates transient suppression, contact arc suppression, and environmental sealing to minimize nuisance trips, extend relay life cycle, and maintain reliable operation in high-vibration, high-temperature, and electrically noisy industrial settings.
• Seamless System Integration
  Direct plug-in compatibility with Bently Nevada 9000 Series monitor chassis, with clearly labeled terminals, standardized wiring interfaces, and comprehensive documentation simplifying installation, commissioning, and future maintenance activities.

Typical Application Scenarios

This relay module is engineered for demanding industrial environments requiring dependable alarm signal transmission and electrical isolation, particularly in:

• Turbine & Generator Protection Systems
  Interfaces vibration monitors with plant ESD systems in steam turbines, gas turbines, and hydro generators, providing critical shutdown signals when bearing vibration, shaft displacement, or casing acceleration exceeds safe operating limits.
• Petrochemical & Refining Operations
  Connects machinery monitoring systems to DCS platforms in compressor trains, pump stations, and rotating equipment, enabling automated process shutdowns and alarm annunciation while maintaining hazardous area electrical isolation requirements.
• Power Generation Facilities
  Integrates with balance-of-plant monitoring in coal-fired, combined-cycle, and nuclear power stations, transmitting alarm conditions from fans, mills, feedwater pumps, and auxiliary equipment to central control rooms and SCADA systems.
• Heavy Manufacturing & Process Industries
  Supports condition monitoring programs in steel mills, paper machines, mining conveyors, and cement kilns, where relay outputs trigger maintenance notifications, reduce unplanned downtime, and protect high-value rotating assets from catastrophic failure.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide standardized electrical, mechanical, and environmental parameters. Custom configurations available for unique application requirements.

Selection Recommendations: When specifying this module, consider the alarm contact load type (resistive, inductive, lamp), required isolation level, environmental conditions (temperature, vibration, humidity), and compatibility with existing 9000 Series monitor chassis. For applications requiring multiple alarm outputs, redundant contacts, or special certifications, consult our application engineering team with your system architecture and I/O requirements.

Extended Capabilities

• Dual-Channel Configurations: Available in multi-relay variants for applications requiring separate OK/Alert/Danger alarm levels or redundant safety circuits
• Hazardous Area Certifications: Optional ATEX Zone 2, IECEx, and FM/CSA Class I Division 2 approvals for installation in classified locations
• Custom Contact Ratings: Alternative relay specifications available for low-level signal switching or high-current pilot duty applications
• Remote Monitoring Integration: Compatible with Bently Nevada System 1 software and third-party SCADA platforms via monitor chassis communication modules

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days; custom-configured modules require 2–3 weeks for factory programming and testing.

Warranty: Backed by a comprehensive 24-month warranty covering materials and workmanship, with optional extended service agreements available for critical applications.

Technical Support: Includes remote application assistance, system integration guidance, and on-site commissioning support (region-dependent). Complete documentation package provided: installation drawings, wiring diagrams, terminal identification charts, and troubleshooting procedures.

Quality Standards: Manufactured under ISO 9001-certified processes with 100% factory testing including contact resistance, isolation voltage, response time, and environmental stress screening to ensure field reliability.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 90041-01 relay module interface with existing 9000 Series monitors?
A: The module uses a standardized plug-in connector that mounts directly into the monitor chassis rear panel. Alarm output terminals are clearly labeled for field wiring to external systems. Verify monitor chassis compatibility and available slot positions before ordering.

Q: What is the maximum load this relay module can switch?
A: The SPDT contacts are rated for 5 amperes at 30VDC or 250VAC with resistive loads. For inductive loads (solenoids, contactors), apply appropriate derating per UL/IEC standards. Contact suppression networks are recommended for extended relay life.

Q: Can this module be used in hazardous area installations?
A: Standard units are suitable for general industrial environments. For Zone 2/Division 2 classified locations, specify ATEX/IECEx or FM/CSA certified versions at time of order. Consult area classification drawings and applicable electrical codes.

Q: What is the typical response time from alarm condition to relay contact closure?
A: The relay actuates in less than 10 milliseconds from the moment the monitor detects an alarm threshold crossing, ensuring rapid signal transmission for time-critical shutdown sequences and emergency response protocols.

Q: Does the module support remote monitoring or diagnostics?
A: While the relay module itself provides hardwired contact outputs, the host 9000 Series monitor can integrate with Bently Nevada System 1 condition monitoring software or third-party SCADA systems via optional communication modules for centralized alarm management and historical trending.

Q: What documentation is provided with the relay module?
A: Each unit ships with installation instructions, wiring diagrams, terminal identification labels, and technical specifications. Complete system integration manuals and CAD drawings are available through the Bently Nevada technical library or your authorized distributor.

Request Technical Consultation

For detailed application engineering support, system integration proposals, or product quotations, please provide the following information: project name and location, monitoring application (turbine, compressor, pump, etc.), number of alarm points required, load type and ratings, environmental conditions, and any special certifications needed. Our application specialists will respond with tailored recommendations and budget pricing within one business day.
