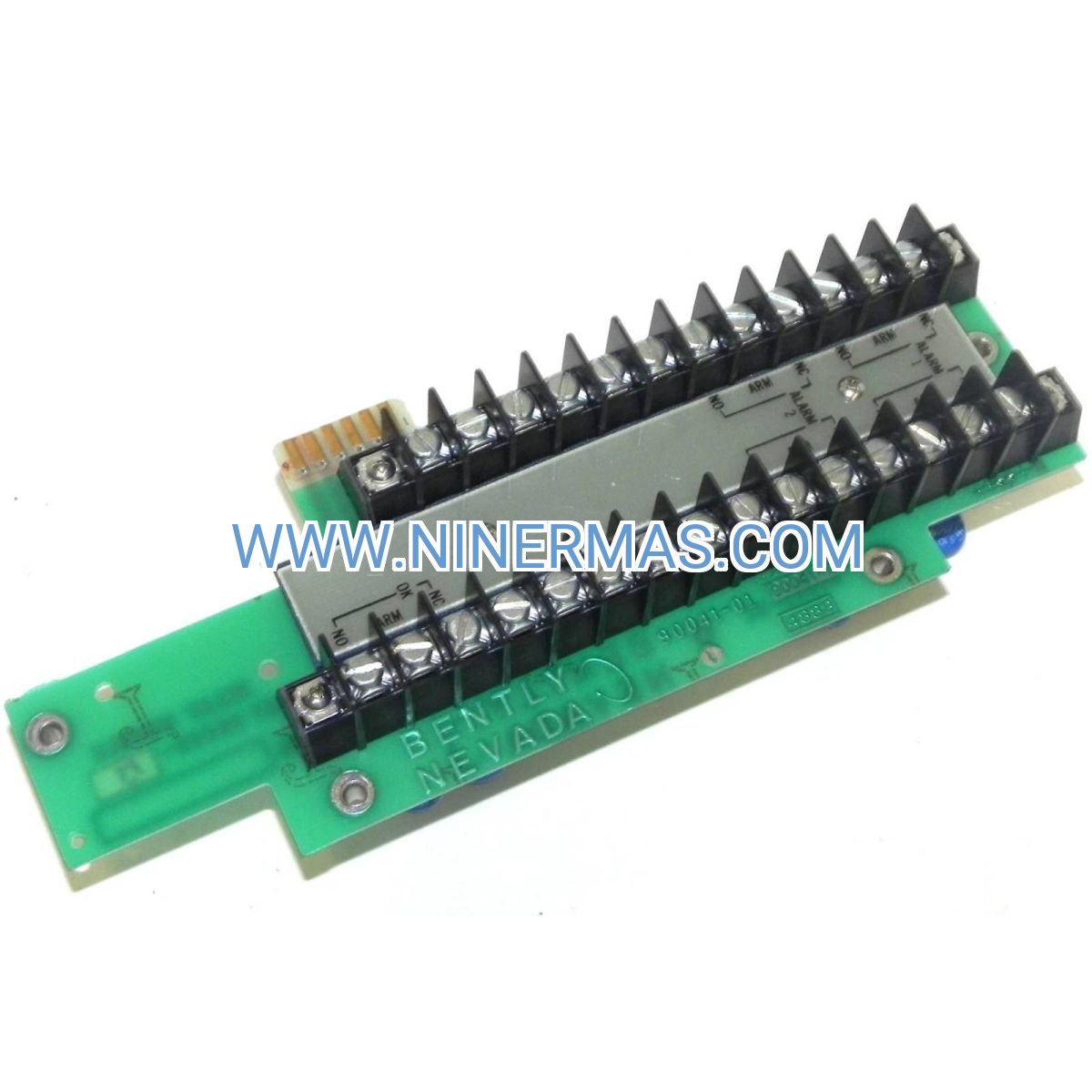

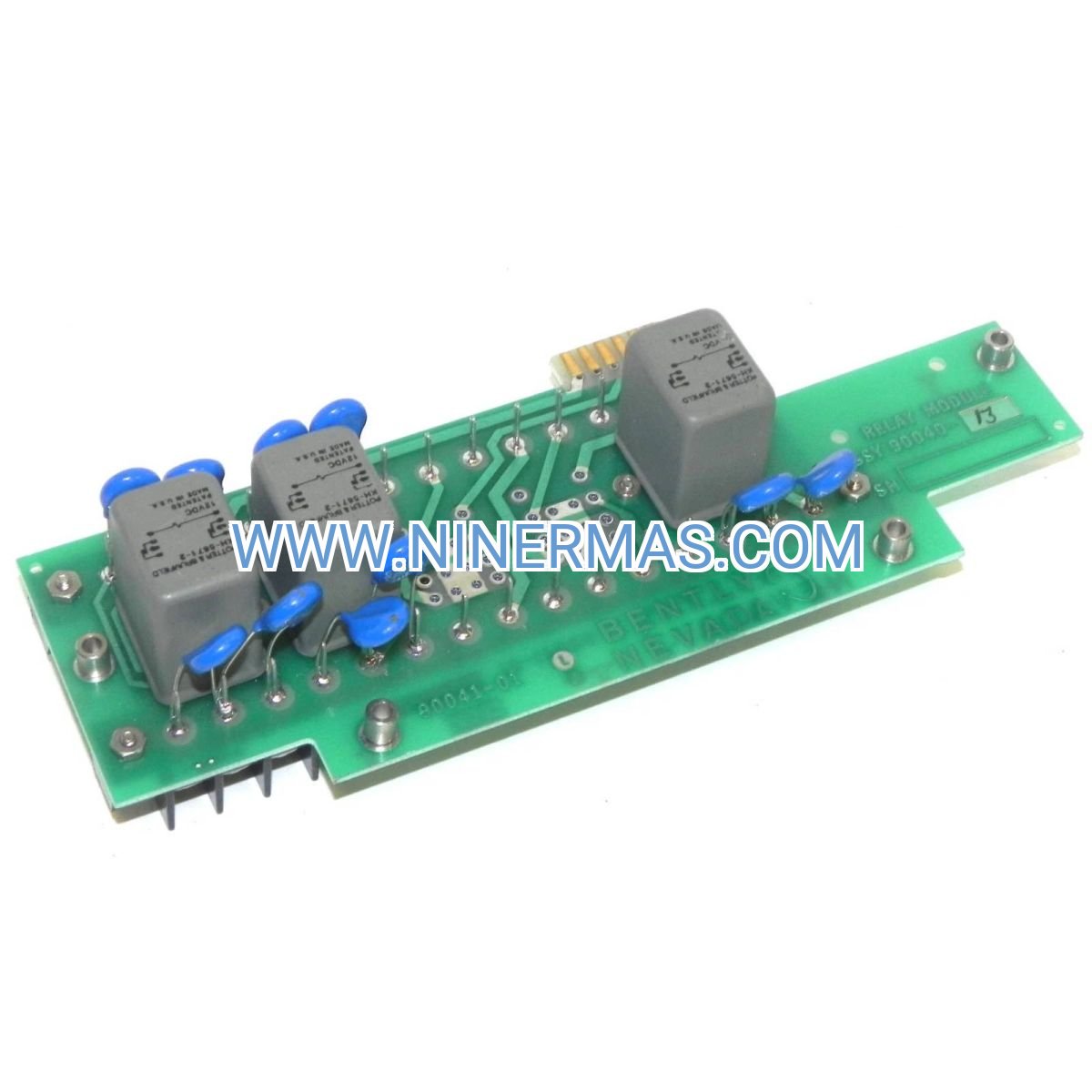

Bently Nevada 90040-13 Relay Output Module (Industrial-Grade Alarm Interface for 9000 Series)

The Bently Nevada 90040-13 Relay Output Module is a precision-engineered industrial control component designed for seamless integration with the 9000 Series vibration monitoring systems. Through SPDT (Single Pole Double Throw) relay contact configuration and high-voltage isolation technology, it converts proximity sensor vibration alarm signals into reliable relay outputs, enabling direct interfacing with ESD (Emergency Shutdown Systems), PLC controllers, SCADA platforms, and annunciator panels.

Ideal for critical machinery protection applications across power generation, oil & gas, petrochemical, and heavy manufacturing sectors, this module addresses common challenges including: unreliable alarm signal transmission, incompatible voltage levels between monitoring systems and control equipment, electrical noise interference in harsh industrial environments, and the need for fail-safe alarm routing with galvanic isolation.

Featuring standardized DIN-rail mounting and field-proven reliability, the 90040-13 module offers 2500VAC isolation protection, 5A@250VAC contact rating, and compatibility with both AC and DC control circuits. Suitable for design engineers, instrumentation technicians, maintenance teams, and system integrators requiring dependable alarm interface solutions. Contact our application engineers for system integration guidance and technical specifications.

Core Features & Technical Advantages

• High-Isolation SPDT Relay Contact
  Provides 2500VAC isolation between input and output circuits, protecting sensitive monitoring equipment from voltage transients and ground loops while ensuring safe signal transfer to downstream control systems.
• Robust Contact Rating for Industrial Loads
  Rated at 5A @ 250VAC / 5A @ 30VDC, capable of directly switching pilot lights, solenoid valves, alarm horns, and PLC input modules without requiring additional interface relays.
• Seamless 9000 Series Integration
  Factory-configured for plug-and-play compatibility with Bently Nevada 9000 Series proximity transducer systems, eliminating complex wiring and reducing commissioning time by up to 40%.
• Dual-Mode Alarm Logic
  Supports both normally energized and de-energized configurations, allowing flexible fail-safe design to meet specific safety instrumented system (SIS) requirements and industry standards.
• Industrial-Grade Environmental Protection
  Conformal-coated PCB and sealed relay construction ensure reliable operation in temperatures from -30°C to +65°C, with resistance to humidity, vibration, and electromagnetic interference per IEC 61000 standards.
• Diagnostic-Friendly Design
  Front-panel LED indicators provide instant visual confirmation of relay status and alarm conditions, reducing troubleshooting time and minimizing unplanned downtime during maintenance activities.

Typical Application Scenarios

This relay output module is engineered for demanding industrial environments where vibration monitoring directly impacts equipment protection and process safety:

• Power Generation & Turbomachinery Protection
  Interfaces vibration monitors on steam turbines, gas turbines, and generators with plant DCS and emergency trip systems, providing critical first-line defense against catastrophic bearing failures and rotor imbalance conditions.
• Oil & Gas Upstream & Midstream Facilities
  Connects rotating equipment monitors (compressors, pumps, blowers) to ESD logic solvers and SCADA alarm management systems, ensuring compliance with API 670 machinery protection standards and reducing unplanned shutdowns.
• Petrochemical & Refining Process Units
  Enables integration of vibration alarm signals into distributed control systems (DCS) for critical pumps, fans, and agitators, supporting predictive maintenance programs and SIL-rated safety loops in hazardous area classifications.
• Heavy Manufacturing & Metal Processing
  Provides alarm relay outputs for rolling mills, crushers, conveyors, and large motor-driven equipment, interfacing with plant-wide monitoring systems to prevent production losses and extend asset lifecycle through early fault detection.

Technical Parameters & Selection Guide

To facilitate system design and procurement, we provide comprehensive technical specifications aligned with industry-standard datasheets. Custom configurations available for special voltage requirements or hazardous area certifications.

Selection Recommendations: When specifying this module, consider: (1) Total number of alarm points requiring relay outputs, (2) Voltage and current requirements of downstream equipment (PLC inputs, annunciators, trip relays), (3) Environmental conditions at installation location (temperature extremes, humidity, vibration levels), (4) Required isolation voltage based on system grounding architecture, (5) Fail-safe logic requirements (energize-to-alarm vs. de-energize-to-alarm). For application-specific guidance, provide your system architecture diagram and alarm matrix—our engineers will recommend optimal configuration and quantity.

Extended Capabilities & System Integration

• Multi-Channel Alarm Consolidation
  Multiple 90040-13 modules can be rack-mounted together to create centralized alarm relay panels, simplifying wiring and reducing installation costs for multi-point vibration monitoring systems with 8, 16, or 32+ alarm channels.
• Redundant Safety Loop Design
  Dual-module configurations support 1oo2 (one-out-of-two) voting logic for SIL 2/SIL 3 safety instrumented functions, meeting IEC 61508 requirements for critical machinery protection in high-consequence applications.
• Legacy System Retrofit Compatibility
  Serves as interface bridge when upgrading older relay-based monitoring systems to modern DCS/PLC platforms, preserving existing field wiring while enabling digital integration and remote diagnostics.
• Protocol Gateway Integration
  When combined with Modbus RTU or HART-enabled I/O modules, enables relay status monitoring and remote reset capabilities through SCADA systems, supporting Industry 4.0 predictive maintenance initiatives.

Delivery, Service & Quality Assurance

Lead Time: Stock items typically ship within 1-3 business days; custom-configured modules or bulk orders (10+ units) require 7-15 business days for factory preparation and quality verification.

Warranty Coverage: All modules include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available for critical applications requiring long-term asset protection.

Technical Support: Comprehensive installation and commissioning assistance provided, including: terminal wiring diagrams, relay contact configuration guides, integration checklists for common PLC/DCS platforms, and remote troubleshooting support via phone/email (response within 24 hours for standard inquiries).

Documentation Package: Each module ships with complete technical documentation including: dimensional drawings, electrical schematics, terminal block layout, recommended wire gauge specifications, and compliance certificates (CE/UL/CSA as applicable). CAD files and 3D STEP models available upon request for panel design integration.

Quality Certifications: Manufactured under ISO 9001 quality management systems with full traceability. Products undergo 100% functional testing including contact resistance verification, isolation voltage testing, and operational cycling before shipment.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 90040-13 relay output module interface with existing 9000 Series monitors?
A: The module connects directly to the alarm output terminals of 9000 Series proximity transducer monitors via screw-terminal connections. Input voltage range is typically 18-30VDC (verify specific monitor output specifications). No external power supply required—the module is loop-powered from the monitor's alarm circuit. Detailed wiring diagrams provided in installation manual.

Q: Can this relay module handle inductive loads like solenoid valves or contactor coils?
A: Yes, the SPDT contacts are rated for inductive loads, but contact life will be reduced compared to resistive loads. For inductive loads exceeding 2A, we recommend installing RC snubber circuits (0.1µF capacitor + 100Ω resistor in series) across the relay contacts to suppress voltage spikes and extend relay lifespan. Consult factory for specific inductive load derating curves.

Q: What is the maximum number of relay modules that can be installed in a single control panel?
A: There is no theoretical limit—modules mount on standard 35mm DIN rail with 22.5mm width per unit. Practical limits depend on panel heat dissipation (each relay dissipates ~0.5W when energized), available DIN rail length, and wiring space. Typical installations range from 4-32 modules per panel. Ensure adequate ventilation and maintain ambient temperature below +55°C for optimal reliability.

Q: Does the module support both normally-energized and de-energized alarm logic?
A: Yes. The SPDT contact configuration provides both NO (normally open) and NC (normally closed) terminals. For fail-safe de-energized alarm logic (relay drops out on alarm or power loss), connect downstream equipment to the NC contact. For energized alarm logic (relay picks up on alarm), use the NO contact. Consult your safety requirements documentation (SIL analysis, FMEA) to determine appropriate configuration.

Q: What environmental protection rating does this module have for harsh industrial installations?
A: The module is rated IP20, designed for installation inside NEMA 12 / IP54 or higher-rated control enclosures. It is NOT suitable for direct exposure to water, dust, or corrosive atmospheres. For outdoor or hazardous area installations, house the module in appropriately rated junction boxes or control cabinets with environmental sealing and climate control. Conformal coating on PCB provides additional protection against humidity and condensation.

Q: Can I monitor the relay status remotely through SCADA or DCS systems?
A: The 90040-13 module itself does not have built-in communication capability. For remote status monitoring, connect the relay contacts to PLC/DCS digital input modules, which then communicate via Modbus TCP, Profibus, EtherNet/IP, or other industrial protocols. Alternatively, consider Bently Nevada's 3500 Series rack-based systems with native Modbus support for integrated vibration monitoring and alarm communication.

Request Technical Support & Custom Solutions

To receive detailed application engineering support, product quotations, or custom configuration assistance, please provide the following project information:

• Project name and application industry (power, oil & gas, manufacturing, etc.)
• Number of vibration monitoring points requiring relay outputs
• Downstream equipment specifications (PLC input voltage/current, annunciator panel requirements)
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Required delivery timeline and quantity

Our application engineers will respond within 24 hours with tailored recommendations, wiring diagrams, and competitive pricing for your specific requirements.
