Bently Nevada 90038-01E PC Board Extender | 9000 Series Diagnostic Module

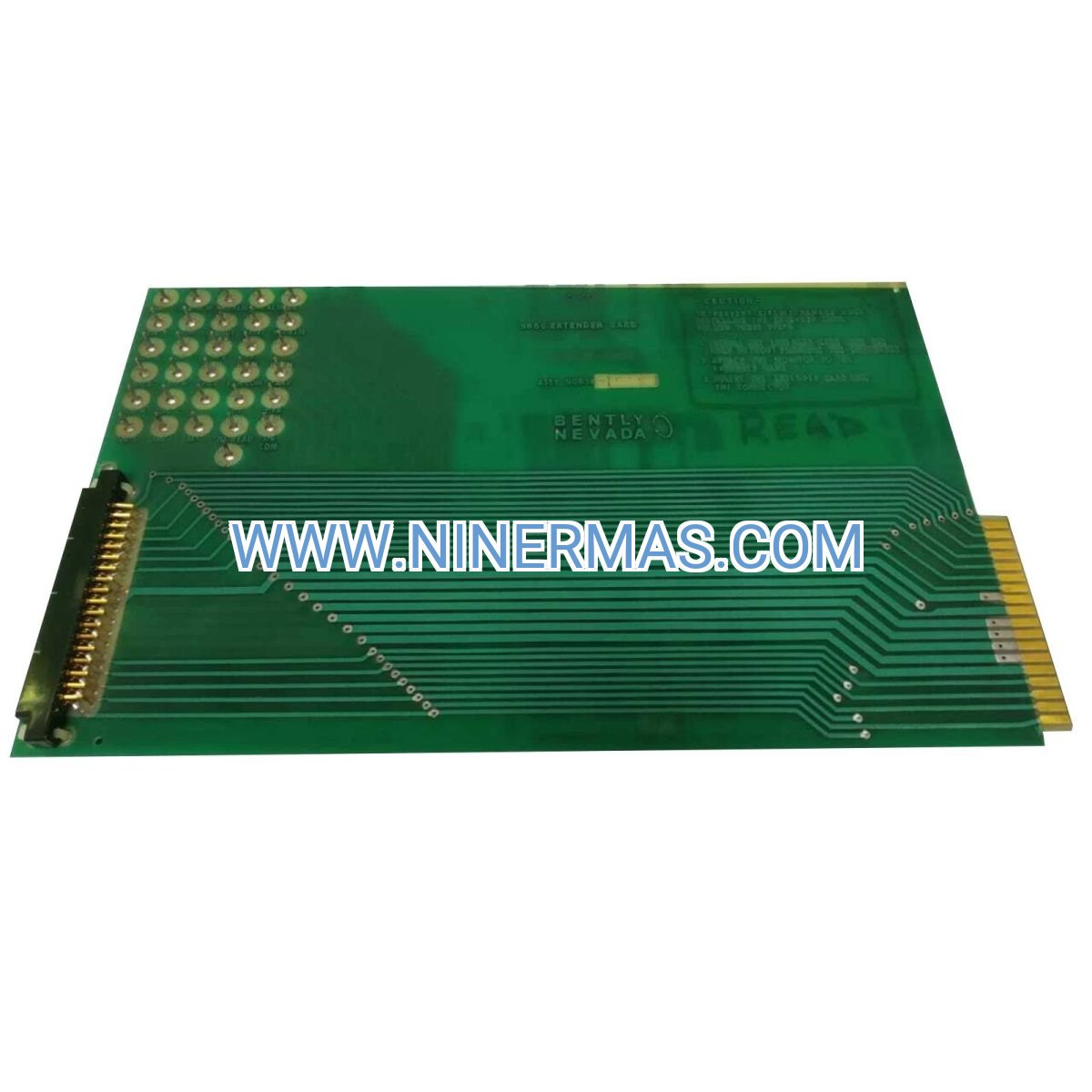

Bently Nevada 90038-01E PC Board Extender Module (Industrial Diagnostic Solution)

The Bently Nevada 90038-01E PC Board Extender Module is a precision-engineered diagnostic tool designed for the 9000 Series vibration monitoring systems. By providing external access to internal circuit board signals, this extender module enables real-time signal verification, troubleshooting, and system diagnostics without interrupting critical monitoring operations or compromising system integrity.

Ideal for power generation facilities, petrochemical plants, manufacturing operations, and industrial maintenance teams, this module addresses common challenges including difficult-to-access signal points, time-consuming diagnostic procedures, potential system downtime during testing, and limited visibility into internal board performance.

Through standardized design and proven reliability, the 90038-01E delivers seamless integration, non-intrusive diagnostics, full signal continuity, and enhanced troubleshooting efficiency—making it essential for instrumentation engineers, maintenance technicians, reliability engineers, and system integrators. Contact our technical team for application guidance and compatibility verification.

Core Functions & Advantages

• Non-Intrusive Diagnostic Access
  Provides external test points for all critical circuit board signals, enabling comprehensive diagnostics and signal verification while maintaining full system operation and monitoring continuity.
• Enhanced Troubleshooting Efficiency
  Reduces diagnostic time by up to 60% compared to traditional methods, eliminating the need for system shutdown or board removal during routine testing and fault investigation.
• Complete Signal Integrity
  Maintains 100% electrical continuity between monitor chassis and circuit boards through precision-engineered connectors, ensuring zero signal degradation or monitoring performance impact.
• Universal 9000 Series Compatibility
  Designed for seamless integration with all Bently Nevada 9000 Series monitor configurations, supporting multiple board types and chassis arrangements without modification.
• Robust Industrial Construction
  Built to withstand harsh industrial environments with high-quality materials, shielded connections, and proven reliability in continuous operation across temperature extremes and vibration exposure.
• Simplified Maintenance Workflow
  Features clearly labeled test points and intuitive layout, reducing training requirements and enabling faster fault isolation by maintenance personnel at all skill levels.

Typical Application Scenarios

This diagnostic module is specifically designed for environments requiring high-reliability vibration monitoring with minimal maintenance downtime, particularly in:

• Power Generation & Turbomachinery
  Essential for steam turbines, gas turbines, and generator monitoring systems where continuous operation is critical and diagnostic access must not compromise protection functions or data integrity.
• Oil & Gas Processing Facilities
  Supports compressor stations, pump systems, and rotating equipment monitoring in refineries and petrochemical plants, enabling rapid fault diagnosis while maintaining safety-critical monitoring coverage.
• Manufacturing & Heavy Industry
  Ideal for paper mills, steel production, mining operations, and other continuous process industries where equipment reliability directly impacts production efficiency and unplanned downtime costs are substantial.
• Predictive Maintenance Programs
  Enables condition-based maintenance teams to perform detailed signal analysis, baseline verification, and trending studies without disrupting normal monitoring operations or requiring specialized test equipment.

Technical Parameters & Selection Guide

To ensure optimal compatibility and performance, the following specifications apply to the Bently Nevada 90038-01E module:

Selection Considerations: When specifying this extender module, verify your existing 9000 Series monitor model, confirm chassis configuration and available space, identify specific boards requiring diagnostic access, and consider frequency of testing requirements. For system-specific compatibility verification or multi-unit installations, our application engineers can provide detailed integration guidance based on your monitoring architecture.

Extended Capabilities

• Multi-Channel Signal Monitoring: Simultaneous access to all board signals enables comprehensive system health verification and comparative analysis across monitoring channels.
• Calibration Support: Facilitates periodic calibration verification and adjustment procedures without removing boards from service or interrupting protection functions.
• Training & Documentation: Serves as an effective training tool for maintenance personnel, allowing hands-on signal tracing and system familiarization in live environments.
• Integration with Test Equipment: Compatible with standard oscilloscopes, multimeters, and data acquisition systems for advanced signal analysis and documentation.

Delivery, Service & Quality Assurance

Lead Time: Standard new units typically ship within 3-5 business days from stock; custom configurations or bulk orders may require 7-14 days depending on quantity and specifications.

Warranty Coverage: All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship under normal industrial operating conditions.

Technical Support: Comprehensive installation guidance, compatibility verification, and troubleshooting assistance available via phone and email. Remote diagnostic support and on-site commissioning services can be arranged for complex installations or system upgrades.

Documentation Package: Each unit ships with complete technical specifications, installation instructions, test point diagrams, and compatibility reference charts to ensure proper integration and optimal diagnostic capability.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 90038-01E extender module integrate with existing 9000 Series monitoring systems?
A: The module installs directly between the monitor chassis edge connector and the circuit board, requiring no modifications to existing hardware. Simply power down the monitor, insert the extender between chassis and board, ensure proper seating of all connectors, and restore power. Full signal continuity is maintained through precision pass-through connections.

Q: Will using this PC board extender affect monitoring system performance or accuracy?
A: No. The extender is designed with matched impedance and shielded connections to maintain 100% signal integrity. All monitoring functions, alarm setpoints, and protection capabilities remain fully operational with zero performance degradation during diagnostic procedures.

Q: Can the extender module remain permanently installed, or must it be removed after diagnostics?
A: While designed for temporary diagnostic use, the module can remain installed indefinitely if continuous test point access is required. However, for standard applications, it's typically installed only during scheduled maintenance, troubleshooting, or calibration activities to minimize chassis depth requirements.

Q: What test equipment is compatible with the 90038-01E extender module test points?
A: Standard industrial test equipment including digital multimeters, oscilloscopes, signal analyzers, and data acquisition systems can connect to the labeled test points. High-impedance probes are recommended to avoid signal loading effects during live system diagnostics.

Q: Is the extender module compatible with all 9000 Series circuit board types and revisions?
A: Yes, the 90038-01E is designed for universal compatibility across all standard Bently Nevada 9000 Series boards. For specialized or custom board configurations, contact our technical team to verify compatibility and obtain specific integration guidance.

Q: What environmental conditions can the extender module withstand in industrial installations?
A: The module is rated for continuous operation from -30°C to +65°C with standard industrial vibration and electromagnetic interference levels typical of control room and equipment cabinet environments. For extreme conditions or outdoor installations, consult factory specifications.

Request Technical Support & Quotation

For detailed application guidance, compatibility verification, or pricing information, please provide the following details: project name or facility location, current 9000 Series monitor model numbers, specific boards requiring diagnostic access, quantity requirements, and any special environmental or integration considerations. Our instrumentation specialists will respond with tailored recommendations and comprehensive technical support.
