Bently Nevada 88286-01 Distribution Terminal Board | DIN Rail Power Supply for 3300 Monitoring Systems

Bently Nevada 88286-01 Distribution Terminal Board (Industrial-Grade Power Distribution Solution)

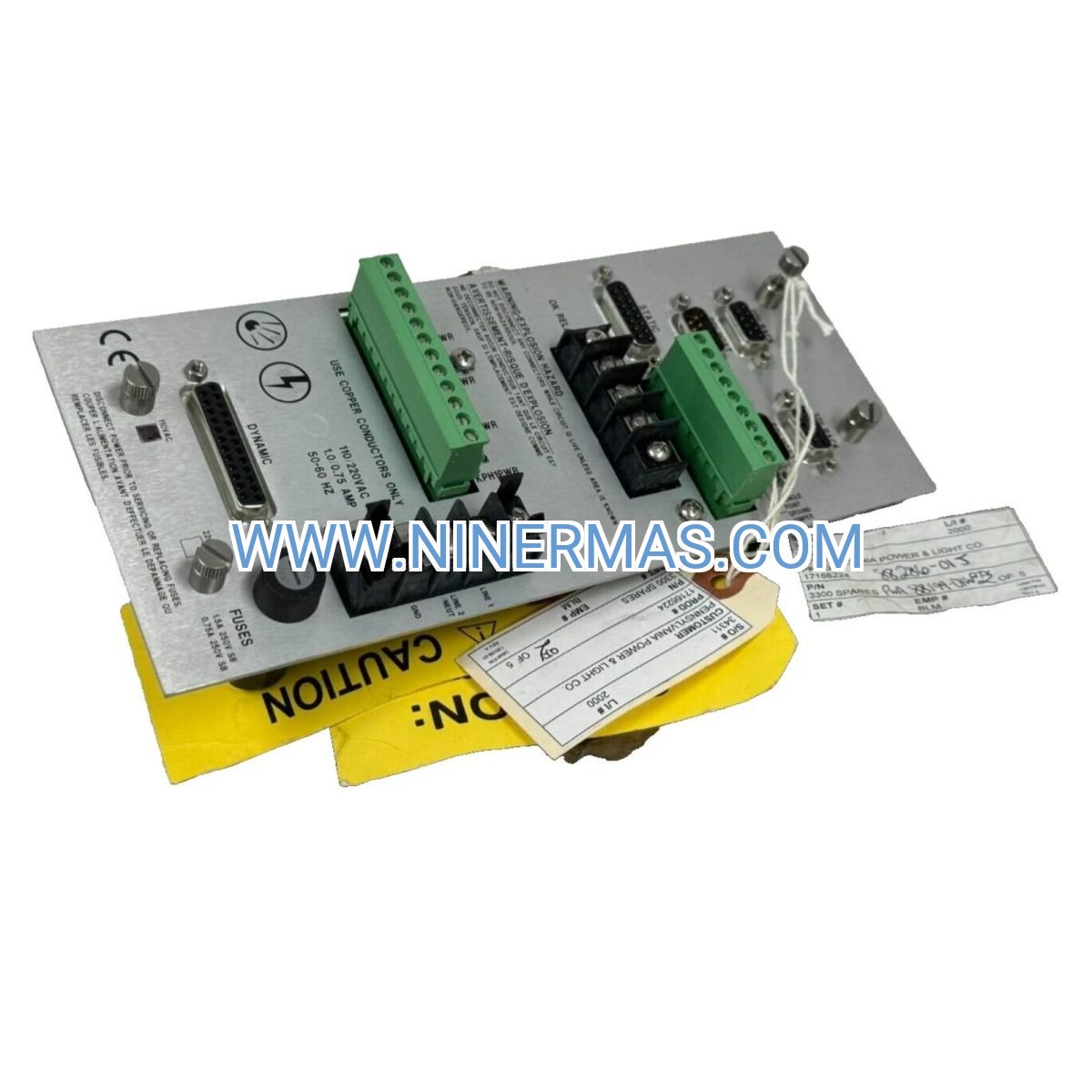

The Bently Nevada 88286-01 Distribution Terminal Board is a precision-engineered industrial component designed for organized power distribution within 3300 Series vibration monitoring systems. Featuring the proven PWA88199-01 circuit assembly, this terminal board delivers reliable signal routing and power management through DIN rail mounting architecture, ensuring stable operation in critical machinery protection applications.

Ideal for power plants, petrochemical facilities, steel mills, rotating machinery installations, and turbine monitoring systems, this terminal board addresses common challenges including cable management complexity, signal interference risks, installation space constraints, and maintenance accessibility issues in harsh industrial environments.

Through standardized DIN rail design and modular connectivity options, the 88286-01 offers simplified installation, enhanced system reliability, IP20 environmental protection, and compatibility with Bently Nevada 3300 ecosystem. Suitable for instrumentation engineers, system integrators, plant maintenance teams, and OEM equipment manufacturers. Contact our technical specialists for application-specific configuration guidance and quotations.

Core Features & Technical Advantages

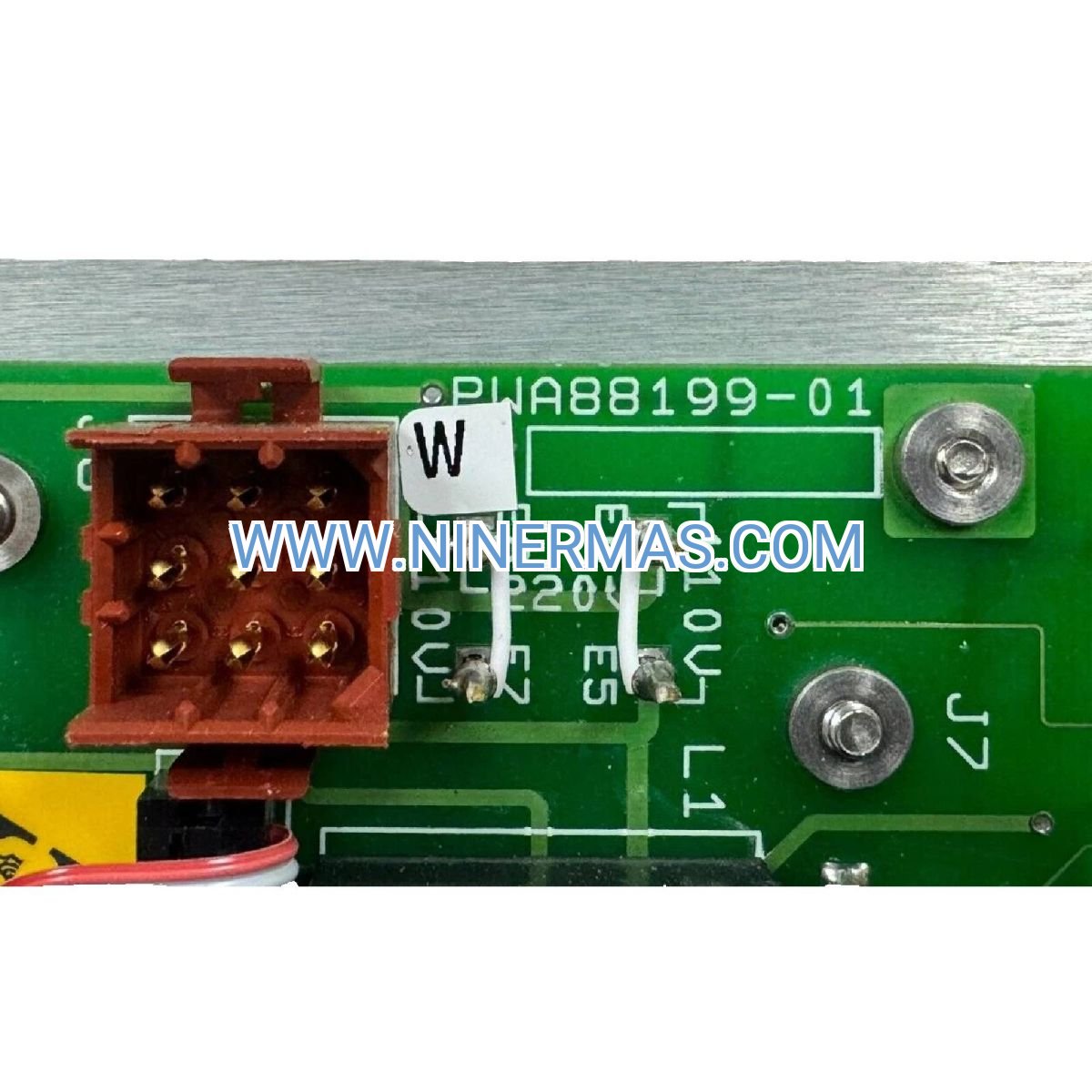

• Proven PWA88199-01 Circuit Design
  Incorporates factory-tested PWA88199-01 printed wiring assembly with optimized trace routing and noise immunity, ensuring signal integrity in electrically noisy industrial environments while reducing installation errors.
• DIN Rail Mounting Flexibility
  Standard 35mm DIN rail compatibility enables rapid panel integration, reduces mounting hardware requirements, and allows for high-density installations in compact control cabinets with tool-free removal for maintenance.
• Organized Power Distribution Architecture
  Provides clearly labeled terminal points for systematic power supply routing to multiple 3300 Series proximity probes and monitors, minimizing wiring errors and simplifying troubleshooting during commissioning and service.
• IP20 Environmental Protection
  Enclosure rating protects internal circuitry from solid objects >12.5mm and accidental finger contact, suitable for controlled industrial cabinet environments while maintaining accessibility for field wiring.
• OEM Quality & Traceability
  Genuine Bently Nevada manufacturing with full documentation, serialization, and material traceability ensures compliance with quality management systems (ISO 9001) and critical asset protection standards.
• Maintenance-Friendly Design
  Removable terminal blocks and clear labeling facilitate rapid replacement during planned outages, reducing mean time to repair (MTTR) and minimizing production downtime in continuous process industries.

Typical Application Scenarios

This distribution terminal board is engineered for industrial environments requiring dependable power management and signal distribution, particularly in:

• Steam & Gas Turbine Monitoring
  Centralized power distribution for vibration, thrust position, and eccentricity monitoring on critical turbine-generator sets in power generation facilities, ensuring continuous protection of high-value rotating assets.
• Compressor & Pump Protection Systems
  Supports multi-channel proximity probe installations on centrifugal compressors, reciprocating machinery, and large process pumps in oil & gas, chemical processing, and water treatment plants.
• Motor & Gearbox Condition Monitoring
  Enables organized wiring for bearing vibration sensors and shaft displacement probes on critical drive trains in steel mills, mining operations, and manufacturing facilities requiring 24/7 uptime.
• Retrofit & Upgrade Projects
  Simplifies integration when upgrading legacy monitoring systems to 3300 Series architecture, providing standardized mounting and connection points that reduce engineering time and installation costs.
• OEM Machinery Integration
  Ideal for equipment manufacturers embedding Bently Nevada monitoring into packaged systems such as turbomachinery skids, compressor packages, and custom test stands requiring factory-wired solutions.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the 88286-01 terminal board is designed with the following key specifications:

Selection Considerations: When specifying this terminal board, confirm the number of monitoring channels required, available DIN rail space in your control panel, ambient temperature range at installation location, and compatibility with existing 3300 Series monitors. For multi-channel systems or custom configurations, consult with our application engineers who can recommend optimal layouts and provide CAD drawings for panel design.

Extended Capabilities & System Integration

• Multi-Channel Scalability: Supports parallel installation of multiple terminal boards for large monitoring systems with 8+ measurement points, maintaining organized cable routing and simplified power distribution topology.
• Grounding & Shielding Support: Dedicated grounding terminals ensure proper shield termination for proximity probe cables, critical for noise rejection in VFD-rich environments and high-EMI industrial settings.
• Documentation Package: Includes terminal assignment diagrams, wiring schematics, and dimensional drawings compatible with AutoCAD and EPLAN electrical design software for seamless project documentation.
• Spare Parts Strategy: Recommended as critical spare for plants with multiple 3300 installations, reducing emergency procurement lead times and supporting predictive maintenance inventory optimization programs.

Delivery, Service & Quality Assurance

Lead Time: Standard OEM stock items typically ship within 3-5 business days; custom configurations or bulk orders may require 10-15 business days depending on factory availability and destination.

Warranty Coverage: Backed by a comprehensive 12-month manufacturer warranty covering material defects and workmanship under normal industrial operating conditions, with extended warranty options available for critical applications.

Technical Support: Our team provides pre-sales application consulting, installation guidance, and post-delivery troubleshooting assistance via email, phone, and remote diagnostics (region-dependent). On-site commissioning support can be arranged for large-scale projects.

Documentation Included: Each unit ships with product datasheet, terminal wiring diagram, DIN rail installation instructions, and certificate of conformity. Complete 3300 system integration manuals and CAD files available upon request for registered projects.

Frequently Asked Questions (FAQ)

Q: How does the 88286-01 distribution terminal board integrate with existing 3300 monitoring systems?
A: The terminal board mounts on standard 35mm DIN rail and provides labeled screw terminals for power input and distribution to 3300 proximity probes and monitors. Connection requires matching wire gauge (12-24 AWG) to terminal specifications and following the provided wiring diagram for proper polarity and grounding. Compatible with all 3300 Series monitors including 3300 XL, 3300 NSv, and legacy 3300 models.

Q: What is the maximum number of monitoring channels one terminal board can support?
A: A single 88286-01 board typically supports power distribution for 4-8 monitoring channels depending on system configuration and power budget. For larger systems, multiple boards can be installed in parallel with coordinated power supply sizing. Consult factory documentation or contact our engineers with your specific channel count and monitor types for precise recommendations.

Q: What are the environmental and installation requirements for this terminal board?
A: The board is rated IP20 for indoor cabinet installation in controlled environments with operating temperatures from -30°C to +65°C. It requires a clean, dry enclosure protected from direct water spray, corrosive gases, and excessive dust. Adequate ventilation should be maintained, and DIN rail must be securely mounted to a grounded panel backplate. Minimum clearances of 25mm on sides are recommended for wiring access.

Q: Can this terminal board be used in hazardous area (ATEX/IECEx) applications?
A: The standard 88286-01 is designed for general industrial use (non-hazardous areas). For installations in classified hazardous locations (Zone 1, Zone 2, Division 1, Division 2), the terminal board must be installed within an appropriately certified enclosure, and the overall system design must comply with applicable ATEX, IECEx, or NEC 500/505 standards. Consult with certified instrumentation engineers for hazardous area applications.

Q: Does the board support remote monitoring or digital communication protocols?
A: The 88286-01 is a passive power distribution and terminal interface component without built-in communication capabilities. Remote monitoring and data acquisition are achieved through the connected 3300 Series monitors, which may support protocols such as 4-20mA analog output, Modbus, or proprietary Bently Nevada communication interfaces depending on monitor model. The terminal board facilitates organized wiring for these communication signals.

Q: What technical information is needed for quotation and delivery?
A: To expedite quotation and ensure correct product selection, please provide: project name or end-user facility, application type (turbine, compressor, pump, etc.), number of monitoring channels, quantity required, delivery destination (country/region), and any specific certification or documentation requirements (MTRs, calibration certificates, ATEX compliance, etc.). Our sales engineers will respond with pricing, lead time, and technical recommendations within 24 hours.

Request Technical Support & Quotation

For detailed application engineering support, custom configuration assistance, or project quotations, please contact us with the following information: project name, application scenario, number of monitoring points, system voltage requirements, delivery location, and any special certifications needed. Our instrumentation specialists will provide personalized selection guidance and competitive pricing within one business day.
