Bently Nevada 84152-01 Quad Relay Output Module | 3300 Series Industrial Control

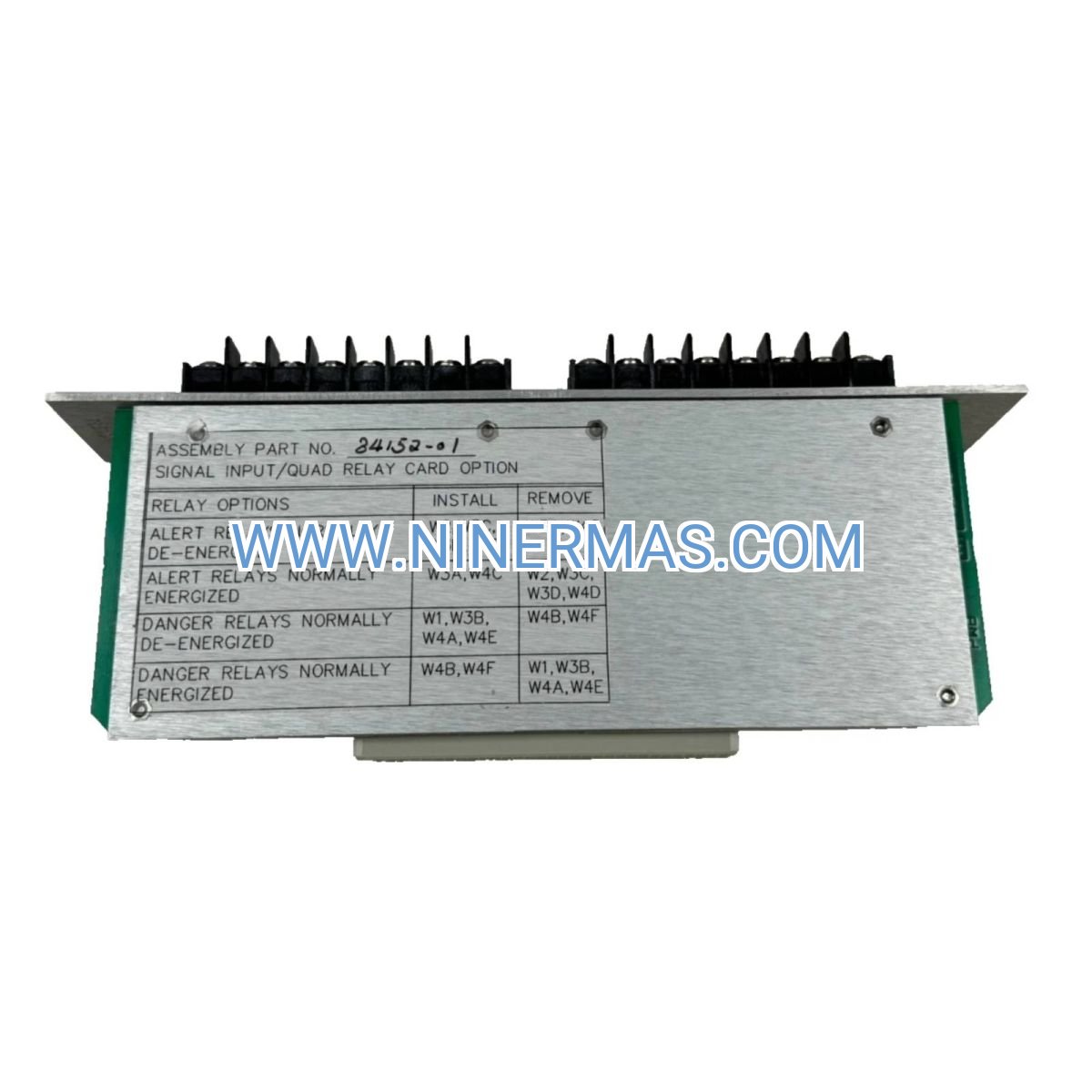

Bently Nevada 84152-01 Quad Relay Output Module (Industrial-Grade Control Solution for 3300 Series)

The Bently Nevada 84152-01 is a professional quad relay output module designed for critical machinery protection and alarm annunciation systems. Through hermetically sealed SPDT relay technology and robust industrial-grade construction, it delivers reliable switching control for emergency shutdown (ESD), alarm notification, and process interlock applications within Bently Nevada 3300 monitoring racks.

Ideal for power generation plants, oil & gas facilities, petrochemical refineries, steel mills, and heavy industrial environments where continuous machinery monitoring is essential. This module addresses challenges including unreliable contact switching, environmental contamination risks, false trip conditions, and inadequate isolation between control circuits.

With standardized 3300 rack compatibility and field-proven design, the 84152-01 offers hermetic sealing for harsh environments, ATEX/IECEx hazardous area certification, high switching capacity (5A @ 250VAC/30VDC), and comprehensive diagnostic capabilities. Suitable for design engineers, system integrators, maintenance teams, and plant operators requiring dependable relay output solutions. Contact our application engineers for configuration assistance and technical specifications.

Core Features & Advantages

• Hermetically Sealed Relay Technology
  Four independent SPDT relays with hermetic sealing prevent moisture ingress, dust contamination, and corrosive gas exposure, ensuring consistent performance in harsh industrial atmospheres and extending relay service life beyond 1 million mechanical operations.
• High Switching Capacity
  Each relay rated for 5 amperes at 250VAC or 30VDC resistive loads, capable of directly driving solenoid valves, alarm annunciators, PLC inputs, and auxiliary control circuits without external amplification, reducing system complexity.
• Seamless 3300 System Integration
  Hot-swappable module design with keyed connectors ensures error-free installation in any 3300 rack slot. Receives trip/alarm signals directly from monitor modules (velocity, acceleration, position, temperature) via backplane communication, eliminating external wiring.
• Hazardous Area Certification
  ATEX Zone 2 and IECEx compliant for installation in potentially explosive atmospheres (gas/dust). Intrinsically safe design with energy-limiting circuits protects against ignition sources in classified locations common to oil, gas, and chemical processing.
• Comprehensive Protection & Diagnostics
  Built-in coil suppression, contact arc suppression, and overload protection extend relay lifespan. Front-panel LED indicators display real-time relay status (energized/de-energized), simplifying troubleshooting and reducing mean time to repair (MTTR).
• Flexible Configuration Options
  Field-configurable for normally-open (NO), normally-closed (NC), or changeover (C) contact operation. Supports fail-safe logic (energize-to-trip or de-energize-to-trip) to match specific safety instrumented system (SIS) requirements and plant safety philosophies.

Typical Application Scenarios

This module is engineered for applications demanding high reliability, environmental resilience, and safety compliance, particularly in:

• Turbine & Compressor Protection Systems
  Monitors vibration, bearing temperature, and axial position on steam/gas turbines, centrifugal compressors, and turbo-generators. Relay outputs trigger emergency shutdown valves, activate backup lubrication pumps, or initiate controlled rundown sequences to prevent catastrophic machinery damage.
• Critical Rotating Equipment Monitoring
  Deployed in refineries, chemical plants, and power stations to supervise pumps, fans, motors, and gearboxes. Relays interface with distributed control systems (DCS), programmable logic controllers (PLC), and SCADA platforms to annunciate alarm conditions (alert/danger) and execute automated protective actions.
• Hazardous Area Installations
  Certified for Zone 2/Division 2 environments in upstream oil & gas (offshore platforms, FPSOs), midstream (pipeline compressor stations), and downstream (refining units). Hermetic sealing prevents explosive gas ingress, while intrinsic safety barriers ensure compliance with IEC 60079 standards.
• Multi-Channel Alarm Annunciation
  Consolidates multiple monitor outputs (4 channels per module) into centralized alarm panels or plant-wide notification systems. Supports priority-based alarming (critical/warning/advisory) with independent relay contacts for each severity level, improving operator situational awareness.
• Safety Instrumented Systems (SIS)
  Integrates into SIL-rated (Safety Integrity Level) protection layers for machinery trip functions. Relay contacts provide physical isolation between monitoring circuits and final control elements, meeting IEC 61508/61511 requirements for functional safety in process industries.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical, mechanical, and environmental specifications. Custom configurations available for unique project requirements.

Selection Considerations: When specifying the 84152-01, evaluate: (1) total number of discrete alarm/trip points required, (2) load characteristics of connected devices (inductive vs. resistive), (3) environmental conditions (temperature extremes, vibration levels, hazardous area classification), (4) available rack slots in existing 3300 chassis, and (5) safety integrity level (SIL) requirements if part of instrumented protective function. For complex multi-channel systems or SIL verification, consult our application engineering team with P&ID drawings and cause-and-effect matrices.

Advanced Integration Capabilities

• Backplane Communication: Receives digital trip/alarm commands from any 3300 monitor module via rack backplane. Supports both voted (2oo3, 1oo2) and non-voted configurations for redundant protection architectures.
• External Override: Optional manual test/reset switches and external inhibit inputs allow maintenance bypass and proof-testing without process shutdown, facilitating compliance with IEC 61511 periodic validation requirements.
• Contact Supervision: When paired with compatible 3300 monitors, provides continuous contact-wetting current and broken-wire detection to verify relay circuit integrity, reducing dangerous undetected failures in safety-critical applications.
• Modbus/OPC Integration: Relay status available via 3300 rack communication gateway for integration with plant DCS, historian systems, and predictive maintenance platforms, enabling remote monitoring and data-driven reliability programs.

Delivery, Service & Quality Assurance

Lead Time: Factory-new units typically ship within 3-5 business days from stock. Recertified/tested surplus units available for expedited delivery (1-2 days). Custom-configured modules or bulk orders: 2-4 weeks.

Warranty: All new modules include minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance-replacement programs available for critical spares inventory.

Technical Support: Complimentary pre-sales application engineering assistance (load calculations, wiring diagrams, SIL assessment). Post-sales support includes remote commissioning guidance, troubleshooting diagnostics, and on-site startup services (subject to geographic availability and service agreement).

Documentation Package: Each module ships with: (1) Installation & Operation Manual (IOM), (2) Electrical schematic and terminal wiring diagram, (3) Dimensional drawings (DWG/PDF), (4) Hazardous area certificates (ATEX/IECEx), (5) Material traceability and test reports. CAD models (STEP/IGES) and PLC integration code samples available upon request.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system. All units undergo 100% functional testing including contact resistance measurement, insulation verification, operate/release time validation, and environmental stress screening (ESS) prior to shipment.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 84152-01 quad relay output module integrate with existing 3300 monitoring systems?
A: The 84152-01 is a hot-swappable module that installs directly into any available slot in your 3300 rack. It receives trip/alarm signals automatically via the rack backplane from monitor modules (such as 3300 XL proximity, velocity, or temperature monitors) without requiring external wiring between modules. Simply configure the source monitor's alarm setpoints and assign relay outputs through the 3300 rack configuration software or front-panel programming.

Q: What is the maximum number of relays I can configure in a single 3300 rack?
A: Each 84152-01 module provides 4 independent SPDT relays in a single rack slot. A standard 3300 rack accommodates up to 16 modules (depending on rack size and power budget), theoretically supporting up to 64 relay outputs. Practical limits depend on total system power consumption, required monitor modules, and available rack real estate. For systems requiring >32 relay outputs, consider distributed architecture with multiple racks or integration with external relay panels via communication gateways.

Q: What energy savings or efficiency improvements can I expect from relay output modules?
A: While relay modules themselves don't directly reduce energy consumption, they enable automated machinery protection that prevents catastrophic failures, unplanned downtime, and energy-wasting emergency repairs. By facilitating early-warning alarms and controlled shutdowns, the 84152-01 helps maintain optimal equipment efficiency, extends machinery service intervals, and avoids energy losses from damaged bearings, misalignment, or lubrication failures. Typical ROI comes from avoided downtime costs (often $50K-$500K per event in process industries) rather than direct energy savings.

Q: What are the installation environment requirements and protection ratings?
A: The 84152-01 operates reliably in -30°C to +65°C ambient temperature with 5-95% non-condensing humidity. When installed in a 3300 rack, the assembly achieves IP20 enclosure rating (protected against solid objects >12mm). For outdoor or wash-down environments, mount the 3300 rack in a NEMA 4X/IP65 panel enclosure. The module is certified for ATEX Zone 2 (gas) and IECEx Gc (potentially explosive atmospheres), suitable for most oil & gas and chemical processing areas. Hermetic relay sealing provides additional protection against corrosive gases (H2S, Cl2, SO2) common in industrial plants.

Q: Does the module support remote monitoring, data logging, or communication protocols?
A: The 84152-01 relay states are accessible via the 3300 rack's communication interface. When equipped with a 3300 Rack Configuration Module or communication gateway (such as 3500/92 or TDXnet), relay status can be transmitted via Modbus TCP/RTU, OPC DA/UA, or proprietary Bently Nevada protocols to DCS, SCADA, or plant information management systems. This enables remote alarm annunciation, historical event logging, and integration with computerized maintenance management systems (CMMS) for predictive maintenance workflows. Direct relay-to-relay communication is not supported; all data exchange occurs through the rack backplane and communication gateway.

Q: Can I use this module in Safety Instrumented Systems (SIS) or SIL-rated applications?
A: The 84152-01 can be incorporated into SIL-rated protection functions when properly configured and validated. While the module itself is not pre-certified to a specific SIL level, it can contribute to SIL 1 or SIL 2 safety functions when combined with appropriate monitoring devices, voting logic, and proof-test procedures per IEC 61508/61511. For SIL 2 or higher applications, implement redundant relay configurations (1oo2 or 2oo3 voting), periodic proof testing (typically 12-24 month intervals), and documented failure mode analysis. Consult with a certified functional safety engineer (TÜV/Exida) to validate your specific safety instrumented function design and calculate probability of failure on demand (PFD).

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotations, please provide the following information to our technical team:

• Project name and industry sector (power generation, oil & gas, chemical, etc.)
• Machinery type and monitoring parameters (vibration, temperature, position, speed)
• Number of alarm/trip points and required relay outputs
• Load characteristics (voltage, current, inductive/resistive)
• Environmental conditions (temperature range, hazardous area classification)
• Existing 3300 rack configuration (model, available slots, power capacity)
• Safety integrity level (SIL) requirements, if applicable
• Delivery timeline and quantity requirements

Our application engineers will respond within 24 hours with tailored recommendations, wiring diagrams, and competitive pricing.
