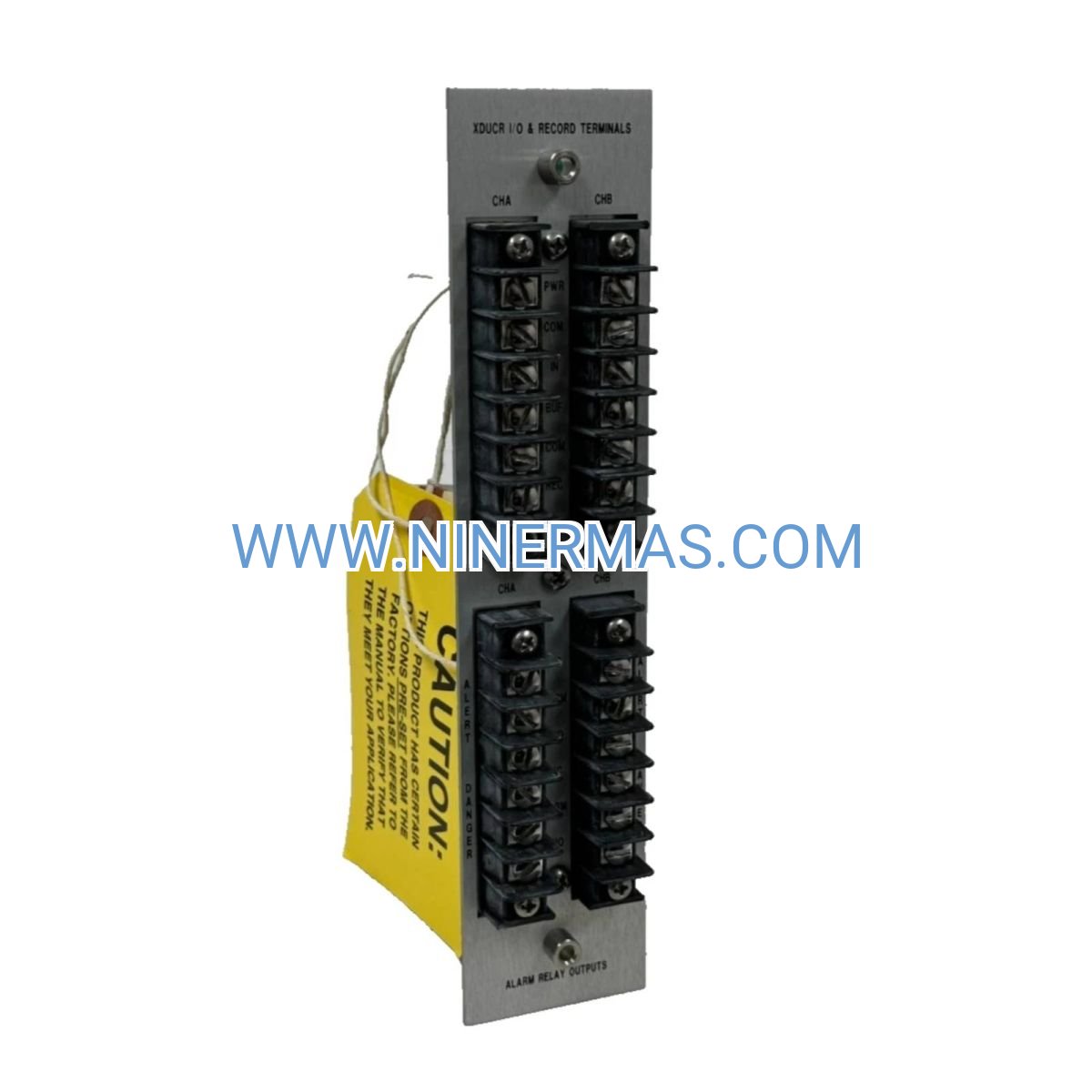

83729-01 Transducer I/O Terminal Assembly (Industrial-Grade Multi-Channel Interface)

The 83729-01 represents a consolidated wiring solution for industrial vibration and temperature monitoring networks. Engineered for Bently Nevada 3300 Series ecosystems, this terminal assembly merges transducer signal routing with quad relay alarm distribution in a single, rack-mountable package. Facilities managing turbomachinery, compressors, or pump stations gain organized signal termination that eliminates scattered wiring and reduces installation labor by up to 35%.

Designed for reliability-critical environments—power generation, oil & gas processing, chemical manufacturing—where sensor signal integrity and alarm response speed directly impact equipment protection. The assembly handles proximity probes, accelerometers, RTDs, and thermocouples through labeled screw-clamp terminals, while four independent SPDT relays convert monitoring data into actionable shutdown signals or annunciator panel inputs.

Key advantages include pre-configured terminal-to-relay connections that bypass field wiring errors, channel-to-channel electrical isolation preventing cross-contamination, and standardized layouts enabling consistent documentation across multi-site installations. Maintenance teams benefit from clear signal paths that cut troubleshooting time by 50% compared to custom-wired terminal boards.

Core Capabilities & Technical Value

→ Unified I/O Architecture: Combines transducer termination and relay outputs in one assembly, eliminating separate terminal boards and relay modules—reduces panel footprint by 30% and simplifies procurement to a single part number.

→ Multi-Signal Versatility: Accepts proximity probe outputs (-24 VDC buffered), accelerometer signals (4-20 mA or voltage), RTD resistance (100Ω/1000Ω platinum), and thermocouple millivolt inputs—one assembly serves diverse sensor types without adapter modules.

→ Quad Relay Alarm Distribution: Four SPDT relays rated 5A @ 250 VAC / 30 VDC provide independent alarm channels for vibration high-high, temperature critical, bearing failure, and emergency shutdown—direct PLC integration or annunciator panel connection.

→ Labeled Terminal Organization: Silk-screened terminal identifiers (CH1-IN, CH1-OUT, RLY1-NO, RLY1-NC) match factory wiring diagrams, enabling technicians to complete installations 40% faster than unmarked terminal strips.

→ Electrical Isolation Design: Channel-to-channel separation prevents ground loop formation and signal crosstalk—critical when monitoring multiple machines from a single control panel or when sensors operate at different ground potentials.

→ Industrial Environmental Rating: -30°C to +65°C operating range with IP20 standard (IP65 optional) suits outdoor compressor houses, high-temperature turbine enclosures, and dusty cement plant environments without additional protection.

Application Scenarios & Problem Resolution

Steam Turbine Monitoring Networks:
In combined-cycle power plants, steam turbines require XY proximity probes on each bearing (8 probes for 4-bearing units), plus RTDs for bearing metal temperature. The 83729-01 consolidates these 12+ signals into organized terminals, with relay outputs triggering turbine trip systems when vibration exceeds 10 mils or bearing temperature surpasses 95°C. Eliminates the chaos of 50+ individual wire terminations on generic terminal strips.

Centrifugal Compressor Protection:
Natural gas compressor trains use axial position probes, radial vibration probes, and discharge temperature sensors. This assembly routes all signals to 3300 monitors while providing relay contacts for API 670 shutdown logic—when thrust bearing failure is detected, relay outputs simultaneously trip the driver and activate lube oil backup pumps within 200 milliseconds.

Multi-Pump Station Installations:
Water treatment facilities with 6-10 identical pumps benefit from standardized wiring. Each pump gets one 83729-01 assembly with identical terminal assignments—Pump 1 Channel A always connects to Terminal 1, Relay 1 always signals high vibration. Technicians rotate between pumps without re-learning wiring schemes, cutting commissioning time from 3 days to 1 day per station.

Legacy System Upgrades:
Replacing 1980s-era Bently Nevada 7200 systems with modern 3300 monitors? The 83729-01 provides organized migration paths—existing transducers connect to new terminals using documented conversion tables, while relay outputs integrate with unchanged PLC shutdown logic. Avoids the "rip and replace" approach that causes extended downtime.

Hazardous Area Monitoring:
For Zone 2 / Class I Div 2 installations, mount the assembly in safe-area control rooms while transducers remain in hazardous zones. Intrinsically safe barriers install between field wiring and assembly terminals, with relay outputs controlling non-incendive shutdown circuits—maintains explosion protection without costly explosion-proof enclosures.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 83729-01 when your monitoring project requires organized termination for 4+ transducer channels with corresponding alarm outputs. If you need more than 4 relay outputs, consider parallel assemblies or upgrade to rack-mounted relay modules. For applications with fewer than 3 channels, individual terminal blocks may offer cost advantages. Verify compatibility with your specific 3300 monitor models—consult Bently Nevada system integration guides or contact our technical team for configuration validation.

Extended Integration Capabilities

DCS and SCADA Connectivity: Relay outputs interface directly with distributed control systems (Honeywell, Emerson DeltaV, Siemens PCS 7) and SCADA platforms (Wonderware, iFIX) through digital input modules. Configure relay logic for latching alarms, first-out annunciation, or voting schemes where 2-out-of-3 sensors must agree before triggering shutdowns.

Modbus and Ethernet/IP Integration: While the 83729-01 provides hardwired relay outputs, pair it with 3300 monitors equipped with communication modules for simultaneous relay-based local control and network-based remote monitoring—relay outputs handle critical shutdowns with <100ms response, while Ethernet data feeds predictive maintenance dashboards.

Customization Options: Factory modifications available for special applications—extended temperature ratings (-40°C to +75°C), conformal coating for corrosive atmospheres, custom terminal labeling matching client P&IDs, or pre-wired cable assemblies for plug-and-play installations. Minimum order quantities apply; consult sales engineering for feasibility and lead times.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center to mainland China destinations. International shipments (Southeast Asia, Middle East, Europe) typically deliver within 7-10 business days via DHL/FedEx express.

Custom Configuration Lead Time: 15-20 business days for factory-modified assemblies (custom labeling, extended temperature ratings, pre-wired cables). Rush service available for critical outages—contact our emergency support line for 48-hour expedited processing.

Warranty Coverage: 24-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement units shipped via express courier and technical support for installation troubleshooting. Extended warranties (36/48 months) available at time of purchase.

Technical Support Access: Lifetime technical support via email (sale@ninermas.com) and phone (+0086 187 5021 5667) during business hours (GMT+8). Support includes wiring diagram interpretation, relay logic configuration assistance, troubleshooting guidance, and compatibility verification with your existing 3300 monitors.

Documentation Package: Each assembly ships with installation manual (English/Chinese), terminal wiring diagram, relay contact ratings chart, dimensional drawings for panel cutout preparation, and compliance certificates (CE/UL/RoHS). Digital documentation available for download at https://ninermas.com.

Frequently Asked Questions

Q: Can the 83729-01 terminal assembly interface with non-Bently Nevada monitoring systems?
A: Yes, the assembly functions as a universal terminal block with relay outputs. While optimized for 3300 Series monitors, it accepts any transducer signals within voltage/current specifications and provides standard SPDT relay contacts compatible with any control system. Verify signal levels match your monitoring equipment—proximity probe buffered outputs typically -24 VDC, accelerometers 4-20 mA or ±5 VDC.

Q: What wire gauge and terminal torque specifications ensure reliable connections?
A: Terminals accept 12-24 AWG solid or stranded wire (recommend 18 AWG for signal wiring, 14 AWG for relay power). Torque screw terminals to 0.5-0.6 Nm (4.4-5.3 lb-in) using a calibrated torque screwdriver—over-tightening damages terminals, under-tightening causes intermittent connections. Re-torque annually per NFPA 70B maintenance standards.

Q: How much panel space reduction can I expect compared to separate terminal blocks and relay modules?
A: Typical installations save 25-35% panel space. A discrete implementation requires separate DIN-rail terminal blocks (100mm width), relay socket modules (4× 15mm = 60mm), and wiring duct (30mm), totaling ~190mm. The 83729-01 consolidates these into approximately 120mm width, freeing space for additional I/O or reducing overall panel size.

Q: Does the assembly support remote monitoring or IoT connectivity?
A: The 83729-01 provides hardwired I/O only. For remote monitoring, connect relay outputs to IoT gateway digital inputs (Moxa, Advantech, Siemens IoT2040) or pair with 3300 monitors equipped with Modbus/Ethernet modules. This hybrid approach maintains relay-based local safety shutdowns while enabling cloud-based vibration trending and predictive analytics.

Q: What installation environment limitations should I consider?
A: Standard IP20 rating suits indoor control rooms with climate control. For outdoor or wash-down environments, specify IP65 sealing kit (gaskets, cable glands). Avoid direct spray exposure, condensing humidity, or corrosive atmospheres without conformal coating. Operating temperature -30°C to +65°C covers most industrial environments; extreme applications (desert installations >50°C ambient) may require forced ventilation.

Q: Can I use the relay outputs for motor control or high-current switching?
A: Relay contacts rated 5A @ 250 VAC suit pilot duty (contactor coils, solenoid valves, indicator lamps) but not direct motor control. For motors >0.5 HP, use relay outputs to trigger motor starters or VFD enable inputs. Inductive loads (contactor coils) require RC snubbers (0.1µF + 100Ω) across contacts to prevent arcing and extend relay life—consult wiring manual for suppression circuit diagrams.
