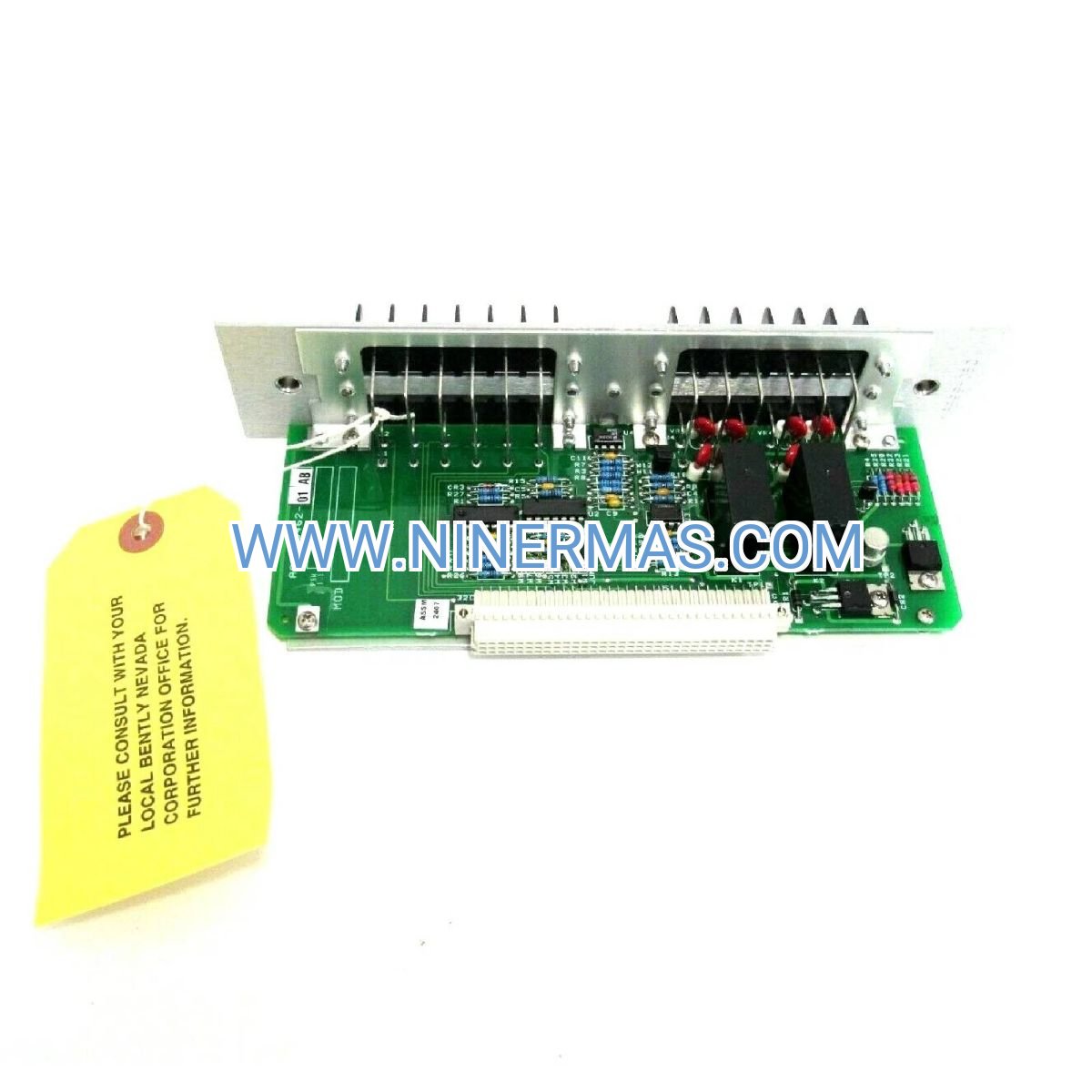

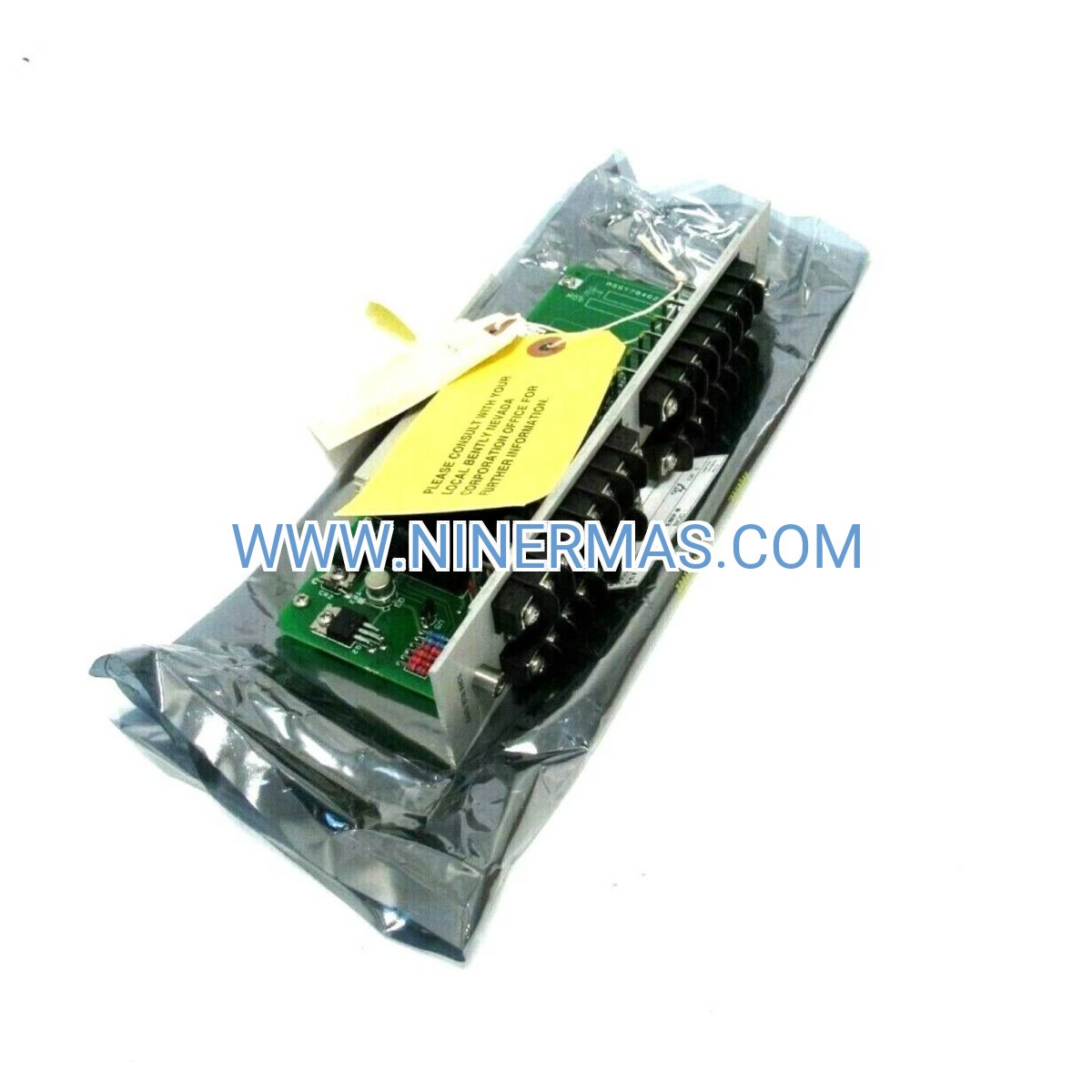

Bently Nevada 82365-01 Recorder Module (Industrial Temperature Monitoring & Data Logging System)

The Bently Nevada 82365-01 Recorder Module is a professional-grade data acquisition device designed for continuous temperature monitoring within the 3300 series monitoring ecosystem. Through high-precision analog-to-digital conversion and embedded storage technology, it delivers real-time trend recording, historical data archiving, and alarm event logging—ensuring operational visibility and predictive maintenance capabilities for critical industrial assets.

Ideal for power generation plants, petrochemical facilities, steel mills, and heavy manufacturing environments where bearing temperature, winding heat, and process thermal conditions require 24/7 surveillance. This module addresses common challenges including intermittent thermal events, lack of historical trending data, delayed fault detection, and insufficient audit trails for compliance reporting.

Leveraging standardized design with flexible configuration options, the 82365-01 offers seamless integration with existing 3300 racks, compatibility with multiple sensor types, user-friendly data export (CSV format), and robust alarm management. Suitable for design engineers, system integrators, maintenance teams, and plant operators seeking reliable, long-term temperature monitoring solutions. Contact our application engineers for system configuration guidance and quotation.

Core Features & Advantages

• Continuous High-Resolution Data Logging
  Captures temperature readings at configurable sampling rates with 16-bit resolution, enabling precise trend analysis and early detection of thermal anomalies before they escalate into equipment failures.
• Multi-Channel Recording Capability
  Supports simultaneous monitoring of multiple temperature inputs, consolidating data from bearings, windings, and process points into a single module—reducing hardware footprint and simplifying system architecture.
• Alarm Event Time-Stamping & Archiving
  Automatically logs alarm triggers with precise timestamps, providing forensic-quality records for root cause analysis, compliance audits, and maintenance optimization.
• Standard CSV Data Export
  Facilitates seamless integration with SCADA systems, historian databases, and analytics platforms through industry-standard CSV file format—no proprietary software lock-in.
• Plug-and-Play 3300 Rack Integration
  Designed for direct installation into Bently Nevada 3300 series racks with standardized backplane connectivity, minimizing commissioning time and ensuring electromagnetic compatibility.
• Robust Industrial-Grade Construction
  Built to withstand harsh environments with wide operating temperature range, vibration resistance, and EMI/RFI immunity—ensuring reliable operation in power plants, refineries, and heavy industrial settings.

Typical Application Scenarios

This recorder module is engineered for environments demanding high reliability, continuous operation, and comprehensive thermal monitoring, particularly in:

• Power Generation & Turbine Monitoring
  Tracks bearing temperatures, generator winding heat, and steam turbine thermal profiles to prevent catastrophic failures and optimize maintenance intervals in coal, gas, nuclear, and renewable energy plants.
• Petrochemical & Refining Operations
  Monitors compressor bearings, pump casings, reactor vessel temperatures, and critical rotating equipment in refineries, chemical plants, and offshore platforms where thermal excursions can trigger safety shutdowns.
• Steel & Metal Production
  Provides continuous surveillance of rolling mill bearings, furnace auxiliaries, and material handling systems where extreme temperatures and dust-laden atmospheres challenge conventional monitoring equipment.
• Heavy Manufacturing & Process Industries
  Ensures thermal stability in paper mills, cement kilns, mining conveyors, and industrial fan systems—reducing unplanned downtime and extending asset service life through data-driven maintenance strategies.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide key specifications below. Custom configurations are available to match specific project requirements.

Selection Recommendations:
When specifying the 82365-01 module, consider: number of temperature monitoring points, sensor types in use (RTD vs. thermocouple), required data retention period, alarm threshold requirements, integration with existing DCS/SCADA infrastructure, and environmental conditions (temperature, humidity, vibration). For application-specific guidance, please provide your system architecture details and our engineers will recommend optimal configuration and accessories.

Extended Capabilities

• Remote Monitoring Integration: Compatible with Bently Nevada System 1 software and third-party SCADA platforms via Modbus, OPC, or proprietary protocols—enabling centralized monitoring across distributed assets.
• Predictive Maintenance Support: Historical trend data facilitates machine learning algorithms and statistical analysis for remaining useful life (RUL) estimation and condition-based maintenance scheduling.
• Compliance & Audit Trail: Time-stamped alarm logs and continuous data records support ISO 9001, API standards, and regulatory compliance requirements in power, oil & gas, and pharmaceutical industries.
• Scalable Architecture: Multiple 82365-01 modules can be deployed within a single 3300 rack or across networked racks, supporting plant-wide temperature monitoring strategies with centralized data management.

Delivery, Service & Quality Assurance

Lead Time: Standard new units typically ship within 3-7 business days; custom-configured systems may require 10-15 days depending on specifications and testing requirements.

Warranty: All modules are backed by a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts available upon request.

Technical Support: Comprehensive support includes pre-sale application engineering, installation guidance, commissioning assistance, and post-sale troubleshooting. Remote diagnostic support and on-site service available in select regions.

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, configuration guide, and calibration certificates (where applicable)—ensuring smooth integration and compliance with project documentation requirements.

Quality Certifications: Manufactured to ISO 9001 standards with full traceability. Units undergo factory acceptance testing (FAT) prior to shipment. Certificates of conformity and material test reports available upon request.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 82365-01 recorder module integrate with existing 3300 monitoring systems?
A: The 82365-01 is designed for plug-and-play installation into standard Bently Nevada 3300 series racks. It connects via the rack backplane, drawing power and communicating with other modules through the internal bus. Configuration is performed using Bently Nevada's proprietary software tools. Ensure your rack has available slots and compatible firmware versions.

Q: What types of temperature sensors are compatible with this recorder module?
A: The module typically supports RTD (Resistance Temperature Detector) sensors such as Pt100/Pt1000, thermocouples (Type J, K, T, E), and 4-20mA temperature transmitters. Verify specific input types and ranges in the technical datasheet or consult with our application engineers to confirm compatibility with your existing sensors.

Q: How much historical data can the 82365-01 store, and how is it accessed?
A: Internal storage capacity varies by configuration and sampling rate; typical implementations store several weeks to months of trend data in circular buffer mode. Data is exported via CSV files through the configuration software or network interface, allowing import into Excel, SCADA historians, or analytics platforms for long-term archiving and analysis.

Q: Can the recorder module trigger alarms and interface with plant DCS or SCADA systems?
A: Yes. The 82365-01 supports configurable alarm thresholds (high/low temperature, rate-of-change) with relay outputs or digital signals available through the 3300 rack interface. It can communicate alarm status and real-time data to DCS/SCADA systems via Modbus TCP/RTU, OPC, or proprietary protocols depending on system configuration.

Q: What are the environmental and installation requirements for this module?
A: The module is designed for industrial control room environments with operating temperature range typically -30°C to +65°C, humidity up to 95% non-condensing, and resistance to vibration and electromagnetic interference. It requires installation in a Bently Nevada 3300 rack with adequate ventilation and protection from direct exposure to corrosive gases or liquids.

Q: Is remote monitoring and data access supported?
A: Yes. When integrated with Bently Nevada System 1 software or compatible SCADA platforms, the 82365-01 enables remote monitoring, alarm notification, and data retrieval over Ethernet networks. Secure VPN or dedicated industrial network infrastructure is recommended for remote access in critical applications.

Request a Quote & Engineering Support

To receive a detailed technical proposal, pricing quotation, or application-specific configuration guidance, please provide the following information:

• Project name and application overview
• Number of temperature monitoring points required
• Sensor types in use (RTD, thermocouple, transmitter)
• Existing Bently Nevada 3300 rack configuration (if applicable)
• Data logging and alarm requirements
• Integration needs (SCADA, DCS, historian)
• Environmental conditions and installation location

Our application engineers will respond within 24 hours with a tailored solution, technical drawings, and commercial proposal. For urgent inquiries, contact us directly via phone or email.
