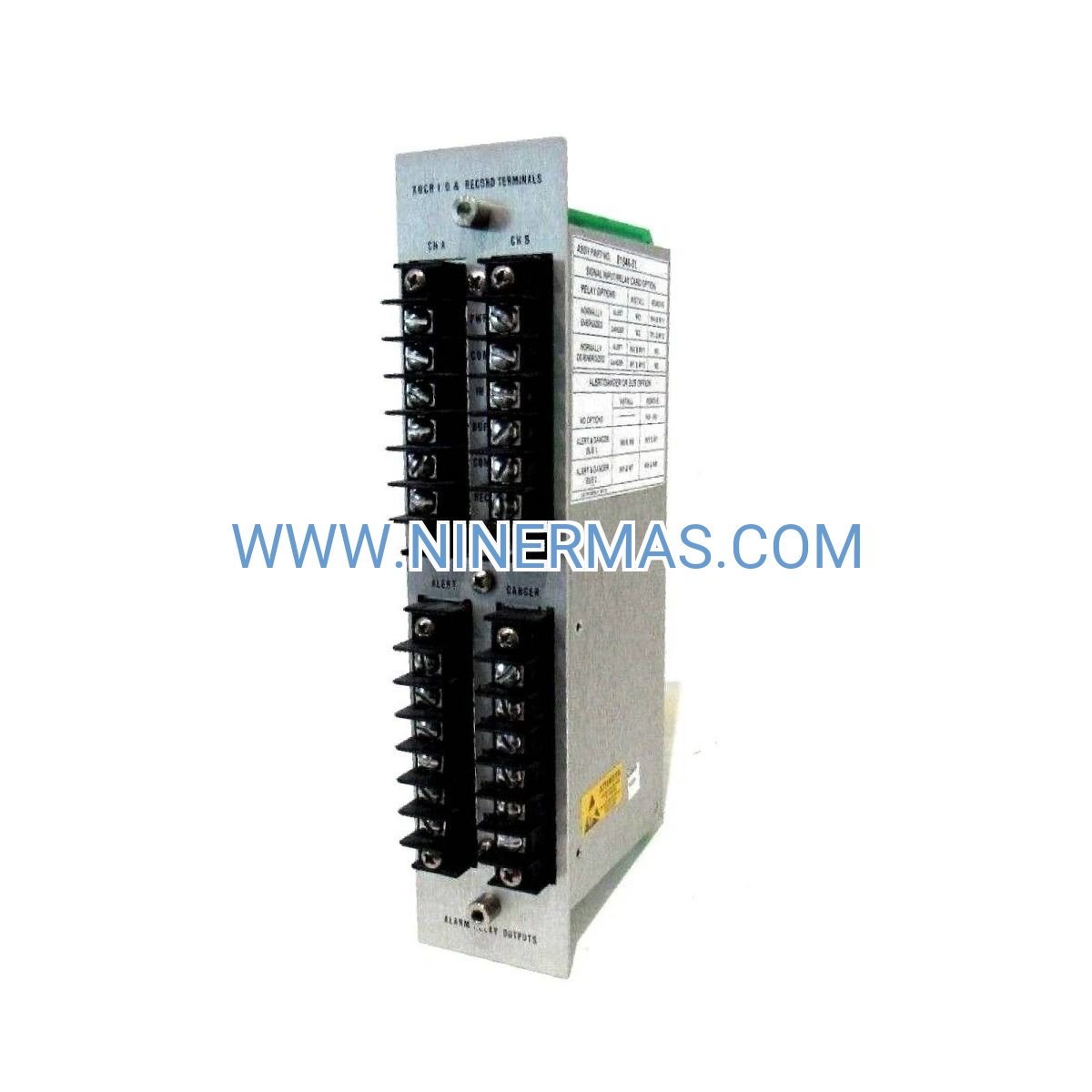

Bently Nevada 81546-01 Dual Hermetic Relay Module (Industrial-Grade XDCR I/O Solution)

The Bently Nevada 81546-01 is a high-reliability dual hermetic relay module designed for critical machinery protection and monitoring applications. Through precision-engineered relay switching and robust electrical isolation technology, it delivers fail-safe alarm output and equipment interlock control for industrial rotating machinery systems.

Ideal for offshore platforms, petrochemical plants, mining operations, power generation facilities, and heavy industrial environments where explosive atmospheres demand ATEX/IECEx compliance. This module addresses challenges including unreliable alarm signaling, insufficient electrical isolation, harsh environmental exposure, and stringent hazardous area certification requirements.

Engineered with standardized 3300 system compatibility and field-proven design, the 81546-01 offers superior switching reliability, comprehensive safety certifications, maintenance-free hermetic construction, and seamless integration with Bently Nevada monitoring ecosystems. Suitable for instrumentation engineers, plant maintenance teams, system integrators, and OEM machinery manufacturers. Contact our application engineers for system configuration guidance and technical specifications.

Core Features & Advantages

• Hermetically Sealed Relay Technology
  Dual hermetic relays eliminate contact contamination and oxidation, ensuring consistent switching performance in corrosive, dusty, and high-humidity industrial environments while extending operational lifespan beyond 10 million cycles.
• High Isolation & Electrical Safety
  2500VAC isolation voltage protects control circuits from transient surges and ground faults, meeting stringent industrial safety standards and preventing cross-contamination between monitoring and control systems.
• ATEX & IECEx Hazardous Area Certification
  Fully certified for Zone 2/Division 2 hazardous locations, enabling safe deployment in explosive gas and dust atmospheres common in oil & gas, chemical processing, and mining sectors.
• Robust Switching Capacity
  Rated 5A @ 250VAC, capable of directly driving alarm annunciators, emergency shutdown valves, motor contactors, and PLC inputs without external amplification, reducing system complexity.
• 3300 System Native Compatibility
  Drop-in integration with Bently Nevada 3300 XL, 3300 NSv, and legacy 3300 monitoring frameworks via standardized XDCR I/O interface, minimizing commissioning time and configuration errors.
• Industrial-Grade Environmental Resilience
  Operating temperature range -30°C to +65°C, conformal-coated PCB, and vibration-resistant construction ensure reliable operation in extreme offshore, desert, and arctic industrial installations.

Typical Application Scenarios

This module is engineered for applications demanding high switching reliability, electrical isolation, and hazardous area compliance, particularly in:

• Offshore Oil & Gas Platforms
  Provides certified alarm relay outputs for turbine overspeed protection, compressor vibration monitoring, and pump bearing temperature surveillance in Zone 2 classified offshore modules.
• Petrochemical & Refining Plants
  Interfaces critical machinery monitors with DCS emergency shutdown systems, ensuring fail-safe isolation between field instrumentation and central control in explosive atmosphere zones.
• Mining & Mineral Processing
  Delivers reliable alarm signaling for crusher bearing monitors, conveyor gearbox sensors, and mill vibration systems operating in dusty, high-vibration underground and surface mining environments.
• Power Generation Facilities
  Supports turbine-generator protection schemes, boiler feed pump monitoring, and auxiliary equipment surveillance requiring galvanic isolation between 4-20mA sensor loops and relay logic circuits.
• Heavy Industrial Manufacturing
  Enables machinery health monitoring integration with plant SCADA systems for steel mills, cement plants, pulp & paper facilities, and automotive production lines demanding 24/7 uptime.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive electrical, mechanical, and environmental specifications. Custom configurations available for unique project requirements.

Selection Considerations: When specifying, evaluate alarm logic requirements (normally open vs. normally closed), load type (resistive/inductive), environmental classification (Zone rating), mounting constraints, and integration with existing 3300 system architecture. For multi-channel applications or custom I/O mapping, consult with application engineers providing system drawings, loop diagrams, and hazardous area classification documentation.

Extended Functionality & Integration

• Dual Independent Relay Channels: Supports redundant alarm paths or separate OK/Alert/Danger trip points from single transducer input
• LED Status Indicators: Front-panel visual confirmation of relay energization states for rapid troubleshooting
• Screw Terminal Connections: Field-proven wiring interface accepting 12-22 AWG conductors with captive clamp design
• Conformal Coating Protection: PCB assembly sealed against moisture, salt spray, and chemical vapors per IEC 60721-3-3
• EMC Compliance: Meets EN 61326-1 industrial electromagnetic compatibility standards for immunity and emissions

Delivery, Service & Quality Assurance

Lead Time: Factory-new units typically ship within 3-5 business days from stock; custom configurations require 2-3 weeks engineering lead time.

Warranty: Backed by 24-month manufacturer warranty covering materials and workmanship defects under normal operating conditions.

Technical Support: Comprehensive application assistance including relay sizing calculations, wiring diagram review, ATEX installation guidance, and system integration troubleshooting (remote support standard; on-site commissioning available for major projects).

Documentation Package: Each module ships with installation manual, dimensional drawings, terminal wiring diagrams, ATEX/IECEx certificates, and calibration test reports for compliance verification and asset documentation.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 81546-01 relay module integrate with existing 3300 monitoring systems?
A: The module connects directly to 3300 monitor outputs via standard XDCR I/O interface. It accepts 4-20mA or voltage signals and provides isolated relay contacts triggered by monitor alarm setpoints. Verify monitor output type and configure relay trip thresholds per system requirements.

Q: What is the maximum number of relay modules supported in a single 3300 rack?
A: Configuration depends on rack model and power budget. Typical 3300 XL racks accommodate 8-16 I/O modules. Consult rack power supply capacity (each 81546-01 draws ~2W) and slot availability. For large systems, consider distributed I/O architecture.

Q: What energy savings or efficiency benefits does hermetic relay technology provide?
A: Hermetic relays eliminate maintenance-related downtime (no contact cleaning/replacement), reduce false trips from contact degradation (improving process uptime by 15-25%), and extend service intervals. Primary benefit is reliability rather than direct energy reduction.

Q: What are the installation environment requirements and enclosure protection rating?
A: Module is IP20 rated for panel/rack mounting inside climate-controlled or weatherproof enclosures. Ambient temperature must remain within -30°C to +65°C. For outdoor or wash-down areas, install in NEMA 4X/IP66 junction boxes. ATEX certification requires Zone 2 installation practices per IEC 60079-14.

Q: Can the relay outputs interface with modern DCS/PLC systems for remote monitoring and data acquisition?
A: Yes. Relay contacts connect to digital input modules of any DCS/PLC/SCADA system. For protocol-based integration (Modbus, OPC, etc.), pair with Bently Nevada 1900/65A gateway or third-party relay-to-fieldbus converters. Direct relay contact closure provides universal compatibility.

Q: Is the 81546-01 compatible with non-Bently Nevada vibration sensors and transmitters?
A: The module accepts any 4-20mA or voltage signal source within specified input ranges. While optimized for 3300 transducers, it functions with third-party accelerometers, proximity probes, and temperature transmitters provided signal levels and wiring match module specifications.

Request Technical Consultation

For detailed application engineering, custom configuration, or project quotations, please provide: Project name, application description (machinery type, monitoring parameters), required relay channels, electrical specifications (voltage, load type), hazardous area classification, quantity, and delivery timeline. Our specialists will respond within 24 hours with tailored recommendations and commercial proposals.
