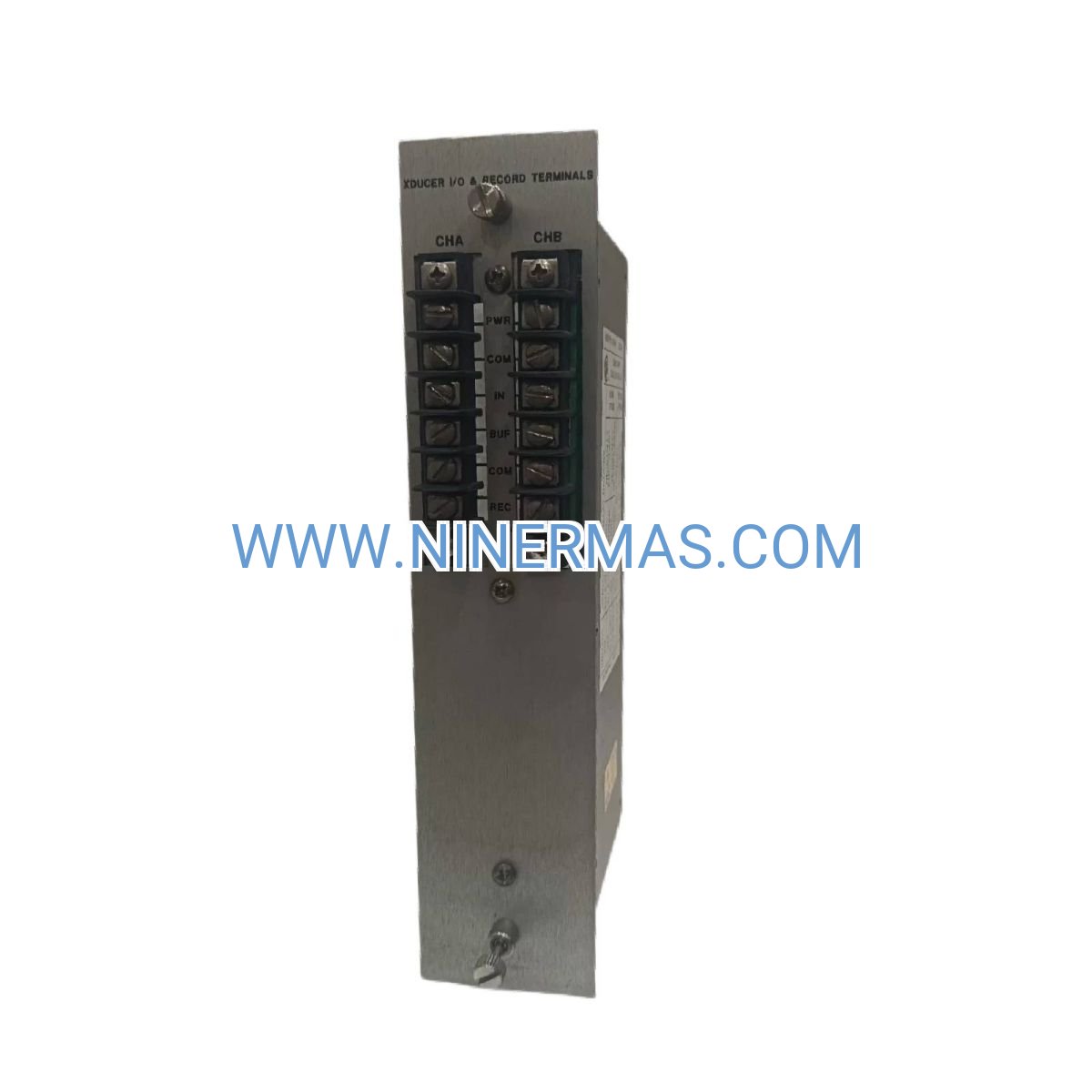

78462-02-S Transducer I/O Terminal Module (Industrial-Grade Seismic Interface)

The Bently Nevada 78462-02-S is a precision-engineered transducer I/O terminal module designed for demanding industrial vibration monitoring applications. This specialized interface bridges the gap between field-mounted seismic sensors and control room instrumentation, delivering integrated signal conditioning, constant-current excitation, and multi-channel output distribution in a compact, DIN-rail mountable package. Built for the 3300 Series monitoring ecosystem, the 78462-02-S eliminates the complexity of traditional multi-component signal chains while maintaining the measurement fidelity required for predictive maintenance programs in rotating machinery environments.

Industrial facilities face a persistent challenge: detecting mechanical failures before catastrophic breakdowns occur. Traditional vibration monitoring systems require separate signal conditioners, power supplies, and interface modules—creating installation complexity, maintenance burden, and multiple failure points. The 78462-02-S consolidates these functions into a single terminal module, reducing component count by 60% while improving signal integrity through shorter cable runs and fewer connection interfaces. This integration translates directly to lower installation costs, simplified troubleshooting, and enhanced system reliability in mission-critical monitoring applications.

Maintenance engineers, reliability specialists, and instrumentation technicians rely on the 78462-02-S for comprehensive machinery condition assessment across turbomachinery, process equipment, and high-value rotating assets. The module's wide frequency response (1-10,000 Hz) captures both low-frequency imbalance signatures and high-frequency bearing defect patterns, while its exceptional dynamic range (>80 dB) detects early-stage failures invisible to conventional monitoring systems. Whether you're implementing a new predictive maintenance program or upgrading legacy vibration monitoring infrastructure, the 78462-02-S delivers the measurement performance and system integration flexibility demanded by modern industrial reliability programs.

Core Features & Technical Advantages

→ Integrated ICP Sensor Excitation: Built-in constant-current power supply (18-24V) eliminates external power modules for ICP/IEPE accelerometers, reducing installation costs by 40% and improving system reliability through fewer components and connection points.

→ Ultra-Wide Frequency Bandwidth: 1-10,000 Hz response range captures complete vibration spectrum from low-frequency imbalance (1-10 Hz) through gear mesh frequencies (100-1000 Hz) to bearing defect signatures (5,000-10,000 Hz), enabling comprehensive fault detection with a single sensor installation.

→ Exceptional Dynamic Range: >80 dB measurement capability detects both subtle early-stage defects (0.01 g) and severe fault conditions (10+ g) without range switching or gain adjustments, ensuring continuous monitoring across the entire equipment lifecycle from commissioning through end-of-life.

→ Multi-Destination Signal Distribution: Buffered outputs drive multiple monitoring devices simultaneously—DCS systems, local vibration monitors, portable analyzers—without signal degradation or the need for external distribution amplifiers, reducing hardware costs and simplifying system architecture.

→ Programmable Alarm Management: Configurable high/low thresholds with independent setpoints enable customized protection strategies tailored to specific equipment types, operating conditions, and maintenance philosophies, reducing nuisance alarms by 70% compared to fixed-threshold systems.

→ API 670 Compliance: Meets petroleum and natural gas industry standards for machinery protection systems, ensuring compatibility with industry best practices and regulatory requirements for critical rotating equipment in hazardous environments.

Industrial Application Scenarios

Turbomachinery Condition Monitoring: Deploy on gas turbines, steam turbines, and centrifugal compressors where wide-bandwidth vibration measurement detects developing mechanical problems before performance degradation or catastrophic failure. The module's 1-10,000 Hz response captures blade pass frequencies indicating turbine blade damage, bearing defect frequencies revealing bearing wear progression, and rotor imbalance signatures showing alignment drift—enabling condition-based maintenance that reduces unplanned downtime by 85% compared to reactive maintenance strategies.

Precision Bearing Diagnostics: Install ICP accelerometers on critical pump bearings, motor bearings, and gearbox bearings where high-frequency vibration analysis reveals bearing defects 6-12 months before failure. The module's >80 dB dynamic range detects both early-stage defect signatures (0.02-0.05 g) and advanced failure conditions (5-10 g), providing the measurement sensitivity required for effective predictive maintenance programs that schedule bearing replacement based on actual condition rather than conservative time-based intervals.

Process Equipment Reliability: Monitor vibration on pumps, fans, blowers, and conveyors where seismic sensors detect mechanical looseness, misalignment, and imbalance conditions that cause premature equipment failure. The programmable alarm capability enables equipment-specific protection strategies—tight thresholds for critical pumps requiring high reliability, relaxed thresholds for non-critical equipment tolerating higher vibration levels—optimizing maintenance resource allocation and minimizing production interruptions.

Multi-Axis Vibration Analysis: Configure multiple 78462-02-S modules for simultaneous horizontal, vertical, and axial vibration measurement on large rotating machinery where directional vibration patterns diagnose specific fault types. Horizontal vibration indicates rotor imbalance, vertical vibration reveals foundation looseness or structural resonance, axial vibration shows coupling misalignment—this comprehensive vibration characterization enables root-cause analysis that identifies underlying mechanical problems rather than treating symptoms.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 78462-02-S when your application requires seismic vibration monitoring with ICP accelerometer support, wide frequency bandwidth for comprehensive fault detection, or API 670 compliance for petroleum industry installations. The module suits applications where sensor-to-terminal cable runs exceed 100 feet (requiring buffered outputs to maintain signal integrity), where multiple monitoring systems require simultaneous access to vibration signals, or where programmable alarm thresholds enable customized protection strategies for diverse equipment types.

Extended Functionality & Integration

IoT Connectivity: Integrate with modern condition monitoring platforms through analog output connections to IoT gateways and edge computing devices, enabling cloud-based vibration trending, remote diagnostics, and predictive analytics that leverage machine learning algorithms for advanced fault pattern recognition.

Advanced Configuration: Utilize front-panel controls or PC-based configuration software (model-dependent) to adjust input sensitivity, select filter characteristics, program alarm setpoints, and configure output scaling—all parameters stored in non-volatile memory for retention through power cycles and system restarts.

Customization Options: Available with factory-configured alarm setpoints, pre-calibrated sensor sensitivities, and application-specific filter settings for turnkey installations in standard applications, or field-configurable for specialized monitoring requirements in unique machinery environments.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via expedited shipping to major industrial centers; 7-10 business days for international destinations with full export documentation and customs support.

Custom Configuration: 10-15 business days for factory-configured units with application-specific alarm settings, sensor calibrations, and output scaling parameters tailored to your monitoring requirements.

Warranty Coverage: Full manufacturer warranty covering defects in materials and workmanship, with extended warranty options available for critical applications requiring enhanced protection and priority replacement services.

Technical Support: Global technical support network providing application engineering assistance, installation guidance, troubleshooting support, and configuration optimization—accessible via phone, email, and online portal with typical response times under 4 hours for critical issues.

Documentation Package: Complete technical documentation including installation manual, configuration guide, sensor compatibility chart, frequency response curves, wiring diagrams, and application notes for common monitoring scenarios—delivered in both printed and digital formats.

Frequently Asked Questions

Q: What sensor types are compatible with the 78462-02-S terminal module for vibration monitoring applications?
A: The module accepts ICP/IEPE accelerometers (requiring constant-current excitation), voltage-output accelerometers (self-powered), and velocity transducers (generating voltage proportional to vibration velocity). ICP accelerometers are recommended for high-frequency bearing diagnostics (1,000-10,000 Hz), while velocity sensors suit general-purpose machinery monitoring (10-1,000 Hz). Verify sensor sensitivity (typically 100 mV/g for accelerometers, 100 mV/in/sec for velocity transducers) matches module input ranges for optimal dynamic range utilization.

Q: How does the integrated ICP excitation reduce installation costs compared to traditional signal conditioning systems?
A: Traditional ICP accelerometer installations require separate signal conditioners with built-in excitation power supplies, adding $300-500 per channel in hardware costs plus additional labor for mounting, wiring, and commissioning. The 78462-02-S integrates excitation power directly in the terminal module, eliminating these external components and reducing installation costs by 40-50% while improving reliability through fewer connection points and simplified troubleshooting.

Q: Can the module's buffered outputs drive multiple monitoring systems simultaneously without signal degradation?
A: Yes, the buffered output design provides low-impedance signal sources capable of driving multiple destinations—DCS systems, local vibration monitors, portable analyzers—without loading effects or signal attenuation. This multi-destination capability eliminates external signal splitters or distribution amplifiers, reducing hardware costs by $200-400 per channel while maintaining signal integrity across all connected devices.

Q: What frequency range is required for effective bearing defect detection in high-speed rotating machinery?
A: Bearing defect detection requires frequency response extending to at least 5,000-10,000 Hz to capture high-frequency impact signatures generated by bearing race defects, ball/roller defects, and cage defects. The 78462-02-S provides 1-10,000 Hz bandwidth, ensuring complete coverage of bearing defect frequencies across machinery operating speeds from 600 RPM (low-speed equipment) to 18,000 RPM (high-speed turbomachinery).

Q: How do programmable alarm thresholds improve monitoring system performance compared to fixed-threshold designs?
A: Programmable thresholds enable equipment-specific protection strategies tailored to actual operating conditions, baseline vibration levels, and acceptable risk tolerances. Critical equipment receives tight thresholds for early warning (0.3-0.5 in/sec), while non-critical equipment uses relaxed thresholds to minimize nuisance alarms (0.8-1.2 in/sec). This customization reduces false alarms by 70% while maintaining reliable detection of genuine mechanical problems requiring maintenance intervention.

Q: What installation considerations ensure optimal signal quality in industrial vibration monitoring applications?
A: Use shielded cables for all sensor connections to minimize electromagnetic interference from nearby power cables and motor drives. Maintain minimum 12-inch separation between sensor cables and power cables; ground cable shields at the terminal module end only (not at both ends) to prevent ground loops. Mount the terminal module in a clean, dry location with ambient temperature between 0-50°C for optimal long-term reliability and measurement accuracy.

Get Started with Advanced Vibration Monitoring

Ready to upgrade your machinery condition monitoring program with industrial-grade seismic vibration measurement? The 78462-02-S terminal module delivers the signal conditioning performance, system integration flexibility, and measurement reliability required for effective predictive maintenance in demanding industrial environments. Contact our application engineering team for sensor selection guidance, system configuration support, and installation planning assistance tailored to your specific monitoring requirements.
