Bently Nevada 78462-01 XDCR I/O Record Terminals | Multi-Channel Data Acquisition Module

Bently Nevada 78462-01 XDCR I/O Record Terminals Module (Industrial-Grade Data Acquisition System)

The Bently Nevada 78462-01 XDCR I/O Record Terminals Module is a precision-engineered industrial control component designed for multi-channel transient data capture and continuous condition monitoring within the 3300 series machinery protection systems. Through advanced signal processing and high-speed data acquisition technology, this module enables real-time recording of critical vibration, temperature, and process parameters, ensuring operational reliability and predictive maintenance capabilities.

Specifically developed for rotating machinery applications in power generation, oil & gas, petrochemical, and heavy manufacturing environments, this module addresses common challenges including transient event detection failures, inadequate data resolution during critical events, integration complexity with legacy DCS systems, and insufficient diagnostic capabilities for root cause analysis.

Leveraging standardized terminal configurations with flexible customization options, the 78462-01 module delivers exceptional signal fidelity, API 670 compliance, seamless integration with Bently Nevada proximity probes and seismic sensors, and comprehensive diagnostic capabilities. Ideal for plant engineers, instrumentation specialists, OEM integrators, and maintenance teams requiring reliable machinery health monitoring solutions. Contact our application engineers for system configuration assistance and technical specifications.

Core Features & Technical Advantages

• Multi-Channel Transient Recording
  Captures high-resolution waveform data from multiple sensor inputs simultaneously during triggered events, preserving critical diagnostic information for vibration analysis and fault identification with sampling rates up to 10 kHz per channel.
• Universal Sensor Compatibility
  Accepts inputs from Bently Nevada proximity probes (7200/3300 series), accelerometers, velocity sensors, RTD temperature sensors, and 4-20mA process transmitters, eliminating the need for multiple interface modules and reducing system complexity.
• Buffered 4-20mA Output Capability
  Provides isolated analog outputs proportional to monitored parameters for integration with distributed control systems (DCS), SCADA platforms, and plant-wide data historians, enabling centralized monitoring without compromising measurement accuracy.
• API 670 Certified Protection
  Meets stringent American Petroleum Institute standards for machinery protection systems, incorporating comprehensive fault detection including sensor open/short circuit, power supply anomalies, and module self-diagnostics to minimize false trips and unplanned shutdowns.
• Hot-Swappable Terminal Design

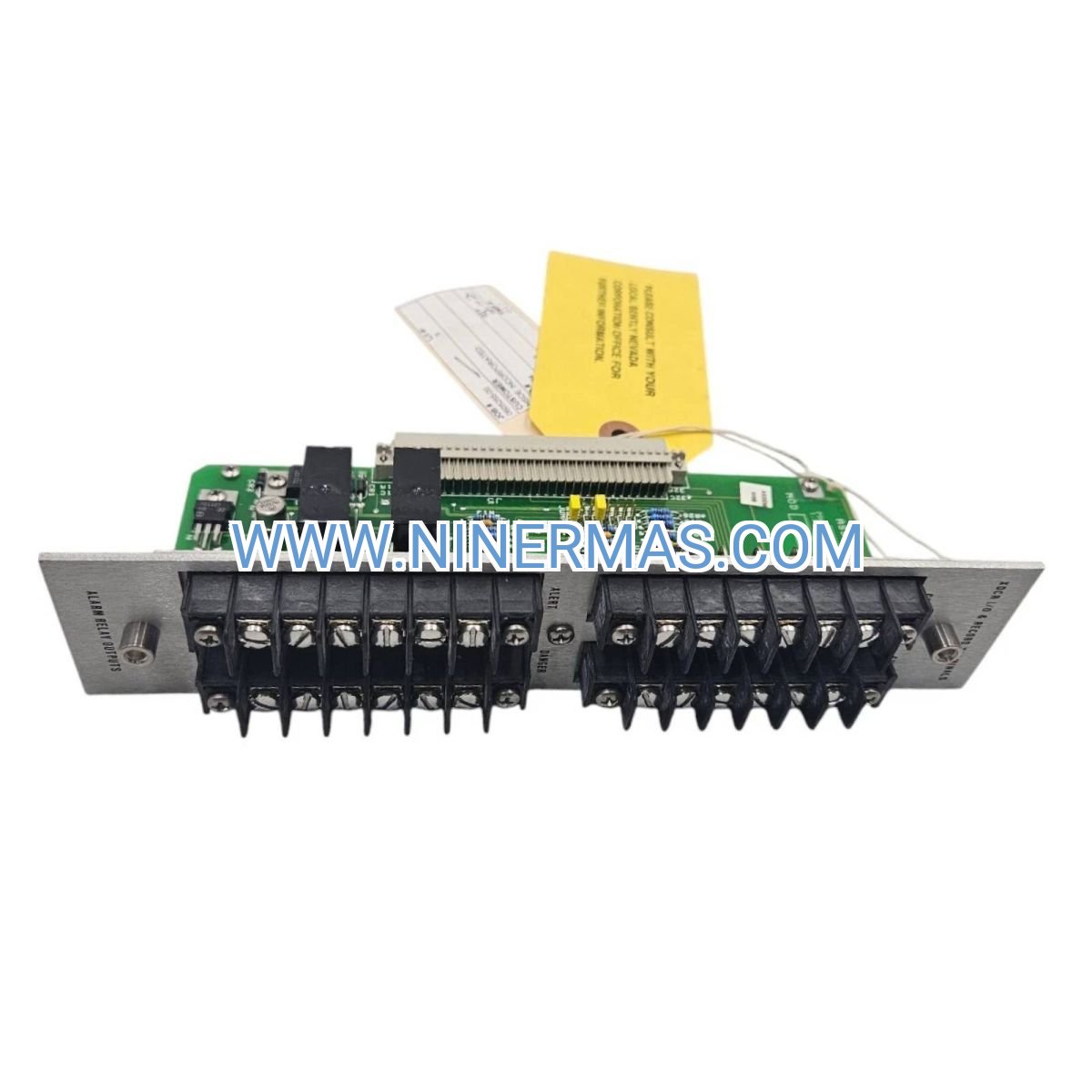

  Features field-replaceable terminal blocks with keyed connectors and color-coded wiring interfaces, reducing maintenance downtime and minimizing installation errors during commissioning or module replacement procedures.
• Industrial-Grade Environmental Protection
  Constructed with conformal-coated circuitry and IP20-rated enclosure compatibility, ensuring reliable operation in harsh industrial environments with temperature ranges from -30°C to +65°C and resistance to electromagnetic interference per IEC 61000 standards.

Typical Application Scenarios

This XDCR I/O record terminals module is engineered for demanding industrial applications requiring continuous machinery health monitoring and transient event analysis, particularly in:

• Steam & Gas Turbine Generator Sets
  Monitors critical bearing vibration, shaft position, differential expansion, and casing temperature on power generation turbines, providing early warning of developing mechanical issues and enabling condition-based maintenance strategies that reduce forced outages.
• Centrifugal & Reciprocating Compressors
  Captures transient vibration signatures during startup, shutdown, and surge events in oil & gas compression systems, facilitating root cause analysis of recurring failures and optimizing operating envelopes to extend equipment service life.
• Large Industrial Pumps & Blowers
  Continuously records vibration trends and bearing temperatures in critical process pumps, cooling water systems, and forced draft fans, detecting cavitation, misalignment, imbalance, and bearing degradation before catastrophic failure occurs.
• Petrochemical Rotating Equipment
  Integrates with refinery and chemical plant machinery protection systems to monitor reactors, distillation columns, and process compressors, ensuring compliance with safety instrumented system (SIS) requirements and minimizing process interruptions.
• Steel Mill & Mining Machinery
  Provides robust vibration monitoring for crushers, mills, conveyors, and material handling equipment in high-dust, high-vibration environments where traditional monitoring systems struggle with signal integrity and environmental durability.

Technical Specifications & Selection Guide

To facilitate accurate system design and component selection, we provide comprehensive technical parameters for the 78462-01 module. Custom configurations are available to meet specific project requirements.

Selection Considerations: When specifying the 78462-01 module, evaluate the following project parameters: total number of monitored measurement points, sensor types and signal ranges, required data recording duration and trigger logic, DCS/SCADA integration protocols, environmental conditions (temperature, humidity, vibration exposure), and available rack space within existing 3300 monitoring systems. For complex multi-machine installations or retrofit projects, our application engineers can provide detailed system architecture recommendations and bill of materials. Submit your machinery specifications and monitoring objectives for customized configuration assistance.

Advanced Integration Capabilities

• Modbus TCP/IP & OPC UA Connectivity
  Native support for industrial Ethernet protocols enables seamless integration with modern plant information management systems, providing real-time data access for predictive analytics platforms and cloud-based condition monitoring services.
• Configurable Alarm & Trigger Logic
  User-programmable setpoints with hysteresis, rate-of-change detection, and multi-condition Boolean logic allow precise event capture tailored to specific machinery operating profiles and failure mode signatures.
• Synchronized Multi-Module Recording
  Time-stamped data acquisition across multiple 78462-01 modules within a single rack enables phase analysis, cross-channel correlation studies, and comprehensive machinery train diagnostics for complex rotating equipment assemblies.
• Embedded Web Server Interface
  Built-in configuration and diagnostic web pages accessible via standard browsers eliminate the need for proprietary software during commissioning, troubleshooting, and routine system health verification.

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed new units typically ship within 3-5 business days from stock. Custom-configured modules or quantity orders may require 2-3 weeks. Expedited processing available upon request.

Warranty Coverage: All Bently Nevada 78462-01 modules include a minimum 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services are available for critical applications.

Technical Support: Comprehensive installation and commissioning assistance provided, including remote configuration guidance, on-site startup services (region-dependent), and 24/7 technical hotline access for troubleshooting support.

Documentation Package: Each module ships with complete technical documentation including dimensional drawings, terminal wiring diagrams, configuration software user guides, calibration certificates (when applicable), and integration examples for common DCS platforms.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems with full traceability. Compliance documentation available for API 670, ATEX/IECEx hazardous area installations, and marine classification society approvals (ABS, DNV, Lloyd's).

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 78462-01 XDCR I/O record terminals module integrate with existing 3300 monitoring systems?
A: The 78462-01 is a direct plug-in module for standard 3300 series racks, utilizing the rack's -24 Vdc power supply and communication backplane. Installation requires inserting the module into an available rack slot, connecting sensor cables to the front terminal blocks, and configuring channel parameters via the 3300 system software or embedded web interface. No additional power supplies or communication gateways are required for basic operation.

Q: What is the maximum number of sensors that can be connected to a single 78462-01 module?
A: Each 78462-01 module provides four independent input channels, allowing connection of up to four sensors. For applications requiring monitoring of additional measurement points, multiple modules can be installed in the same 3300 rack with synchronized data acquisition and centralized configuration management.

Q: What level of energy savings or operational efficiency can be achieved with this monitoring module?
A: While the 78462-01 itself is a monitoring device rather than a control element, it enables significant operational cost reductions through predictive maintenance strategies. Typical implementations report 15-30% reduction in unplanned downtime, 20-40% decrease in maintenance costs through condition-based servicing, and extended equipment service life of 10-25% by detecting and addressing developing faults before catastrophic failure occurs.

Q: What are the environmental requirements for installing the 78462-01 module? What is its protection rating?
A: The module operates reliably in industrial environments with ambient temperatures from -30°C to +65°C and relative humidity up to 95% non-condensing. When installed in a standard 3300 rack enclosure, the system achieves IP20 protection rating (finger-safe, protected against solid objects >12.5mm). For harsh environments requiring higher ingress protection, the rack can be mounted in NEMA 4/4X or IP65-rated enclosures with appropriate ventilation and temperature management.

Q: Does the 78462-01 support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes, the module features Ethernet connectivity with native Modbus TCP/IP protocol support, enabling integration with SCADA systems, plant historians (OSIsoft PI, Honeywell PHD, etc.), and cloud-based analytics platforms. Optional RS-485 interface supports Modbus RTU for legacy systems. The embedded web server provides browser-based access to real-time data, configuration parameters, and diagnostic information without requiring proprietary client software.

Q: Is technical training available for installation and configuration of the 78462-01 module?
A: Comprehensive technical training programs are available through authorized Bently Nevada training centers, covering system architecture, sensor selection and installation, module configuration, data interpretation, and troubleshooting procedures. On-site training and commissioning support can be arranged for large-scale installations or critical machinery applications.

Request Technical Consultation & Quotation

To receive detailed system configuration recommendations, application-specific technical specifications, or commercial quotations, please provide the following project information: machinery type and operating parameters, number and types of sensors required, monitoring objectives and alarm criteria, existing control system architecture and communication protocols, environmental conditions and hazardous area classifications, and preferred delivery timeline. Our application engineering team will respond within one business day with customized solutions and technical support options.
