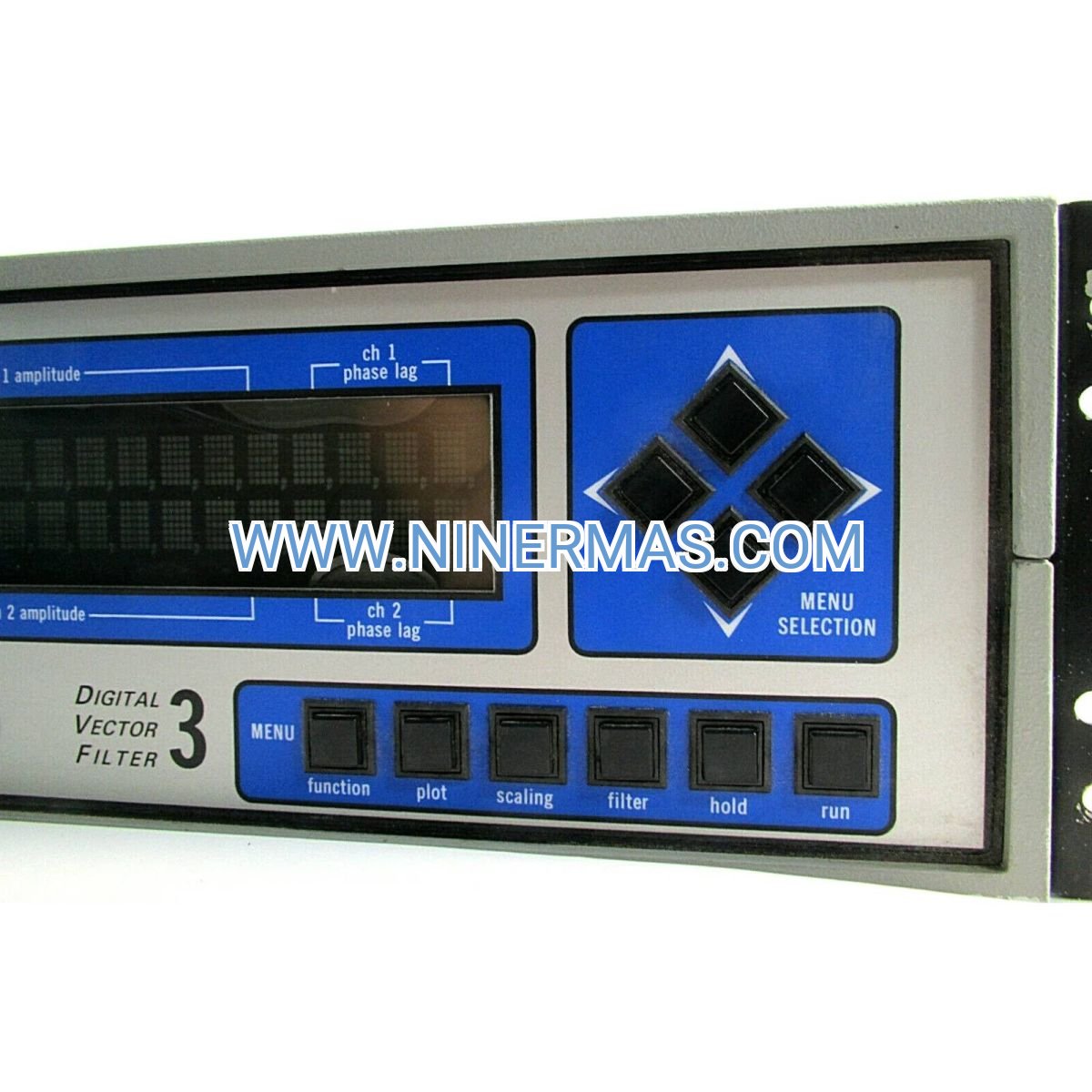

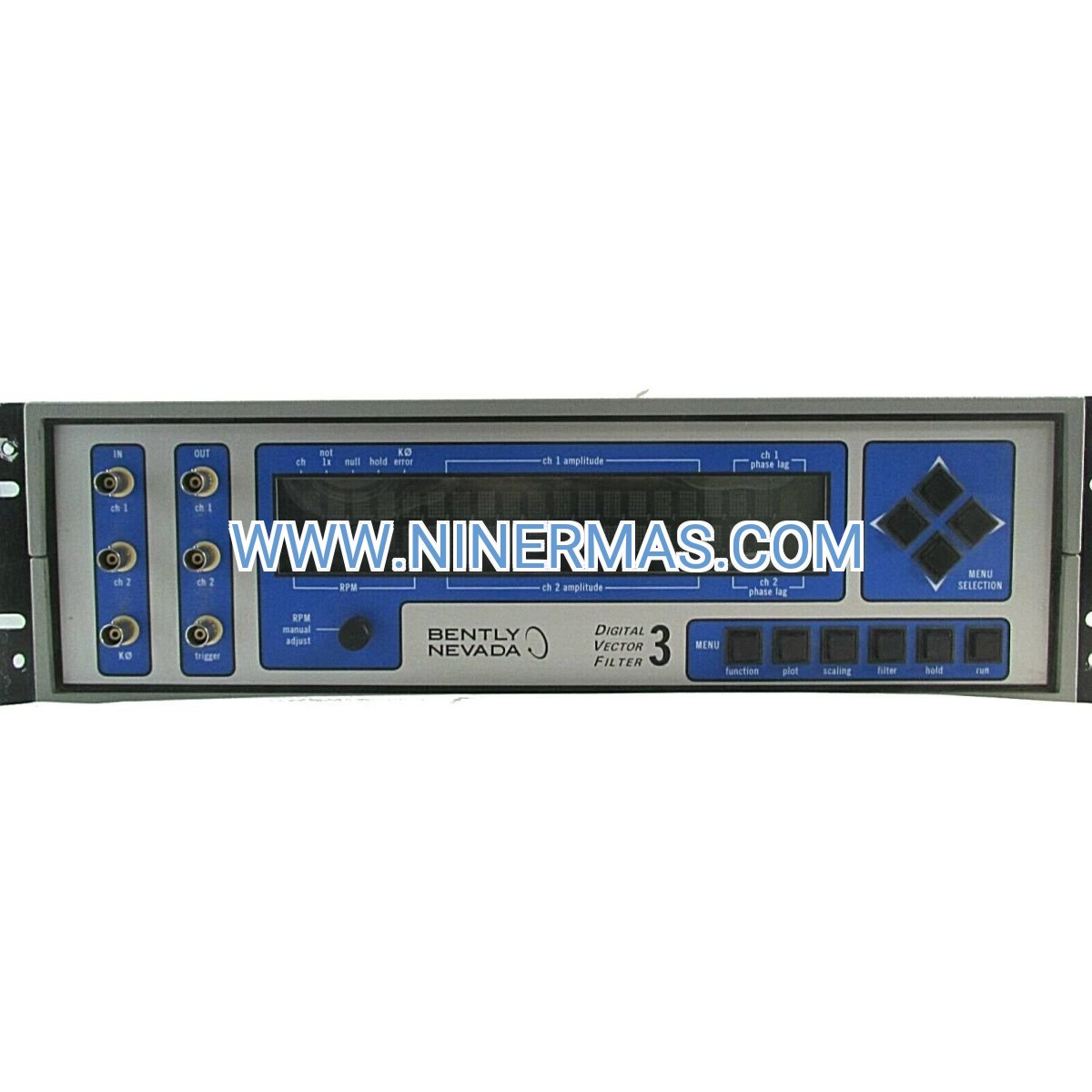

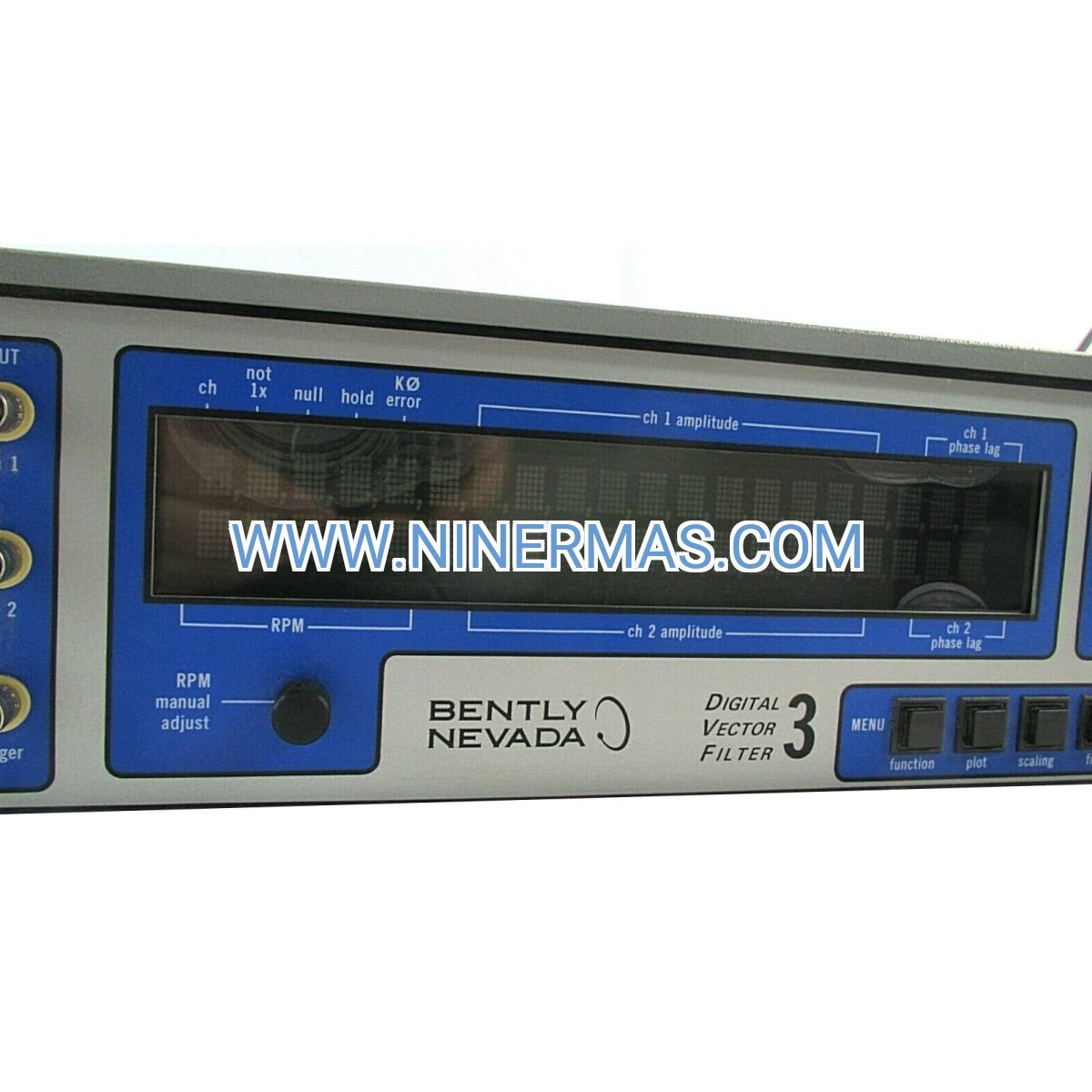

Bently Nevada 77581-02 Digital Vector Filter Module - Precision Vibration Signal Processing

The Bently Nevada 77581-02 Digital Vector Filter Module delivers advanced digital filtering capabilities for vibration monitoring systems in critical rotating machinery applications. Engineered for industrial environments requiring high-reliability signal conditioning and vector filtering of proximity probe signals.

Technical Specifications

• Model Number: 77581-02
• Function: Digital vector filtering and signal processing
• Input Channels: Multi-channel proximity probe interface
• Filter Type: Digital vector filter with programmable bandwidth
• Output Signal: Conditioned vibration vectors (X-Y displacement)
• Frequency Range: 0-10 kHz typical bandwidth
• Operating Temperature: -30°C to +65°C (-22°F to +149°F)
• Power Requirements: 24 VDC nominal (18-30 VDC range)
• Compliance: API 670, ISO 20816 compatible
• Mounting: Standard DIN rail or panel mount
• Dimensions: Compact modular design for rack integration

Key Features & Benefits

• ✓ Advanced Digital Filtering: Eliminates noise and harmonic interference for accurate vibration analysis
• ✓ Vector Processing: Simultaneous X-Y axis filtering for orbit analysis and shaft centerline monitoring
• ✓ Factory Calibrated: Pre-configured and tested to OEM specifications
• ✓ Hot-Swappable Design: Enables maintenance without system shutdown
• ✓ EMI/RFI Protection: Industrial-grade shielding for harsh environments
• ✓ Diagnostic LEDs: Real-time status indication for quick troubleshooting

Application Scenarios

The 77581-02 module is specifically designed for:

• Turbomachinery Monitoring: Steam turbines, gas turbines, compressors requiring continuous vibration surveillance
• Critical Rotating Equipment: Pumps, motors, generators in power generation and petrochemical facilities
• Condition-Based Maintenance: Predictive maintenance programs utilizing vibration trending and analysis
• API 670 Compliance: Machinery protection systems meeting industry standards for critical equipment
• Retrofit Applications: Upgrading legacy analog systems to digital monitoring platforms

Solutions & Integration

This module integrates seamlessly with Bently Nevada 3300 and 3500 series monitoring systems, providing:

• Direct compatibility with 8mm and 11mm proximity probes
• Interface with DCS/SCADA systems via 4-20mA or Modbus protocols
• Scalable architecture for multi-channel monitoring configurations
• Data output for vibration analysis software and trending tools

Common Technical Questions

Q: What is the difference between analog and digital vector filtering?
A: Digital vector filtering provides superior noise rejection, programmable filter characteristics, and eliminates drift associated with analog components. The 77581-02 offers 16-bit resolution for precise signal conditioning.

Q: Can this module work with non-Bently Nevada proximity probes?
A: While optimized for Bently Nevada probes, the module accepts standard -24V proximity probe outputs. Calibration verification is recommended for third-party sensors.

Q: What maintenance is required for the 77581-02?
A: The module is solid-state with no moving parts. Routine inspection of connections and verification of calibration annually or per plant procedures is recommended.

Q: Is this module suitable for hazardous area installations?
A: The standard 77581-02 is designed for safe area mounting. For hazardous locations, consult factory for intrinsically safe barrier requirements or certified enclosures.

Q: What is the typical lifespan of this module?
A: With proper installation and environmental conditions, the module has a design life exceeding 15 years. MTBF ratings are available in technical documentation.

Warranty & Support

All units include a 12-month manufacturer warranty covering defects in materials and workmanship. Technical support and application engineering assistance available worldwide.
