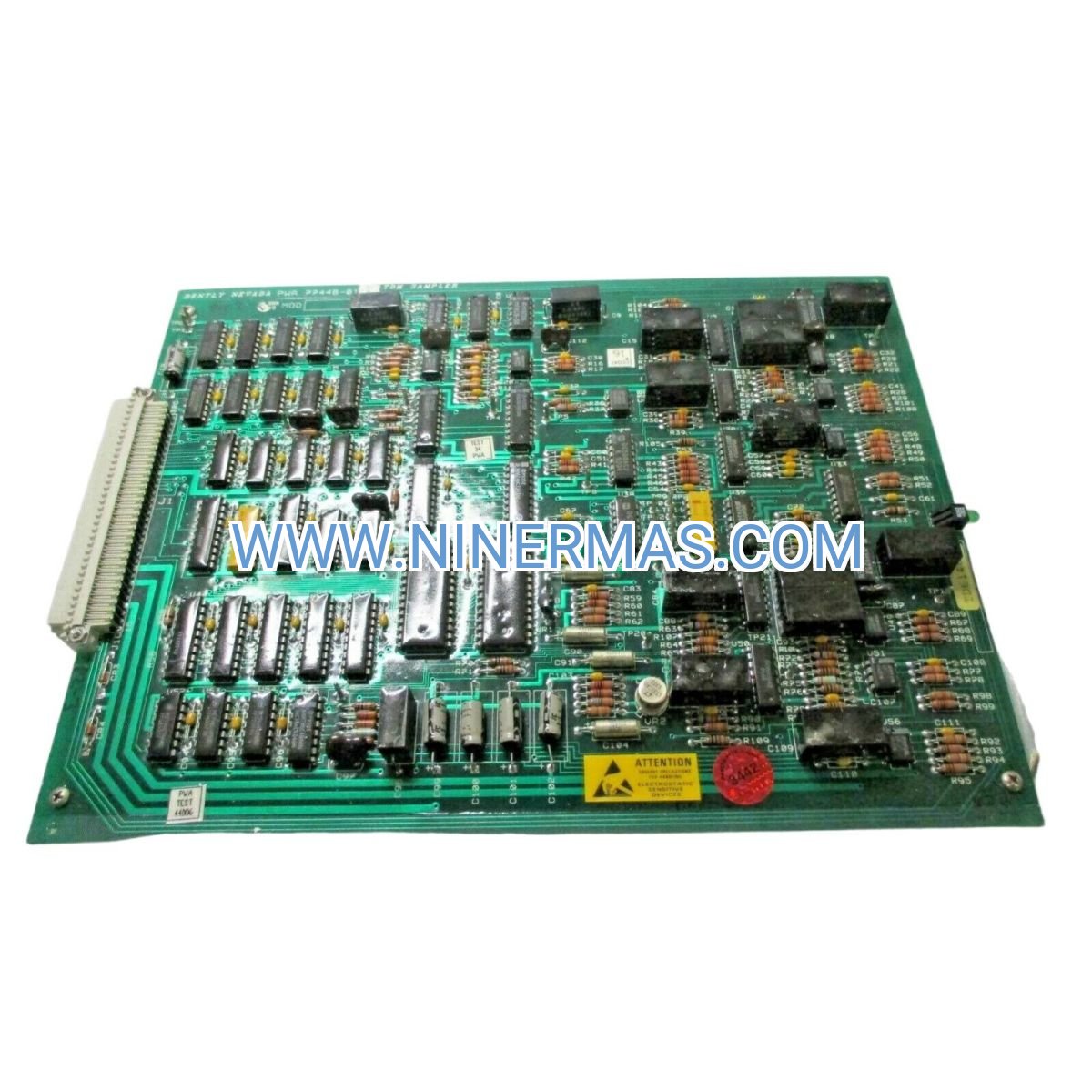

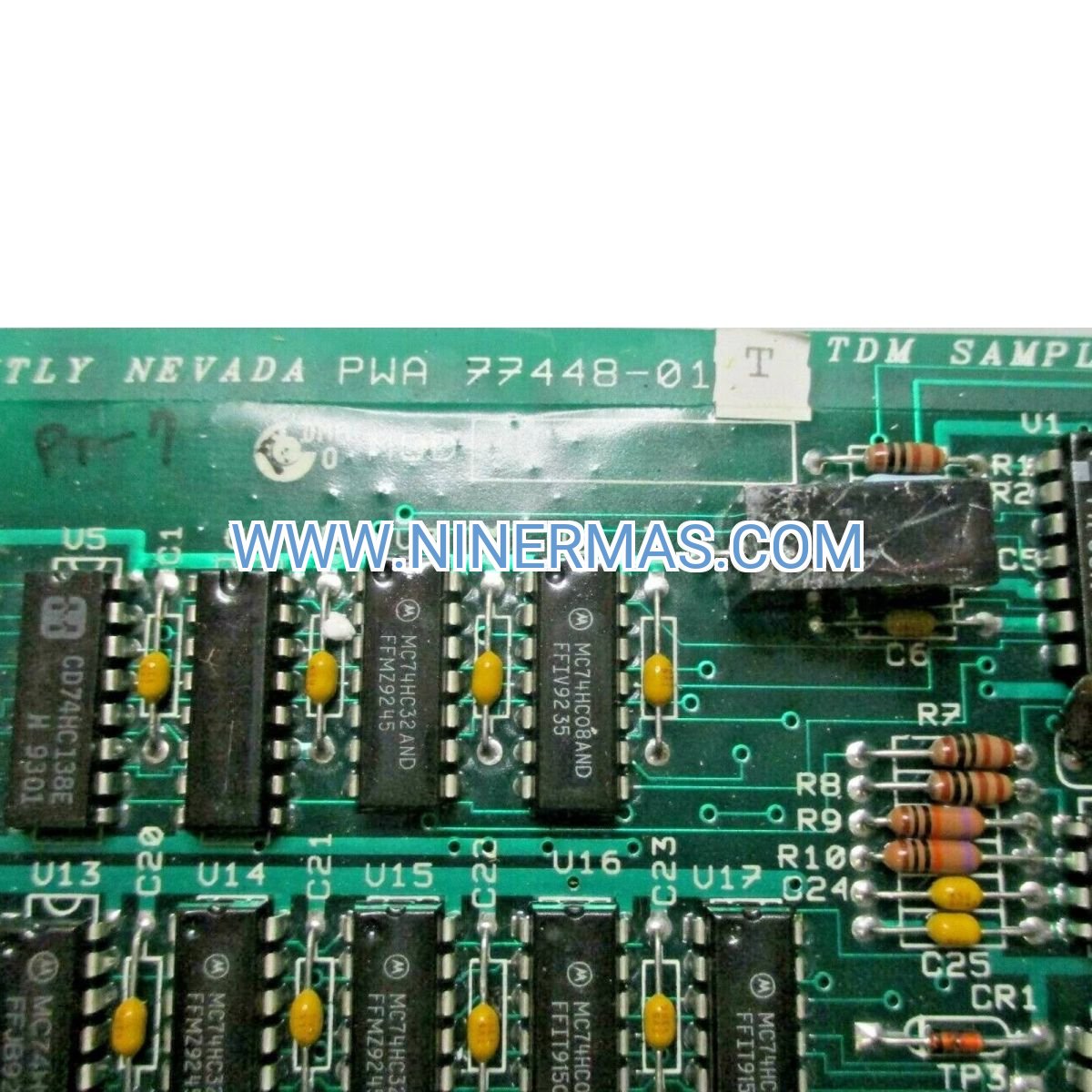

Bently Nevada 77448-01T Terminal Interface Module (Industrial-Grade Signal Isolation & Integration)

The Bently Nevada 77448-01T Terminal Interface Module is a professional-grade industrial control device designed for signal termination, isolation, and protocol conversion in vibration monitoring and machinery protection systems. Through integrated 1500VAC galvanic isolation and Modbus/Ethernet communication, it enables seamless data acquisition, remote monitoring, and system integration.

Ideal for power generation plants, petrochemical facilities, steel mills, paper mills, and heavy industrial environments, this module addresses critical challenges such as ground loop interference, signal noise, communication protocol incompatibility, and limited cabinet space. It ensures reliable signal integrity and protects sensitive monitoring equipment from electrical transients.

With standardized DIN rail mounting, compact footprint, and compatibility with Bently Nevada 3300/3500 series systems, the 77448-01T is suitable for design engineers, system integrators, maintenance teams, and end-user facilities. Contact our application engineers for customized selection guidance and technical support.

Core Features & Advantages

• High-Voltage Galvanic Isolation
  Provides 1500VAC isolation between field signals and monitoring systems, eliminating ground loops and protecting equipment from voltage surges and electrical noise in harsh industrial environments.
• Integrated Termination & Wiring Simplification
  Built-in terminal blocks accept direct field wiring from transducers and proximity probes, reducing installation time and minimizing wiring errors compared to traditional junction box configurations.
• Modbus TCP/IP & Ethernet Connectivity
  Native support for Modbus TCP and Ethernet/IP protocols enables direct integration with SCADA systems, DCS platforms, and plant-wide networks without additional gateways or converters.
• Space-Saving DIN Rail Design
  Compact form factor with standard 35mm DIN rail mounting allows flexible installation in crowded control cabinets, reducing panel footprint by up to 40% compared to rack-mount alternatives.
• Compatibility with Bently Nevada Ecosystem
  Fully compatible with 3300 XL and 3500 series monitoring systems, supporting seamless migration and retrofit projects without requiring system-wide reconfiguration.
• Robust Environmental Protection
  Operating temperature range of -30°C to +65°C, conformal coating for humidity resistance, and industrial-grade components ensure reliable operation in demanding conditions including offshore platforms and outdoor installations.

Typical Application Scenarios

This terminal interface module is engineered for applications requiring high signal integrity, electrical isolation, and network connectivity, particularly in:

• Turbine & Rotating Equipment Monitoring
  Connects vibration sensors, displacement probes, and speed sensors on steam turbines, gas turbines, compressors, and generators, providing isolated signal paths to prevent electrical interference from affecting critical machinery protection systems.
• Petrochemical & Refinery Process Units
  Interfaces with pump, compressor, and fan monitoring systems in hazardous area classifications (when used with appropriate barriers), enabling remote condition monitoring while maintaining electrical safety compliance.
• Power Plant Auxiliary Systems
  Monitors balance-of-plant equipment including feedwater pumps, induced draft fans, forced draft fans, and pulverizers, integrating vibration data into plant DCS for centralized asset health management.
• Steel & Metal Production Lines
  Provides isolated signal conditioning for rolling mill drives, continuous casters, and material handling equipment, where high electrical noise and ground potential differences are common.
• System Retrofit & Modernization Projects
  Enables legacy Bently Nevada 3300 systems to communicate with modern Ethernet-based control networks, extending asset life and avoiding costly complete system replacements.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide key specifications below. Custom configurations are available based on project-specific requirements.

Selection Recommendations:
When selecting the 77448-01T, consider the following factors: number and type of transducers to be connected, required isolation level based on ground potential differences, network architecture (Modbus vs. Ethernet/IP), available cabinet space and DIN rail capacity, ambient temperature range at installation location, and power supply availability. For complex applications or multi-channel systems, consult with our application engineers who can provide detailed I/O mapping, wiring diagrams, and system integration recommendations.

Extended Capabilities

• Redundant Network Configuration: Supports dual Ethernet ports on select variants for network redundancy in critical applications
• Diagnostic LEDs: Front-panel status indicators for power, communication, and fault conditions simplify troubleshooting
• Hot-Swappable Design: Allows module replacement without system shutdown in certain configurations (consult manual)
• Firmware Upgradability: Field-upgradable firmware via Ethernet connection ensures long-term supportability
• SNMP Support: Network management protocol support enables integration with enterprise IT monitoring systems

Delivery, Service & Quality Assurance

Lead Time: Standard stock items typically ship within 3-5 business days; custom-configured modules may require 2-3 weeks depending on specifications.

Warranty: Backed by manufacturer's standard warranty (typically 12-24 months from date of shipment); extended warranty options available upon request.

Technical Support: Comprehensive support including pre-sales application engineering, installation guidance, commissioning assistance, and post-sales troubleshooting. Remote support available; on-site service can be arranged for major projects (location-dependent).

Documentation Package: Each module ships with complete technical documentation including product datasheet, installation manual, wiring diagrams, Modbus register maps, quick-start guide, and compliance certificates. CAD drawings and 3D models available for panel design.

Quality Standards: Manufactured to ISO 9001 quality management standards; individual units undergo factory acceptance testing including isolation voltage testing, communication protocol verification, and environmental stress screening.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 77448-01T terminal interface module integrate with existing monitoring systems?
A: The 77448-01T connects directly to Bently Nevada 3300 XL or 3500 series monitors via standard terminal connections on the field side, while providing isolated Modbus TCP/IP or Ethernet/IP output on the network side. Integration requires configuring the module's IP address and Modbus register mapping to match your SCADA or DCS system requirements. Detailed integration guides and sample code are provided in the technical documentation.

Q: What is the maximum number of transducers that can be connected to a single 77448-01T module?
A: The channel capacity depends on the specific model variant and I/O configuration. Typical configurations support 4-8 isolated input channels. For applications requiring more channels, multiple modules can be installed on the same DIN rail and networked together. Consult the product datasheet or contact our engineers with your specific channel count requirements.

Q: What level of energy savings or performance improvement can be expected with this interface module?
A: While the 77448-01T itself is not an energy-saving device, it enables more effective condition-based monitoring and predictive maintenance strategies. By providing reliable, noise-free vibration data to your monitoring systems, it helps detect developing machinery faults earlier, preventing catastrophic failures that result in unplanned downtime and energy waste. Customers typically report 15-30% reduction in maintenance costs and improved equipment availability through better monitoring enabled by proper signal isolation.

Q: What are the environmental requirements for installing the 77448-01T terminal interface module?
A: The module is rated for industrial environments with operating temperatures from -30°C to +65°C and humidity up to 95% RH non-condensing. It features IP20 enclosure rating when properly installed in a control cabinet. For outdoor or harsh environment installations, ensure the module is mounted in a NEMA-rated enclosure with appropriate climate control. Conformal coating provides additional protection against moisture and contaminants. Avoid installation in areas with excessive vibration, corrosive gases, or explosive atmospheres unless used with appropriate barriers and certifications.

Q: Does the 77448-01T support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes, the module is specifically designed for remote monitoring applications. It supports Modbus TCP/IP and Ethernet/IP protocols over standard 10/100 Mbps Ethernet connections. This allows direct integration with most industrial SCADA systems, DCS platforms, and IoT gateways. The module can be accessed remotely over plant networks or via VPN connections for off-site monitoring. SNMP support enables integration with enterprise network management systems. For specific protocol implementation details and register mapping, refer to the communication protocol manual included with the product.

Q: Can the 77448-01T be used in hazardous area applications or explosive atmospheres?
A: The standard 77448-01T is designed for general industrial use (non-hazardous areas). For installations in classified hazardous locations (Class I Div 2, ATEX Zone 2, etc.), the module must be installed in an appropriately rated enclosure, or used in conjunction with approved intrinsic safety barriers on the field wiring side. Consult with our application engineers and provide your area classification details to ensure proper system design and compliance with local electrical codes and safety standards.

Request Selection Assistance & Quotation

To receive detailed selection recommendations, technical specifications, pricing, or application support, please provide the following information to our engineering team:

• Project name and application description
• Type and quantity of transducers/sensors to be connected
• Monitoring system model (e.g., Bently Nevada 3500/42M)
• Required communication protocol (Modbus TCP, Ethernet/IP, etc.)
• Installation environment conditions (temperature range, humidity, enclosure type)
• Quantity required and delivery timeline
• Any specific certifications or compliance requirements

Our application engineers will provide one-on-one consultation, system architecture recommendations, wiring diagrams, and competitive quotations tailored to your project requirements.
