Bently Nevada 72990-01 Signal Conditioning Module | Proximity Probe Interface | API 670 Compliant

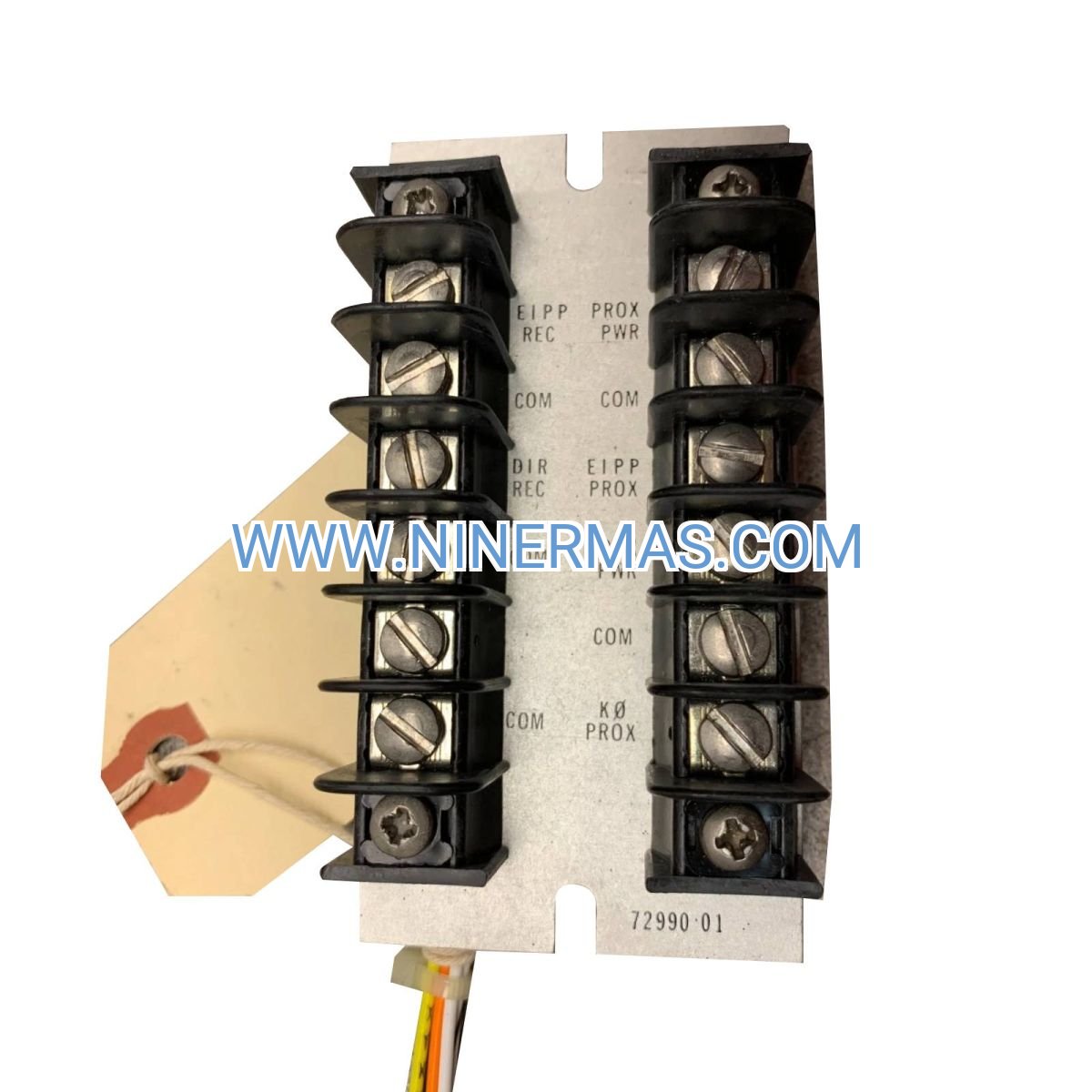

Bently Nevada 72990-01 Signal Conditioning Module (Industrial Proximity Probe Interface System)

The Bently Nevada 72990-01 is a precision signal conditioning module designed for industrial vibration monitoring and machinery protection systems. Through advanced analog signal processing and factory-calibrated proximity probe interfacing, it delivers accurate displacement measurement, real-time vibration analysis, and reliable machine health monitoring for critical rotating equipment.

Ideal for power generation plants, petrochemical facilities, oil & gas compressor stations, steel mills, and heavy industrial manufacturing environments, this module addresses challenges including sensor signal degradation, electromagnetic interference, measurement drift, inadequate bandwidth for high-frequency events, and integration complexity with legacy DCS/SCADA systems.

Featuring standardized design with flexible configuration options, the 72990-01 offers API 670 compliance, exceptional signal fidelity, plug-and-play installation, proven long-term stability, and comprehensive diagnostic capabilities—making it the preferred choice for instrumentation engineers, plant maintenance teams, OEM integrators, and reliability-focused facility operators. Contact our application engineers for customized system configuration and technical quotations.

Core Features & Technical Advantages

• Precision Signal Conditioning
  Factory-calibrated 200 mV/mil (7.87 mV/μm) output sensitivity with ±1% linearity ensures accurate displacement measurement from eddy current proximity probes, eliminating field calibration requirements and reducing commissioning time.
• Wide Frequency Response
  DC to 10 kHz (-3dB) bandwidth captures both slow thermal growth and high-frequency blade-pass events, providing complete visibility into machine dynamic behavior across all operating conditions.
• Extended Measurement Range
  40-mil (1.0 mm) linear range with 80-mil (2.0 mm) total range accommodates large shaft excursions during startup/shutdown transients while maintaining measurement accuracy during normal operation.
• API 670 Certification
  Fully compliant with API Standard 670 for machinery protection systems, meeting petroleum and chemical industry requirements for vibration monitoring in critical service applications.
• Comprehensive Protection Features
  Built-in transducer open/short detection, power supply monitoring, output fault indication, and EMI/RFI immunity reduce false trips and maintenance interventions in harsh industrial environments.
• System Integration Flexibility
  Standard ±10V buffered outputs interface directly with 7200 series monitors, PLC analog input cards, DCS systems, and portable data collectors, supporting both legacy and modern control architectures.

Typical Application Scenarios

This signal conditioning module is engineered for applications demanding high reliability, continuous operation, and precise vibration measurement, particularly in:

• Steam & Gas Turbine Monitoring
  Provides critical shaft displacement and vibration data for turbine-generator sets in power plants, enabling early detection of bearing wear, rotor unbalance, and alignment issues before catastrophic failure.
• Centrifugal Compressor Protection
  Monitors radial shaft position and vibration in multi-stage compressors for natural gas pipelines, LNG facilities, and air separation plants, protecting against surge, rub, and bearing failures.
• Large Motor & Pump Systems
  Ensures operational safety for critical pumps in refinery, chemical processing, and water treatment applications by continuously tracking shaft position, detecting cavitation, and identifying mechanical looseness.
• Industrial Gearbox Monitoring
  Captures gear mesh frequencies and bearing defect signatures in heavy-duty gearboxes for mining, cement, and steel production, supporting predictive maintenance programs and reducing unplanned downtime.
• Rotating Equipment Retrofits
  Upgrades aging machinery protection systems with modern signal conditioning while maintaining compatibility with existing proximity probes and cabling infrastructure, minimizing retrofit costs.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the 72990-01 module. Custom configurations are available to meet specific project requirements.

Selection Recommendations: When specifying the 72990-01, consider probe type and cable length (affects sensitivity), required measurement range based on expected shaft motion, output interface requirements for your monitoring system, available power supply voltage, and environmental conditions at installation location. For application-specific guidance, provide machinery type, operating speed range, probe specifications, and monitoring system details—our engineers will recommend optimal configuration and accessories.

Advanced Integration Capabilities

• Multi-Channel Rack Systems
  Integrates seamlessly into 7200 series 19-inch racks supporting up to 16 channels per chassis, enabling cost-effective monitoring of multiple measurement points with centralized power and grounding.
• Remote Monitoring & Diagnostics
  Compatible with Bently Nevada System 1 software and third-party condition monitoring platforms via analog output interface, supporting remote diagnostics, trend analysis, and predictive maintenance workflows.
• Redundant Configuration Support
  Dual-channel redundancy options available for critical machinery applications requiring SIL-rated protection systems and continuous operation during module maintenance or failure.
• Legacy System Upgrades
  Drop-in replacement for older 7200 series modules with backward compatibility, allowing phased modernization without complete system replacement or extended downtime.

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 3-5 business days; custom-configured systems require 10-15 business days lead time. All modules include minimum 12-month manufacturer warranty with extended coverage options available. We provide remote technical consultation and on-site commissioning support for major projects (regional availability applies).

Each unit ships with complete documentation package including calibration certificate, electrical connection diagrams, dimensional drawings, and installation/operation manual in English. Technical data files (CAD models, I/O specifications) available upon request to support engineering design and system integration.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 72990-01 signal conditioning module interface with existing proximity probe systems?
A: The 72990-01 accepts standard -24 VDC proximitor outputs and conditions them to industry-standard ±10 VDC buffered signals. It's compatible with 3300 XL 5mm and 8mm probe systems. Verify your probe type, cable length, and required sensitivity—our engineers can confirm compatibility and recommend any necessary adapters.

Q: What is the maximum number of channels supported in a single monitoring system?
A: A standard 7200 series rack accommodates up to 16 signal conditioning modules. For larger installations, multiple racks can be deployed with centralized monitoring. System architecture depends on machinery layout, cable routing constraints, and monitoring system requirements.

Q: What level of vibration reduction and measurement accuracy can be achieved?
A: The module provides ±1% linearity over the 40-mil range with <50 μV RMS noise floor, enabling detection of displacement changes as small as 0.25 mil (6 μm). Actual system accuracy depends on probe quality, installation practices, and environmental conditions—properly installed systems typically achieve ±2% total measurement uncertainty.

Q: What are the environmental requirements for installation? What is the protection rating?
A: The module is rated IP20 for control room rack-mount installation in environments from -30°C to +65°C with <95% non-condensing humidity. It requires clean, climate-controlled conditions—not suitable for direct field mounting. For harsh environments, install in NEMA-rated enclosures with appropriate climate control.

Q: Does the system support remote monitoring and data acquisition? Which protocols are compatible?
A: The 72990-01 provides analog voltage outputs that interface with most DCS, PLC, and SCADA systems via standard analog input modules. For digital connectivity, pair with Bently Nevada 1900/65A or 3500 series monitors that support Modbus TCP/IP, OPC, and proprietary protocols. We can recommend complete system architectures based on your plant network infrastructure.

Q: Can this module be used as a direct replacement for older 7200 series signal conditioners?
A: Yes, the 72990-01 maintains form-fit-function compatibility with legacy 7200 series racks and maintains identical pinout configurations. Verify power supply voltage settings and output scaling match your existing system configuration. Migration guides and retrofit support available for large-scale upgrades.

Request Technical Support & Quotation

For detailed application engineering, system configuration recommendations, or project quotations, please provide: project name and industry sector, machinery type and operating parameters, number of measurement points required, probe specifications and cable lengths, monitoring system interface requirements (analog/digital), power supply availability, and installation environment conditions. Our application engineers will deliver customized selection guidance and competitive pricing within 24-48 hours.
